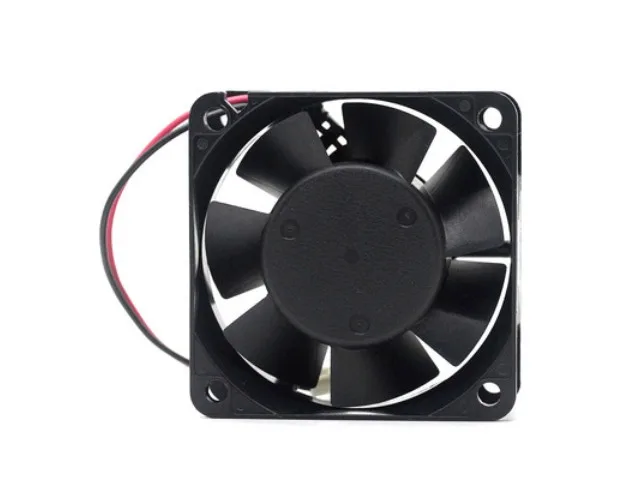

Square black 60 mm frame axial fan with centre hub and curved blades

Fans

Fans 2410ML-05W-40 6025 24V 0.12A case fan

SKU CH-BD2R-439K3 MPN 2410ML-05W-40

A 60 × 60 × 25 mm axial fan running at 4500 RPM delivers 21.3 CFM airflow at 33 dB noise on 24 V power

  • 3 CFM airflow cools tight spaces efficiently
  • 33 dB noise keeps operation quiet
  • 4500 RPM speed delivers strong cooling performance
  • 60×60×25 mm size fits standard 6025 mounts
  • 24 V 0.12 A power suits industrial and inverter systems

NMB 24V axial fan for industrial cooling

This NMB 2410ML-05W-40 axial fan runs on 24 V and draws 0.12 A for 3.08 W of power. It spins at 4500 RPM to deliver 21.3 CFM of airflow at 61.2 Pa static pressure. Acoustic output is rated at 33 dB. The 60 × 60 × 25 mm frame fits standard 6025 mounting patterns.

Suits 24 V systems needing 60 mm forced air

Engineers specifying 24 V DC cooling for medical, rail, EV or industrial equipment will match the voltage and current directly. Builders working on 12 V PC chassis or 5 V embedded boards cannot use this fan without a voltage converter. Buyers who need PWM speed control or tachometer feedback should verify the wire count before ordering.

24 V 0.12 A rating decides compatibility

The single specification that determines fit is the 24 V 0.12 A electrical rating. If the target system supplies exactly 24 V DC and can source at least 0.12 A the fan will operate at its rated 4500 RPM. Any other supply voltage will require a separate regulator or a different fan model.

Highlights

  • 3 CFM airflow cools tight spaces efficiently
  • 33 dB noise keeps operation quiet
  • 4500 RPM speed delivers strong cooling performance
  • 60×60×25 mm size fits standard 6025 mounts
  • 24 V 0.12 A power suits industrial and inverter systems

Specifications

No published specifications for this item yet.

Questions about this item

How do I mount the 6025 frame and which orientation mistake should I avoid?

Use the four corner holes on the 60*60*25MM housing; the arrow on the label must point toward the component you are cooling, otherwise airflow reverses.

What part will need replacement first on the 2410ML-05W-40?

The sleeve bearing is the wear item; when noise rises above the rated 33DB the fan should be swapped.

At 4500 RPM what limit appears first during continuous 24V 0.12A operation?

Bearing temperature rise eventually increases friction, pushing acoustic output past the specified 33DB threshold.
