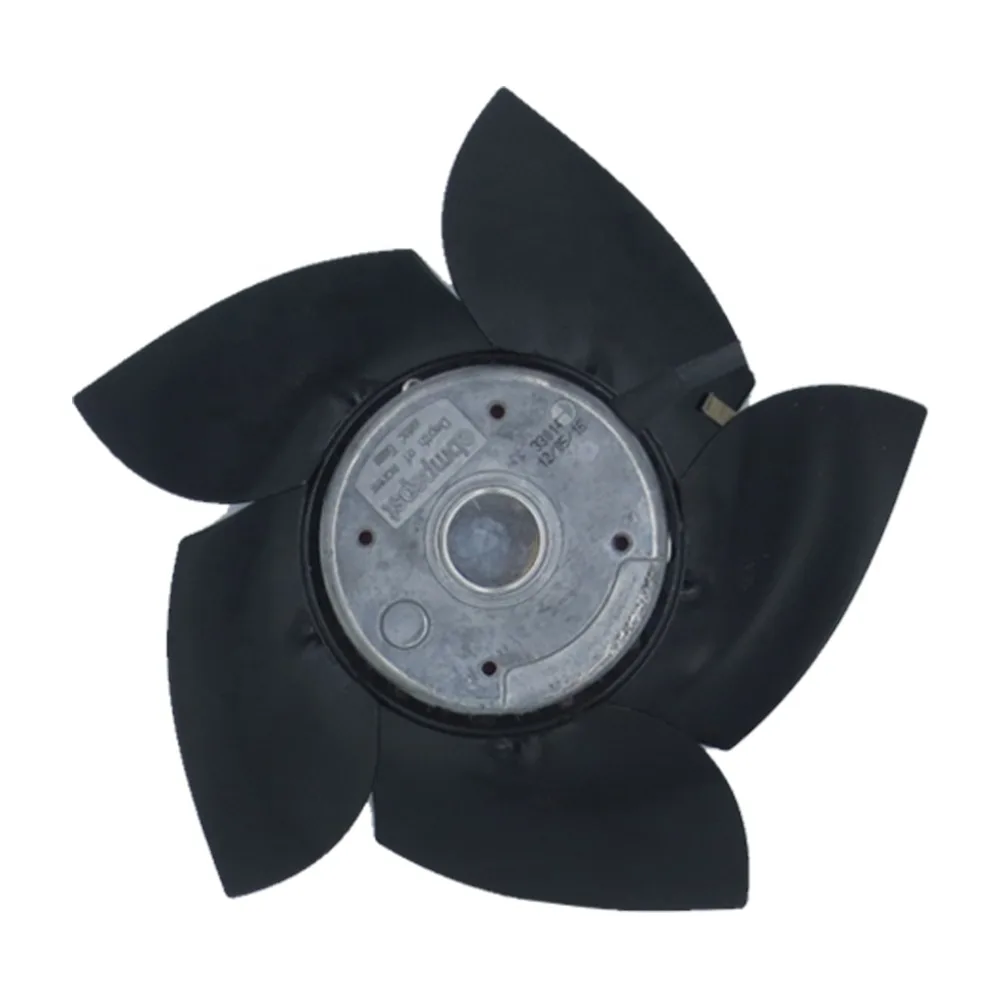

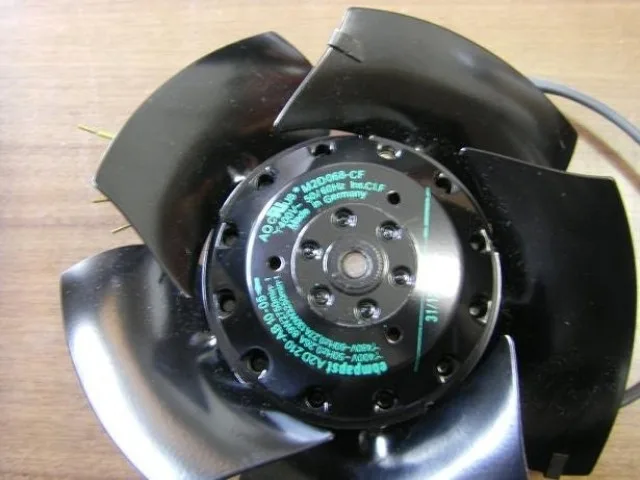

210 mm axial case fan, metal housing, industrial finish

Fans

Fans 210mm 400/480V AC Axial Case Fan

SKU CH-Y9M2-VR539

Three-phase 400-480 V AC axial fan with 210 mm diameter, 2750-3250 rpm and up to 35000 m³/h airflow

  • 3-phase 400/480 V AC power for industrial voltage compatibility
  • 2750 rpm at 50 Hz and 3250 rpm at 60 Hz for flexible frequency operation
  • 89 W at 50 Hz and 130 W at 60 Hz for efficient power draw
  • External rotor motor in 210 mm frame for compact installation depth
  • CE approved with GreenTech EC technology enabling 100 % speed control

Industrial 210 mm Axial Fan

This 210 mm axial fan from ebm-papst is built for three-phase 400 or 480 VAC supplies and suits industrial enclosures, heat-exchanger ducts and high-airflow cooling systems where a compact external-rotor motor is required. It delivers up to 35000 m³/h of air movement with a sturdy steel-plate frame.

Integration Requirements

The fan operates at 50 or 60 Hz in Y-wiring configuration and needs a three-phase mains connection matched to the 400 V or 480 V nominal voltage. Its shallow installation depth saves space inside cabinets while the external-rotor design leaves the centre free for ducting or heat-exchanger cores. Speed can be adjusted 100 per cent via analogue or serial interface for simple open-loop control.

Thermals, Noise and Power Draw

At 50 Hz the motor runs at 2750 min⁻¹ drawing 0.26 A and consuming 89 W; at 60 Hz it reaches 3250 min⁻¹ with 0.27 A and 130 W. The unit is rated for ambient temperatures down to -25 °C and carries CE approval, while the external-rotor construction keeps noise low for forced electronic cooling in continuous operation.

Highlights

  • 3-phase 400/480 V AC power for industrial voltage compatibility
  • 2750 rpm at 50 Hz and 3250 rpm at 60 Hz for flexible frequency operation
  • 89 W at 50 Hz and 130 W at 60 Hz for efficient power draw
  • External rotor motor in 210 mm frame for compact installation depth
  • CE approved with GreenTech EC technology enabling 100 % speed control

Specifications

No published specifications for this item yet.

Questions about this item

What is the maximum airflow this 210 mm fan can deliver at full speed?

The fan moves up to 35000 m³/h of air when running at its rated speed.

How much power does the fan draw and what noise level should I expect during continuous operation?

Power consumption is 89 W at 50 Hz and 130 W at 60 Hz; the supplier notes a low noise level as a key feature.

What voltage supply and wiring configuration are required to run this three-phase axial fan?

It operates on 400 V or 480 V AC three-phase with a Y wiring connection at 50 Hz or 60 Hz.
