Eyemax XIB-2022-W HD-SDI 1080p analog camera

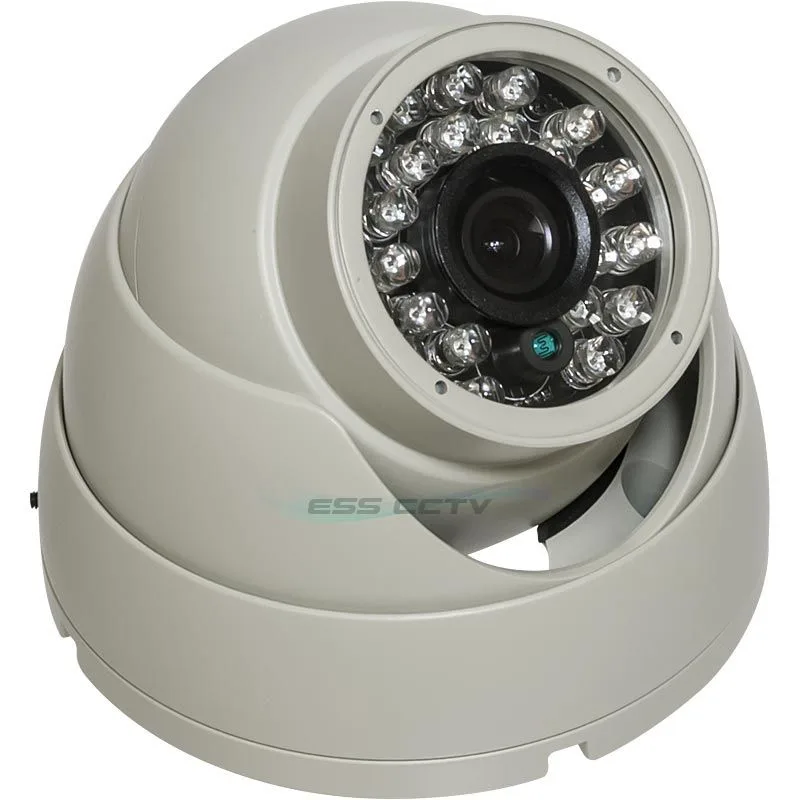

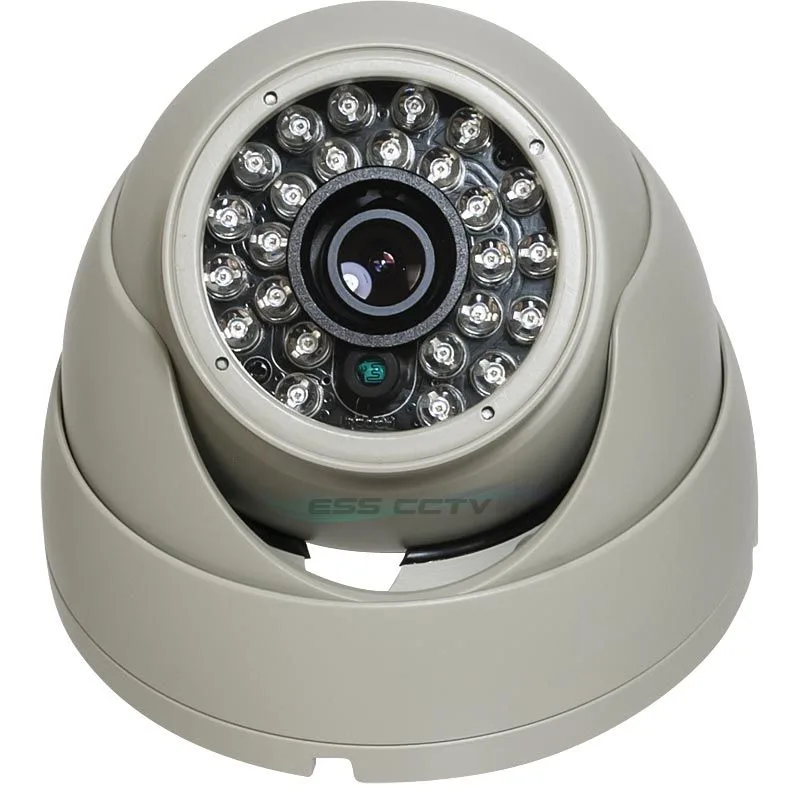

Wired HD-SDI Eyeball Dome Camera

The Eyemax XIB-2022-W is a wired analog surveillance camera that delivers 1080p high-definition video over HD-SDI. It uses a 1/3 inch Sony CMOS sensor and a 4.3 mm fixed megapixel lens to capture detailed footage. The white eyeball dome housing meets IP67 water-resistant standards for outdoor mounting. This camera suits installers who need a straightforward coaxial solution for 2 megapixel monitoring.

Cabling And Power Requirements

Verify that the installation site can provide DC 12V power because the supply is sold separately. The manufacturer recommends RG59 or RG6 coaxial cables with crimp or compressed connectors for reliable HD-SDI signal transmission. Ensure the recorder or DVR accepts HD-SDI input at 1080p or 720p resolution. The fixed 4.3 mm lens offers a set field of view that cannot be adjusted after mounting.

Sustained Outdoor Operation

Twenty-five smart IR LEDs activate automatically in 0 lux conditions to provide night vision with true day and night switching via an ICR mechanism. Digital noise reduction helps maintain cleaner images during continuous low-light recording. The upgraded IP67 housing protects internal components from dust and water ingress during extended exposure. The camera is designed for constant wired operation rather than intermittent use.
