Handheld 5.4 inch touchscreen CCTV tester with multiple BNC and network ports

Eyemax

Eyemax M9500 5.4" 4K CCTV camera tester

SKU CH-MA39-RCCYG MPN M9500

Tests 8MP TVI, AHD, CVI and EX-SDI cameras at up to 30 FPS and IP streams at 4K on a 5.4 inch IPS touch screen

  • TypeWired Camera
  • 4 inch IPS touch screen gives clear 1920 by 1152 viewing
  • 8MP TVI, AHD, CVI and EX-SDI testing at 3840 by 2160 resolution
  • H.265 and H.264 IP support enables 4K video display via mainstream
  • Rapid ONVIF auto logs in and creates testing reports
  • HDMI input accepts up to 4K 30FPS with snapshot and recording

CCTV Camera Tester with 5.4" Touch Screen

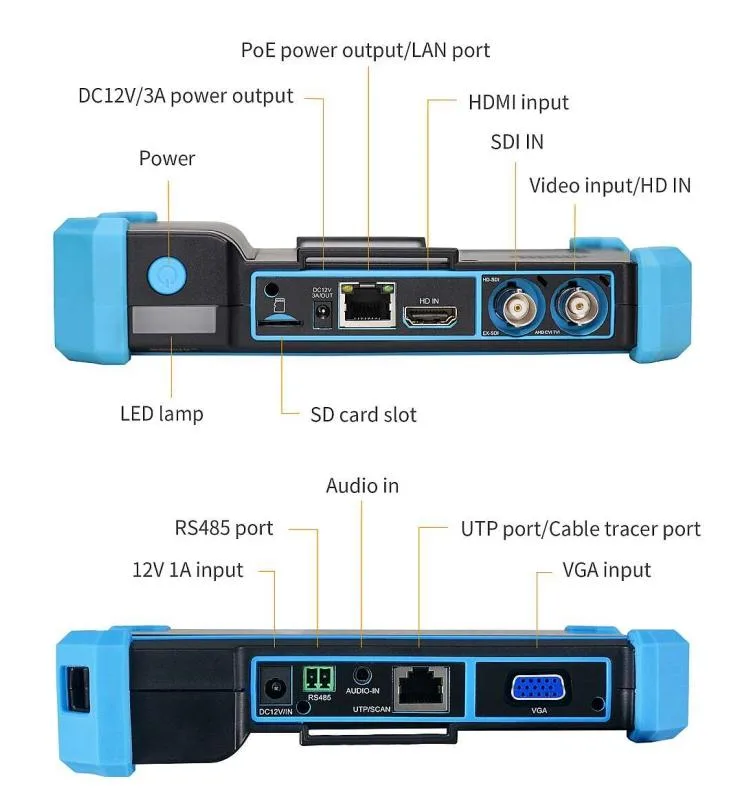

The Eyemax M9500 is a handheld 5.4 inch IPS touch screen tester designed for installers working with analogue and IP surveillance systems. It supports TVI, AHD, CVI, EX-SDI, HD-SDI, 3G-SDI and IP camera formats in a single unit. The display resolution is 1920 by 1152, and the device handles 4K video display via mainstream H.265 and H.264 streams. Coaxial PTZ control and OSD menu access are built in.

Suited for Multi-Format Installers.

This tester suits engineers who need to verify coaxial and IP cameras on site without carrying multiple monitors. Auto HD app recognition identifies coax camera type and resolution automatically, while Rapid ONVIF and IPC Test Pro scan network segments and log in to IP devices. It is not intended for installers who work exclusively with wireless or battery-powered cameras that lack coaxial or wired network connections.

8MP Coax and 4K IP Headroom.

The unit displays 8MP TVI, AHD, CVI and EX-SDI signals at 3840 by 2160, with frame rates of 12.5, 15, 25 or 30 depending on format. HD-SDI and 3G-SDI are tested at 1080P up to 60 FPS. HDMI input accepts 4K at 30 FPS and VGA input reaches 1920 by 1200 at 60 FPS. Video record, playback and snapshot functions are available across all inputs, but 4K output does not exceed 30 FPS.

Highlights

  • 4 inch IPS touch screen gives clear 1920 by 1152 viewing
  • 8MP TVI, AHD, CVI and EX-SDI testing at 3840 by 2160 resolution
  • H.265 and H.264 IP support enables 4K video display via mainstream
  • Rapid ONVIF auto logs in and creates testing reports
  • HDMI input accepts up to 4K 30FPS with snapshot and recording

Specifications

TypeWired Camera

Questions about this item

What camera types and resolutions does the M9500 tester support for coaxial PTZ control and OSD menu access?

The M9500 supports 8MP TVI at 12.5/15 FPS, 8MP AHD at 15 FPS, 8MP CVI at 12.5/15 FPS, 8MP EX-SDI at 25/30 FPS, HD-SDI at 1920 x 1080P 25/30/50/60 FPS, and 3G-SDI at 1920 x 1080P 50/60 FPS, all with 4x zoom, video record, playback, coaxial PTZ control, and OSD menu access.

Can the M9500 display video from an existing HD-SDI or 3G-SDI camera system during an upgrade?

Yes, the M9500 tests HD-SDI at 1920 x 1080P up to 60 FPS and 3G-SDI at 1920 x 1080P at 50/60 FPS, with 4x zoom, video record, playback, coaxial PTZ, and OSD menu support for both signal types.

How do I confirm the M9500 is correctly displaying a 4K IP camera stream after setup?

The 5.4 inch IPS touch screen shows 4K video via mainstream at 3840 x 2160 resolution using H.265 or H.264 decoding, and the Rapid ONVIF function auto-logs in to display the image and create a testing report.
