Silver rack-mount network switch with 48 RJ-45 ports and four SFP+ slots

Extreme Networks

Extreme Networks 5420F16MW32P4XE 48-port network switch

SKU CH-F1EG-C55AR MPN 5420F16MW32P4XE

A 48-port switch with 16 multi-rate 90W PoE ports, 32 Gigabit 30W PoE ports and four 1/10G SFP+ uplinks, managed by Extreme Platform ONE or cloud

  • Management InterfaceInterfaces: 16 x 100M/1G/2.5GBASE-T 802.3bt (90W) ports MACs
  • PoEYes
  • PoE Power Budgetwith single internal fixed PSU: 860W*/960W** with recommende
  • PowerInternal Fixed Power Supply Unit: 1200W AC PSU
  • Max Power Consumption2152W
  • DimensionsHeight: 43.7 mm (1.7 in.) Width: 441.0 mm (17.4 in.) Depth:

Model 5420F-16MW-32P-4XE

Struck-through versions exist but are not stocked here.

  • 16 ports deliver up to 90W each for high-power devices
  • 32 ports provide 30W PoE+ for standard endpoints
  • 4 SFP+ uplinks enable 10Gb fibre connectivity
  • 1200W internal PSU supports 860W to 1862W PoE budget
  • Stackable design with cloud management simplifies network operations

48-port switch with 90W PoE

The Extreme Networks 5420F16MW32P4XE delivers 48 copper ports in a 1U chassis. Sixteen ports supply up to 90W each under 802.3bt while thirty-two ports provide 30W under 802.3at. Four unpopulated SFP+ slots handle 1 or 10Gb uplink modules. The unit ships new with a fixed 1200W internal supply.

PoE budget depends on mains voltage

With the single internal supply the available PoE budget is 860W at 100-120VAC or 960W at 200-240VAC. Adding the recommended secondary supply raises those limits to 1425W and 1862W respectively. Maximum system draw reaches 2152W so the upstream circuit must be sized accordingly. All ports are MACsec-capable.

Sixteen 2.5G ports set the density limit

Only the sixteen multi-rate ports negotiate 2.5Gbps; the remaining thirty-two copper ports top out at 1Gbps. Buyers needing 2.5G on every access port will need a different model. The four SFP+ uplinks and two stack ports use separate SFP+ and SFP-DD slots not counted in the 48-port total.

Highlights

  • 16 ports deliver up to 90W each for high-power devices
  • 32 ports provide 30W PoE+ for standard endpoints
  • 4 SFP+ uplinks enable 10Gb fibre connectivity
  • 1200W internal PSU supports 860W to 1862W PoE budget
  • Stackable design with cloud management simplifies network operations

Specifications

BrandExtreme Networks
Series5420 Series
Model5420F-16MW-32P-4XE
Part Number5420F-16MW-32P-4XE
Management InterfaceInterfaces:
16 x 100M/1G/2.5GBASE-T 802.3bt (90W) ports
MACsec-capable
32 x 10/100/1000BASE-T 802.3at (30W) ports
Full / Half-Duplex(autosensing)
MACsec-capable
4 x 1/10Gb SFP+ uplink ports(unpopulated)
MACsec-capable
2 x Stacking/SFP-DD ports* (unpopulated)
1 x Serial console port (RJ-45)
1 x 10/100/1000BASE-T out-of-band management port
2 x USB A ports for management or external USB flash
1 x USB Micro-B console port
PoEYes
PoE Power Budgetwith single internal fixed PSU: 860W*/960W**
with recommended secondary PSU: 1425W*/1862W**
* @ 100-120 VAC
** @ 200-240 VAC

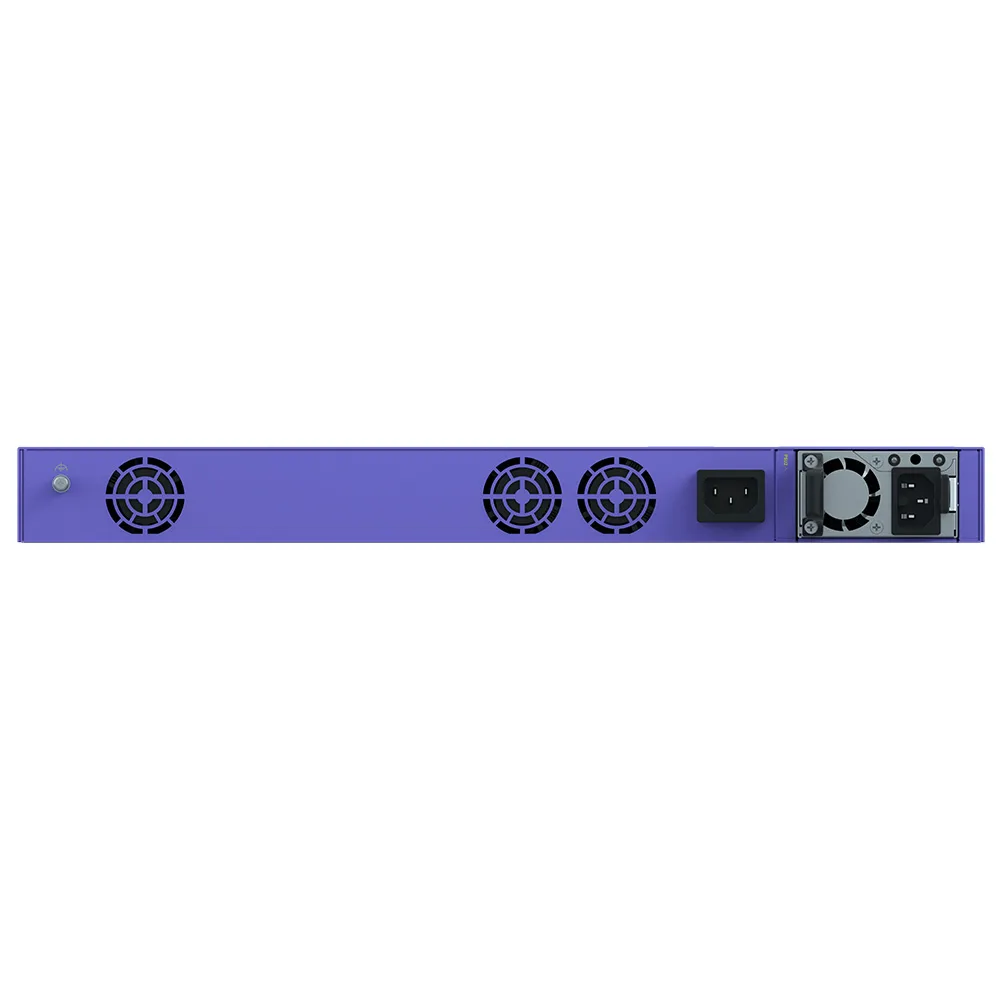

PowerInternal Fixed Power Supply Unit: 1200W AC PSU
Max Power Consumption2152W
DimensionsHeight: 43.7 mm (1.7 in.)
Width: 441.0 mm (17.4 in.)
Depth: 330.20 mm (13.0 in.)
Weight5.30 kg (11.68 lb.)
Shipping weight8.62 kg
Package size554 × 480 × 156 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the 90 W or 30 W PoE ports for my access points?

Use the sixteen 2.5 GbE ports when devices need up to 90 W; use the thirty-two 1 GbE ports for gear that only needs up to 30 W.

What does the 860 W PoE budget mean once the switch is rack-mounted?

At 100-120 VAC the single internal 1200 W PSU delivers 860 W for PoE; at 200-240 VAC it delivers 960 W. Adding the recommended second PSU raises those limits to 1425 W and 1862 W respectively.

Are the four SFP+ uplink ports limited to 1 GbE or can they run at 10 GbE?

Each SFP+ slot accepts 1 GbE or 10 GbE transceivers, so uplinks can operate at either speed depending on the module you install.
