Evolis

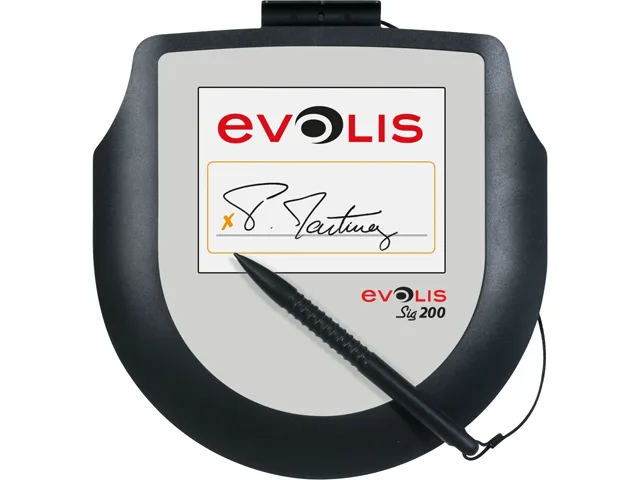

Evolis Sig200 ST-CE1075-2-UEVL 5" color LCD signature pad USB
A 5.00 inch colour LCD signature pad with 640 x 480 resolution, 1024 pressure levels and USB connectivity for secure handwritten capture
- ColorBlack
- InterfacesUSB
- Backlit OptionYes
- Signing Area SizeDiagonal: 5.00" (12.70 cm) Display: Color Pixel size: 0.0529
- Resolution640 x 480 pixels
- ConnectivityWired
- Capture signatures quickly on a 5.00" colour LCD with 640 x 480 resolution
- Display promotional images on the pad using programmable memory for up to 10 slideshow images
- Sign naturally with 1024 pressure levels and 500 samples per second external sampling rate
- View signatures in real time on both the pad and the connected PC screen
- Slim 0.59" profile fits neatly on any counter or desk workspace
5" Color LCD Signature Pad for Countertop Use
The Evolis Sig200 ST-CE1075-2-UEVL captures handwritten signatures on a 5.00 inch color TFT display with 640 x 480 resolution. It connects via USB for wired integration with point-of-sale systems. The active signing area measures 100 x 75 mm, providing space for natural signature capture on a desk or counter.
1024 Pressure Levels and 500 Samples Per Second
The resistive digitizer records 1024 levels of pressure at an external sampling rate of 500 samples per second. Linearity is rated at +/- 1.5 % in x, y and z directions. The device stores up to 10 standby images for slideshow display, supporting promotional content alongside the signing workflow.
USB Interface Limits Cable Length and Power
The wired USB connection supplies both data and power without an external adapter. Cable reach is constrained by the USB standard, so the pad must remain near the host PC. No wireless or network interfaces are present, limiting deployment to tethered countertop or desktop scenarios.
Highlights
- Capture signatures quickly on a 5.00" colour LCD with 640 x 480 resolution
- Display promotional images on the pad using programmable memory for up to 10 slideshow images
- Sign naturally with 1024 pressure levels and 500 samples per second external sampling rate
- View signatures in real time on both the pad and the connected PC screen
- Slim 0.59" profile fits neatly on any counter or desk workspace
Specifications
| Brand | Evolis |
|---|---|
| Model | Sig200 |
| Part Number | ST-CE1075-2-UEVL |
| Color | Black |
| Interfaces | USB |
| Backlit Option | Yes |
| Signing Area Size | Diagonal: 5.00" (12.70 cm) Display: Color Pixel size: 0.0529 x 0.1587 mm Display area: 101.00 x 76.00 mm |
| Resolution | 640 x 480 pixels |
| Connectivity | Wired |
| Dimensions | 0.59" x 7.52" x 7.08" |
| Weight | 0.79 lb. |
| Features | Touch sensitive screen: Active signing area: 95 x 47 mm (Sig100) / 100 x 75 mm (Sig200) Linearity: +/- 1,5 % in x, y and z directions 1024 pressure levels Digitization: External sampling rate: 500 samples per second, 4 axes (x, y, time and pressure) Internal sampling rate: 6000 samples per second Resolution: 1040 dpi not interpolated Interfaces: Full-speed (12 Mbps) USB 2.0 HID (Human Interface Device) compatible with earlier versions Plug and Play: no special drivers required Security: AES encryption of data transfer between the pad and the computer RSA signature and RSA encryption |
| Shipping weight | 1.27 kg |
| Package size | 242 × 231 × 66 mm |
Questions about this item
Does the 100 x 75 mm active area work well with a compact USB receipt printer on the same counter?
The pad measures 191 mm wide by 180 mm deep and sits 15 mm high, leaving room for a small printer beside it on a standard counter.
How can I verify the USB link and display are operating correctly after plugging it in?
The screen shows a standby slideshow of up to 10 images and signatures appear on the pad and the PC screen in real time, confirming the connection.
Is a stylus included or must I order one separately?
A tethered stylus is supplied with the unit; no separate purchase is required for basic signature capture.
