Evertech USA
Evertech USA 2.4MP 1080P AHD/TVI/CVI/Analog Dome Camera 2.8-12mm 98ft IR White 4-Pack
Four weather-resistant dome cameras with 2.8-12mm varifocal lenses, 1920x1080 resolution and 98ft IR night vision, compatible with AHD, TVI, CVI and analog DVRs
- ColorWhite
- Camera Type2MP, Vari-Focal Lens, Dome
- TypeDome Camera
- 4 MP resolution delivers sharp 1920 x 1080 video
- 8-12 mm vari-focal lens adjusts the field of view
- 98 ft SMD IR illumination keeps objects visible at night
- AHD TVI CVI Analog output works with existing DVRs via DIP switch
- Weatherproof vandal-resistant metal housing suits indoor or outdoor mounting

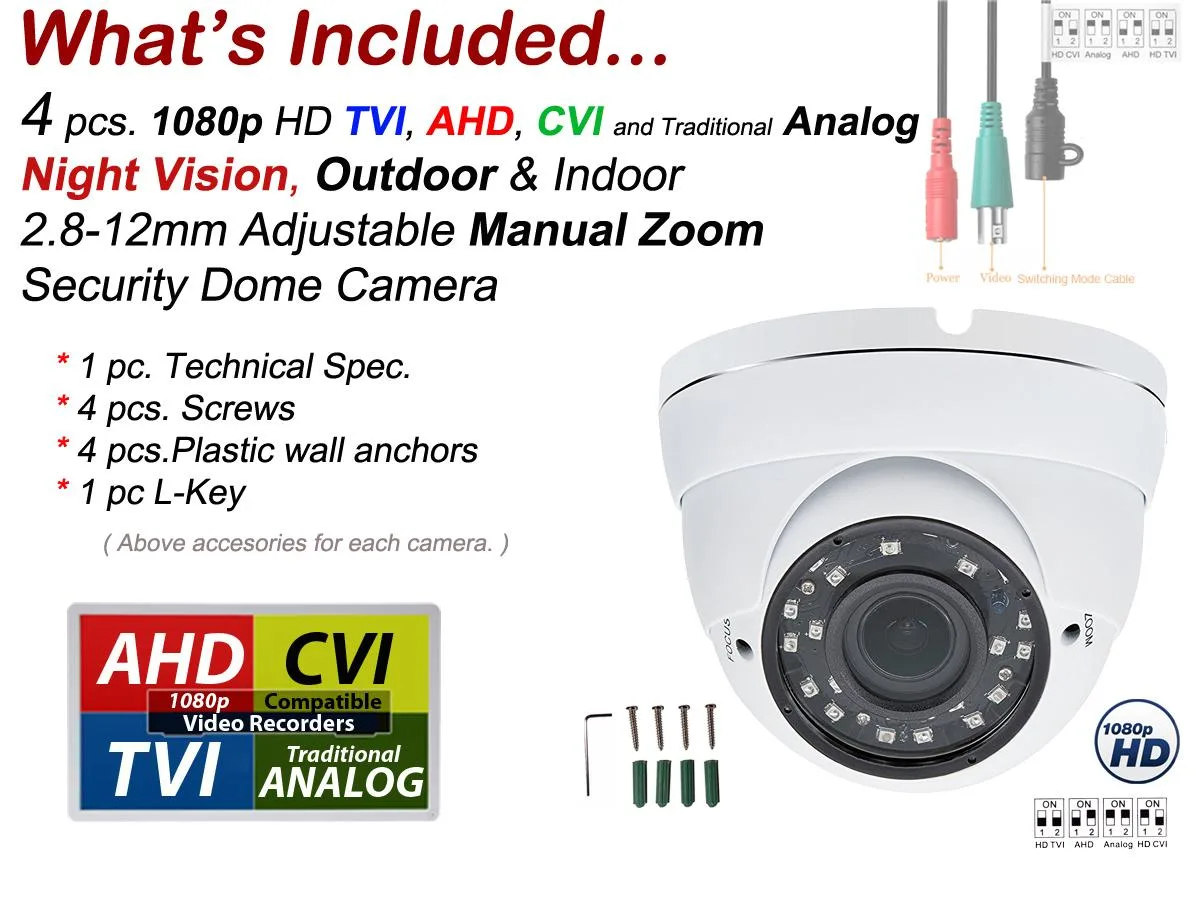

Four-camera 1080p analog dome kit
This pack contains four white dome cameras rated for indoor and outdoor use. Each unit delivers 1920 x 1080 resolution through a 2.8-12 mm manual varifocal lens. The metal housing is weatherproof and vandal-resistant, and a three-axis bracket allows wall or ceiling mounting.
Installers needing multi-format 1080p analog
The cameras output AHD, TVI, CVI or CVBS via a DIP switch, so they suit recorders that accept any of those analog HD standards. Buyers who require IP networking, PoE power or resolutions above 1080p should look at a different product line.
Sustained outdoor operation with 98 ft IR
SMD-type IR LEDs illuminate subjects up to 98 ft in darkness for continuous night monitoring. The sealed metal casing resists rain and dust during extended exposure. Each camera runs on 12 V DC and measures 118 mm in diameter by 90 mm in height.
Highlights
- 4 MP resolution delivers sharp 1920 x 1080 video
- 8-12 mm vari-focal lens adjusts the field of view
- 98 ft SMD IR illumination keeps objects visible at night
- AHD TVI CVI Analog output works with existing DVRs via DIP switch
- Weatherproof vandal-resistant metal housing suits indoor or outdoor mounting
Specifications
| Color | White |
|---|---|
| Camera Type | 2MP, Vari-Focal Lens, Dome |
| Type | Dome Camera |
Questions about this item
What DVR input and power supply do I need for these four AHD/TVI/CVI/Analog dome cameras?
Each camera requires a 12V DC power source and a DVR that accepts 1080p AHD, TVI, CVI or CVBS signals; the DIP switch on the camera sets the video mode to match your recorder.
Can I keep my existing analog CVBS recorder and still use these cameras at 1080p?
The cameras output 1920 x 1080 over AHD, TVI or CVI; they fall back to standard analog CVBS only at lower resolution, so a CVBS-only DVR will not record 1080p.
How do I verify the vari-focal lens and IR are working after mounting?
Adjust the 2.8-12mm zoom and focus rings until the 1920 x 1080 image is sharp, then confirm night vision illuminates objects out to 98ft with the SMD IR LEDs active.
