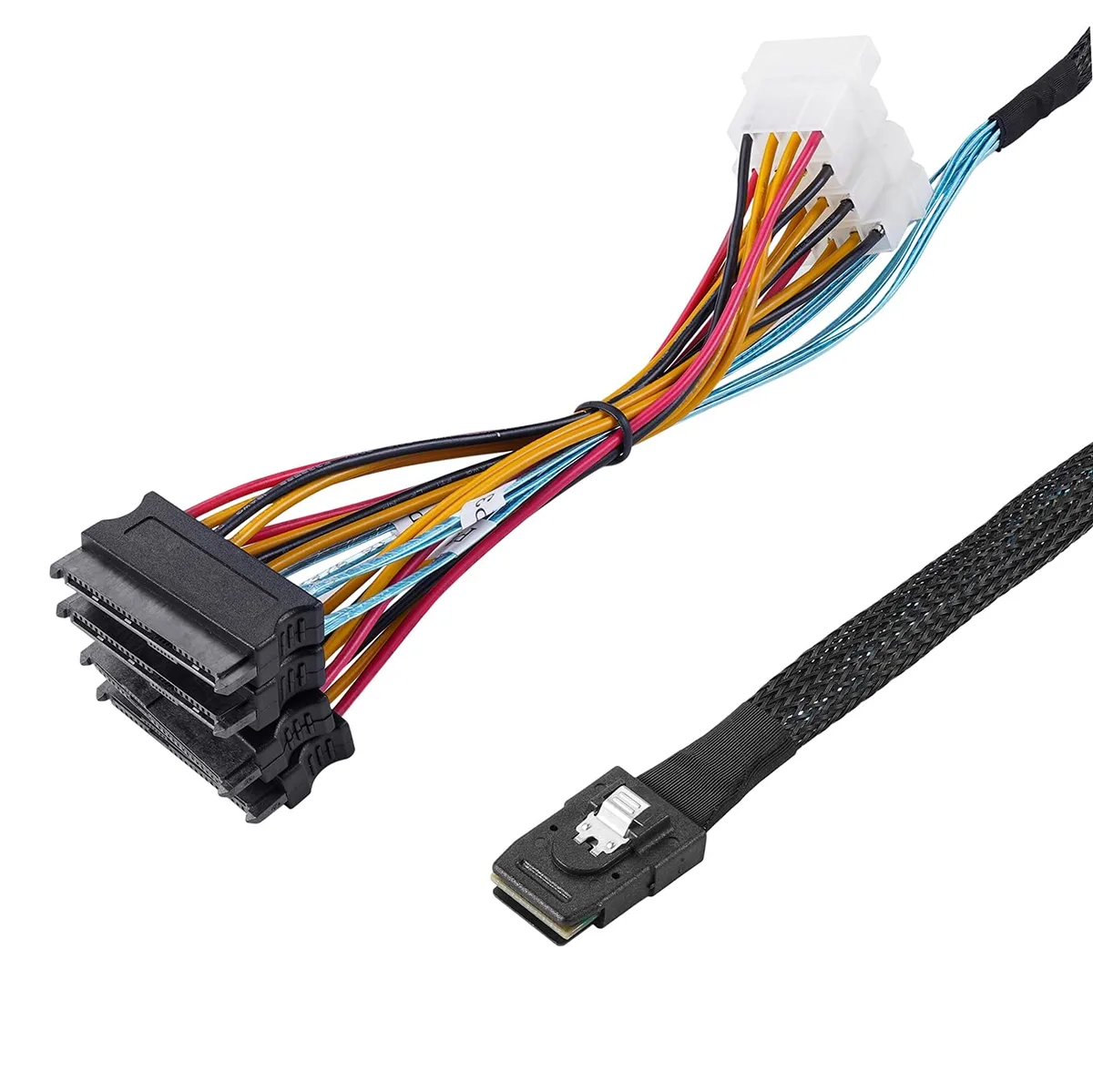

Ash Mini SAS SFF-8087 to four SFF-8482 cables with braided sleeve and 4-pin power leads

ETopSell

ETopSell Mini SAS SFF-8087 to 4× SFF-8482 3 ft

SKU CH-58V0-4KWGN

Connects a Mini SAS SFF-8087 host to four SFF-8482 drives at 6.0 Gbps with integrated power

  • ColorAsh
  • Length3FT

Length 3 ft.

  • SFF-8087 host connects four SFF-8482 drives
  • SAS 3.0 cable rated for 6.0 Gbps speeds
  • 30 AWG tinned copper with 100 ohm impedance
  • Braided mesh sheath preserves case airflow
  • Integrated 4-pin power feeds each drive

Host-to-Drive Connectivity

This internal cable bridges a host or RAID controller equipped with a 36-pin SFF-8087 mini-SAS port to four SAS hard drives using 29-pin SFF-8482 connectors. It also supplies drive power through an integrated 4-pole power lead. The assembly supports SAS 3.0 signalling at up to 6.0 Gbps per lane.

Builders with SFF-8087 Controllers

Suitable for installers who need to fan out a single mini-SAS 4i lane into four direct-attached SAS drives inside a chassis. Not for systems whose host side uses a different mini-SAS pin count or whose target drives lack a 29-pin SAS interface. The fixed 3 ft length may not reach distant drive bays in larger enclosures.

100 Ohm Impedance

The 30AWG tinned-copper conductors are built to a controlled 100 ohm differential impedance, which preserves signal integrity at 6.0 Gbps across all four lanes. This specification determines whether the cable meets the electrical requirements of a given SAS 3.0 controller and drive combination.

Highlights

  • SFF-8087 host connects four SFF-8482 drives
  • SAS 3.0 cable rated for 6.0 Gbps speeds
  • 30 AWG tinned copper with 100 ohm impedance
  • Braided mesh sheath preserves case airflow
  • Integrated 4-pin power feeds each drive

Specifications

ColorAsh
Length3FT

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What host controller connector does this cable require to work?

The cable plugs into a host or RAID controller with an SFF-8087 36-pin mini SAS port.

Can I attach older SAS drives that use the SFF-8482 interface?

Yes, each of the four target ends is a 29-pin SFF-8482 connector designed for SAS drives using that interface.

How do I verify the link is running at the rated 6.0 Gbps per lane?

Check the controller BIOS or operating-system drive utility; it should report a 6.0 Gbps SAS 3.0 link on each of the four lanes.
