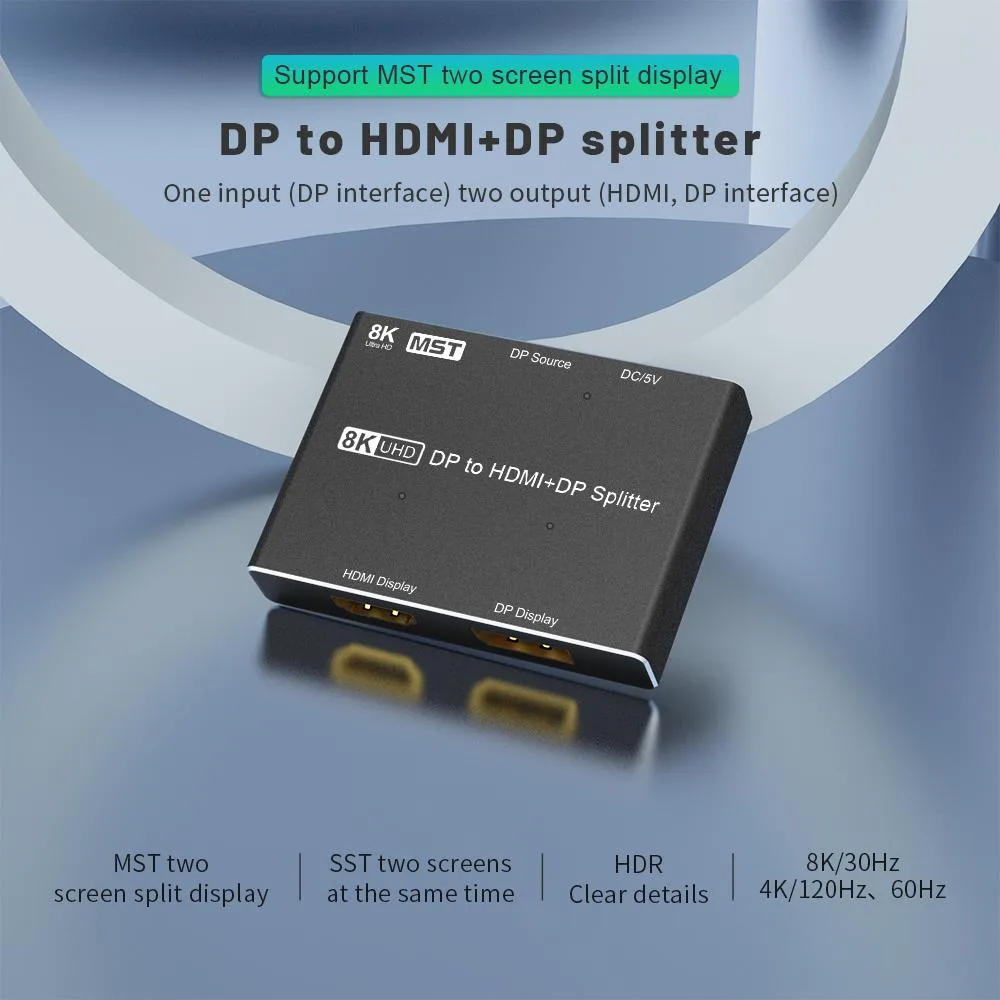

Small black box with one DisplayPort input and two outputs DP plus HDMI

ESTONE

ESTONE TJ-A038 DisplayPort Switch 8K@30Hz 4K@120Hz

SKU CH-V78Z-7EH3J

Splits one DisplayPort 1.4 source to simultaneous DP and HDMI outputs at up to 8K@30Hz or 4K@120Hz with MST extended and mirror modes

  • TypeDisplayPort Switchers
  • Changer TypeDisplayPort Switch/Extender
  • ColorBlack
  • Ports2
  • SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort
  • Input Connector1 x DisplayPort 1.4
  • Drives two monitors from one DisplayPort output
  • Delivers 8K resolution at 30 Hz for detailed visuals
  • Runs 4K at 120 Hz for smooth motion
  • Handles 1440p up to 165 Hz on DisplayPort
  • Supports both mirror and extended desktop modes

Product identity

The ESTONE TJ-A038 is a DisplayPort 1.4 MST hub that splits one source into simultaneous DisplayPort and HDMI outputs. It serves creators, educators and commercial installers who need to mirror or extend a desktop across two screens from a single DP port.

Thermals noise power

The aluminium enclosure measures 12 x 6 x 0.08 inches and weighs 1.2 ounces, passively dissipating heat without a fan. An external DC 5 V USB power lead is required for operation, drawing minimal current from the host system.

Bundled impact

Included are the switch unit, a USB power cable and brief instructions. The cable enables the MST extended mode and 32.4 Gbps bandwidth that make dual 4K@120 Hz or 8K@30 Hz output possible.

Highlights

  • Drives two monitors from one DisplayPort output
  • Delivers 8K resolution at 30 Hz for detailed visuals
  • Runs 4K at 120 Hz for smooth motion
  • Handles 1440p up to 165 Hz on DisplayPort
  • Supports both mirror and extended desktop modes

Specifications

BrandESTONE
SeriesTJ-A038
ModelTJ-A038
Part NumberTJ-A038
TypeDisplayPort Switchers
Changer TypeDisplayPort Switch/Extender
ColorBlack
Ports2
SpecificationsCompatible with all DisplayPort input and HDMI, DisplayPort output
Comply with DisplayPort 1.4, 1.3, 1.2, 1.0 specifications
Support resolution:
8K@30Hz
4K@120Hz, 60Hz
1440P@165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output is not supported)
1080P@240Hz, 165Hz, 144Hz, 120Hz, 60Hz (165Hz, 144Hz HDMI output Not supported)
(Depends on your graphics card, monitor, TV, operating system and DP cable, HDMI cable support)
Support operating system: Apple (iOS) system, Windows system, Android system
Support HDR
Support SST (Mirror) and MST (Extended) mode
Support 4:4:4, 4:2:2, 4:2:0
Input Connector1 x DisplayPort 1.4
Output ConnectorDisplayPort1.4+HDMI 2.1
Maximum Resolutions8K@30Hz 4K@120Hz
BandwidthHigh Speed 32.4Gbps
FeaturesDisplay Port HDMI: Creative dp 1.4 splitter, support dp input to dp and hdmi output simulantely. Greatly satisfying your individual creative needs. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets

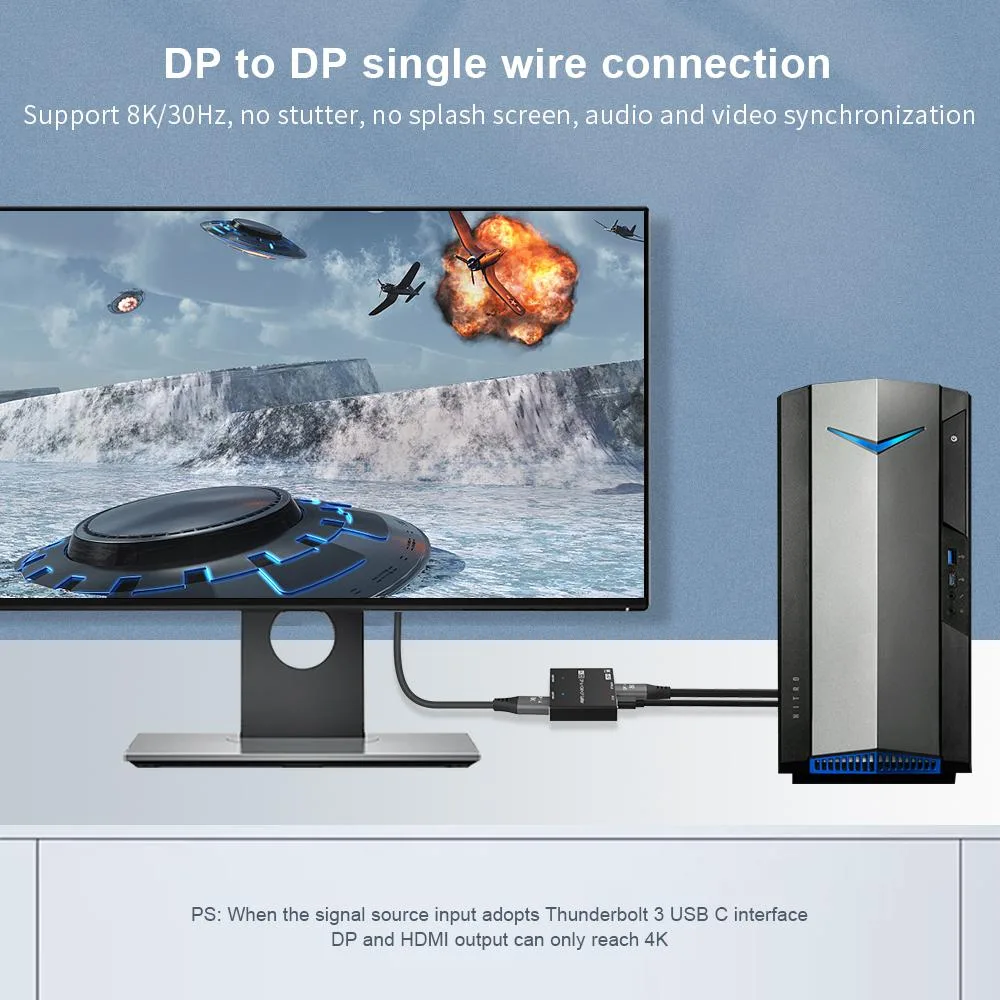

Parameter Information 1): Single dp to dp support 8k@30hz, 4k@60/144hz, 2k@165hz. 2): Single dp to hdmi support 8k@30hz, 4k@60/122hz, 2k@144hz. 3): dp to dp+hdmi support dual 4k@60hz or 5k@60hz + 1080p@60hz: 4): when you use a thundebolt 3/USB C to dp cable connecting dp input interface, the dp and hdmi output can only support 4k. CHEC
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1 X Directional DP to DP+HDMI Switcher
1 X DC 5V power line
1 x instructions

Questions about this item

How do I install the ESTONE TJ-A038 DisplayPort switch, and what step is often missed?

Connect the DisplayPort 1.4 source to the input, attach one DisplayPort 1.4 and one HDMI 2.1 display to the outputs, then plug the included DC 5 V USB power cable into a live USB port; the hub will not function without external power.

What maintenance or replacement will the ESTONE TJ-A038 need over time?

No user-serviceable parts are inside; keep the USB power cable and connectors free of dust, and replace the cable only if it becomes damaged or the power connection becomes unreliable.

What limit appears first when the ESTONE TJ-A038 runs continuously at high resolution?

The 32.4 Gbps bandwidth ceiling caps simultaneous output to 8K at 30 Hz or 4K at 120 Hz; pushing both ports beyond that will force a lower refresh rate or resolution.
