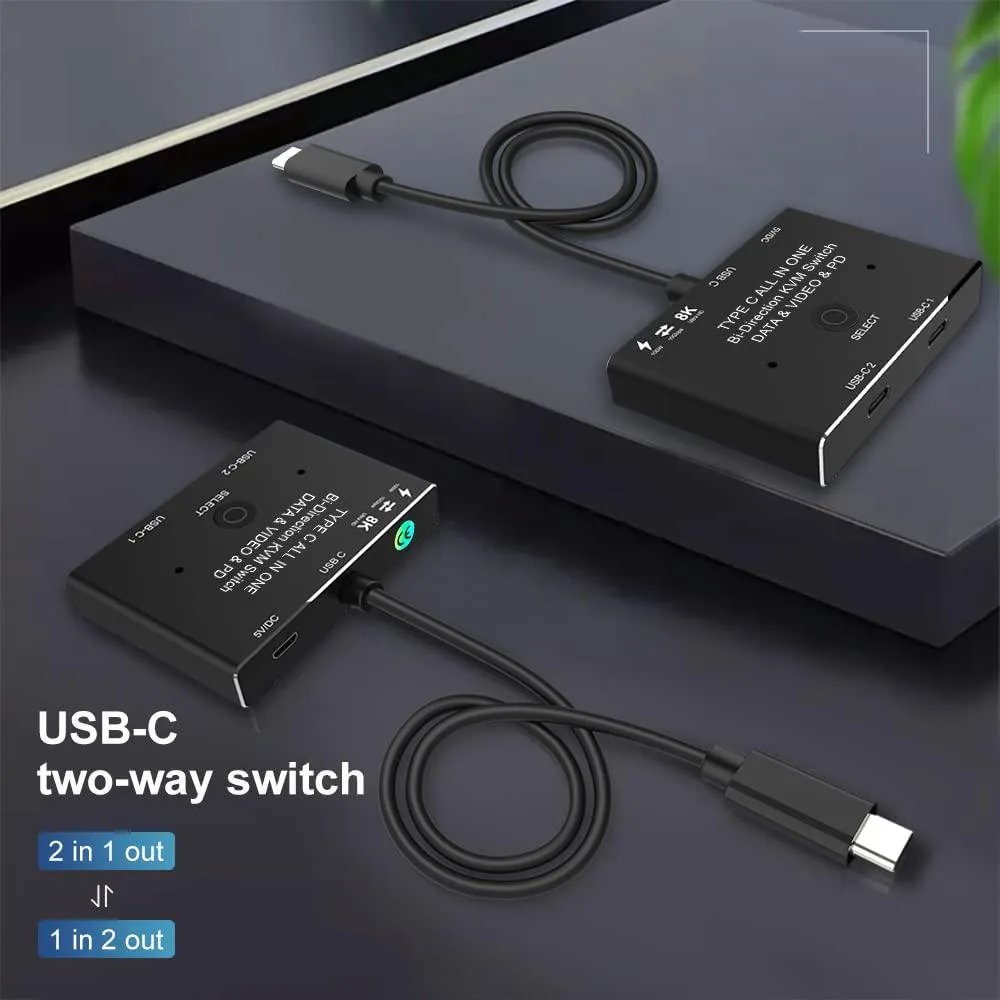

Black USB-C bi-directional switch with 50cm cable and select button

ESTONE

ESTONE TJ-A034 USB-C 8K Video Switch 10Gbps 100W Bi-Directional 50cm

SKU CH-4CEJ-2PAE3

Bi-directional USB-C switch toggles between two sources on one display or one source across two displays at up to 8K@30Hz, 4K@120Hz with 10Gbps data and 100W power delivery

  • ColorBlack
  • Ports2
  • Cable Length50cm
  • Specifications• Compliant to link with all USB-C input and output • Compli
  • Input Connector1 x Type-C
  • Output Connector2 x Type-C
  • 8K@30Hz and 4K@120Hz video clarity via DisplayPort 1.4
  • Bi-directional 2x1 switch or 1x2 splitter for flexible setups
  • 10Gbps USB3.1 Gen2 bandwidth for fast data transfer
  • 100W Power Delivery keeps laptops charged while working
  • 50cm cable with external 5V DC power for stable operation

USB-C 8K Bi-Directional Switch

The ESTONE TJ-A034 is a compact USB-C switch that operates in two modes. It can connect two source devices to one display or one source to two displays. It handles video, data and up to 100W power delivery for laptops, phones or tablets.

Limits of USB 3.1 Gen 2 and DisplayPort 1.4

The link tops out at 10Gbps, so 8K is limited to 30Hz while 4K reaches 120Hz and 1080p can hit 165Hz. The 50cm cable and 1.5m maximum recommended length restrict placement. Two screens cannot show content at the same time.

Installation notes and common issues

External 5V DC power is mandatory; the unit ships with a USB-A to Micro-B cable for that purpose. Connecting a Thunderbolt dock or hub causes flicker or signal loss. Long cables between the switch and devices also lead to black screens.

Highlights

  • 8K@30Hz and 4K@120Hz video clarity via DisplayPort 1.4
  • Bi-directional 2x1 switch or 1x2 splitter for flexible setups
  • 10Gbps USB3.1 Gen2 bandwidth for fast data transfer
  • 100W Power Delivery keeps laptops charged while working
  • 50cm cable with external 5V DC power for stable operation

Specifications

BrandESTONE
SeriesTJ-A034
ModelTJ-A034
Part NumberTJ-A034
ColorBlack
Ports2
Cable Length50cm
Specifications• Compliant to link with all USB-C input and output
• Complies with USB3.1?USB PD 3.0 and DisplayPort 1.4 specification
• Supports: 8K@30Hz
5K@60Hz
4K@120Hz?60Hz
1440P@165Hz?144Hz?120Hz?60Hz
1080P@165Hz?144Hz?120Hz?60Hz
(Depending on the system and the connected hardware)
• Supports transmission speed 10Gbps(USB3.1 Gen2)
• Supports max 100W power delivery
• Supports OS: MAC OS X, Windows
• External power is required. Please be sure to power the switch with the supplied USB to DC cable when you use it.
Input Connector1 x Type-C
Output Connector2 x Type-C
Maximum Resolutions8K@30Hz 4K@120Hz
BandwidthHigh Speed 10Gbps
FeaturesThis USB C switch has two working modes. It can be used as a 2x1 switch, which allows you to connect two sources devices to one display; It can also be used as a 1x2 splitter that enables you to connect one source to two displays(Note that two displays can not work at the same time).
Compliant to link with all USB-C input and output 1. Complies with USB3.1?USB PD 3.0 and DisplayPort 1.4 specification
2. Supports: 8K@30Hz,5K@60Hz,4K@120Hz60Hz 1440P@165Hz?144Hz?120Hz?60Hz 1080P@165Hz?144Hz?120Hz?60Hz (Depending on the system and the connected hardware)
3. Supports transmission speed 10
Dimensions12 x 6 x 0.08 inches
Weight1.2 ounces
Package Quantity1
Package Contents1 x Bi-direction Switch 50cm

Questions about this item

How do I decide between the 2x1 switch and 1x2 splitter modes on the TJ-A034?

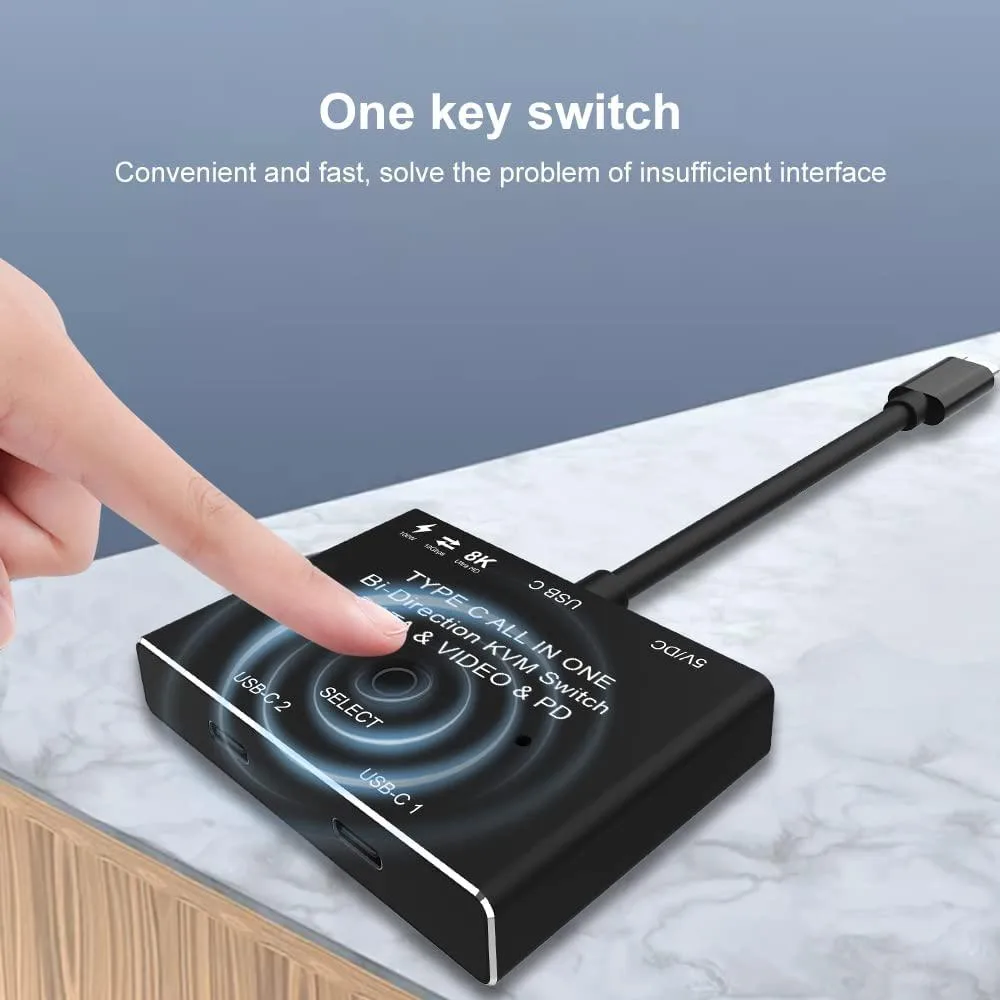

Use 2x1 to connect two source devices to one display, or 1x2 to send one source to two displays. Press the Select button to change the active output. Only one display shows at a time.

What resolution will I actually get from the 8K@30Hz rating on my monitor?

The switch passes up to 8K at 30 Hz, 4K at 120 Hz or 1080p at 165 Hz. The final resolution depends on your source device, monitor and the cables you use.

Does the USB 3.1 Gen 2 10Gbps port also carry the 100 W Power Delivery?

Yes. The single USB-C connector handles 10 Gbps data, DisplayPort 1.4 video and up to 100 W PD simultaneously. External 5 V DC power is required via the supplied USB-A to Micro-B cable.
