Small black aluminium box 90 by 55 by 20 mm with SDI in, SDI loop and HDMI out

ESTONE

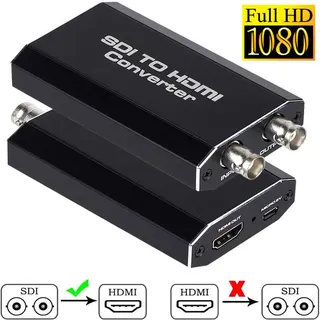

ESTONE SDI to HDMI Converter 3G/HD/SD Loop-Through 1080p60 OZH5-1

SKU CH-0QKR-QYSZ0

Converts 3G-SDI, HD-SDI and SD-SDI signals to HDMI at 1080p60 with loop-through SDI output

  • TypeSDI to HDMI Converter

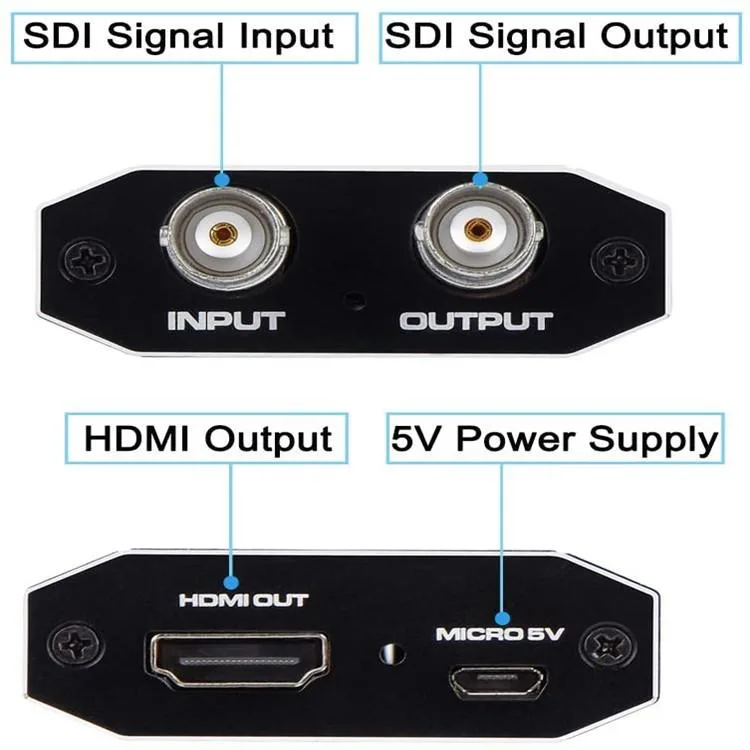

  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SDI to HDMI for standard displays
  • Loop-through SDI output keeps source signal intact
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Supports 1080p at 60 Hz on both ports
  • Compact aluminium housing measures 90 x 55 x 20 mm

SDI to HDMI Converter for Broadcast Workflows

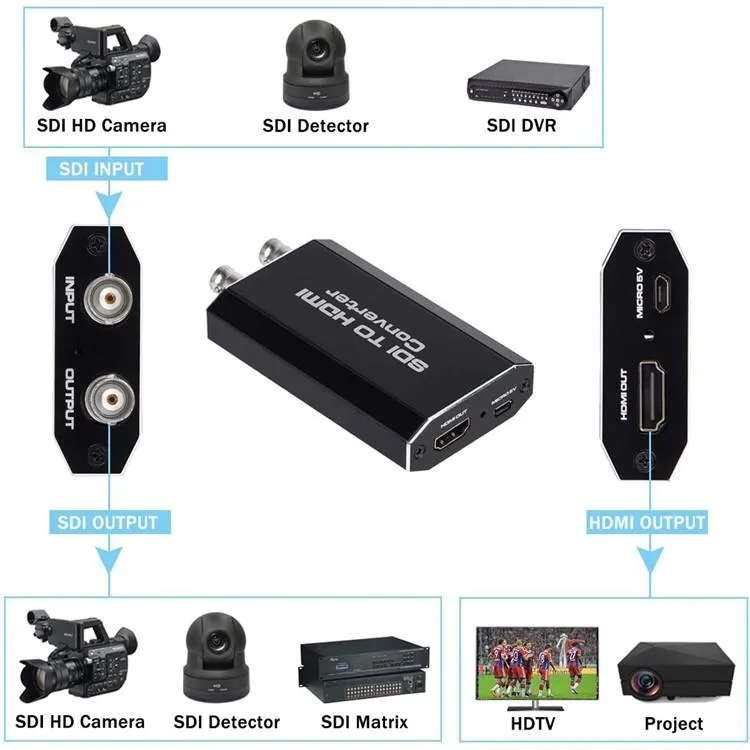

This ESTONE converter translates SD-SDI, HD-SDI and 3G-SDI signals to HDMI so professional video sources can be shown on standard displays. It accepts SDI input up to 1080p at 60 Hz and delivers the same resolution over HDMI. A loop-through SDI output lets the original feed continue to an SDI monitor at the same time. The unit is built for camera operators, studio engineers and anyone bridging SDI gear to HDMI screens.

Passive Cooling and Low Power Draw

The aluminium alloy enclosure dissipates heat without a fan, so operation stays silent in quiet studios or on-set environments. Power comes from the included 5 V DC 1 A adapter via a micro USB cable, keeping cabling simple and consumption minimal. No active cooling means no vibration or airflow noise to interfere with audio recording. The compact 90 x 55 x 20 mm form factor fits easily into equipment bags or rack trays.

Aluminium Build with Loop-Through Flexibility

The black aluminium housing weighs 165 g and resists wear from frequent transport between location and studio. One SDI input, one SDI loop-through output and one HDMI output cover the essential signal path without extra splitters. Connectors are positioned for straight cable runs, reducing strain on BNC and HDMI plugs during daily connect and disconnect cycles. The package includes the converter, power adapter and user manual.

Highlights

  • Converts SDI to HDMI for standard displays
  • Loop-through SDI output keeps source signal intact
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Supports 1080p at 60 Hz on both ports
  • Compact aluminium housing measures 90 x 55 x 20 mm

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

How do I connect the ESTONE SDI to HDMI converter and what step is often missed?

Connect the SDI source to the SDI input, the HDMI display to the HDMI output, and plug the included 5 V DC adapter into the micro-USB power port; the step often missed is powering the unit before expecting a signal.

What part will need replacement first on the OZH5-1 converter?

The external 5 V / 1 A power adapter is the only replaceable component; the aluminium-alloy converter itself has no user-serviceable parts.

What limit appears first during continuous operation at 1080p 60 Hz?

The converter is rated for a maximum bit rate of 2.970 Gbps, so sustained 1080p 60 Hz operation stays within that ceiling; the first practical limit is the external power supply's stability over long periods.
