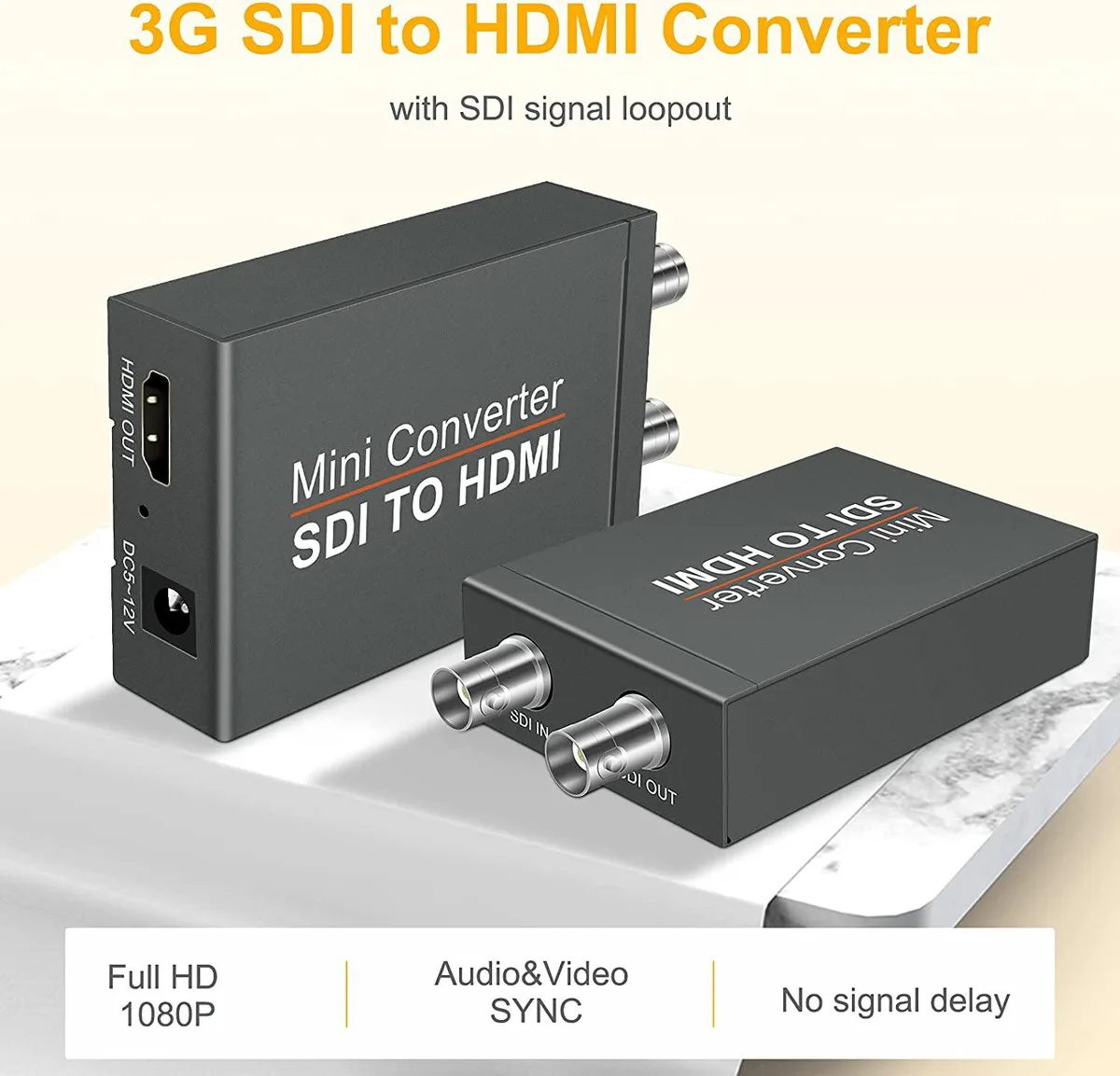

Small black aluminium box with SDI in, SDI out and HDMI out ports

ESTONE

ESTONE SDI to HDMI Audio Video Converter 3G-SDI Loopout OZH5

SKU CH-BRXC-RAA4F

Converts SDI to HDMI with loop-out, supporting 3G-SDI at 2.970 Gbps and resolutions up to 1080p60

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • Converts SDI to HDMI for common displays

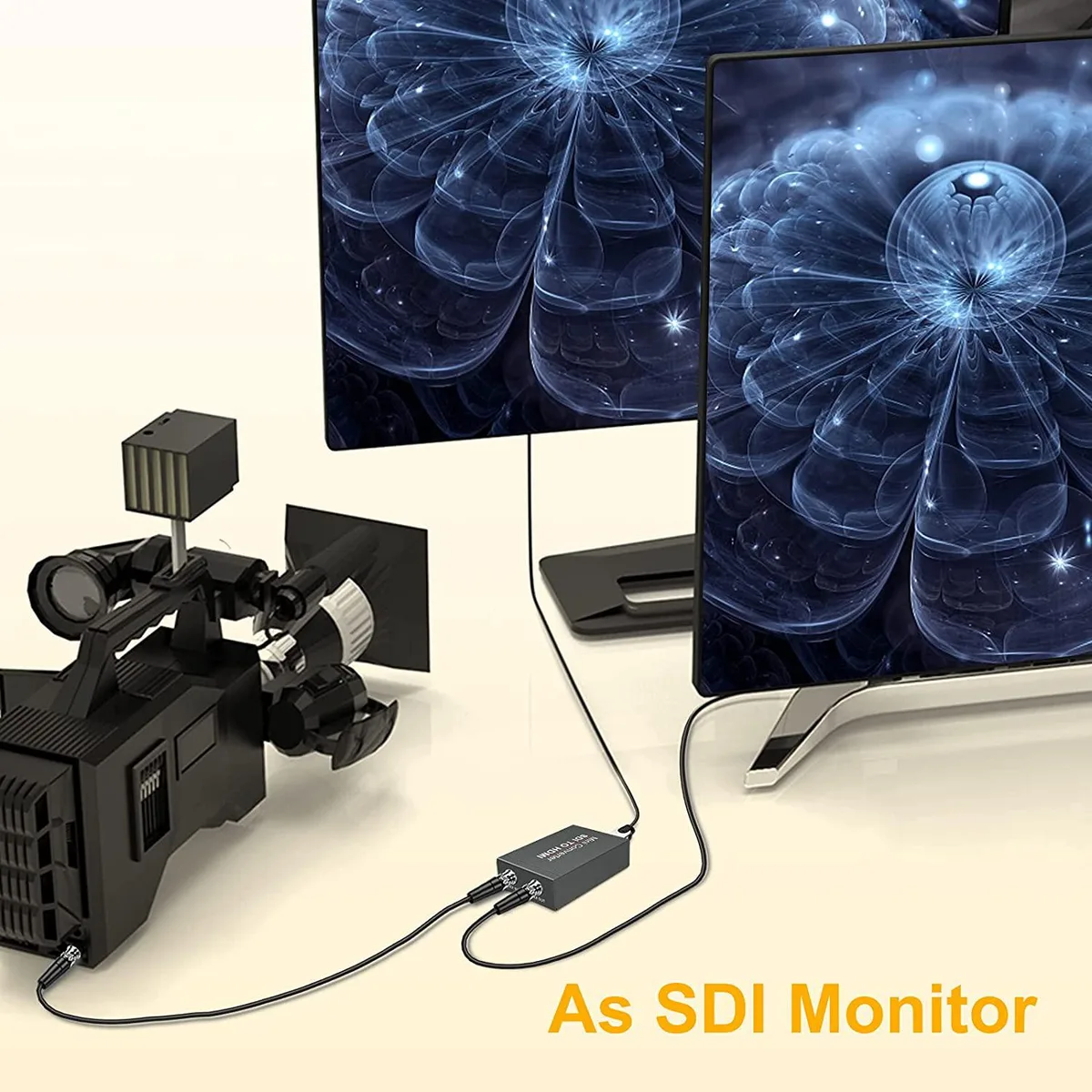

  • SDI loop-out keeps original signal on second monitor
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Supports up to 1080p at 60 Hz video
  • Aluminium alloy housing measures 90 x 55 x 20 mm

SDI to HDMI Converter with Loopout

This ESTONE converter translates SD-SDI, HD-SDI and 3G-SDI signals to HDMI for display on common monitors. The loop-through SDI output lets you feed an SDI screen at the same time. It handles bit rates up to 2.970 Gbps and resolutions up to 1080p at 60 Hz.

Installation and Common Issues

Connect the SDI source to the input, attach the HDMI display and optional SDI monitor, then power the unit with the supplied DC 5 V 1 A adapter. No driver or software setup is required because the converter auto-detects the incoming format. The only frequent mistake is attempting HDMI-to-SDI operation, which this one-way device does not support.

Sustained Operation Behaviour

The aluminium-alloy enclosure passively dissipates heat during continuous 1080p60 streaming. Signal integrity remains stable at the full 2.97 Gbps data rate over long cable runs. The converter maintains sync across all supported frame rates including 24, 25, 30, 50 and 60 Hz without dropout.

Highlights

  • Converts SDI to HDMI for common displays
  • SDI loop-out keeps original signal on second monitor
  • Auto-detects SD-SDI, HD-SDI and 3G-SDI formats
  • Supports up to 1080p at 60 Hz video
  • Aluminium alloy housing measures 90 x 55 x 20 mm

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

How can I confirm the converter is working after I connect it?

The aluminium alloy unit has no status LEDs, so verify operation by checking that both the HDMI display and the SDI loop-out monitor show a stable 1080p image at 50 Hz or 60 Hz with no flicker.

What comes in the box and what must I supply myself?

The package includes the converter, a USB charge cable, a 5 V / 1 A power adapter and a user manual; you must provide an SDI source cable, an HDMI cable and an optional SDI loop-out cable.

Which version should I choose for 1080p 60 Hz broadcast signals?

The single OZH5 model auto-detects SD-SDI, HD-SDI and 3G-SDI up to 2.970 Gbps, so it handles 1920 × 1080 progressive at 50 Hz and 60 Hz without needing a different SKU.
