Small black aluminium box with SDI and HDMI ports, 90 by 55 by 20 mm

ESTONE

ESTONE SDI to HDMI 3G Micro Converter with Power Supply (OZH5)

SKU CH-E2VF-EME0K

Converts SDI to HDMI up to 1080p at 60 Hz with a loop-through SDI output and includes a power supply

  • TypeSDI to HDMI Converter
  • Connector A1 x SDI input
  • Connector B1 x SDI output, 1 x HDMI output
  • Package ContentsSDI to HDMI Converter * 1 USB Charge Cable * 1 Power Adapter
  • View on common HDMI displays via SDI input
  • Loop-through SDI output for simultaneous SDI monitoring
  • Supports SD-SDI, HD-SDI and 3G-SDI up to 2.970 Gbps
  • Handles 1080p at 24, 25, 30, 50, 60 Hz

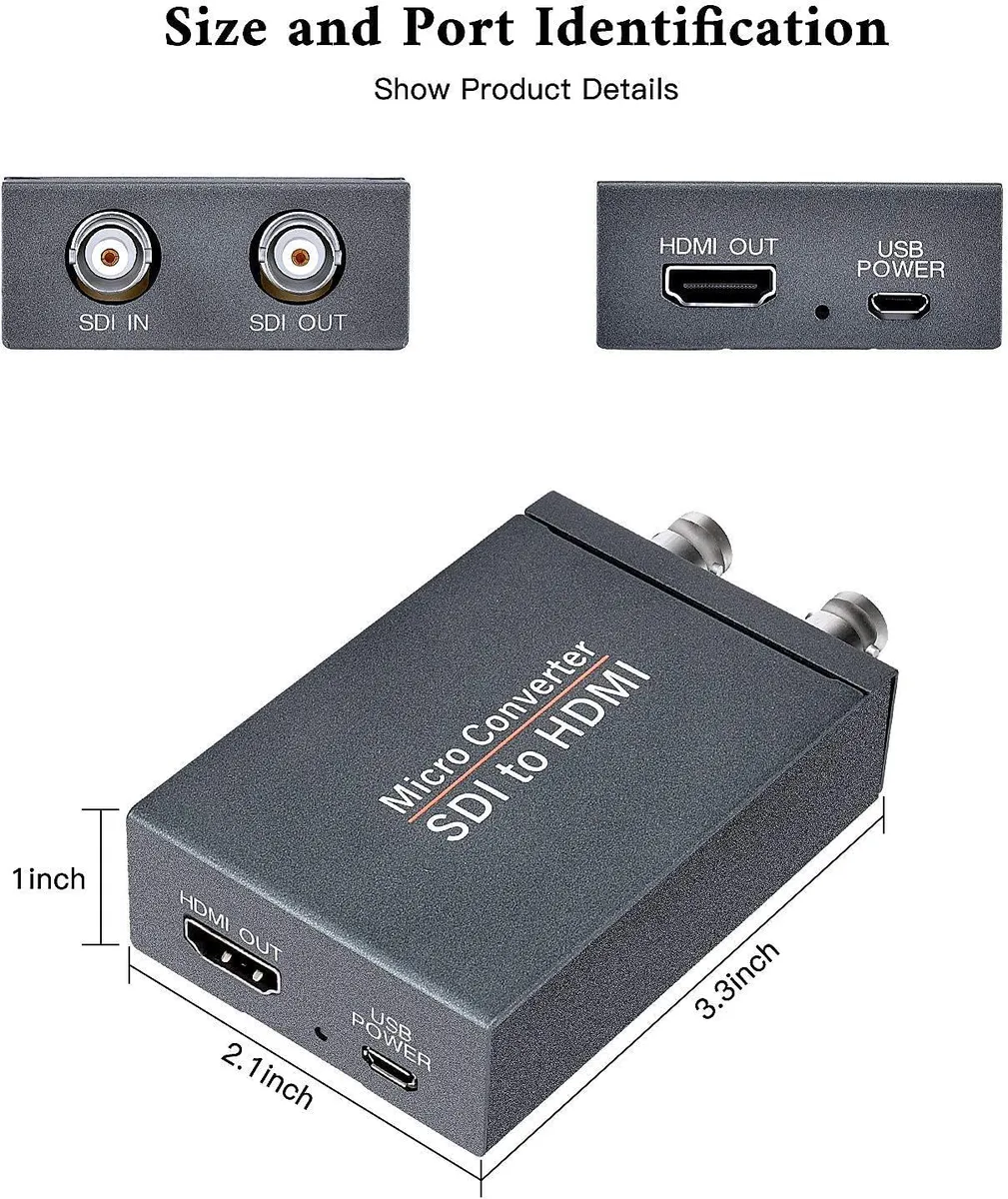

  • Compact aluminium alloy housing measuring 90 x 55 x 20 mm

SDI to HDMI Micro Converter

This new ESTONE micro converter accepts a single SDI input and provides both an SDI loop-through output and an HDMI output. It handles SD-SDI, HD-SDI and 3G-SDI signals at bit rates up to 2.970 Gbps. The aluminium alloy enclosure measures 90 by 55 by 20 millimetres and ships with a 5 V 1 A power adapter, a USB charge cable and a user manual.

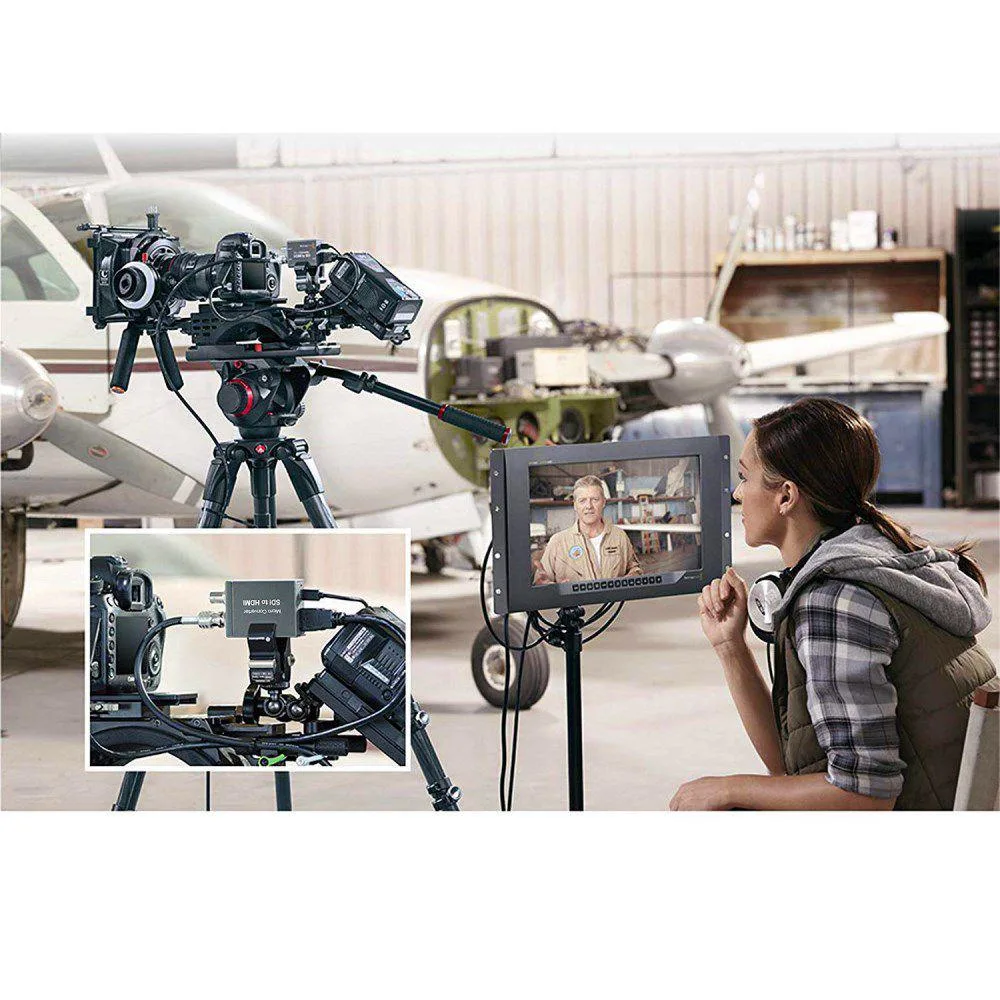

Suited for broadcast and live-production workflows

Operators who need to view the same signal on an SDI monitor and an HDMI display simultaneously will benefit from the loop-through design. The unit auto-detects 3G, HD and SD formats and supports resolutions including 1080p at 60, 50, 30, 25 and 24 Hz, 1080i at 60 and 50 Hz, 720p at 60 and 50 Hz, plus 480p60, 480i50 and 576i50. It is not for users who require HDMI-to-SDI conversion or bi-directional operation.

Sustained signal conversion with loop-through

Under continuous use the converter maintains the 2.97 Gbps data rate across both outputs without frame drops at the listed resolutions. The 5 V 1 A supply delivers stable power for extended sessions, and the passive aluminium body dissipates heat without active cooling. No fan noise or thermal throttling occurs during long-form capture or streaming.

Highlights

  • View on common HDMI displays via SDI input
  • Loop-through SDI output for simultaneous SDI monitoring
  • Supports SD-SDI, HD-SDI and 3G-SDI up to 2.970 Gbps
  • Handles 1080p at 24, 25, 30, 50, 60 Hz
  • Compact aluminium alloy housing measuring 90 x 55 x 20 mm

Specifications

TypeSDI to HDMI Converter
Connector A1 x SDI input
Connector B1 x SDI output, 1 x HDMI output
Package ContentsSDI to HDMI Converter * 1
USB Charge Cable * 1
Power Adapter * 1
User Manual * 1

Questions about this item

Does the converter need its own 5 V DC power adapter to operate, or can it draw power from the SDI source?

The unit ships with a 5 V / 1 A power adapter and a USB charge cable; it requires this external supply and cannot be powered from the SDI input alone.

If I keep an SDI monitor connected to the loop-through output, will it show the same 1080p 60 Hz picture as the HDMI display?

Yes, the SDI loop-through passes the original signal untouched, so an SDI monitor receives identical 1920×1080 resolution at up to 60 Hz alongside the HDMI output.

After connecting everything, how can I confirm the converter has locked to the incoming SDI format?

The device auto-detects SD-SDI, HD-SDI and 3G-SDI; when a valid signal is present the HDMI display will show a stable 720p or 1080p picture at 50 or 60 Hz without manual configuration.
