ESTONE
ESTONE OZV8E 4K HDMI audio extractor eARC
Extracts audio from 4K 60 Hz HDMI to optical, coaxial, 3.5 mm and HDMI audio ports with eARC and 7.1-channel support
- TypeHDMI Splitters
- Ports4
- AudioYes
- ColorBlack
- SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
- Input Connector1 HDMI input
- Extracts audio to 3.5 mm, optical, coaxial and HDMI ports
- Passes 4K at 60 Hz with 18 Gbps bandwidth
- Supports eARC and ARC for modern TV audio return
- Handles Dolby Atmos, DTS:X and 7.1-channel formats
- Toggle switch selects TV, 2.0, 5.1 or 7.1 audio mode

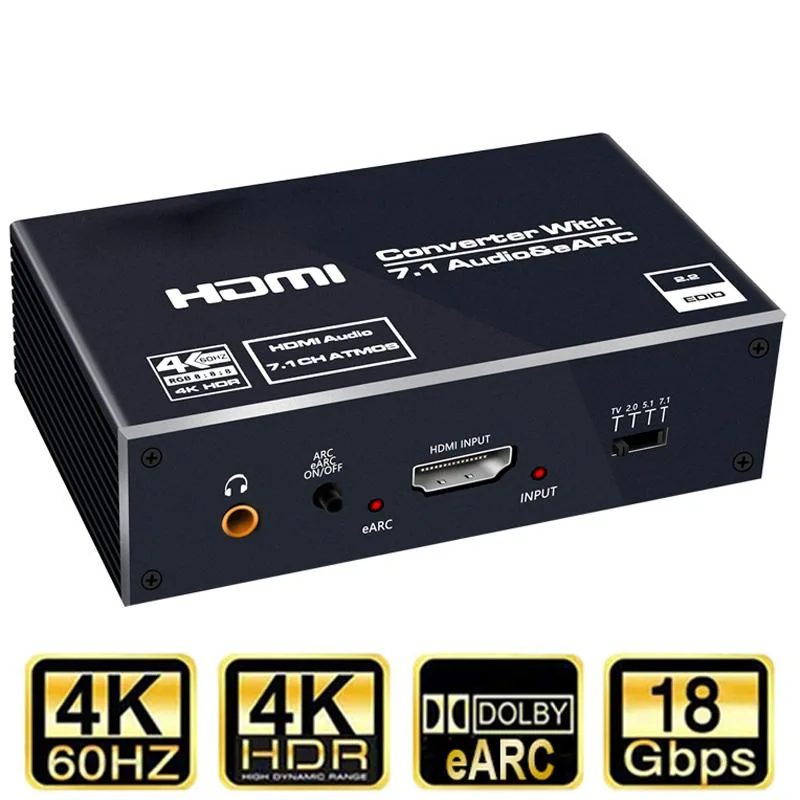

ESTONE OZV8E 4K audio extractor

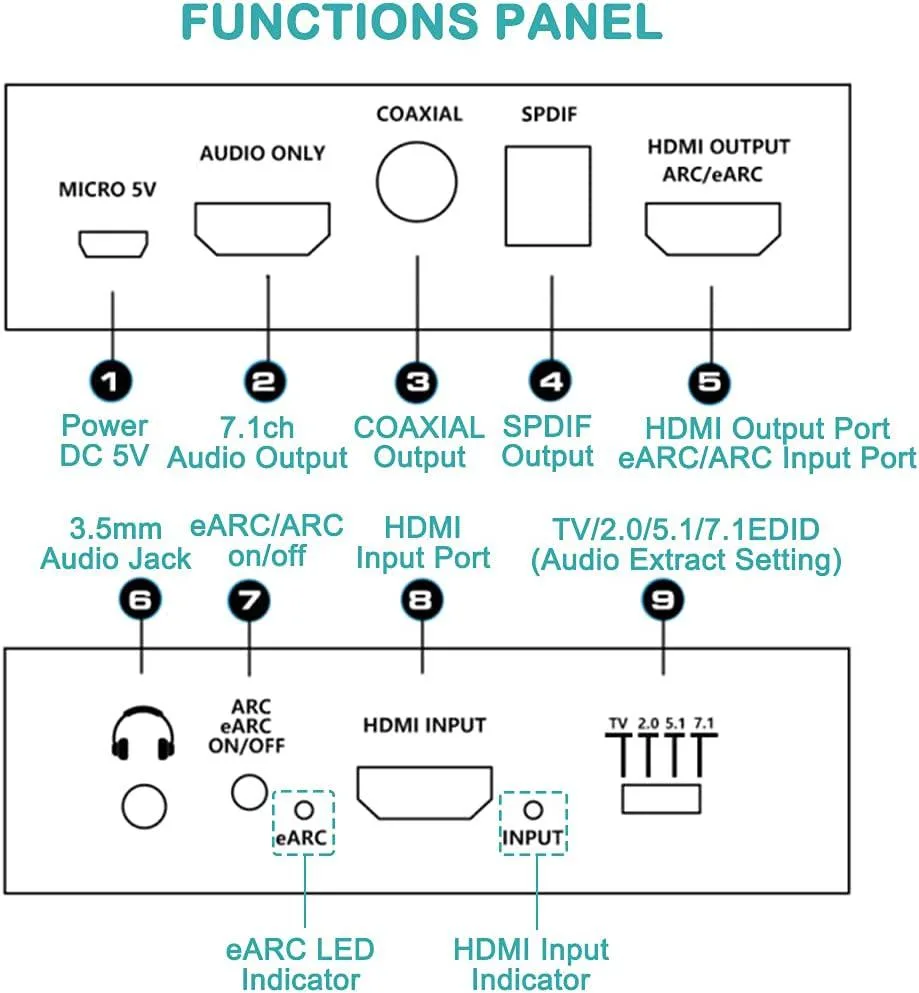

This extractor takes one HDMI input and provides an HDMI loop-out plus four separate audio outputs. It suits owners of 4K sources who need to feed a legacy receiver, soundbar or active speakers that lack HDMI inputs. The unit is new and draws power from an included 5 V 1000 mA adapter.
Integration with 18 Gbps HDMI 2.0 chain

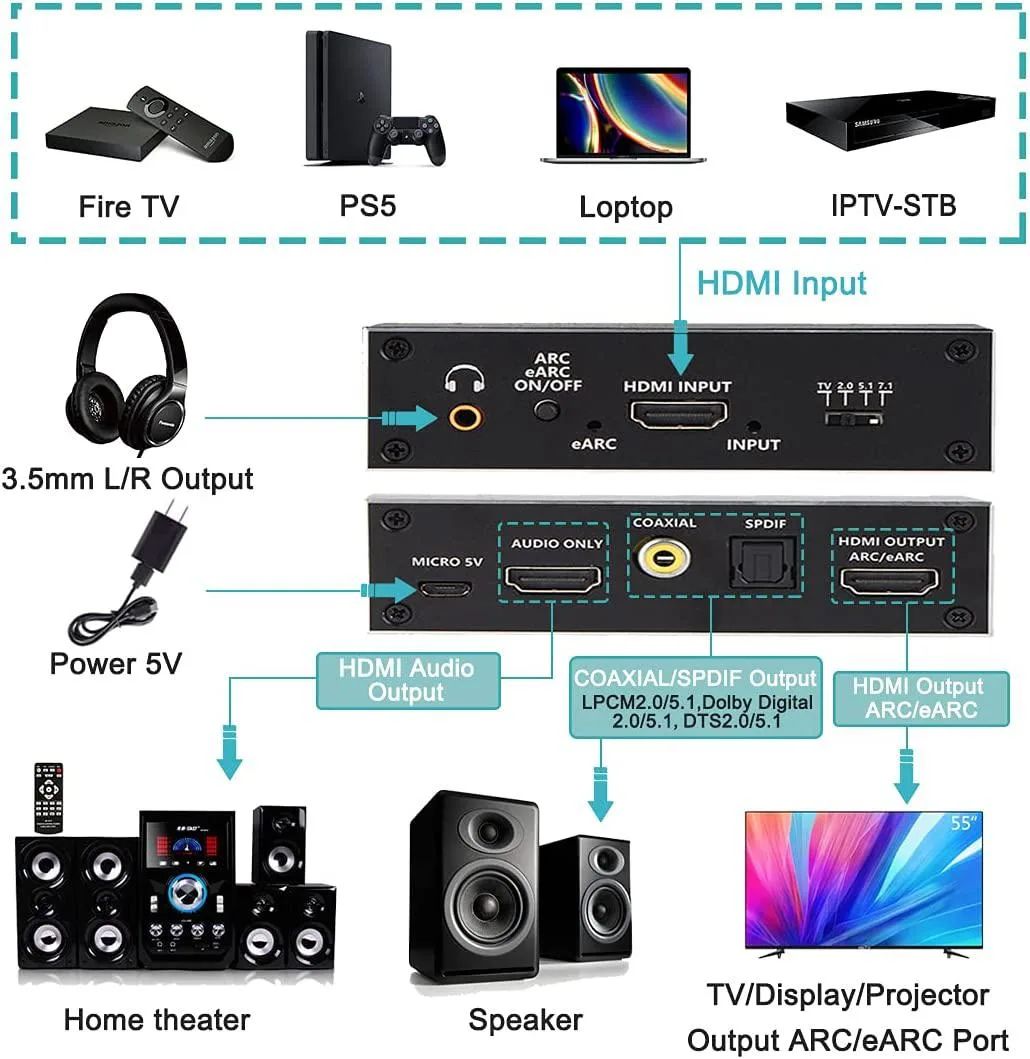

Connect the source to the single HDMI input, then run the HDMI output to a TV, monitor or projector for 3840 x 2160 at 60 Hz video with 10-bit HDR pass-through. Audio splits simultaneously to Toslink, coaxial, 3.5 mm jack and a dedicated HDMI audio-only port. ARC and eARC functions let a compatible display send audio back to the extractor without extra cables.
Handles Dolby Atmos and DTS:X up to 7.1
The HDMI audio port passes PCM 2.0, LPCM 5.1/7.1, Dolby True HD, Dolby Atmos, DTS-HD Master and DTS:X. Toslink and coaxial outputs are limited to LPCM 2.0/5.1, Dolby Digital 2.0/5.1 and DTS 2.0/5.1. The 3.5 mm jack delivers analogue stereo only. A four-position switch selects TV, 2.0, 5.1 or 7.1 mode. Buyers needing more than one HDMI input or 8K bandwidth cannot use this device.
Highlights
- Extracts audio to 3.5 mm, optical, coaxial and HDMI ports
- Passes 4K at 60 Hz with 18 Gbps bandwidth
- Supports eARC and ARC for modern TV audio return
- Handles Dolby Atmos, DTS:X and 7.1-channel formats
- Toggle switch selects TV, 2.0, 5.1 or 7.1 audio mode
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZV8E |
| Model | OZV8E |
| Part Number | OZV8E |
| Type | HDMI Splitters |
| Ports | 4 |
| Audio | Yes |
| Color | Black |
| Specifications | Power Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. 3.5mm Audio Jack：Analog stereo 2.0ch. Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0). |
| Input Connector | 1 HDMI input |
| Output Connector | 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | Support 4K x 2K@60Hz, Support 3D. 4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format. HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices. |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x 18Gbps HDMI eARC Extractor 1 x Power Adapter 1 x User Manual |
Questions about this item
Will the 18Gbps bandwidth limit 4K 60Hz HDR pass-through during long sessions?
The extractor handles 4K at 60Hz with 10-bit HDR pass-through within its 18Gbps bandwidth, so sustained use stays inside the spec.
Does the unit get hot or noisy when powered continuously from the 5V 1000mA adapter?
It has no fan and draws only 5V 1000mA, so it runs silent and stays cool during all-day operation.
Which cables do I need to connect my TV, receiver and source to the HDMI, optical, coaxial and 3.5mm ports?
You supply an HDMI cable for the source, an HDMI cable for the display, plus Toslink, coaxial or 3.5mm cables matching your receiver inputs.
