Small black box with HDMI, optical, coaxial and 3.5mm ports

ESTONE

ESTONE OZV8E 4K 60Hz HDMI eARC Audio Extractor Splitter

SKU CH-RTAE-863ST

Extracts audio from 4K 60 Hz HDMI signals to 3.5 mm, optical, coaxial and HDMI audio ports with eARC support

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extracts audio to 3.5 mm, optical, coaxial and HDMI ports
  • Passes 4K 60 Hz video with 18 Gbps bandwidth and HDR
  • Supports Dolby Atmos, True HD, DTS:X and 7.1 LPCM formats
  • Four-position switch selects TV, stereo, 5.1 or 7.1 output
  • Includes DC 5 V 1000 mA power supply for stable operation

What it is and who it serves

The ESTONE OZV8E extracts audio from a single HDMI source and sends it to four outputs: 3.5 mm jack, Toslink, coaxial and a dedicated HDMI audio port. It passes 4K video at 60 Hz with HDR and HDCP 2.3 while letting older receivers handle the sound.

When the upgrade makes sense

Use this when your display supports eARC or ARC but your amplifier lacks HDMI inputs, or when you need to split audio to multiple zones without losing 4K 60 Hz video. It replaces basic stereo extractors that cannot carry multichannel formats or HDR metadata.

Capacity and headroom

The 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz with 10-bit HDR and formats up to Dolby Atmos and DTS:X over the HDMI audio port. Toslink and coaxial outputs are limited to 5.1 channels, so full 7.1 or object-based codecs require the HDMI audio connection.

Highlights

  • Extracts audio to 3.5 mm, optical, coaxial and HDMI ports
  • Passes 4K 60 Hz video with 18 Gbps bandwidth and HDR
  • Supports Dolby Atmos, True HD, DTS:X and 7.1 LPCM formats
  • Four-position switch selects TV, stereo, 5.1 or 7.1 output
  • Includes DC 5 V 1000 mA power supply for stable operation

Specifications

BrandESTONE
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input

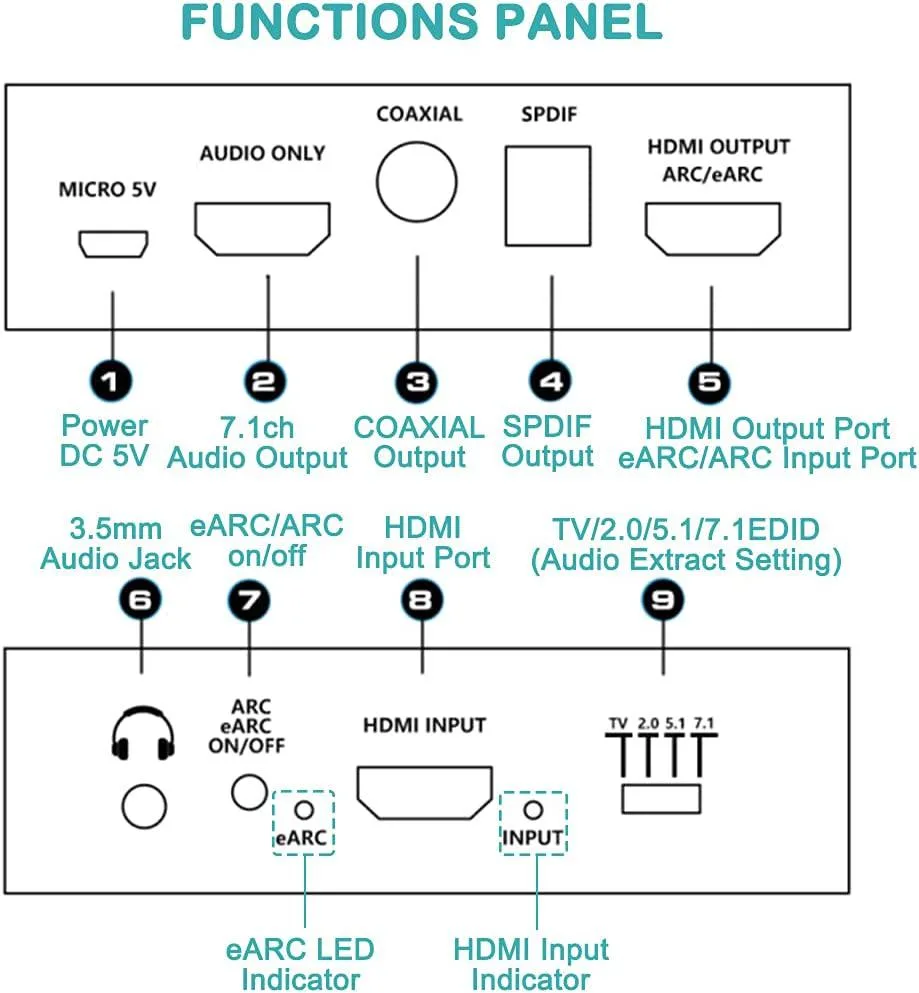

Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

How much space does the 5.59 x 3.15 x 1.26 inch unit need behind my TV?

The extractor measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, so it fits in tight AV cabinets; allow a few extra centimetres for the four HDMI cables and the DC power plug.

Which toggle position should I choose when connecting a 7.1 receiver via the Toslink port?

Set the 4‑position switch to the 7.1 label before powering on; the Toslink output then carries LPCM 5.1 or Dolby Digital 5.1, while the HDMI loop‑through keeps 4K 60 Hz video intact.

Will the included 5 V 1000 mA adapter need replacing if I run 18 Gbps 4K 60 Hz continuously?

The supplied DC 5 V 1000 mA adapter is rated for the extractor’s full 18 Gbps bandwidth and 4K 60 Hz operation; only replace it if the unit loses power or the LED fails.
