Black rectangular HDMI audio extractor with multiple output ports

ESTONE

ESTONE OZV8E 4K 60Hz HDMI Audio Extractor Splitter

SKU CH-81QN-MVX2D

Extracts audio from 4K 60 Hz HDMI to optical, coaxial, 3.5 mm and HDMI audio ports with a four-position format switch

  • TypeHDMI Splitters
  • Ports4
  • AudioYes
  • ColorBlack
  • SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
  • Input Connector1 HDMI input
  • Extracts audio to four outputs for flexible sound routing
  • 18Gbps bandwidth passes 4K at 60Hz with HDR
  • Four-position switch selects TV stereo or 5.1 and 7.1 formats
  • HDMI loop-out keeps video path intact for displays
  • Supports Dolby Atmos and DTS:X on the dedicated audio port

4K 60 Hz HDMI audio extractor

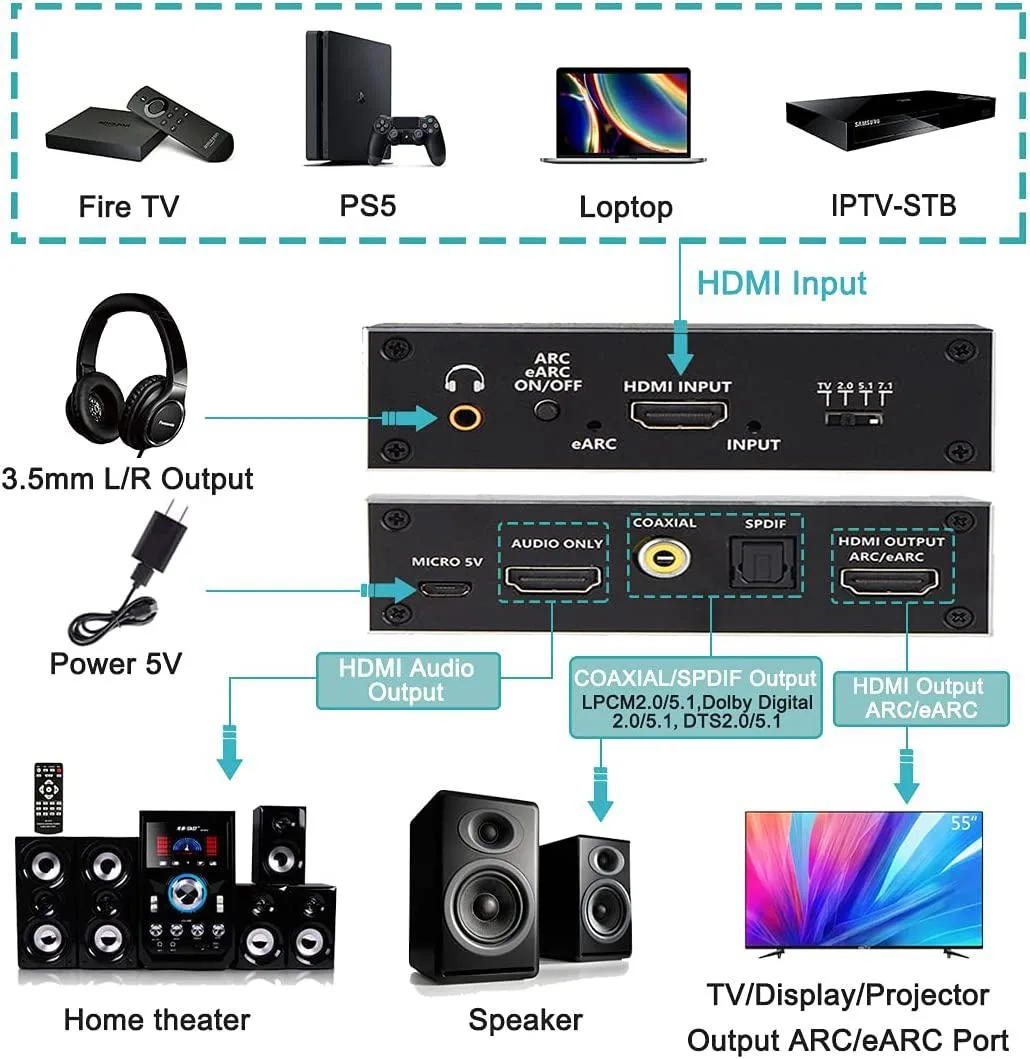

The ESTONE OZV8E splits a single HDMI source into a video path and four separate audio outputs. It serves home-theatre owners who want to keep an older receiver or soundbar while passing 4K 60 Hz and HDR video to a display.

Check before ordering

Your source must provide an HDMI 2.0 signal at up to 3840 x 2160 60 Hz and support HDCP 2.3 for protected content. The extractor needs the included 5 V 1000 mA power adapter, so a free mains socket is required. It does not add extra HDMI outputs for multiple screens.

Build and daily use

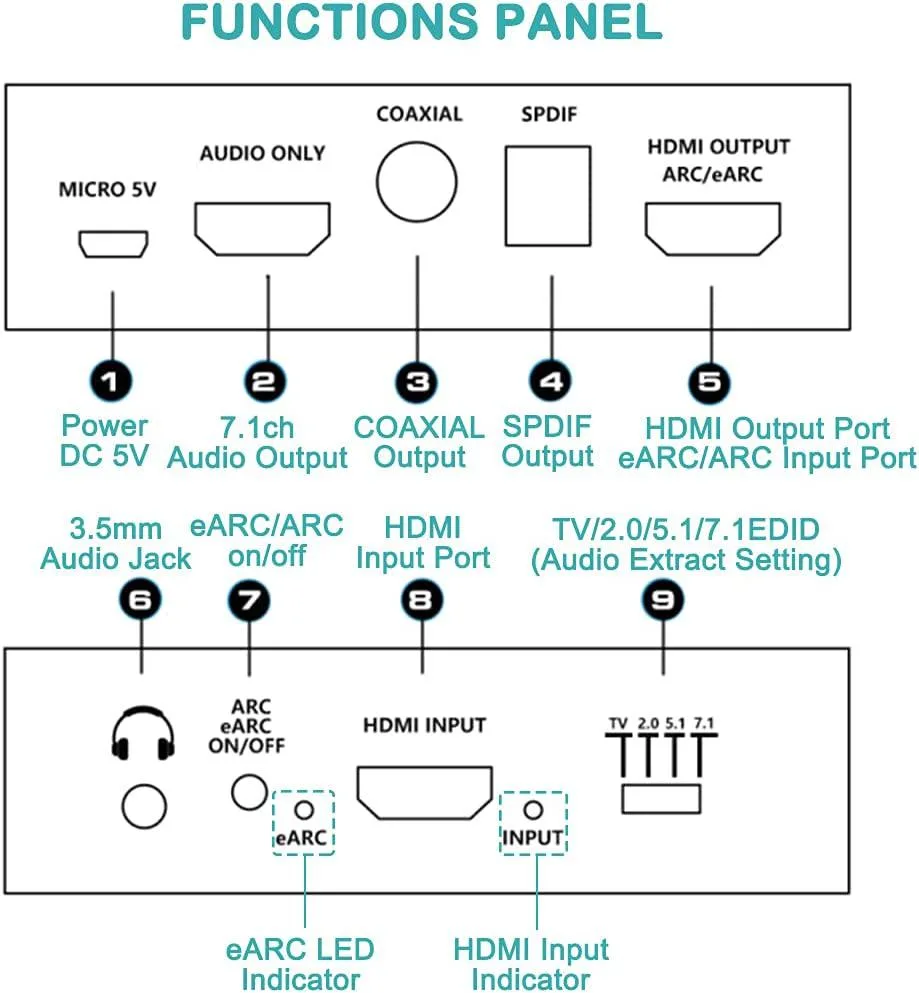

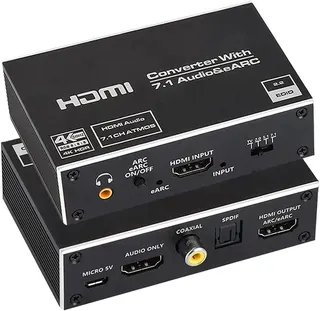

A black metal enclosure measuring 5.59 x 3.15 x 1.26 inches weighs 3.2 ounces and sits unobtrusively in a rack. Connectors comprise one HDMI input, one HDMI loop-out, plus 3.5 mm jack, Toslink, coaxial and a dedicated HDMI audio port. A four-position toggle selects TV, 2.0, 5.1 or 7.1 channel output, and ARC/eARC pass-through lets the TV return audio without extra cables.

Highlights

  • Extracts audio to four outputs for flexible sound routing
  • 18Gbps bandwidth passes 4K at 60Hz with HDR
  • Four-position switch selects TV stereo or 5.1 and 7.1 formats
  • HDMI loop-out keeps video path intact for displays
  • Supports Dolby Atmos and DTS:X on the dedicated audio port

Specifications

BrandESTONE
SeriesOZV8E
ModelOZV8E
Part NumberOZV8E
TypeHDMI Splitters
Ports4
AudioYes
ColorBlack
SpecificationsPower Supply: DC 5v/ 1000mA.
HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1.
3.5mm Audio Jack：Analog stereo 2.0ch.
Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0).
Input Connector1 HDMI input
Output Connector3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x 18Gbps HDMI eARC Extractor
1 x Power Adapter
1 x User Manual

Questions about this item

Does the box include the power adapter and cables, or must they be bought separately?

The package contains the extractor, a 5 V 1000 mA power adapter and a user manual. No HDMI, optical or coaxial cables are included.

Which audio format should I select on the four-position switch for a 7.1 surround system?

Set the toggle to the 7.1 position; the extractor will then output LPCM 7.1, Dolby True HD, Dolby Atmos or DTS-HD Master Audio through the HDMI audio port.

What does the 18 Gbps bandwidth mean for my 4K 60 Hz display?

It carries the full 3840 x 2160 at 60 Hz signal with 10-bit HDR and HDCP 2.3 while simultaneously extracting audio to optical, coaxial, 3.5 mm or the dedicated HDMI audio port.
