ESTONE
ESTONE OZV8E 4K 60Hz HDMI Audio Extractor
Extracts audio from 4K 60 Hz HDMI sources to optical, coaxial, 3.5 mm and HDMI audio ports with a four-position format switch
- TypeHDMI Splitters
- Ports4
- AudioYes
- ColorBlack
- SpecificationsPower Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, L
- Input Connector1 HDMI input
- Extract audio to four outputs while keeping 4K 60 Hz video intact
- Toggle between TV, 2.0, 5.1 and 7.1 modes with a four-position switch
- Pass 10-bit HDR and eARC/ARC signals through the HDMI loop-out
- Decode Dolby Atmos, DTS:X and TrueHD on the dedicated HDMI audio port
- Connect legacy gear via 3.5 mm, optical and coaxial digital outputs

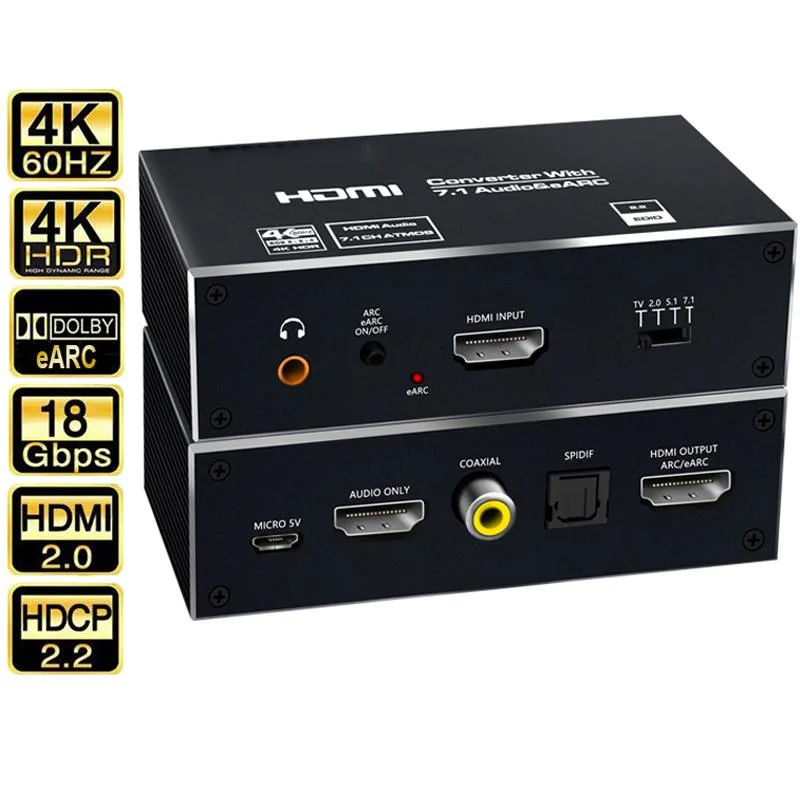

4K HDMI Audio Extractor
The ESTONE OZV8E extracts audio from a single HDMI 2.0 source at up to 3840 x 2160 resolution and 60 Hz refresh rate. It passes 18 Gbps bandwidth with 10-bit HDR and eARC support while providing four simultaneous audio outputs: HDMI audio-only, optical Toslink, coaxial and 3.5 mm analogue jack.
Home-theatre owners with legacy receivers

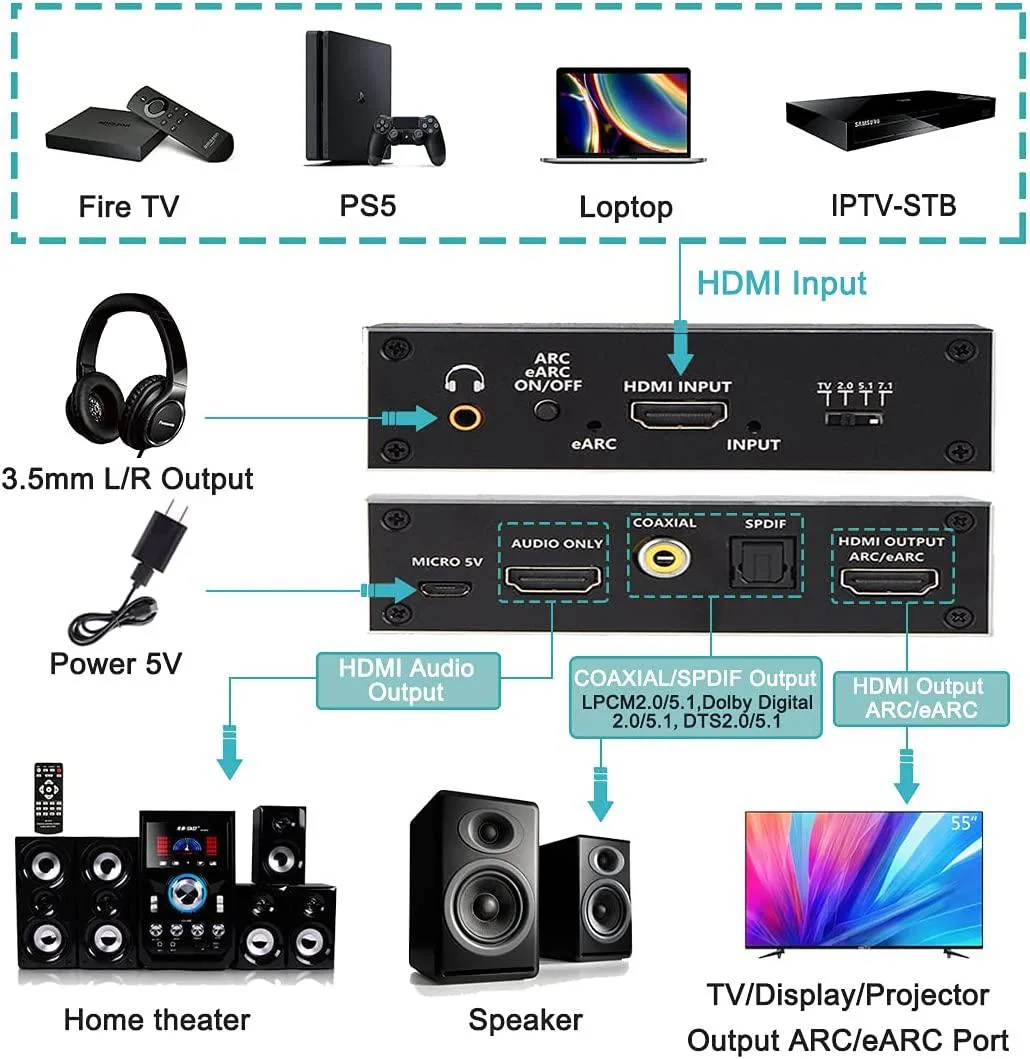

This unit suits users who need to send multichannel sound from a 4K source such as a PS5 or Blu-ray player to an older amplifier that lacks HDMI 2.0 inputs. The four-position toggle selects TV stereo, 2.0, 5.1 or 7.1 channel output to match the connected gear. Buyers who require HDMI 2.1 features such as 8K video or variable refresh rate should look elsewhere, as the extractor is limited to HDMI 2.0 specification.
Multichannel formats up to 7.1
The HDMI audio-only port carries PCM 2.0, LPCM 5.1 and 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-ES 6.1, DTS-HD Master Audio and DTS:X. Toslink and coaxial outputs handle PCM 2.0 and 5.1 plus Dolby Digital and DTS up to 5.1 channels. The 3.5 mm jack provides stereo analogue output only, so systems needing more than two analogue channels will require a separate decoder.
Highlights
- Extract audio to four outputs while keeping 4K 60 Hz video intact
- Toggle between TV, 2.0, 5.1 and 7.1 modes with a four-position switch
- Pass 10-bit HDR and eARC/ARC signals through the HDMI loop-out
- Decode Dolby Atmos, DTS:X and TrueHD on the dedicated HDMI audio port
- Connect legacy gear via 3.5 mm, optical and coaxial digital outputs
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZV8E |
| Model | OZV8E |
| Part Number | OZV8E |
| Type | HDMI Splitters |
| Ports | 4 |
| Audio | Yes |
| Color | Black |
| Specifications | Power Supply: DC 5v/ 1000mA. HDMI Audio Only Port：PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. Toslink SPDIF: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. Coaxial Output: LPCM 2.0/ 5.1,Dolby Digital 2.0/ 5.1, DTS 2.0/ 5.1. 3.5mm Audio Jack：Analog stereo 2.0ch. Color Depth: 8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4K x 2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4K x 2K@60Hz YCbCr 4:2:2 /4:2:0). |
| Input Connector | 1 HDMI input |

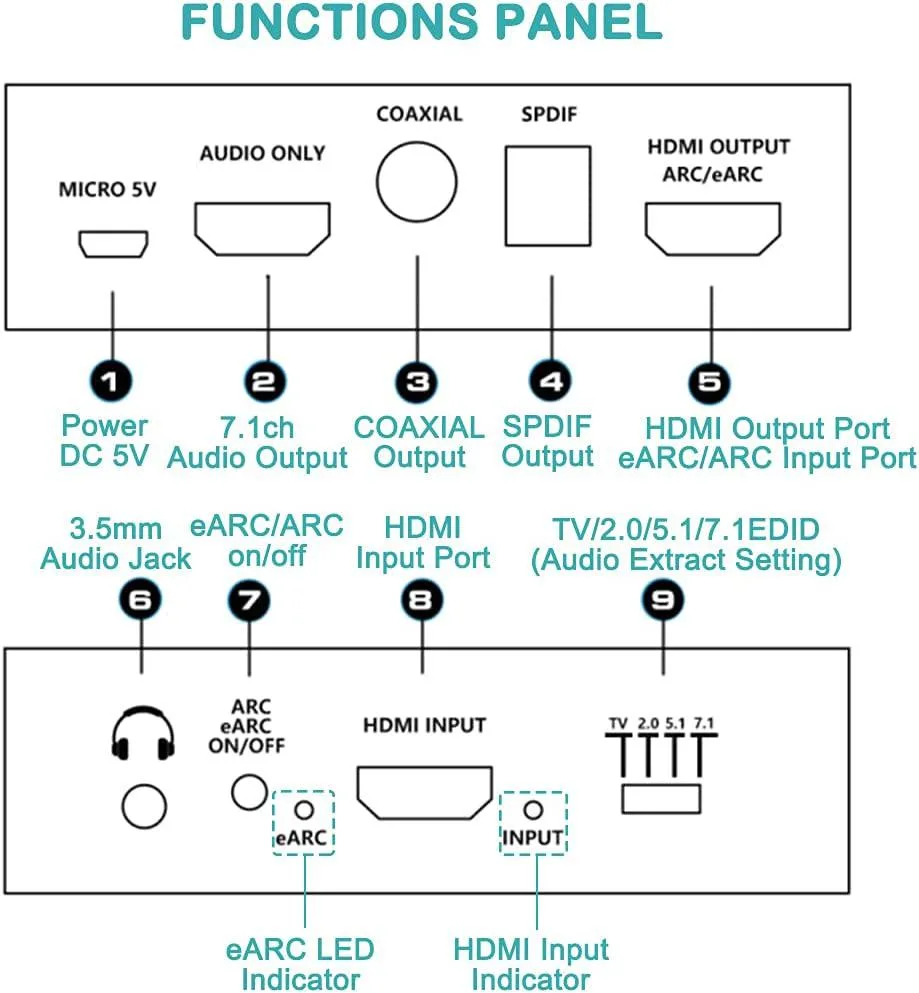

| Output Connector | 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18Gbps |
| Features | Support 4K x 2K@60Hz, Support 3D. 4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format. HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X. HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices. |
| Dimensions | 5.59 x 3.15 x 1.26 inches |
| Weight | 3.2 ounces |
| Package Quantity | 1 |
| Package Contents | 1 x 18Gbps HDMI eARC Extractor 1 x Power Adapter 1 x User Manual |
Questions about this item
Does this extractor need its own power supply or does it draw power from the HDMI source?
It requires the included DC 5V 1000mA power adapter; it does not operate on bus power alone.
Will my older AV receiver that only accepts PCM 2.0 over optical work with this unit?
Yes. Set the 4‑position switch to TV/2.0 and the Toslink SPDIF output will deliver PCM 2.0 that your receiver can decode.
How can I confirm the extractor is passing HDR video to my display while sending audio to my soundbar?
Play HDR content and verify the TV reports 10‑bit colour depth; audio should simultaneously appear on the connected soundbar.
