Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8C HDMI Audio Extractor Splitter 4K 60Hz SPDIF 3.5mm Embedder 1080P 3D

SKU CH-K61N-JBX8C

Extracts audio from an HDMI signal to optical SPDIF and 3.5 mm outputs while passing 4K 60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Three audio modes — TV, 2.0 CH and 5.1 CH — match your sound system
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz with HDR
  • HDCP 1.4 and 3D support keep protected and stereoscopic content intact
  • Powers from included 5 V adaptor for stable operation with Fire Stick, Xbox or laptop

HDMI Audio Extractor Splitter

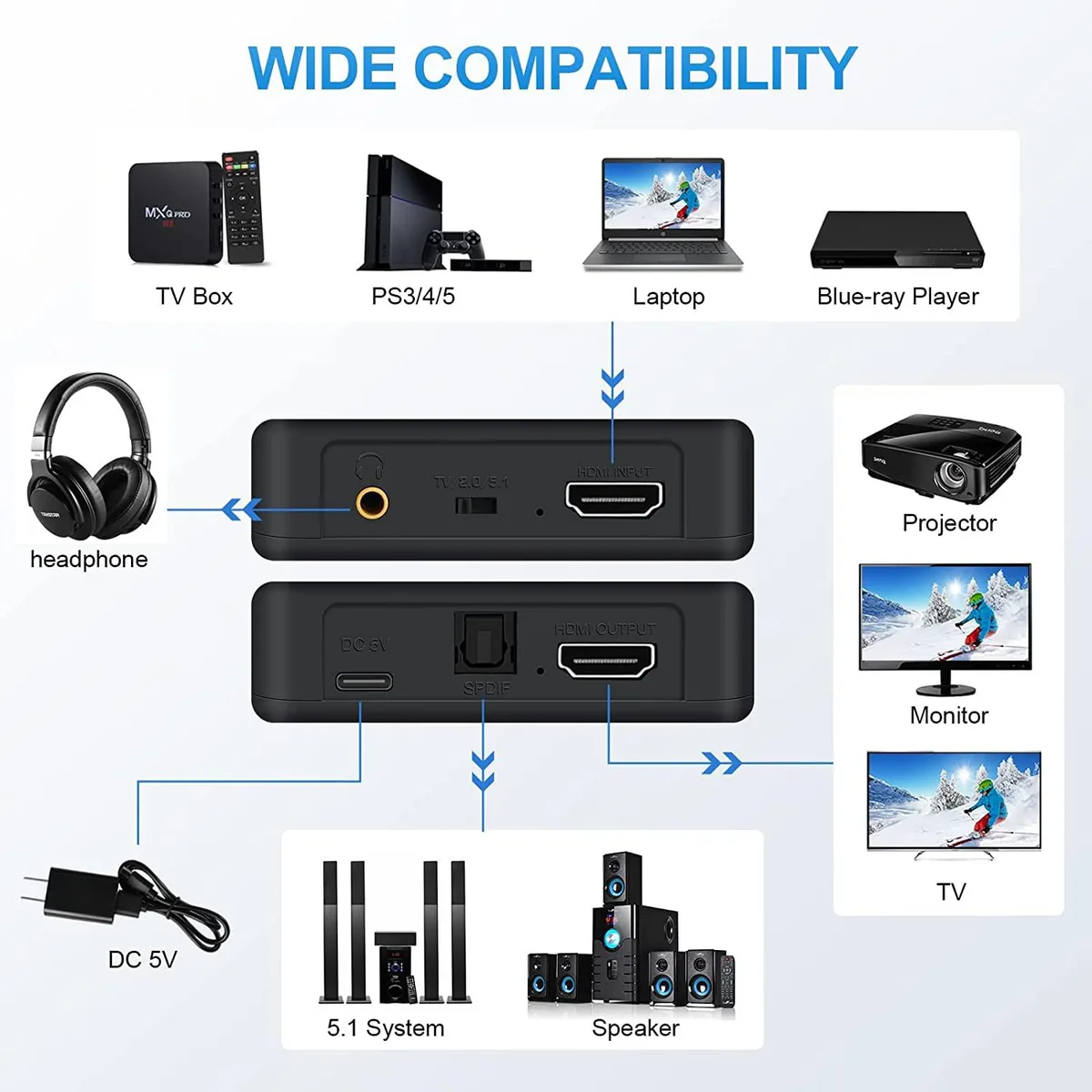

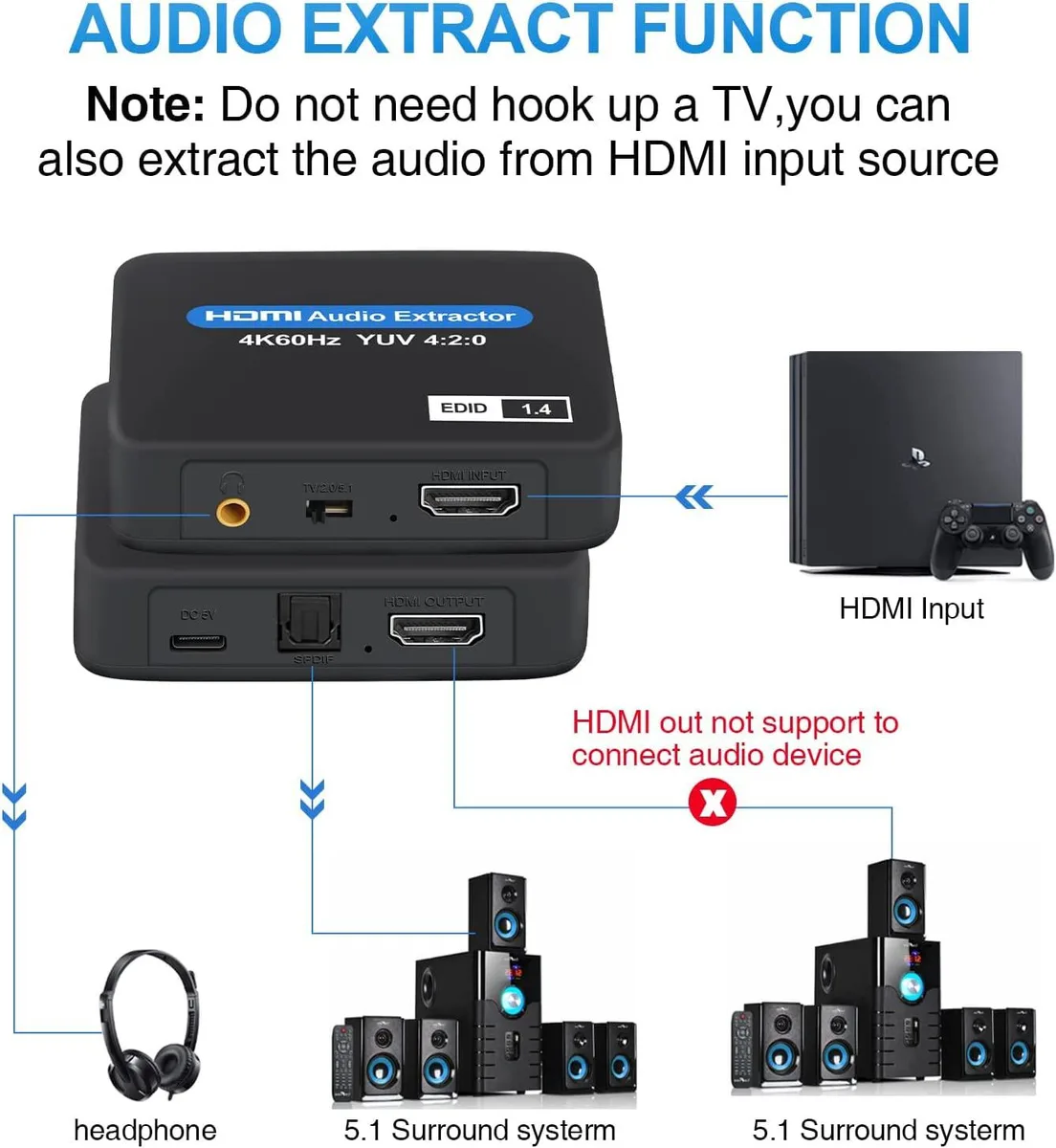

The ESTONE OZV8C takes one HDMI source and delivers the video signal to a single display while simultaneously providing optical Toslink SPDIF and 3.5 mm stereo audio outputs. It is intended for users who need to separate audio from a Fire Stick, Xbox, laptop or similar HDMI device for connection to a soundbar, amplifier or headphones without requiring the display to handle audio passthrough.

HDMI 1.4 Bandwidth and Audio Mode Limits

The unit operates at 18 Gbps bandwidth, supporting video up to 3840 x 2160 at 60 Hz with HDCP 1.4 and 3D capability. Audio extraction is limited to the three selectable modes — TV, 2.0 CH and 5.1 CH — and the listed digital formats such as DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby AC3; Dolby Digital Plus is explicitly not supported. Colour depth reaches 24 bit or deep colour 30 bit within the YUV 4:2:0 sampling structure.

Compact Metal Housing with External Power

The black enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, making it easy to tuck behind equipment. A 5 V power adaptor is included and required for operation. Both the optical and 3.5 mm outputs can drive separate audio receivers at the same time, allowing a soundbar and headphones to be used together without the display being powered on.

Highlights

  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Three audio modes — TV, 2.0 CH and 5.1 CH — match your sound system
  • 18 Gbps bandwidth carries 3840 x 2160 at 60 Hz with HDR
  • HDCP 1.4 and 3D support keep protected and stereoscopic content intact
  • Powers from included 5 V adaptor for stable operation with Fire Stick, Xbox or laptop

Specifications

BrandESTONE
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

How do I choose between the 3.5mm stereo output and the optical Toslink SPDIF output for my audio system?

Both outputs are active simultaneously and can feed different devices such as a soundbar and headphones at the same time. The unit also offers TV, 2.0CH and 5.1CH audio modes to match your speaker configuration.

What does the 4K 60Hz rating mean when I connect this extractor to my display?

It supports video up to 3840 x 2160 at 60 frames per second with 18Gbps bandwidth, plus 3D and HDCP 1.4 compatibility for protected content.

Which HDMI version and bandwidth does this extractor use, and what does that limit in practice?

The 18Gbps bandwidth handles 4K 60Hz 4:4:4 24-bit or 30-bit deep colour, 3D formats and HDCP 1.4, but does not support higher refresh rates or HDCP 2.2.
