Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8C HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm Black

SKU CH-KVXE-XZ46Z

Extracts audio from a 4K 60 Hz HDMI signal to optical and 3.5 mm outputs while passing video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extract audio to soundbars or headphones via SPDIF and 3.5 mm outputs
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth
  • Switch between TV, 2.0 CH and 5.1 CH audio modes
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 formats
  • Compact 5.59 x 3.15 x 1.26 inch design weighs 3.2 ounces

HDMI Audio Extraction for 4K Sources

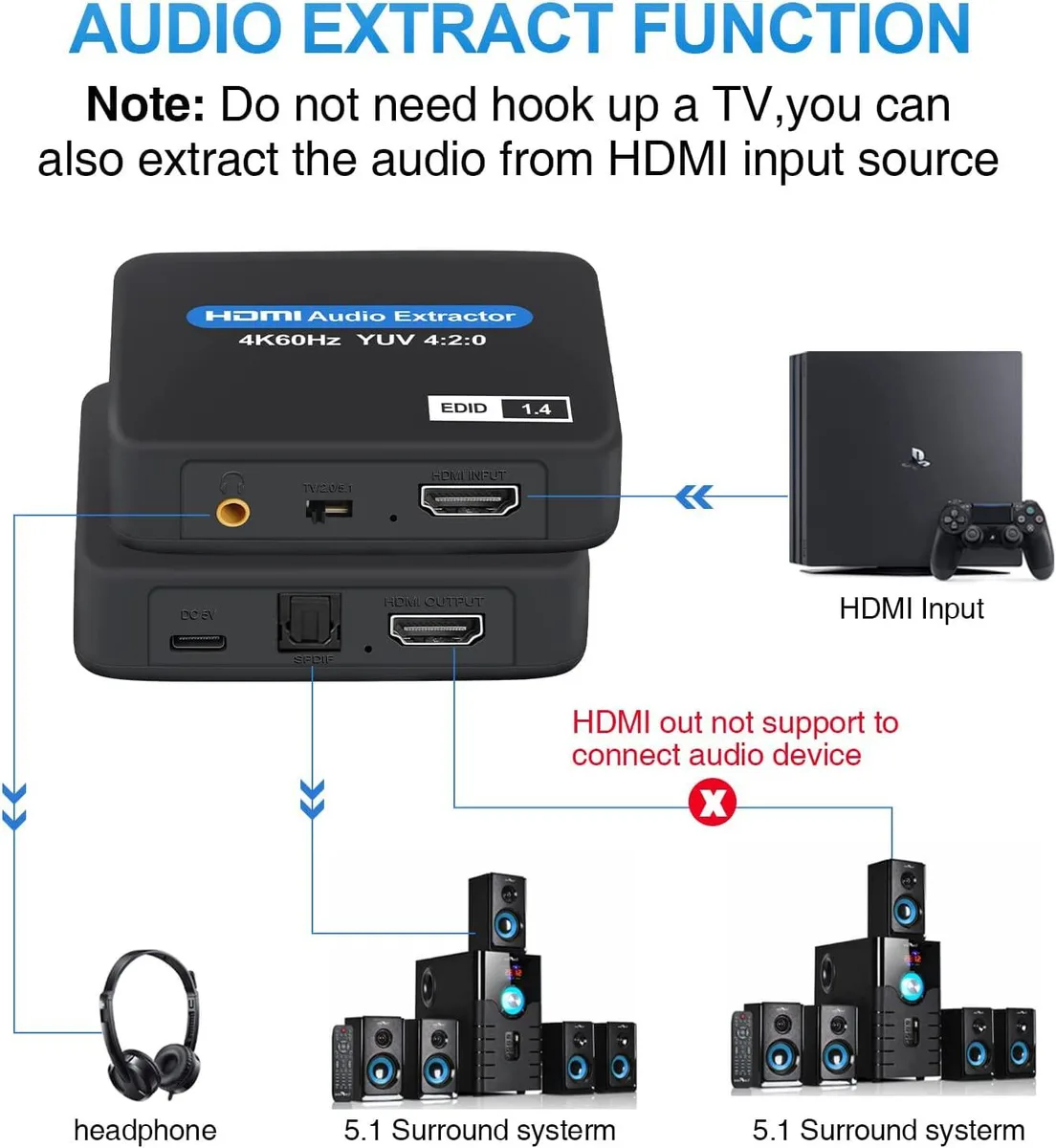

The ESTONE OZV8C extracts digital audio from a single HDMI source and sends it to both an Optical Toslink SPDIF port and a 3.5mm stereo jack while passing the video signal through to a display. It suits users connecting a streaming stick, games console or laptop to a soundbar, amplifier or headphones that lack an HDMI input. The unit requires external power via the included 5V adaptor to operate.

18Gbps Bandwidth with 4K 60Hz Headroom

The extractor handles video up to 3840 x 2160 at 60Hz over an 18Gbps link and supports 3D, HDCP1.4 and deep colour up to 30-bit. It also passes 1080p and 720p signals. Audio formats such as DTS-HD, Dolby TrueHD, LPCM 7.1 and standard Dolby Digital are decoded, though Dolby Digital Plus is not supported. Three audio modes — TV, 2.0CH and 5.1CH — let you match the output to your sound system.

Compact Black Enclosure with Three Output Ports

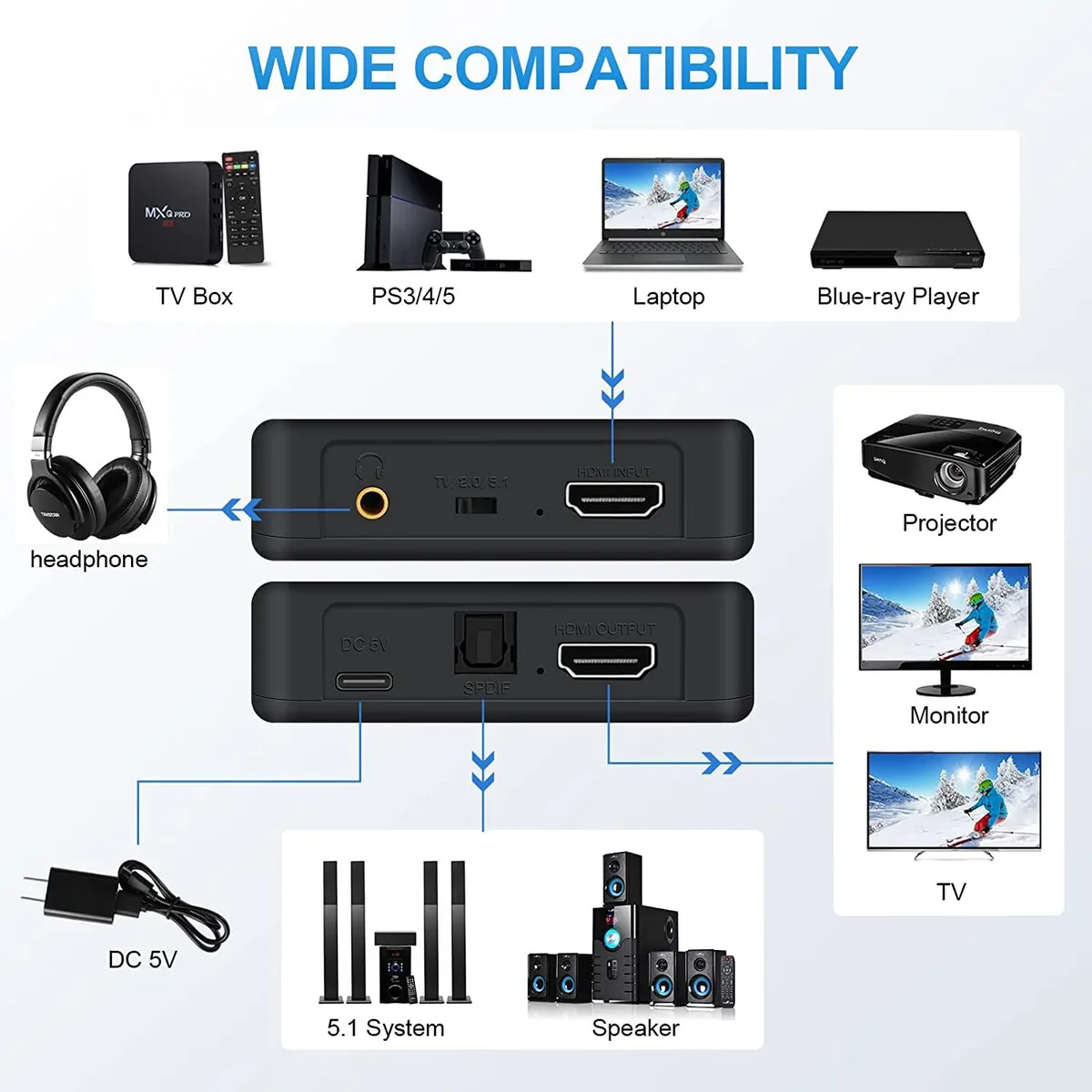

A small black metal case measuring 5.59 x 3.15 x 1.26 inches and weighing 3.2 ounces sits discreetly behind a TV or on a desk. One HDMI input feeds one HDMI video output alongside the separate Optical and 3.5mm audio outputs, allowing simultaneous connection of a display and an external audio device. The package includes the extractor, a 5V power adaptor and a user manual.

Highlights

  • Extract audio to soundbars or headphones via SPDIF and 3.5 mm outputs
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth
  • Switch between TV, 2.0 CH and 5.1 CH audio modes
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 formats
  • Compact 5.59 x 3.15 x 1.26 inch design weighs 3.2 ounces

Specifications

BrandESTONE
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

Will the extractor pass 4K 60 Hz video to my older 1080p monitor while I send audio to a soundbar?

Yes, the unit supports 3840 x 2160 at 60 Hz and down-scales to 1080p, so the HDMI output works with your monitor while SPDIF or 3.5 mm feeds the soundbar.

How do I confirm the 5.1 CH audio mode is active after connecting my Xbox?

Set the switch to 5.1 CH, play multichannel content, and verify your receiver shows Dolby TrueHD, DTS-HD or LPCM 7.1 on its display.

Does the box include the 5 V power adapter and an HDMI cable?

The package contains the extractor, a 5 V power adapter and a user manual; an HDMI cable is not included.
