Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8C HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-BPA5-FANVZ

Extracts HDMI audio to optical SPDIF and 3.5 mm stereo while passing 4K 60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Three audio modes let you match TV stereo or 5.1 surround sound
  • Supports DTS-HD, Dolby TrueHD and 7.1 LPCM formats
  • 18 Gbps bandwidth handles 3840 x 2160 resolution at 60 Hz
  • Compact 5.59 x 3.15 x 1.26 inch unit includes 5 V power adapter

4K 60Hz HDMI Audio Extractor

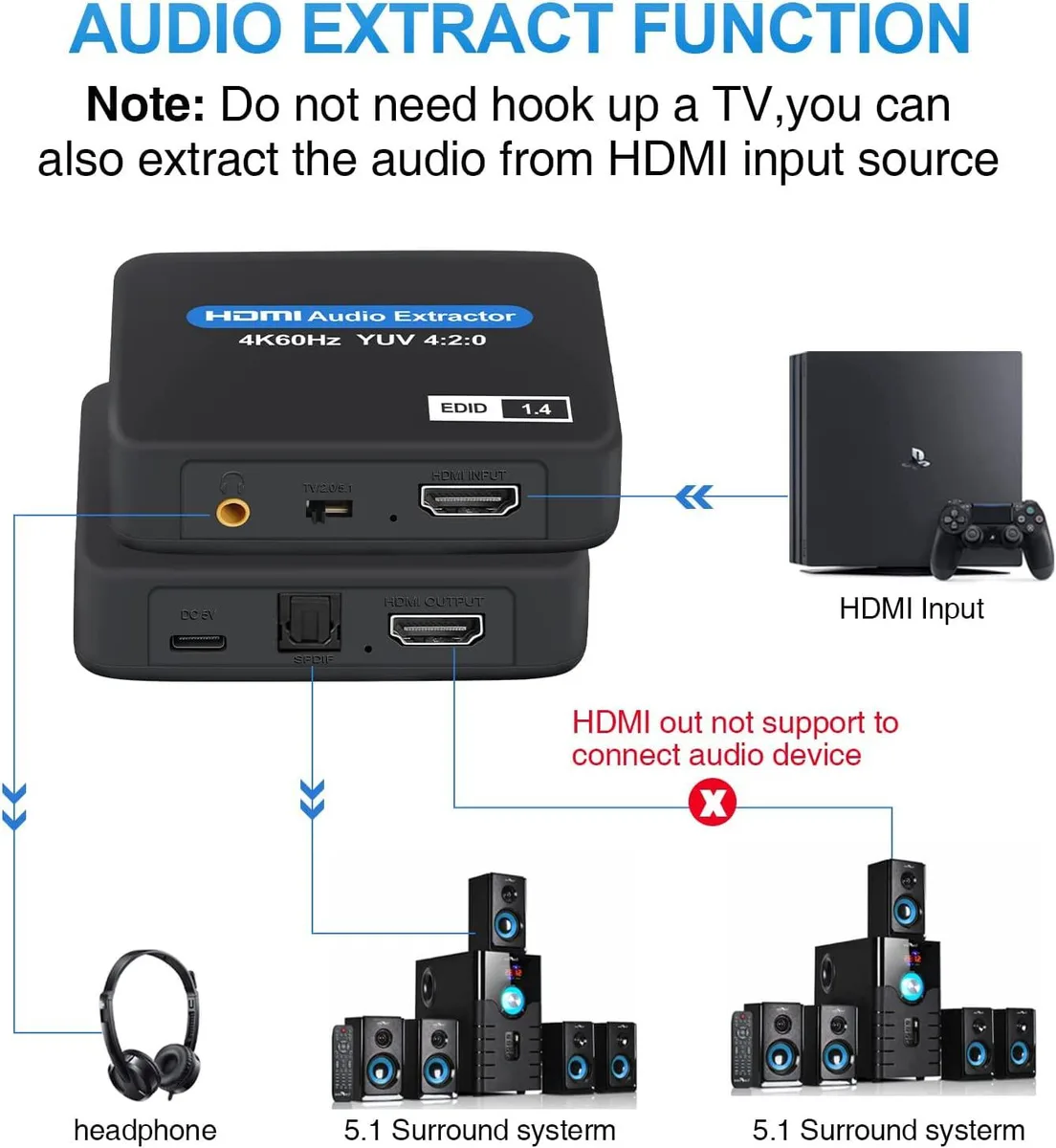

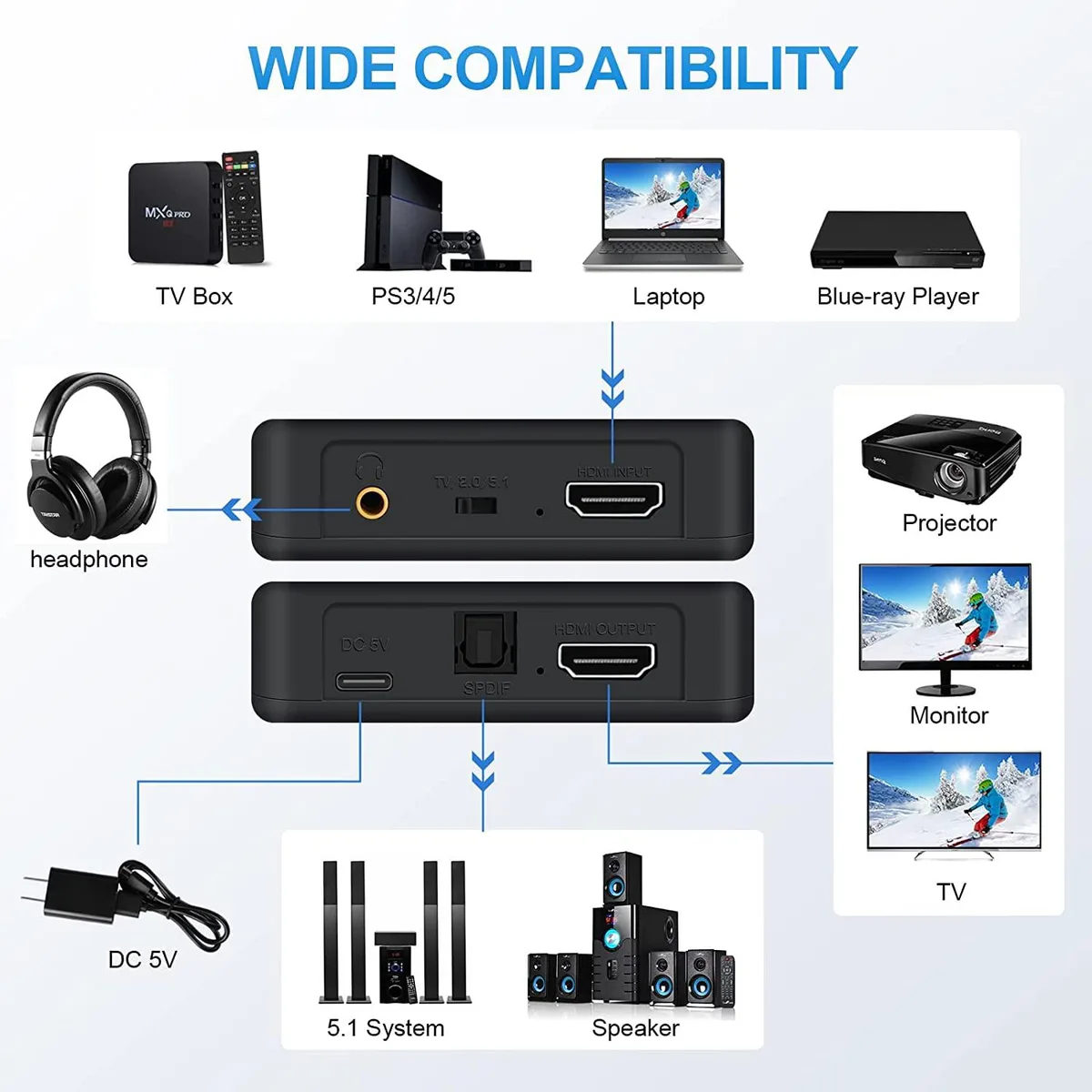

This ESTONE OZV8C unit takes a single HDMI source and splits the signal to one HDMI display output plus separate Optical Toslink SPDIF and 3.5mm stereo audio outputs. It handles video up to 3840 x 2160 at 60Hz with 18Gbps bandwidth and HDCP 1.4 compliance. The extractor suits users who need to route audio to a soundbar, amplifier or headphones while keeping the video path intact.

Passive cooling with external 5V power

The compact enclosure measuring 5.59 x 3.15 x 1.26 inches and weighing 3.2 ounces relies on passive heat dissipation and draws power from the included 5V adapter. No internal fan means silent operation during playback of 4K 60Hz, 1080p or 720p content. Power consumption stays low enough for the supplied adapter without requiring an additional power strip outlet.

Three audio modes and broad format support

A three-position switch selects TV, 2.0CH or 5.1CH audio output modes to match the connected receiver. Supported digital formats include DTS-HD, Dolby TrueHD, LPCM 7.1, DTS and Dolby AC3, though Dolby Digital Plus is not supported. The HDMI output maintains 24-bit or deep colour 30-bit video while the SPDIF and 3.5mm ports can drive separate audio devices simultaneously.

Highlights

  • Extracts audio to SPDIF and 3.5 mm while passing 4K 60 Hz video
  • Three audio modes let you match TV stereo or 5.1 surround sound
  • Supports DTS-HD, Dolby TrueHD and 7.1 LPCM formats
  • 18 Gbps bandwidth handles 3840 x 2160 resolution at 60 Hz
  • Compact 5.59 x 3.15 x 1.26 inch unit includes 5 V power adapter

Specifications

BrandESTONE
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

How do I connect the ESTONE OZV8C to my PS5 and soundbar using the SPDIF output, and what setting do people forget to switch?

Plug the PS5 into the single HDMI input, run an HDMI cable from the extractor to the display, connect an optical Toslink cable from the SPDIF port to the soundbar, then slide the audio-mode switch to 5.1CH; many users leave it on TV mode and get no surround sound.

Will the 5V power adaptor need replacing after a few years of continuous use?

The included 5V adaptor powers the extractor; like any wall-wart it can degrade over time, so keep a spare 5V unit with the same barrel polarity on hand for uninterrupted operation.

At what point does the 18Gbps bandwidth limit 4K 60Hz HDR content during long gaming sessions?

The 18Gbps ceiling supports 4K 60Hz 8-bit colour; 10-bit HDR at 4K 60Hz exceeds that bandwidth, so extended HDR gaming may drop to 8-bit or lower resolution automatically.
