Small black box with HDMI, optical and 3.5 mm ports

ESTONE

ESTONE OZV8C 4K 60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-EMJ7-KSRB0

Extracts audio from an HDMI signal to SPDIF and 3.5 mm outputs while passing 4K 60 Hz video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Audio Extractor The converter allows the HD Source conn
  • Input Connector1 HDMI input
  • Extract audio to soundbar or headphones via optical SPDIF and 3.5 mm jack
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth and HDCP 1.4
  • Switch between TV, 2.0 CH and 5.1 CH audio modes for any source
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and more digital formats
  • Compact 5.59 x 3.15 x 1.26 inch design powered by included 5 V adaptor

4K 60 Hz HDMI Audio Extractor

The ESTONE OZV8C splits one HDMI source into a video signal for a display and separate digital or analogue audio feeds. It handles 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 1.4 compliance. The unit is aimed at anyone who needs to route sound to a soundbar, amplifier or headphones while keeping the picture on a TV or monitor.

Compact metal housing with three output ports

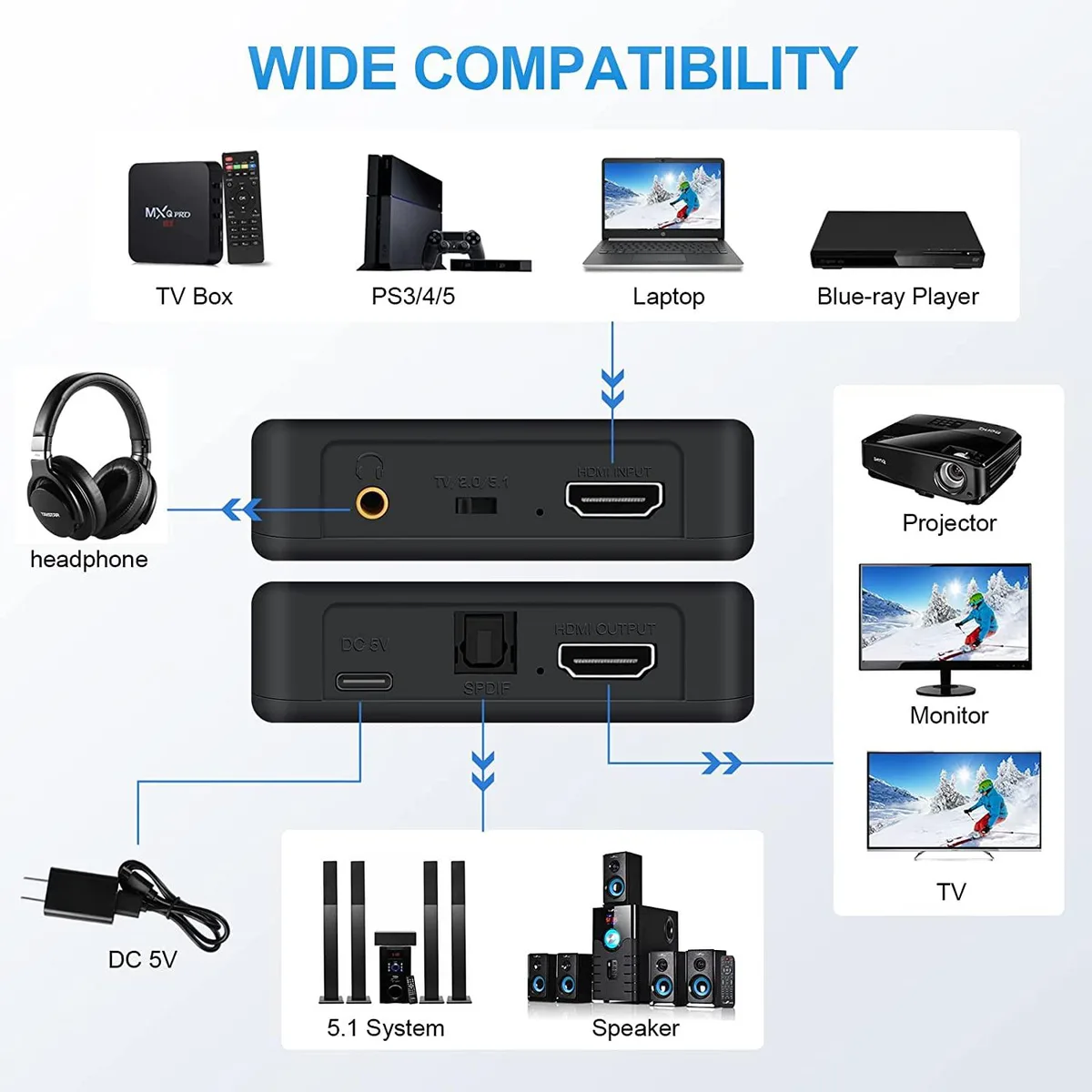

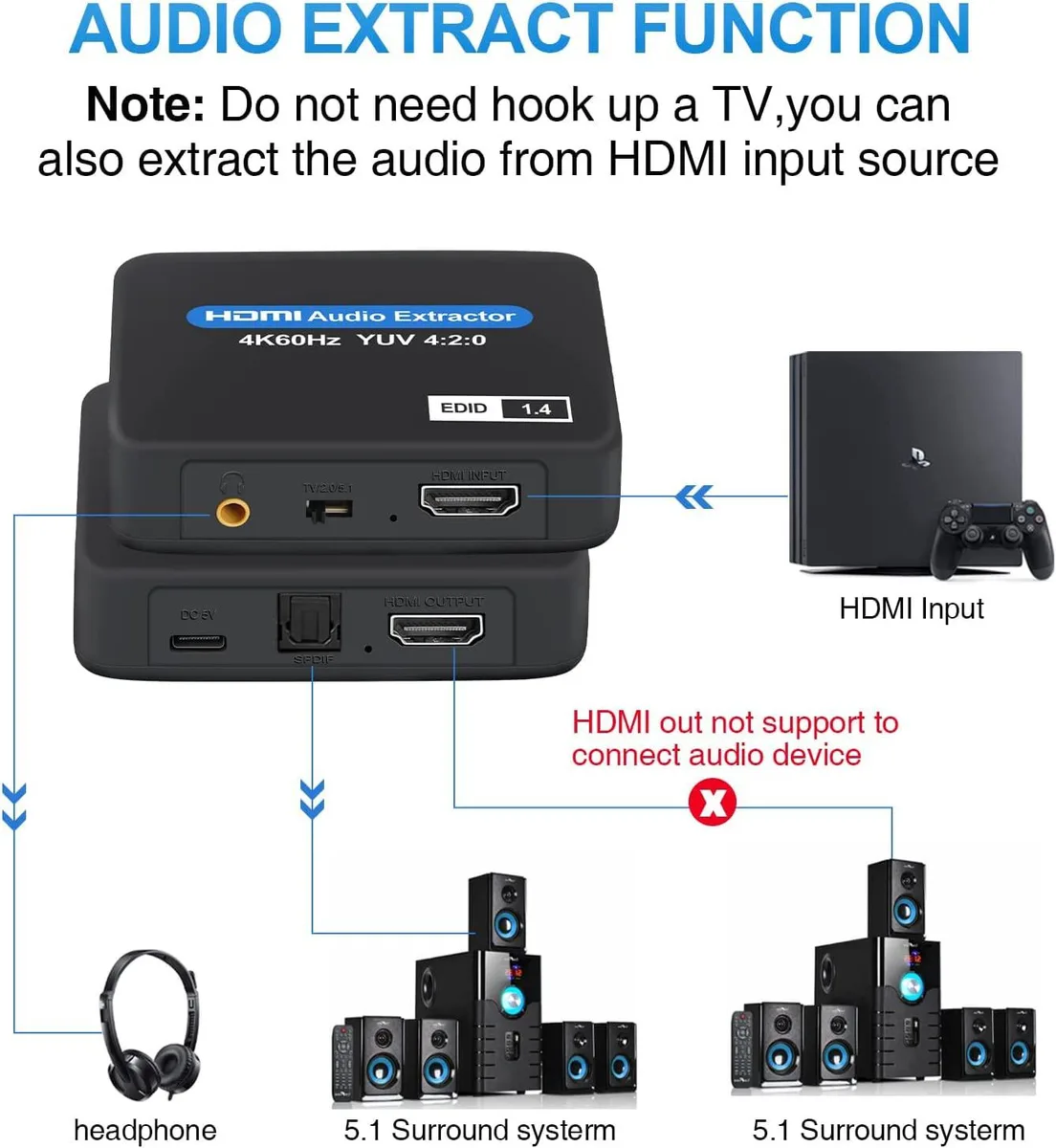

A single HDMI input feeds one HDMI loop-through plus an optical Toslink SPDIF jack and a 3.5 mm stereo jack. Both audio outputs work independently, so a receiver can be connected without a display attached. The enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, fitting easily behind equipment. A 5 V power adapter is included for stable operation.

Replaces basic HDMI splitters that lack audio

This device adds 2.0 CH and 5.1 CH audio modes plus support for DTS-HD, Dolby TrueHD, LPCM 7.1 and other multi-channel formats. It is worth the step up when a source such as a console, streaming stick or laptop must feed a legacy audio system that has no HDMI input. It does not suit installations that require HDCP 2.2 or Dolby Digital Plus decoding.

Highlights

  • Extract audio to soundbar or headphones via optical SPDIF and 3.5 mm jack
  • Enjoy 4K video at 60 Hz with 18 Gbps bandwidth and HDCP 1.4
  • Switch between TV, 2.0 CH and 5.1 CH audio modes for any source
  • Supports DTS-HD, Dolby TrueHD, LPCM 7.1 and more digital formats
  • Compact 5.59 x 3.15 x 1.26 inch design powered by included 5 V adaptor

Specifications

BrandESTONE
SeriesOZV8C
ModelOZV8C
Part NumberOZV8C
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Audio Extractor
The converter allows the HD Source connected to single HD display and adds extra one 3.5mm audio and SPDIF audio out port.
One HDMI input converted to one HDMI+ Audio(SPDIF+3.5mm audio)Output to achieve the synchronization of audio signal separation.
Input Connector1 HDMI input
Output ConnectorHDMI + Optical Toslink SPDIF + 3.5mm Audio Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesThere are TV /2.0CH/5.1CH three kinds of audio mode
Support 4K x 2K@60Hz, Support 3D HDCP1.4
Support blue-ray 24/50/60fs/hd-dvd/XVYCC
Digital audio format, as DTS-HD/dobly-truehd/LPCM7.1/DTS/dobly-ac371s (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1x HDMI Audio Extractor Converter
1x 5V Power Adaptor
1x User Manual

Questions about this item

Does the 18 Gbps bandwidth cap the HDMI output at 4K 60 Hz?

Yes, the 18 Gbps limit supports 3840 x 2160 at 60 Hz with HDCP 1.4 and 3D.

What clearance does the 5.59 x 3.15 x 1.26 inch case need for mounting?

The unit weighs 3.2 ounces and fits on a shelf or behind a display with at least 1.26 inches of depth.

Which audio mode switch — TV, 2.0 CH or 5.1 CH — should I set before powering on?

Choose the mode that matches your sound system, connect the 5 V power adaptor first, then apply source power.
