Black rectangular HDMI audio extractor with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8 HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-1XJM-S0TMB

Extracts audio from a 4K 60 Hz HDMI signal to optical SPDIF and 3.5 mm stereo while passing video through, with EDID switching for stereo or 5.1 surround

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 5.1 surround and stereo via selectable EDID switch
  • Handles 18 Gbps bandwidth with deep colour up to 36 bit
  • Powers from included 5 V adapter for stable operation
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

ESTONE OZV8 4K 60Hz Audio Extractor

The ESTONE OZV8 extracts audio from an HDMI source and delivers it through optical SPDIF and 3.5 mm analogue outputs while passing the video signal to a display. It supports resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and deep colour up to 36 bit. The unit includes a 5 V power adapter and an HDMI cable for immediate setup.

Suitable for soundbars.

This extractor suits users who need to separate audio from a 4K 60 Hz source such as a games console, streaming stick or media player and send it to an external sound system. It is not for buyers who require HDMI 2.1 features, 8K resolution or Bluetooth headset connectivity, and it cannot function as an HDMI switch or matrix.

18 Gbps bandwidth with HDMI 2.0 and ARC support

The single decisive specification is the 18 Gbps maximum bandwidth combined with HDMI 2.0 and ARC compatibility, which determines whether the extractor can pass 4K 60 Hz HDR video while returning audio to a compatible receiver. If your source and display demand higher bandwidth or HDMI 2.1 features, this unit will not meet the requirement.

Highlights

  • Extracts audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 5.1 surround and stereo via selectable EDID switch
  • Handles 18 Gbps bandwidth with deep colour up to 36 bit
  • Powers from included 5 V adapter for stable operation
  • Compact 5.59 x 3.15 x 1.26 inch black enclosure

Specifications

BrandESTONE
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

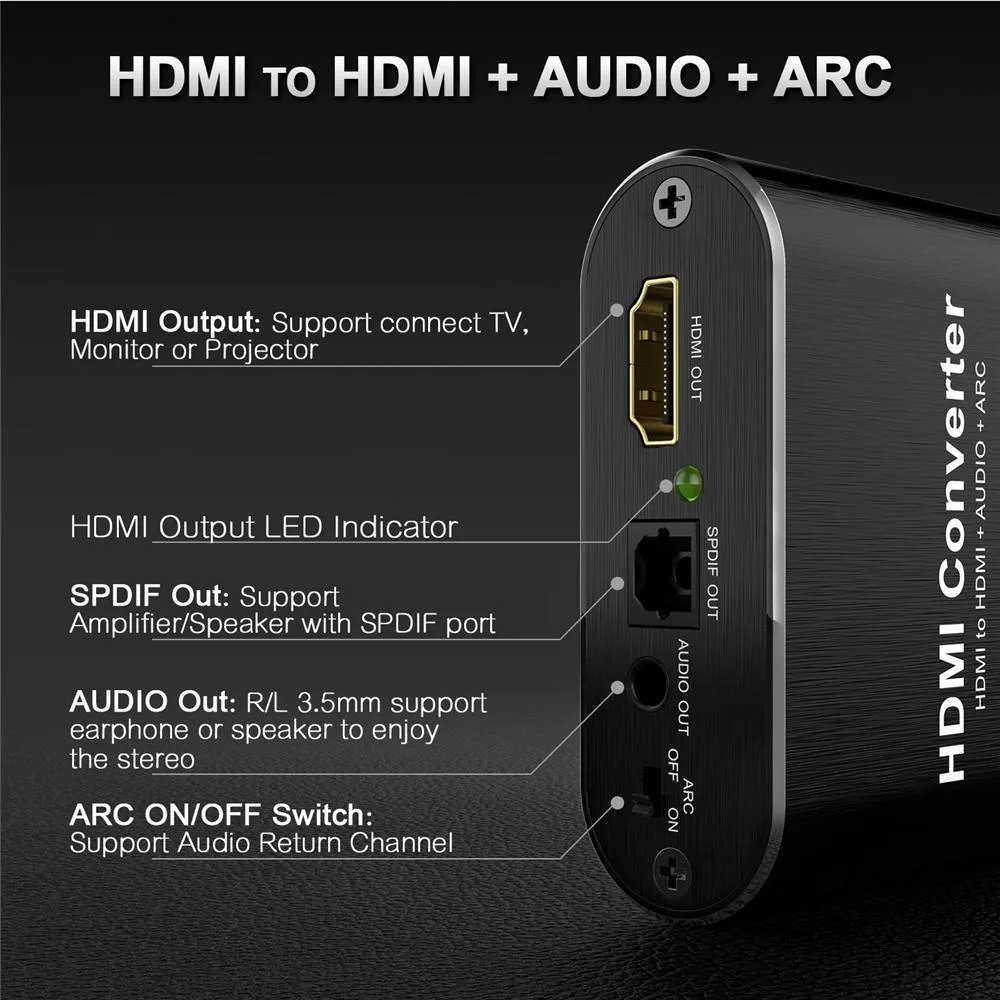

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)

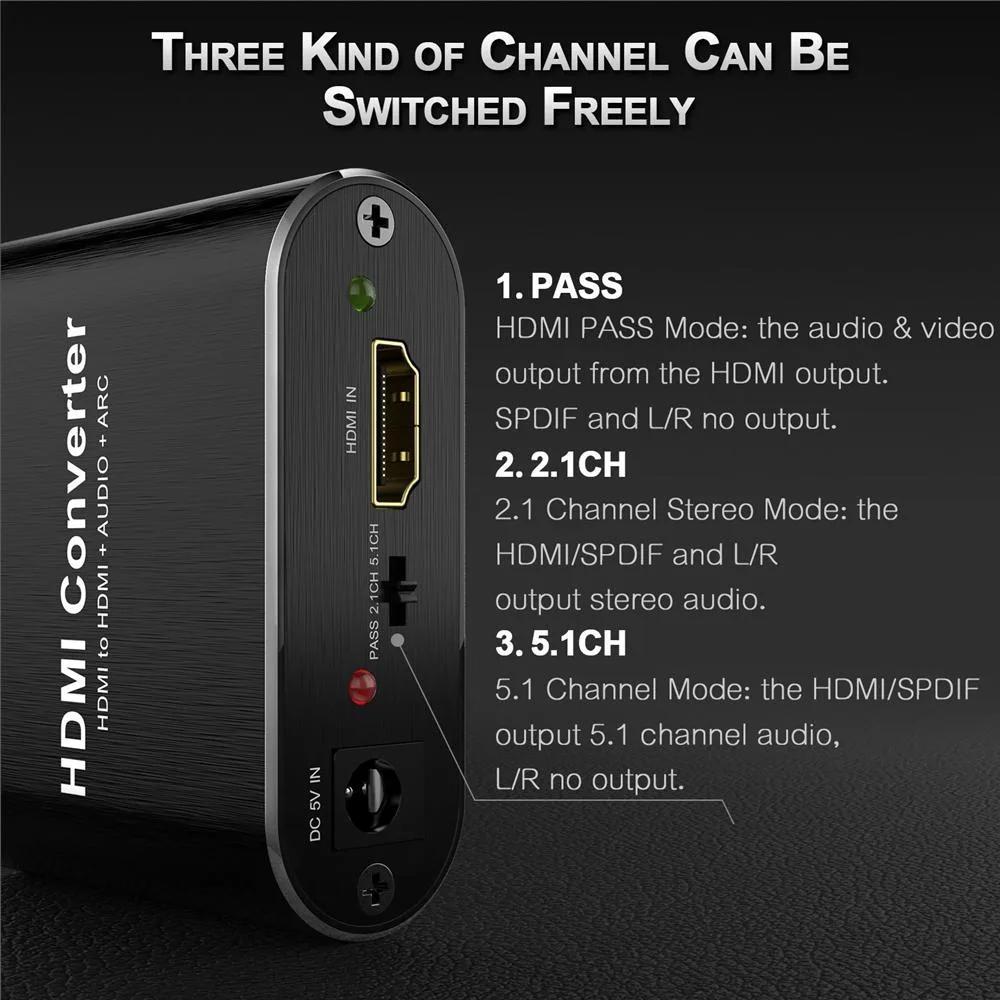

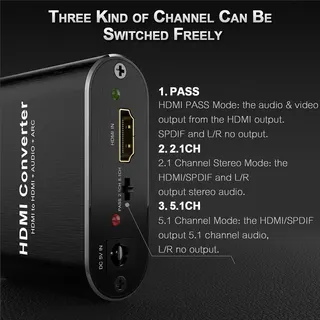

2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Which HDMI source and display must I already own for the OZV8 to pass 4K 60 Hz video?

You need a source and a display that both support 4K at 60 Hz; the extractor passes the signal through its HDMI output at up to 3840×2160 60 Hz.

Will my older 1080p AV receiver still receive audio through the optical or 3.5 mm jack?

Yes, the EDID switch lets you select 2CH or 5.1CH so the extractor down-mixes or passes stereo and multichannel audio to legacy gear.

How do I confirm the extractor is sending 5.1-channel sound to my soundbar via the SPDIF port?

Set the EDID switch to 5.1CH, play multichannel content, and verify the soundbar shows a Dolby or DTS indicator on its display.
