Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8 4K@60Hz HDMI Audio Extractor Splitter

SKU CH-3CG0-NV6Z4

Extracts HDMI audio to optical and 3.5 mm outputs while passing 4K 60 Hz video through a single HDMI output

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extract audio to optical or 3.5 mm while passing 4K@60 Hz video
  • EDID switch selects Pass, 2 CH or 5.1 CH audio output
  • HDMI 2.0a and HDCP 2.2 protect 4K content at 18 Gbps
  • Deep-colour support up to 36 bit for richer gradients
  • Compact 5.59 × 3.15 × 1.26 in unit includes power adapter and HDMI cable

HDMI Audio Extractor OZV8

The ESTONE OZV8 extracts audio from a single HDMI source and delivers it simultaneously through optical Toslink and 3.5 mm analogue outputs while passing the video signal onward to a display. It suits owners of soundbars, amplifiers or headphones that lack HDMI inputs but need sound from consoles, media players or set-top boxes.

18 Gbps HDMI 2.0 Bandwidth

The splitter handles 18 Gbps throughput with HDMI 2.0 and HDCP 2.2 compliance, making 4K resolution at 60 Hz the decisive specification for compatibility. Sources and sinks must both support that rate; otherwise the link falls back to lower resolutions such as 1080p or 720p.

EDID Switch Selects Output Mode

A three-position EDID switch chooses between Pass, 2-channel and 5.1-channel audio formats before the signal leaves the extractor. Selecting the correct mode prevents handshake errors that would otherwise mute the optical or analogue outputs during extended viewing sessions.

Highlights

  • Extract audio to optical or 3.5 mm while passing 4K@60 Hz video
  • EDID switch selects Pass, 2 CH or 5.1 CH audio output
  • HDMI 2.0a and HDCP 2.2 protect 4K content at 18 Gbps
  • Deep-colour support up to 36 bit for richer gradients
  • Compact 5.59 × 3.15 × 1.26 in unit includes power adapter and HDMI cable

Specifications

BrandESTONE
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)

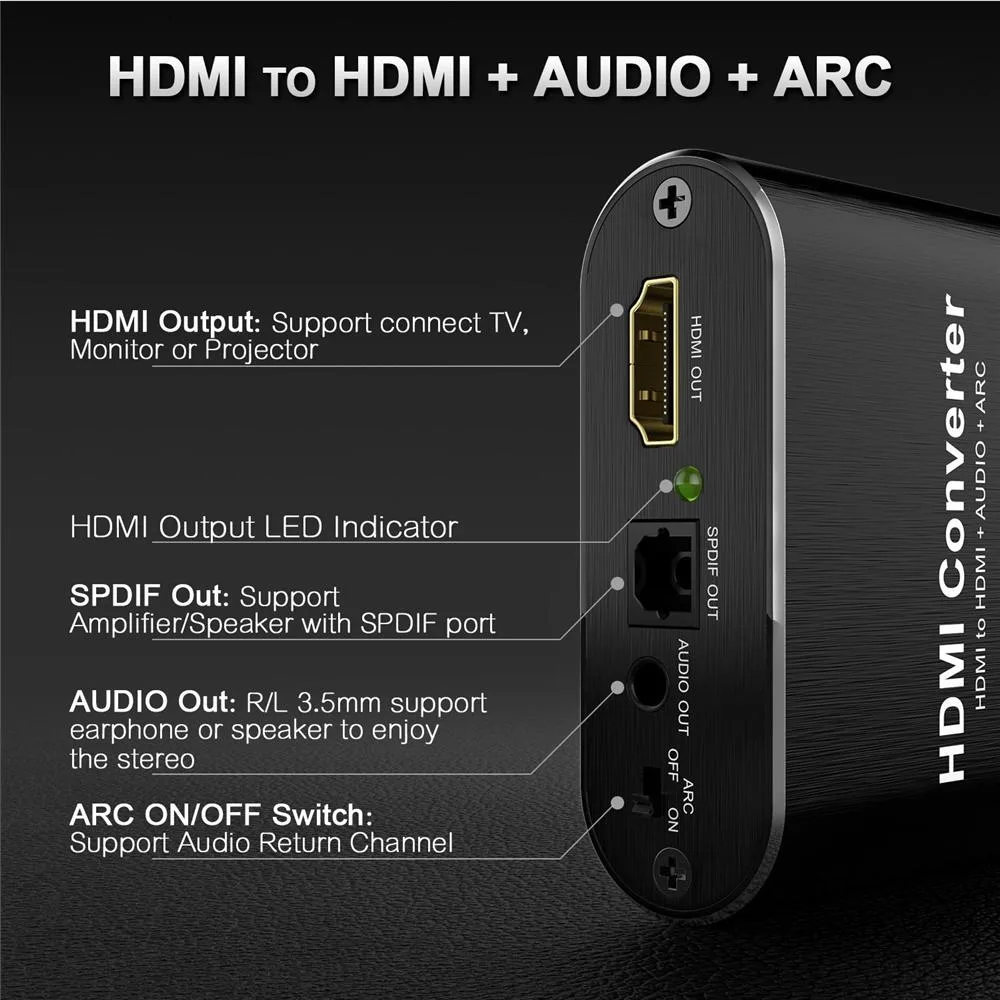

Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What does 4K at 60 Hz mean when I connect this extractor to my TV and sound system?

The extractor passes 3840 x 2160 video at 60 frames per second to the display while simultaneously sending audio to optical or 3.5 mm outputs.

How does the HDMI 2.0a and HDCP 2.2 interface limit what I can play?

The 18 Gbps bandwidth caps video at 4K 60 Hz with 24, 30 or 36 bit colour; protected 4K streams require both source and display to support HDCP 2.2.

What physical space and connections do I need to install the OZV8?

The unit measures 5.59 x 3.15 x 1.26 inches and needs one HDMI input, one HDMI output, plus either optical or 3.5 mm audio cables and the included 5 V power adapter.
