Small black box with HDMI, optical and 3.5 mm ports

ESTONE

ESTONE OZV8 4K@60Hz HDMI Audio Extractor SPDIF 3.5mm 5.1 ARC

SKU CH-B5YP-PY0A8

Extracts audio from a 4K 60 Hz HDMI signal to optical and 3.5 mm outputs while passing video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input
  • Extracts audio to optical SPDIF and 3.5 mm jack for soundbars or amps
  • Passes 4K@60 Hz video with 18 Gbps bandwidth and deep colour up to 36 bit

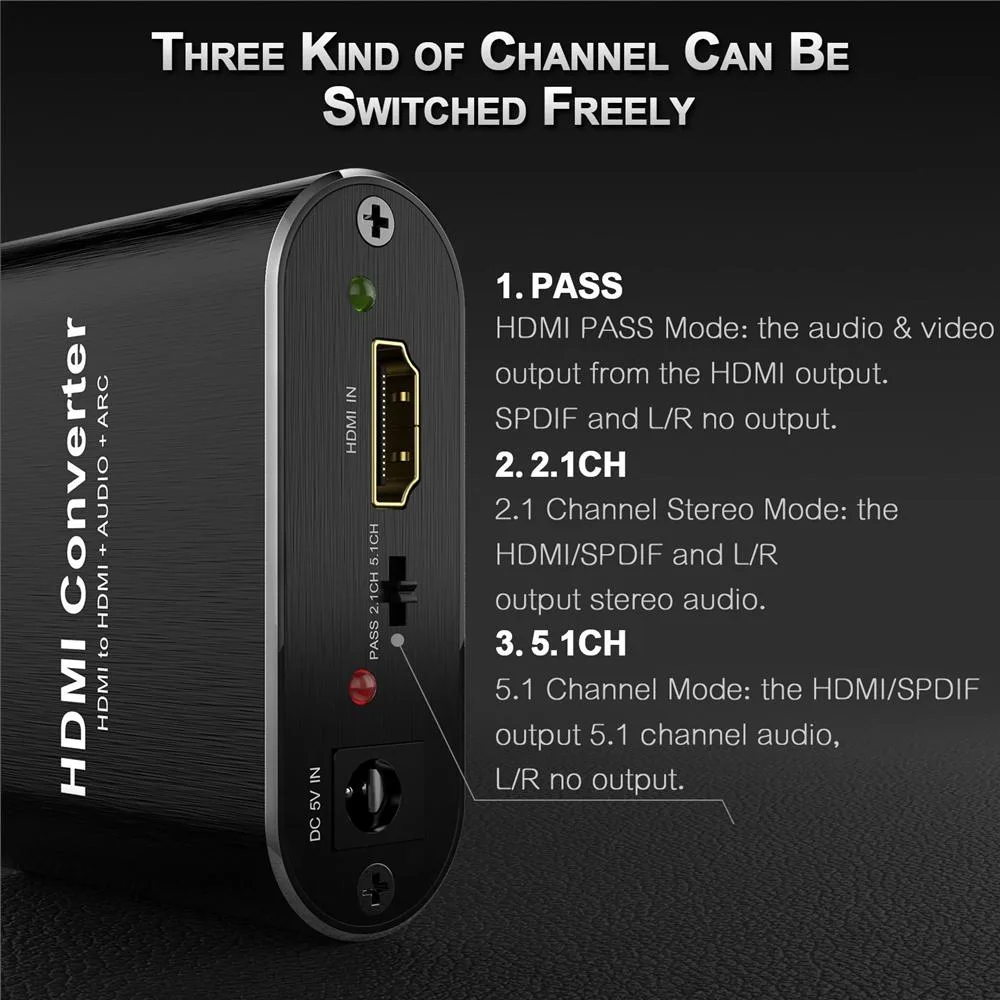

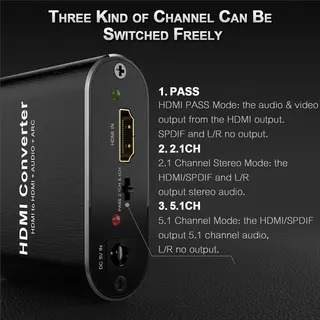

  • EDID switch selects Pass, 2CH or 5.1CH audio modes for compatibility
  • Includes HDMI cable and 5V power adapter for immediate setup
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure weighs 3.2 ounces

Audio extraction for 4K@60Hz sources

The ESTONE OZV8 takes a single HDMI 2.0 input and splits the signal into a mirrored HDMI output plus separate optical SPDIF and 3.5 mm analogue audio feeds. It handles video up to 4K at 60 Hz with 18 Gbps bandwidth and deep-colour formats of 24, 30 or 36 bit. The unit is aimed at installers who need to route sound to a soundbar, amplifier or headphones while keeping the picture path intact.

Integration needs and freedoms

A 5 V/1 A power adapter is included and must be connected for operation. Three EDID audio switches let you choose pass-through, two-channel or 5.1-channel output without re-cabling. The extractor does not work with Bluetooth headsets and should not be fed from a Yamaha device directly into its HDMI input. Both SPDIF and 3.5 mm outputs can drive different receivers simultaneously, freeing the display from audio duties.

Sustained-load behaviour

The device draws a maximum working current of 350 mA and supports a 340 MHz pixel clock continuously across all listed resolutions from 480i through 4K@60Hz. No active cooling is present, so thermal performance relies on the aluminium enclosure during extended sessions. Signal integrity is maintained at the full 18 Gbps rate without introduced latency or frame drops during prolonged playback.

Highlights

  • Extracts audio to optical SPDIF and 3.5 mm jack for soundbars or amps
  • Passes 4K@60 Hz video with 18 Gbps bandwidth and deep colour up to 36 bit
  • EDID switch selects Pass, 2CH or 5.1CH audio modes for compatibility
  • Includes HDMI cable and 5V power adapter for immediate setup
  • Compact 5.59 x 3.15 x 1.26 inch metal enclosure weighs 3.2 ounces

Specifications

BrandESTONE
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input

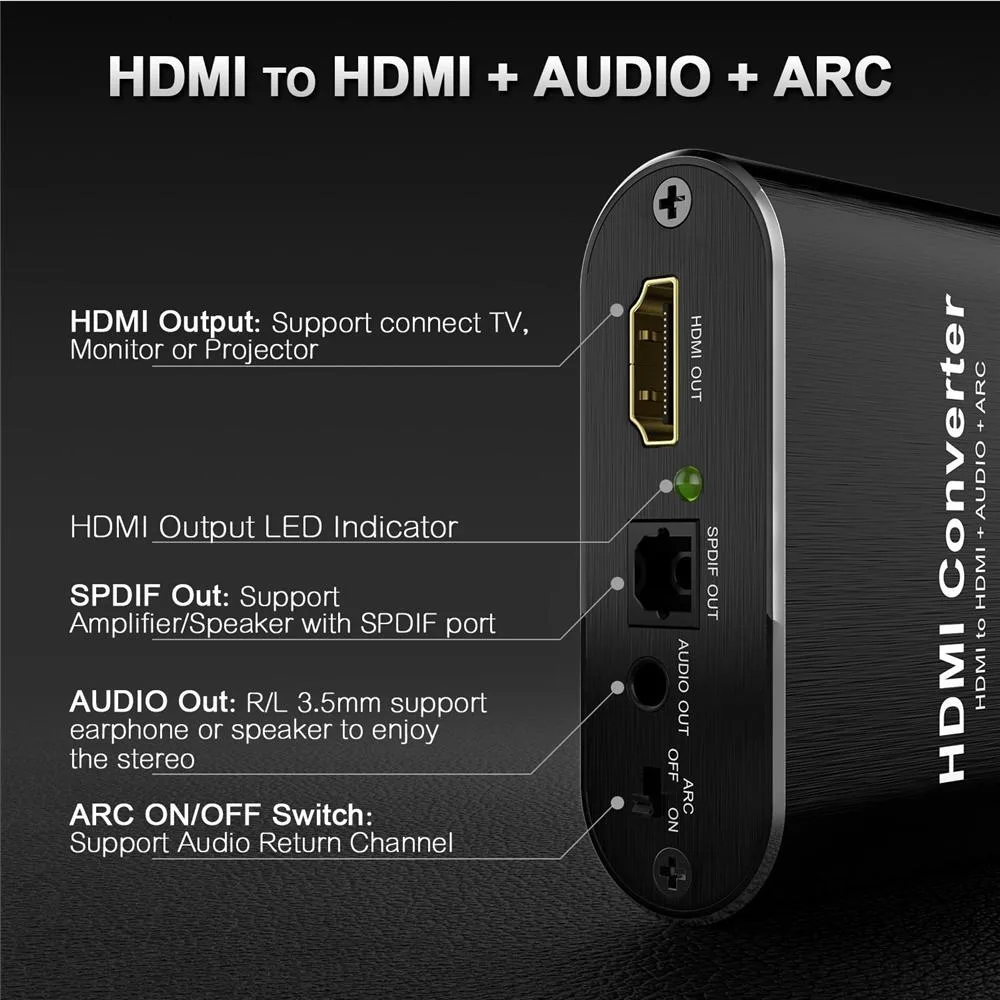

Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Will the 18 Gbps bandwidth limit 4K at 60 Hz with deep colour?

The extractor handles 4K at 60 Hz up to 36-bit deep colour within its 18 Gbps bandwidth, so 24-bit, 30-bit and 36-bit signals all pass without compression.

Does the unit get hot or noisy when powered continuously?

It draws a maximum of 350 mA from the included 5 V supply, has no fan, and runs silently with only slight warmth during all-day operation.

What source and display must I already have for 4K 60 Hz to work?

Both the HDMI source and the HDMI display must support 4K at 60 Hz simultaneously; the extractor itself does not up-convert lower-resolution signals.
