Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8 4K 60Hz HDMI Audio Extractor SPDIF 3.5mm

SKU CH-TPHK-M9Y8Q

Extracts audio from a 4K 60 Hz HDMI signal to optical SPDIF and 3.5 mm stereo outputs while passing video through

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(P
  • Input Connector1 HDMI input

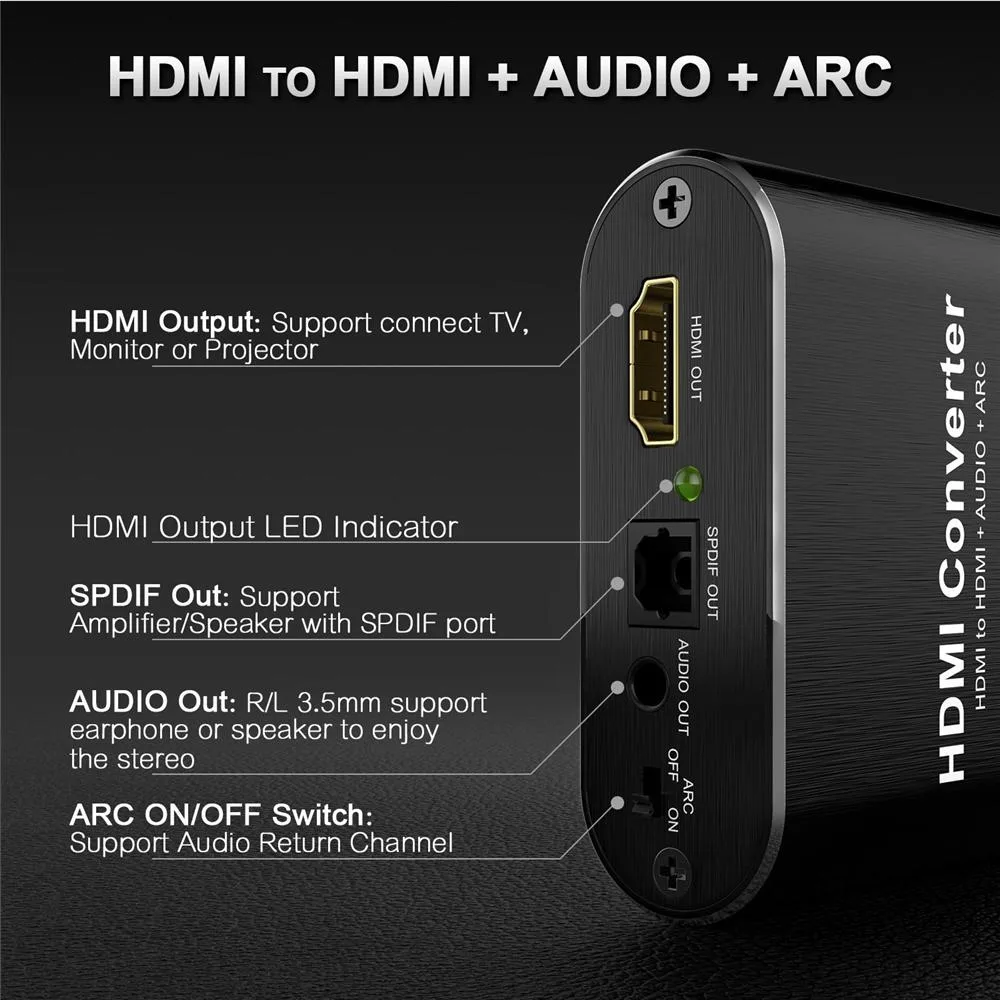

  • Extract audio to soundbar or headphones via optical SPDIF and 3.5 mm jack
  • Pass 4K 60 Hz video untouched with 18 Gbps bandwidth
  • Choose stereo or 5.1 channel output with EDID switch
  • Deep colour 24 30 36 bit support for richer picture
  • Compact 5.59 x 3.15 x 1.26 inch unit includes power supply

4K 60Hz HDMI Audio Extractor

The ESTONE OZV8 extracts audio from a single HDMI source and sends it to both an optical SPDIF port and a 3.5mm stereo jack while passing the video signal through to a display. It supports resolutions up to 3840 x 2160 at 60Hz with 18Gbps bandwidth and handles 24, 30 and 36-bit deep colour formats. The unit includes a 5V power adapter and an HDMI cable for immediate setup.

Check source and display compatibility

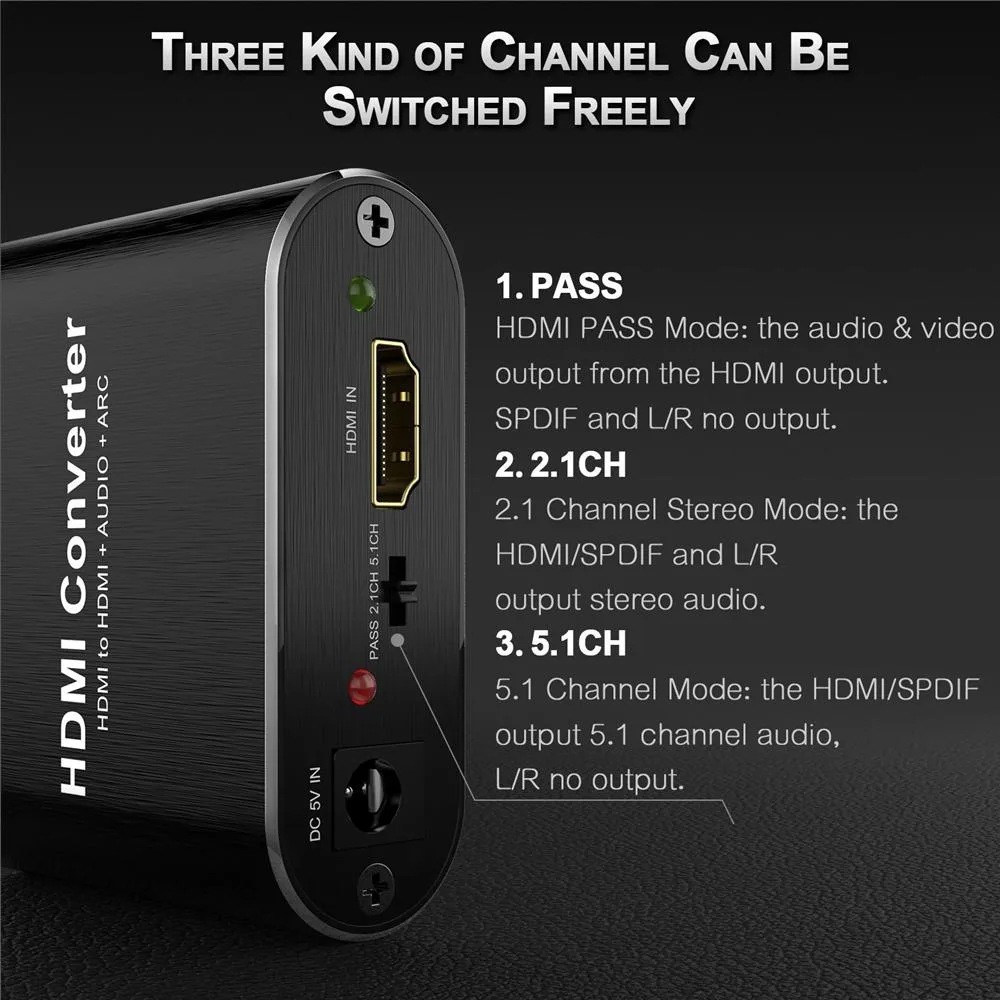

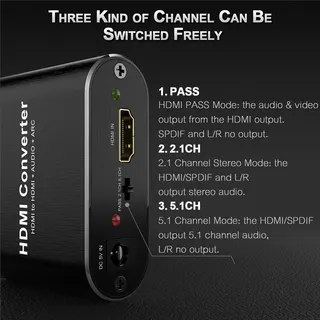

Verify that your source device and your display both support 4K at 60Hz if you plan to use that resolution; otherwise the extractor will fall back to lower modes such as 1080p or 720p. The three-position EDID switch lets you select Pass, 2CH or 5.1CH audio output to match your amplifier or soundbar. Note that Bluetooth headsets are not supported and Yamaha receivers must be connected to the audio output, not the HDMI input.

Steady operation with external power

The included 5V 1A adapter supplies up to 350mA working current, so the extractor maintains stable signal extraction during long viewing or gaming sessions without drawing power from the HDMI source. Its metal enclosure measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, allowing it to sit unobtrusively in a rack or behind a screen while delivering continuous 340MHz bandwidth performance.

Highlights

  • Extract audio to soundbar or headphones via optical SPDIF and 3.5 mm jack
  • Pass 4K 60 Hz video untouched with 18 Gbps bandwidth
  • Choose stereo or 5.1 channel output with EDID switch
  • Deep colour 24 30 36 bit support for richer picture
  • Compact 5.59 x 3.15 x 1.26 inch unit includes power supply

Specifications

BrandESTONE
SeriesOZV8
ModelOZV8
Part NumberOZV8
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsInput Port: 1 x HDMI IN, 1 x 5V Power Port, 3 x EDID Audio(Pass/2CH/5.1CH)
Output Port: 1 x HDMI OUT, 1 x SPDIF (Optical), 1 x 3.5mm Jack
HDMI resolution: 4K@60Hz/1080P/1080i/720p/576p/576i/480p/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 340MHz
Max baud rate: 18Gbps
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
Features1.HDMI Audio Extractor :One HDMI input to One HDMI ouput + Optical Toslink SPDIF and Analog 3.5mm AUX stereo audio out,hdmi to 3.5mm audio adapter (Tips: SPDIF and AUX audio support output separeately to soundbar, amplifier, headphone and other audio receiver without connecting TV / Monitor)
2.Three Audio mode switch settings: (Pass, 2CH and 5.1CH Mode) 3.5mm audio output supports incoming 2CH PCM LPCM stereo audio; Optical SPDIF output supports incoming 2CH PCM, 5.1CH Dobly Digital, Dobly TrueHD, DTS-HD.(Note:Our product don’t support Dobly Digital plus and CEC function)
3. 4K 60Hz
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x HDMI cable
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Does the box include the HDMI cable and power supply, or must they be purchased separately?

The package contains the extractor, one HDMI cable, a 5V/1A power adapter and a user manual, so no extra cables or power supply are required.

Which EDID audio setting — Pass, 2CH or 5.1CH — should I select for my soundbar?

Choose Pass to forward the source’s native format, 2CH for stereo-only devices, or 5.1CH when your soundbar or amplifier supports multichannel surround sound.

What does the 18Gbps bandwidth mean for 4K 60Hz playback on my TV?

It provides enough throughput for 3840 x 2160 at 60Hz with 24, 30 or 36‑bit colour depth, provided both the source and display also support 4K 60Hz.
