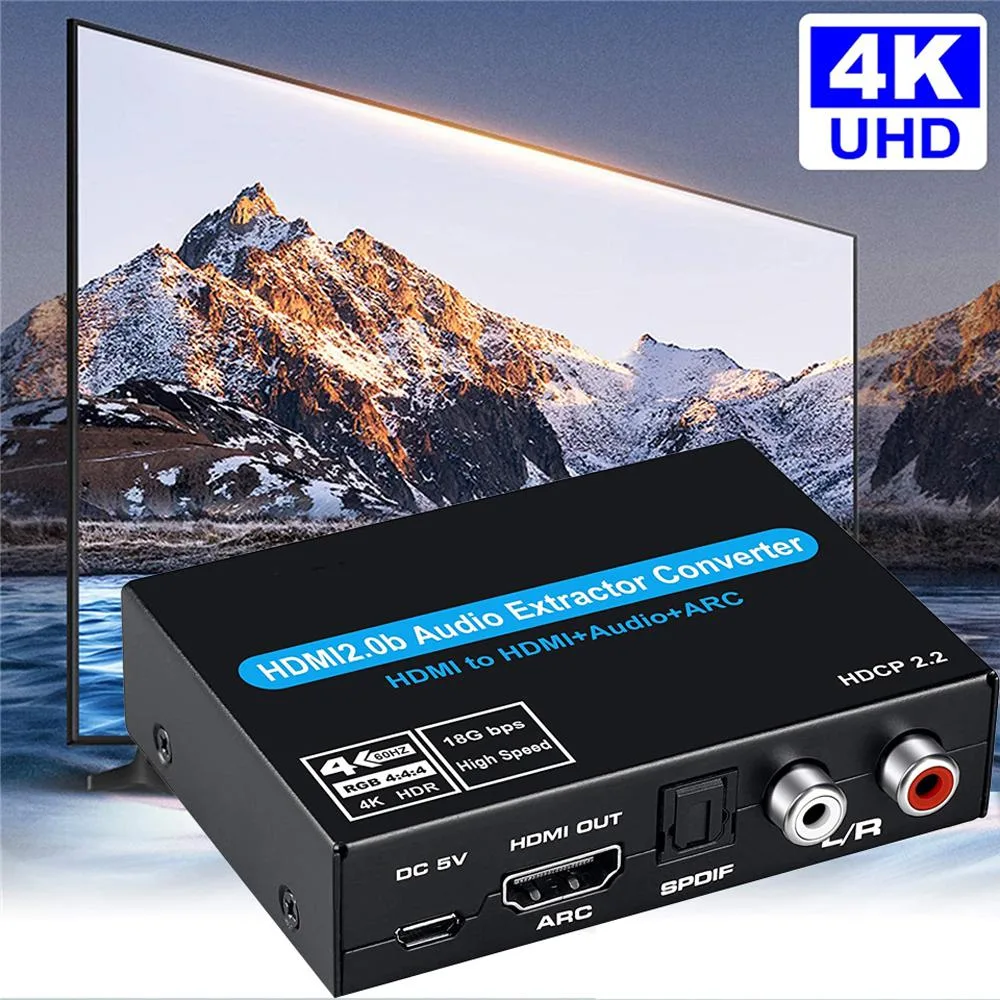

Compact black HDMI audio extractor with multiple ports

ESTONE

ESTONE OZV8-2 HDMI Audio Extractor Switcher Remote 4K 60Hz ARC

SKU CH-BEVZ-06DY1

Extracts audio from one HDMI source to HDMI ARC plus optical, coaxial, 3.5 mm and stereo RCA outputs at 4K 60 Hz

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extracts HDMI audio to SPDIF, 3.5 mm jack and RCA
  • Passes 4K at 60 Hz with HDR10 and Dolby Vision
  • Handles Dolby Atmos and DTS-HD multi-channel formats
  • Supports ARC return channel for TV audio
  • Compact 84.5 × 61.8 × 21 mm unit with 5 V power

Audio extractor with ARC

The Estone OZV8-2 takes one HDMI input and delivers an HDMI ARC output plus three analogue and digital audio ports: SPDIF, stereo RCA and a 3.5 mm jack. It handles video up to 4K at 60 Hz with YUV 4:4:4 chroma subsampling and passes HDR10, Dolby Vision and Dolby Atmos. The unit requires the included 5 V power adapter and supports HDCP 2.2 for protected content.

Home-theatre owners needing separate audio

This extractor suits anyone who wants to feed a soundbar, AV receiver or powered speakers from a single HDMI source such as a streaming box, games console or Blu-ray player. It is not for users who need to switch between several HDMI sources, because the device has only one input. It also does not suit installations that must run cables longer than 10 metres with standard AWG26 leads.

Single HDMI input

The decisive specification is the single HDMI input. If your system requires multiple sources to be selected and sent to one display with extracted audio, this model cannot do that; a multi-input switcher with audio extraction would be needed instead.

Highlights

  • Extracts HDMI audio to SPDIF, 3.5 mm jack and RCA
  • Passes 4K at 60 Hz with HDR10 and Dolby Vision
  • Handles Dolby Atmos and DTS-HD multi-channel formats
  • Supports ARC return channel for TV audio
  • Compact 84.5 × 61.8 × 21 mm unit with 5 V power

Specifications

BrandESTONE
ModelOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack

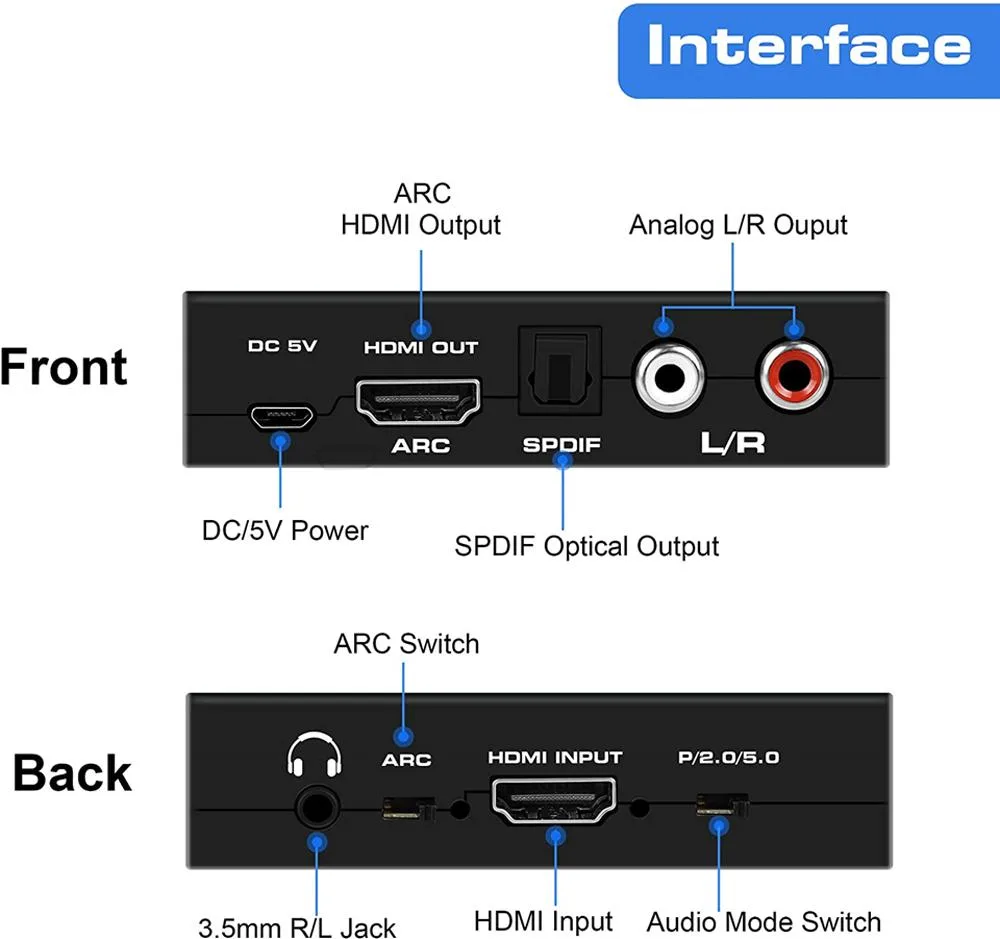

Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delica
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

What HDMI standard and bandwidth does the OZV8-2 support, and what resolution does that limit me to?

The unit complies with HDMI 2.0b, provides 600 MHz bandwidth and 18.5 Gbps maximum baud rate, capping practical output at 4K 60 Hz 4:4:4.

What are the physical dimensions and what does it need to sit securely?

It measures 3.35 x 0.79 x 2.68 inches (84.5 x 61.8 x 21 mm) and weighs 4.4 ounces; a flat surface and the included 5 V/1 A power adapter are all that is required.

How do I hook it up and which step do people skip?

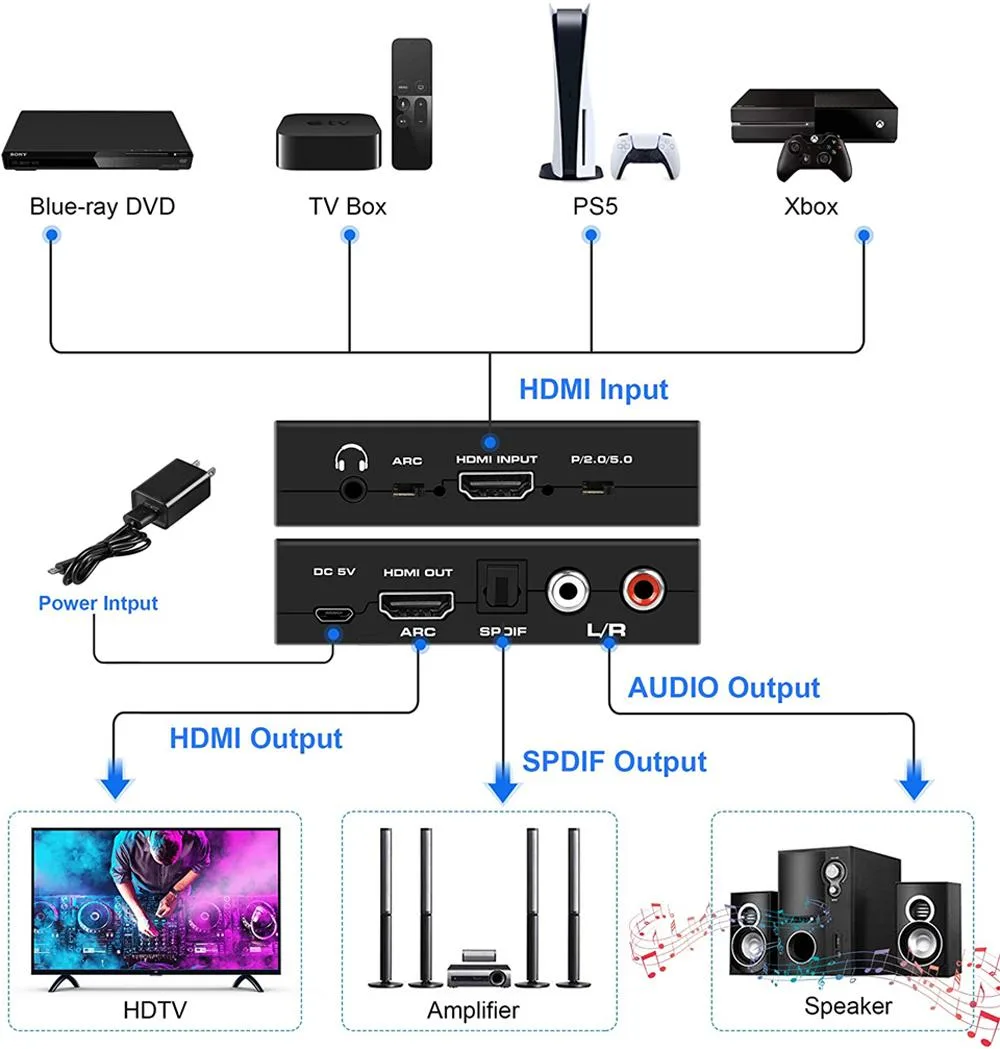

Connect source to the HDMI input, connect display to the HDMI ARC output, attach audio cables to SPDIF, RCA or 3.5 mm jack, then plug in the 5 V power adapter — the power step is the one most often forgotten.
