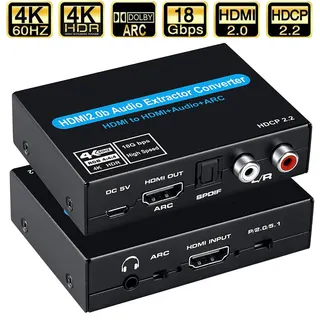

Small black box with HDMI input and HDMI ARC plus optical SPDIF, RCA and 3.5mm audio outputs

ESTONE

ESTONE OZV8-2 HDMI Audio Extractor Splitter 4K 60Hz ARC SPDIF 3.5mm

SKU CH-J0H1-MEKKP

Extracts HDMI audio to optical, RCA and 3.5 mm while passing 4K 60 Hz video with ARC support

  • TypeAudio Splitters
  • Changer TypeHDMI Switch/Extender
  • Ports3
  • AudioYes
  • Industry Standards600MHz
  • ColorBlack
  • Extract audio to SPDIF, 3.5 mm jack and L/R while passing 4K 60 Hz video
  • HDMI ARC support returns TV audio to a sound system without extra cables
  • Handles HDR10, Dolby Vision and Dolby Atmos for high dynamic range playback
  • Decodes DTS-HD, Dolby TrueHD, LPCM 7.1 and other surround formats
  • Compact 84.5 × 61.8 × 21 mm unit powered by included 5 V adapter

What this device does

The ESTONE OZV8-2 takes one HDMI source and splits the signal into an HDMI output with ARC plus separate optical SPDIF, stereo RCA and 3.5 mm analogue audio connections. It is built for installers or home-theatre owners who need to feed a soundbar, AV receiver or headphones while keeping the video path intact.

Bandwidth and cable limits

The extractor handles a maximum bandwidth of 600 MHz and 18.5 Gbps, supporting 4K at 60 Hz with YUV 4:4:4 colour sampling. HDMI cables up to 10 metres using AWG26 2.0a standard wire are specified for both input and output runs; longer or thinner cables may not pass the full signal.

The deciding specification

If your source and display both require HDCP 2.2 for protected 4K content, this unit meets that requirement. Buyers who need to extract audio from a non-HDCP stream or who only have legacy 1080p gear will still find it functional, but the HDCP 2.2 ceiling is the feature that determines whether it fits a modern 4K chain.

Highlights

  • Extract audio to SPDIF, 3.5 mm jack and L/R while passing 4K 60 Hz video
  • HDMI ARC support returns TV audio to a sound system without extra cables
  • Handles HDR10, Dolby Vision and Dolby Atmos for high dynamic range playback
  • Decodes DTS-HD, Dolby TrueHD, LPCM 7.1 and other surround formats
  • Compact 84.5 × 61.8 × 21 mm unit powered by included 5 V adapter

Specifications

BrandESTONE
ModelOZV8-2
TypeAudio Splitters
Changer TypeHDMI Switch/Extender
Ports3
AudioYes
Industry Standards600MHz
ColorBlack
Specifications*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
Input Connector1x HDMI male
Output ConnectorHDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)
Connector Stylewith Audio
Maximum Cable Length10m AWG26 HDMI2.0a standard cable
Maximum Resolutions4Kx2K@60Hz
Features1.HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
2.Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delica
Dimensions3.35 x 0.79 x 2.68 inches
Weight4.4 ounces
Package Contents1 X HDMI Audio Extractor
1 X 5V/1A Power Adapter
1 X User Manual

Questions about this item

Should I choose the version with both SPDIF and 3.5mm outputs or just one of them?

This model provides both SPDIF and 3.5mm jack outputs simultaneously alongside the HDMI ARC port, so you do not need to choose between them.

What does the 18.5 Gbps bandwidth figure mean when I connect a 4K 60Hz source?

The 18.5 Gbps maximum baud rate carries the full 4K 60Hz YUV4:4:4 signal with HDR10 and Dolby Vision without compression.

How does the HDMI 2.0b interface limit the audio formats I can extract?

The HDMI 2.0b link supports up to 7.1-channel LPCM and bitstream formats such as DTS-HD and Dolby TrueHD, which are then split to the SPDIF and 3.5mm outputs.
