Small black box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8-1A HDMI Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-4KF2-W2EGZ

Extracts HDMI audio to optical and 3.5 mm while passing 4K@60 Hz video with 18 Gbps bandwidth, HDCP 2.2 and 1080p@120/144 Hz 3D support

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amplifier via 3.5 mm and optical SPDIF
  • Enjoy 4K 60 Hz video while sending separate audio to external speakers
  • ARC support lets TV audio return through the same HDMI cable
  • Handles 18 Gbps bandwidth for 4K 60 Hz and 1080p 120 Hz sources
  • Includes HDMI cable, optical cable and USB power adapter for immediate setup

ESTONE OZV8-1A HDMI Audio Extractor

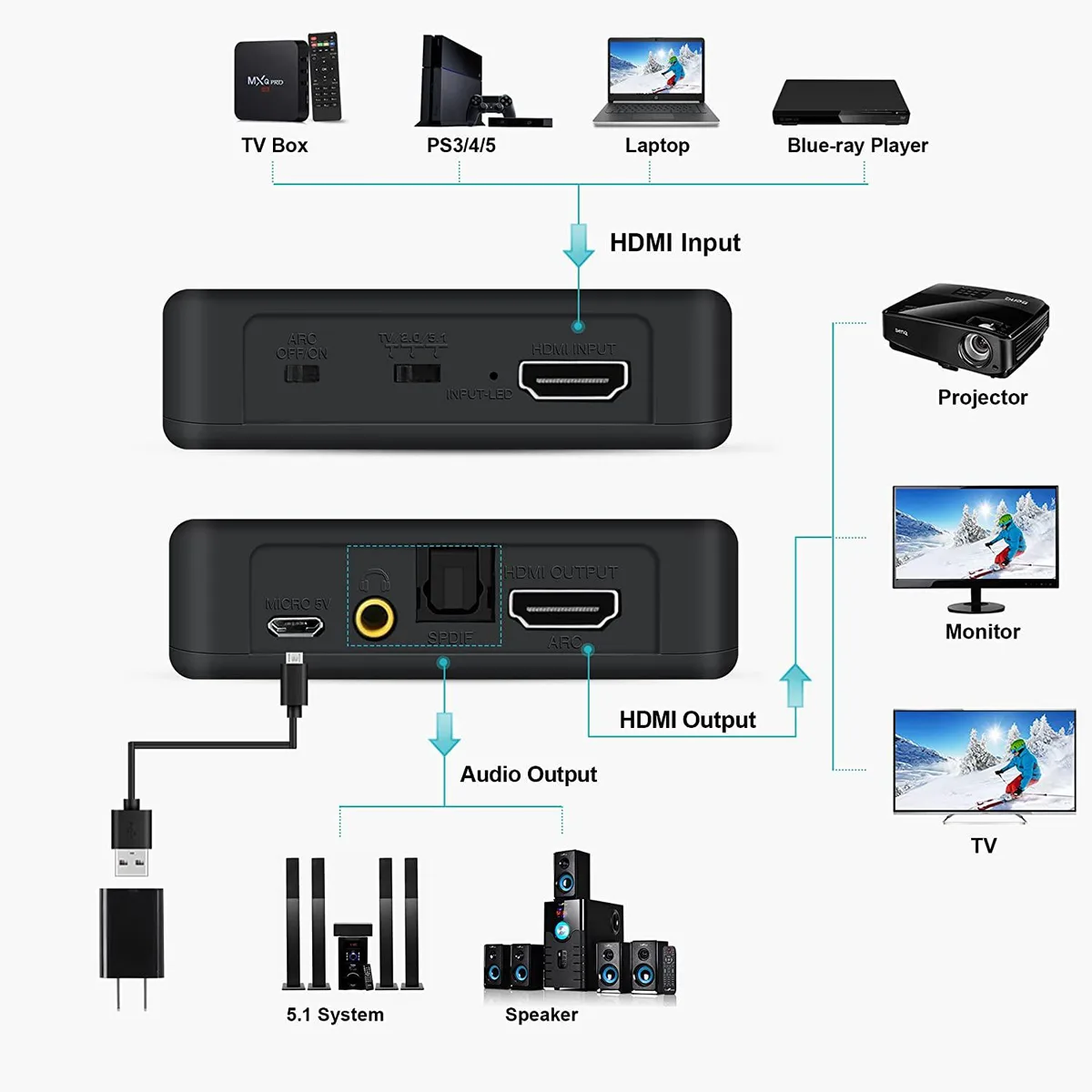

The ESTONE OZV8-1A extracts audio from a single HDMI source and delivers it through both optical Toslink and 3.5 mm analogue outputs while passing the video signal to a display. It supports 4K resolution at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. The unit includes an HDMI cable, optical cable and USB power adapter.

Home-theatre users separating sound from video

This extractor suits anyone who needs to feed a soundbar, amplifier or headphones from an HDMI source without keeping a TV powered on. It also works for setups requiring simultaneous optical and analogue audio outputs. Buyers who need multiple HDMI inputs or switching between sources should look at a different device.

Sustained 4K 60 Hz operation with ARC

The converter maintains stable 4K 60 Hz video pass-through and audio extraction during extended sessions thanks to its HDMI 2.0b chipset and external USB power. ARC support allows return audio from a compatible display without extra cabling. Supported digital formats include DTS-HD, Dolby TrueHD and LPCM 7.1, though Dolby Digital Plus is not supported.

Highlights

  • Extract audio to soundbar or amplifier via 3.5 mm and optical SPDIF
  • Enjoy 4K 60 Hz video while sending separate audio to external speakers
  • ARC support lets TV audio return through the same HDMI cable
  • Handles 18 Gbps bandwidth for 4K 60 Hz and 1080p 120 Hz sources
  • Includes HDMI cable, optical cable and USB power adapter for immediate setup

Specifications

BrandESTONE
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

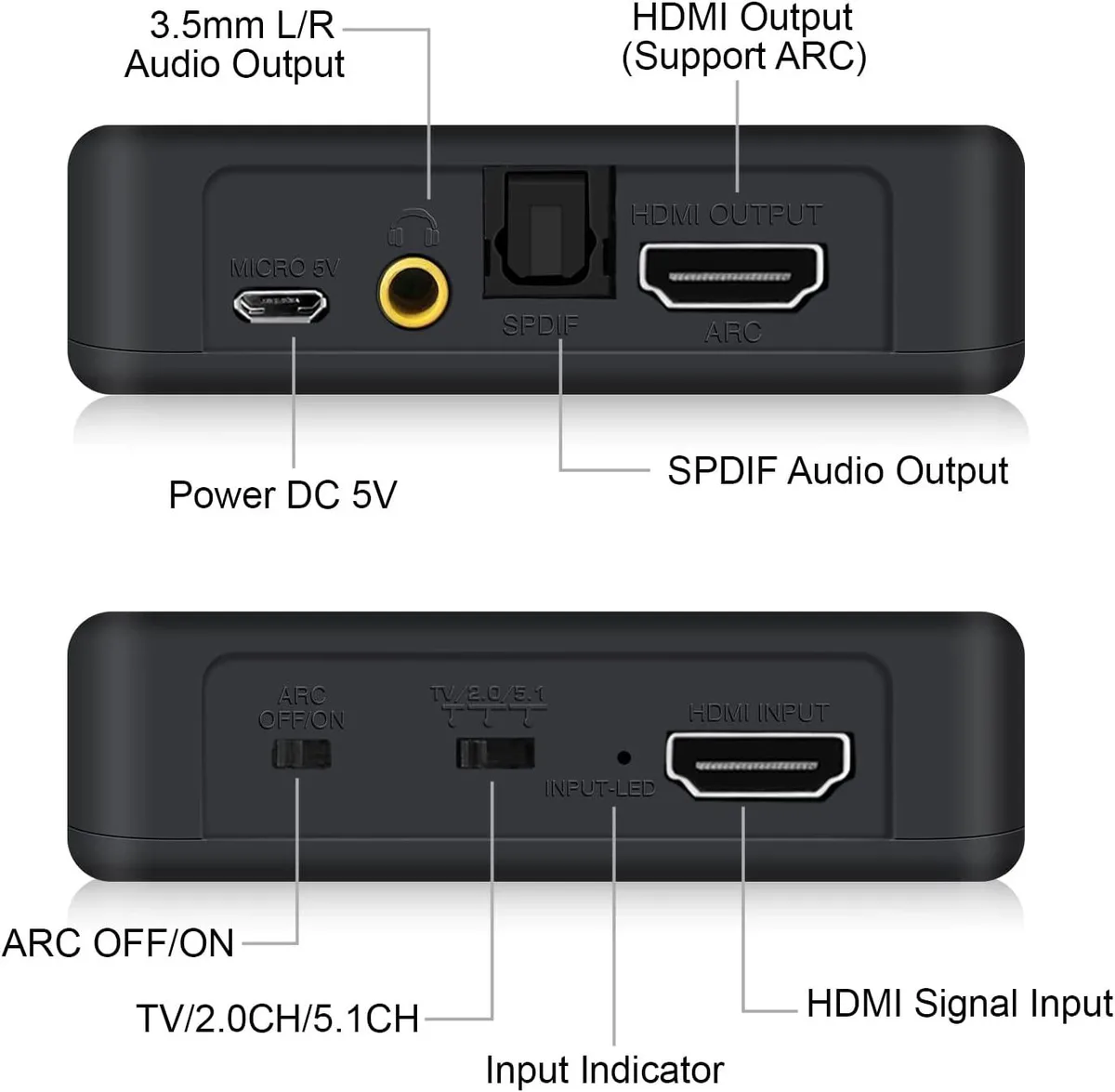

Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

Does the OZV8-1A need an external power supply to extract audio from an HDMI source?

Yes, a USB power adapter is included and must be connected for the extractor to operate.

Will the extractor pass 1080p at 120 Hz or 144 Hz to an older monitor while still sending audio to a soundbar?

The unit supports 1080p at 120 Hz and 144 Hz on the HDMI output, so the monitor receives the high-refresh signal while audio is split to SPDIF or 3.5 mm.

How can I confirm ARC is active after connecting the extractor between my TV and soundbar?

Play TV audio; if sound comes from the soundbar through the optical or 3.5 mm output without the TV speakers active, ARC is working.
