Small black box with HDMI, optical and 3.5 mm ports

ESTONE

ESTONE OZV8-1A HDMI 2.0 Audio Extractor 4K 60Hz SPDIF 3.5mm

SKU CH-BARP-VQPB1

Extracts audio from an HDMI source to SPDIF and 3.5 mm outputs while passing 4K 60 Hz video to a display

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI to HDMI Audio Extractor 1. One HDMI input converted to
  • Input Connector1 HDMI input
  • Extract audio to soundbar or amp via SPDIF and 3.5 mm without powering the display
  • Pass 4K 60 Hz video at 18 Gbps while splitting audio for external speakers
  • ARC support returns TV audio through the same optical or analog connection
  • Handles 3D and HDCP 2.2 protected content for Blu-ray and console gaming
  • Compact 5.59 x 3.15 x 1.26 in unit powered by included USB adapter

HDMI 2.0 Audio Extractor 4K 60Hz

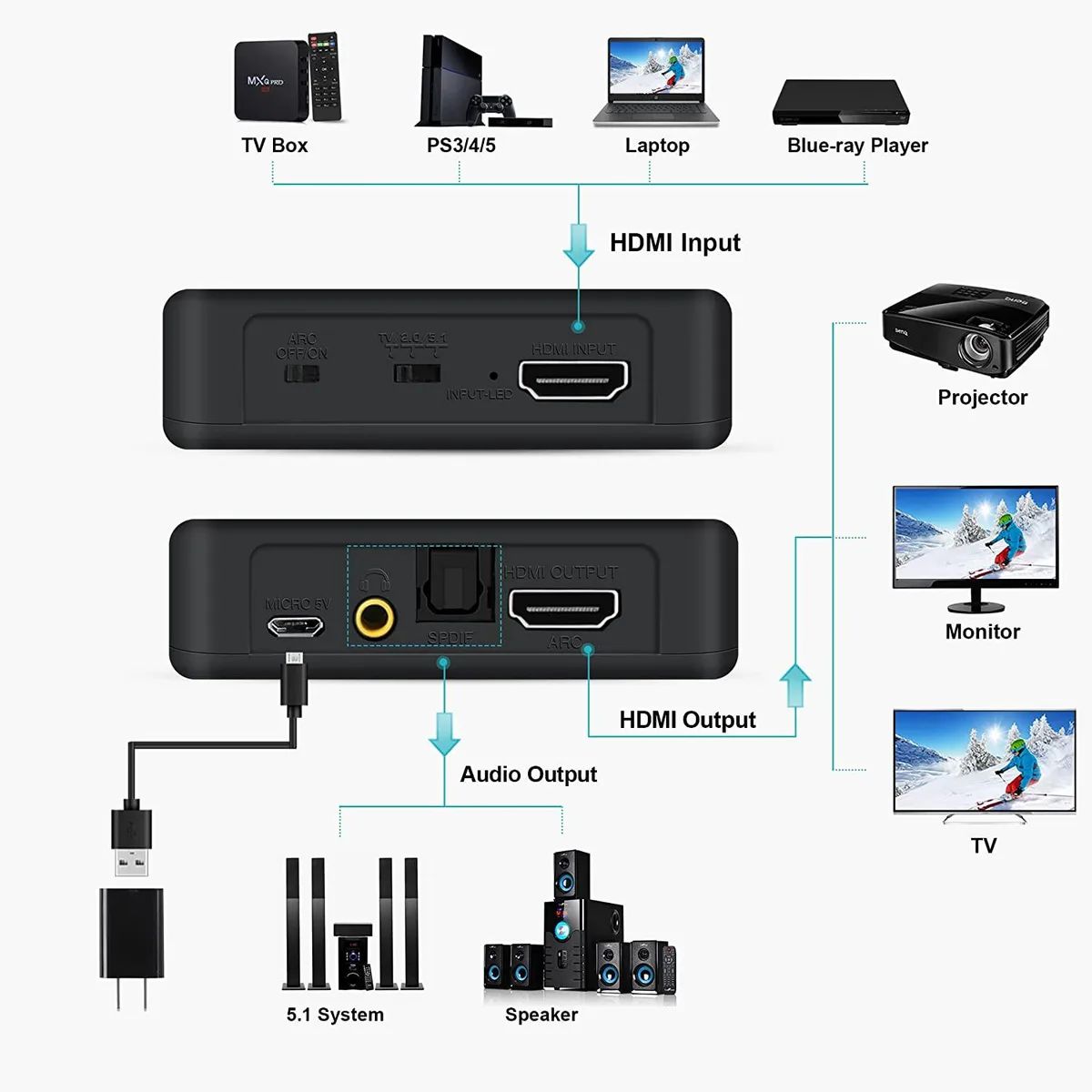

The ESTONE OZV8-1A accepts a single HDMI source and delivers one HDMI video pass-through plus separate digital optical and analog 3.5 mm audio outputs. It handles resolutions up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and HDCP 2.2 compliance. The unit suits installers and home-theatre owners who need to route sound to an amplifier, soundbar or headphones while keeping the display connected.

Bundled cables and power adapter

A 3.5 mm stereo cable, a Toslink optical cable, an HDMI cable and a USB power adapter are included in the package. These accessories let the extractor work immediately with most source devices and audio receivers without purchasing extra interconnects. The USB power adapter ensures stable operation even when the source HDMI port supplies limited current.

Compact black enclosure with fixed ports

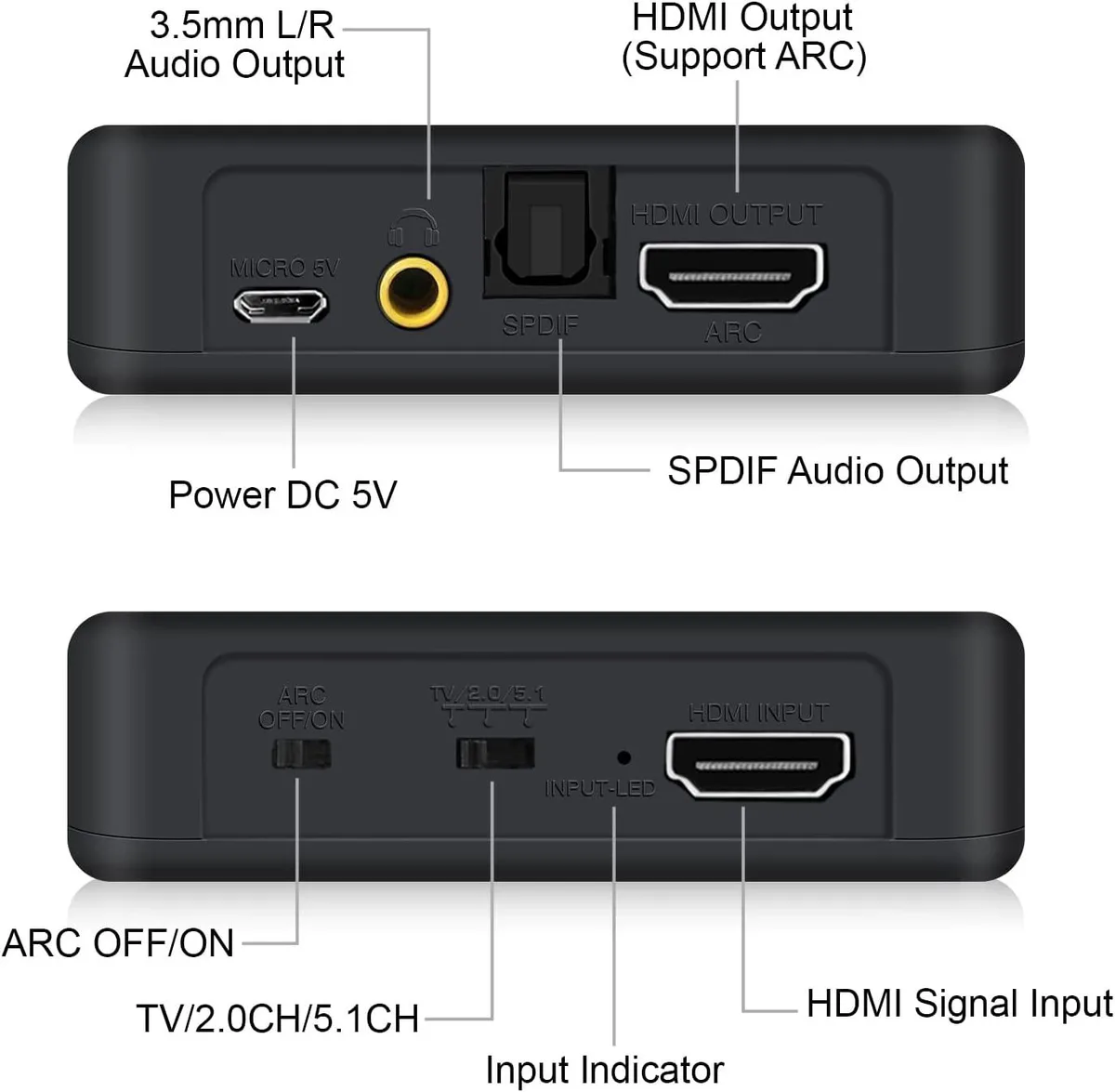

The aluminium housing measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, fitting easily behind a display or inside an AV rack. One HDMI input, one HDMI output, one Toslink SPDIF jack and one 3.5 mm jack are permanently mounted, so cable routing stays tidy and no adapters protrude. ARC support allows compatible TVs to send audio back to the extractor for external playback.

Highlights

  • Extract audio to soundbar or amp via SPDIF and 3.5 mm without powering the display
  • Pass 4K 60 Hz video at 18 Gbps while splitting audio for external speakers
  • ARC support returns TV audio through the same optical or analog connection
  • Handles 3D and HDCP 2.2 protected content for Blu-ray and console gaming
  • Compact 5.59 x 3.15 x 1.26 in unit powered by included USB adapter

Specifications

BrandESTONE
SeriesOZV8-1A
ModelOZV8-1A
Part NumberOZV8-1A
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI to HDMI Audio Extractor
1. One HDMI input converted to one HDMI + Audio (SPDIF+R/L) output.
2. One Output ports support 3.5mm Audio Port, Toslink SPDIF Optical port
3. HDMI resolution:480i/480p/576i/576p/720p/1080i/1080p/4K2K@30Hz/3D
4. Digital audio format,as DTS-HD/Dolby-trueHD/LPCM7. 1/DTS/Dolby-AC3/DSD
5. Support 4Kx2K@30Hz,Support 3D
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesOne HDMI input converted to one HDMI + Audio (SPDIF+3.5mm) Output to achieve the synchronization of audio signal separation.
Support ARC Function (Audio Return Channel)
Support 4Kx2K@60Hz, Support 3D HDCP 2.2
Support blue-ray 24/ 50/ 60fs/ hd-dvd/ XVYCC
Digital audio format, as dts-hd/ dobly-true hd/ LPCM7.1/ DTS/ dobly-ac-3 (Not Support Always Dobly Digital plus)
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 x HDMI Audio Extractor Converter
1 x Digital Optical Cable
1 x USB Power Adapter
1 x HDMI Cable
1 x User Manual

Questions about this item

Will the USB power adapter need replacing if used continuously?

The extractor draws power from the included USB adapter; no internal battery or fan exists, so the adapter itself is the only part that may wear out over years of 24/7 operation.

What video bandwidth ceiling limits a 4K 60 Hz signal through this unit?

The HDMI 2.0b path is rated at 18 Gbps, which is the hard ceiling for 3840 x 2160 at 60 Hz with HDCP 2.2; higher refresh rates or bit-depths will not pass.

Does the box get hot or make noise when extracting audio all day?

It has no fan or moving parts and measures only 5.59 x 3.15 x 1.26 inches, so it runs silently and stays at ambient temperature during continuous use.
