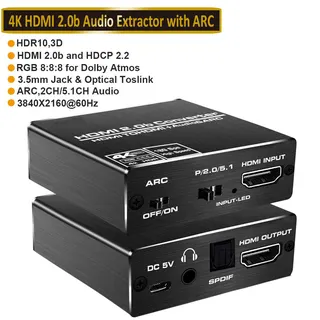

Black aluminium box with HDMI in, HDMI out, optical and 3.5 mm audio ports

ESTONE

ESTONE OZV8-1 HDMI Audio Extractor Splitter 4K 18Gbps ARC

SKU CH-NDGE-XJBWT

Splits one HDMI signal into HDMI video plus optical and 3.5mm audio with 4K 60Hz 18Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extract audio to optical and 3.5mm while passing 4K 60Hz video
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 for high-fidelity sound
  • 18Gbps bandwidth handles 4K 3D and deep colour up to 36-bit
  • Aluminium shell with 10m input and output cable reach at AWG26
  • Powered by included 5V 1A adapter for stable operation

HDMI Audio Extractor with ARC

The ESTONE OZV8-1 splits one HDMI input into a pass-through HDMI output plus optical Toslink and 3.5 mm analogue audio. It handles 4K at 60 Hz, 3D and deep colour up to 36-bit. The unit suits installers who need to feed a soundbar or AV receiver while keeping the video path intact. It requires the included 5 V power adapter to operate.

Plug-and-play with EDID dip-switches

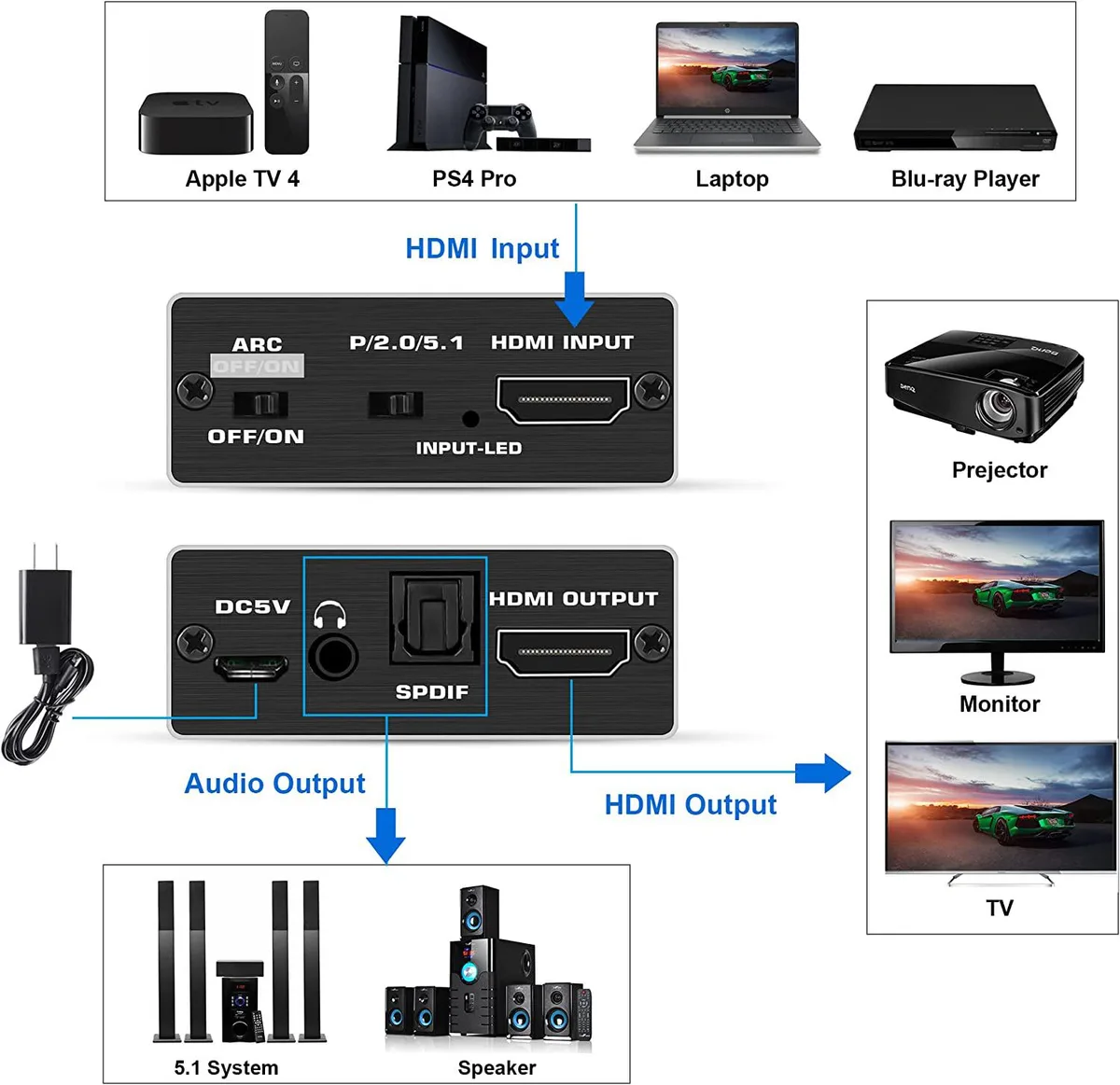

Connect the source, the display and the audio device, then select 2.0 CH, 5.1 CH or Pass mode via the three-position switch. The aluminium shell aids heat dissipation during continuous use. A common issue is forgetting to match the EDID setting to the connected audio gear, which can mute surround formats. Input and output cables up to 10 m AWG26 are supported.

Stable 18 Gbps throughput under load

The splitter maintains the full 18 Gbps bandwidth and 600 MHz pixel clock during extended 4K60 sessions. Maximum working current is 350 mA, well within the supplied adapter rating. Video and audio remain synchronised without dropouts on Blu-ray, console or streaming sources. It does not support Dolby Digital Plus, so users needing that codec must look elsewhere.

Highlights

  • Extract audio to optical and 3.5mm while passing 4K 60Hz video
  • Supports DTS-HD, Dolby TrueHD and LPCM 7.1 for high-fidelity sound
  • 18Gbps bandwidth handles 4K 3D and deep colour up to 36-bit
  • Aluminium shell with 10m input and output cable reach at AWG26
  • Powered by included 5V 1A adapter for stable operation

Specifications

BrandESTONE
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps

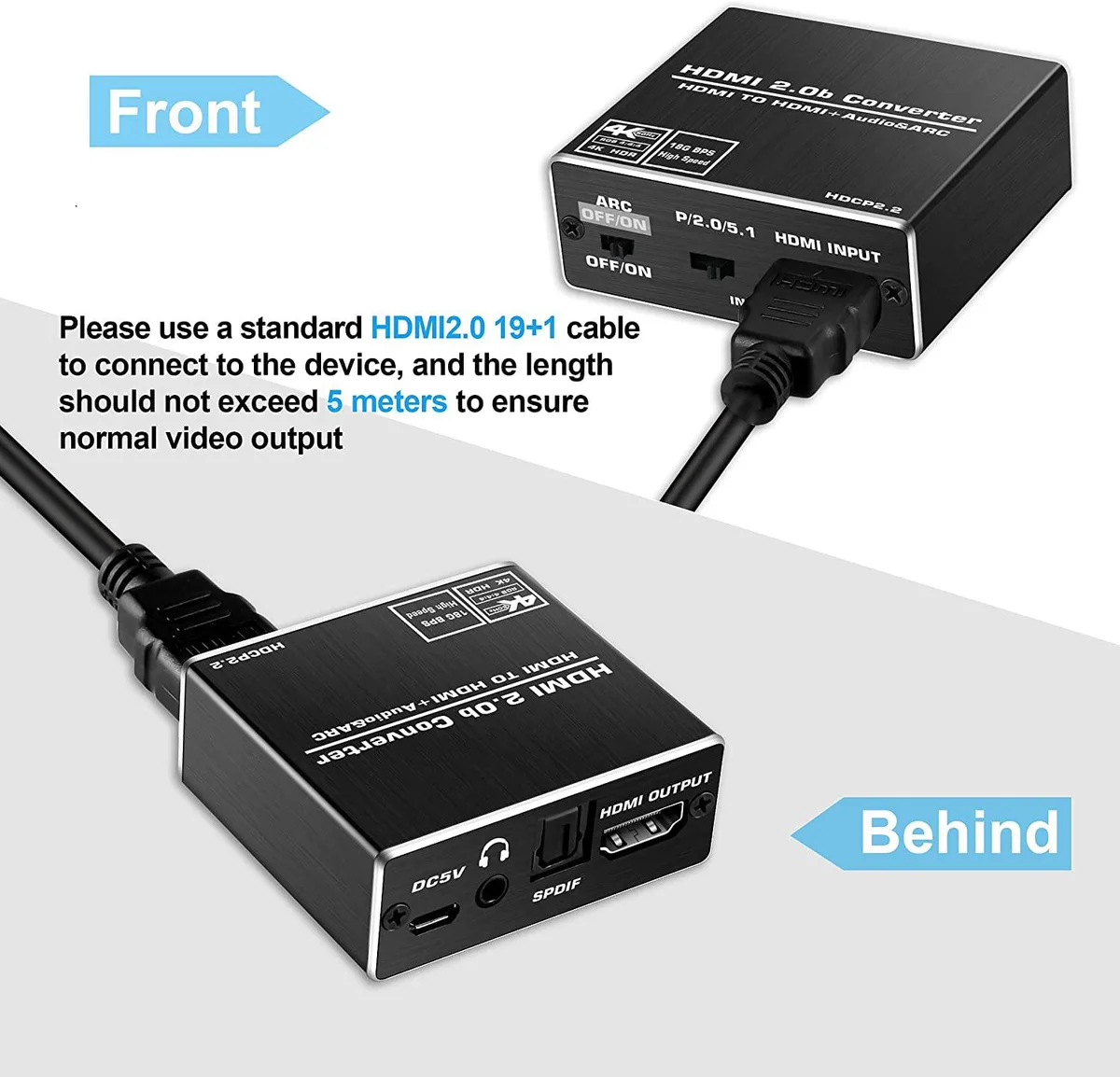

Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

How can I verify the 4K 60Hz video is passing through correctly after connecting the extractor?

Check that your display shows a stable 3840 x 2160 image at 60 Hz with no flicker, and confirm the source device reports 18Gbps bandwidth or deep colour 30bit/36bit in its settings.

What cables and accessories are included versus what I must supply for the HDMI, optical and 3.5 mm connections?

The box contains the extractor, a 5V/1A power adapter and a manual; you must provide an HDMI cable up to 10 m AWG26 for input, another for output, plus a Toslink optical cable and a 3.5 mm stereo cable if you need those audio paths.

Which audio output mode — HDMI pass-through, optical 2.0/5.1 or 3.5 mm 2.0 — should I select for my soundbar or AV receiver?

Use HDMI pass-through for full 7.1 LPCM or bitstream to an AV receiver; choose optical 2.0/5.1 for Dolby Digital, DTS or LPCM 2.0 to a soundbar; select 3.5 mm 2.0 only for analogue stereo devices.
