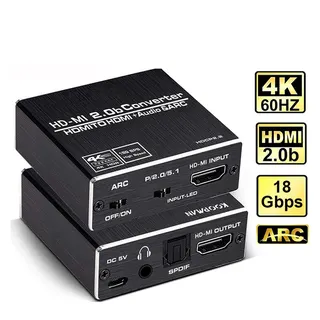

Compact black aluminium box with HDMI, optical and 3.5mm ports

ESTONE

ESTONE OZV8-1 HDMI Audio Extractor 4K 60Hz 18Gbps

SKU CH-HE4M-PTE5T

Splits one HDMI input into HDMI video plus optical and 3.5 mm audio outputs at 4K 60 Hz with 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extracts digital audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth with 24, 30 or 36 bit deep colour
  • Handles 2.0 channel stereo and 5.1 channel surround via SPDIF output
  • Works with 10 m HDMI cables on both input and output sides
  • Compact aluminium shell measures 5.59 by 3.15 by 1.26 inches

4K 60Hz HDMI Audio Extractor

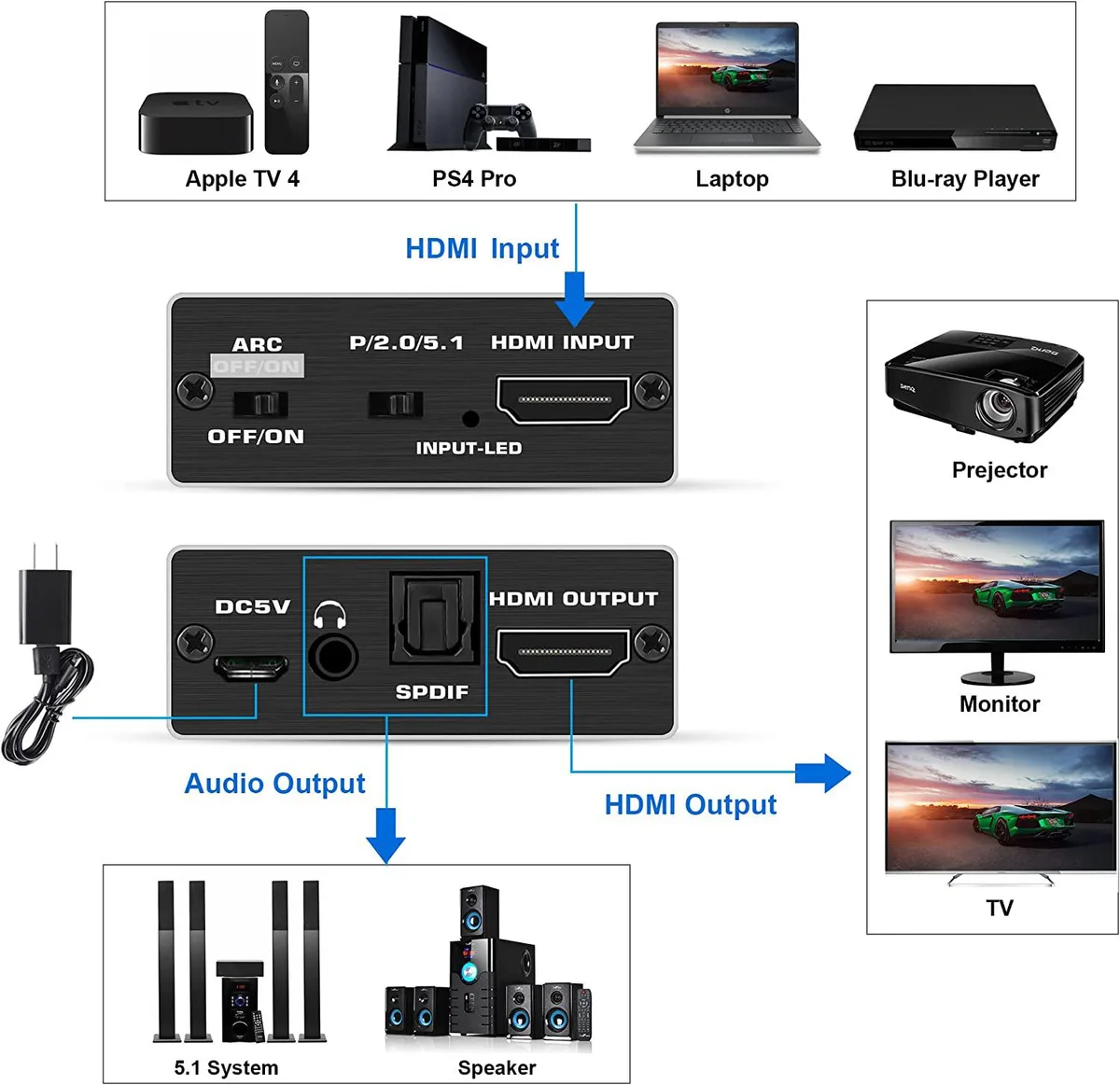

The ESTONE OZV8-1 splits one HDMI source into a pass-through HDMI output plus optical Toslink and 3.5 mm analogue audio. It handles video up to 3840 x 2160 at 60 Hz with 18 Gbps bandwidth and deep colour up to 36 bit. The aluminium enclosure includes a 5 V power adapter for stable operation.

Replaces Basic HDMI Switches Without Audio Breakout

Older switchers or direct connections force audio to stay embedded in the HDMI stream, limiting use with soundbars, AV receivers or headphone amps. This extractor adds discrete SPDIF for 5.1-channel formats such as DTS-HD and Dolby TrueHD, plus a stereo 3.5 mm jack for powered speakers. The upgrade is worth it when the display cannot decode multi-channel audio or when separate audio routing is required.

Sustained 18 Gbps Throughput With Active Power

The unit draws up to 350 mA from the supplied 5 V 1 A adapter, maintaining full 600 MHz bandwidth over 10 m input and output cables without signal drop. EDID management across three modes keeps the video handshake stable during long sessions, preventing the intermittent black screens that unpowered splitters exhibit under continuous 4K 60 Hz loads.

Highlights

  • Extracts digital audio to optical and 3.5 mm while passing 4K 60 Hz video
  • Supports 18 Gbps bandwidth with 24, 30 or 36 bit deep colour
  • Handles 2.0 channel stereo and 5.1 channel surround via SPDIF output
  • Works with 10 m HDMI cables on both input and output sides
  • Compact aluminium shell measures 5.59 by 3.15 by 1.26 inches

Specifications

BrandESTONE
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

What space does the 5.59 x 3.15 x 1.26 inch aluminum shell need on a shelf or rack?

The unit measures 5.59 inches wide, 3.15 inches deep and 1.26 inches high, so allow at least that footprint plus room for the HDMI cables and the 5 V power adapter.

Which EDID switch position must be set before powering on to get sound from the 3.5 mm jack?

Slide the three-position EDID switch to the 2CH setting for stereo on the 3.5 mm output, or to 2.0CH/5.1CH for optical; the extractor reads the switch only at start-up.

When should the included 5 V 1 A power adapter be replaced?

Replace the adapter if the extractor draws more than its 350 mA maximum working current, causing voltage drop, or if the 5 V output fails and the unit no longer powers up.
