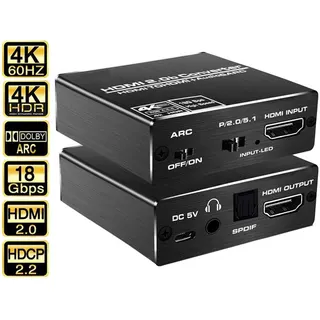

Black aluminium box with HDMI input, HDMI output, optical and 3.5mm audio ports

ESTONE

ESTONE OZV8-1 4K HDMI Audio Extractor 18Gbps 3.5mm SPDIF

SKU CH-9YS6-DV162

Extracts 4K HDMI audio to optical and 3.5 mm outputs with 18 Gbps bandwidth

  • TypeHDMI Splitters
  • Ports3
  • AudioYes
  • ColorBlack
  • SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i Support v
  • Input Connector1 HDMI input
  • Extracts digital audio to optical and 3.5mm while passing 4K video
  • Supports 18Gbps bandwidth for 4K at 60Hz with deep colour up to 36bit
  • Handles Dolby TrueHD DTS-HD and LPCM 7.1 over optical output
  • Offers three EDID modes for stereo or multichannel audio compatibility
  • Powers from included 5V adapter for stable operation over 10m cables

HDMI Audio Extractor with Optical and 3.5mm Outputs

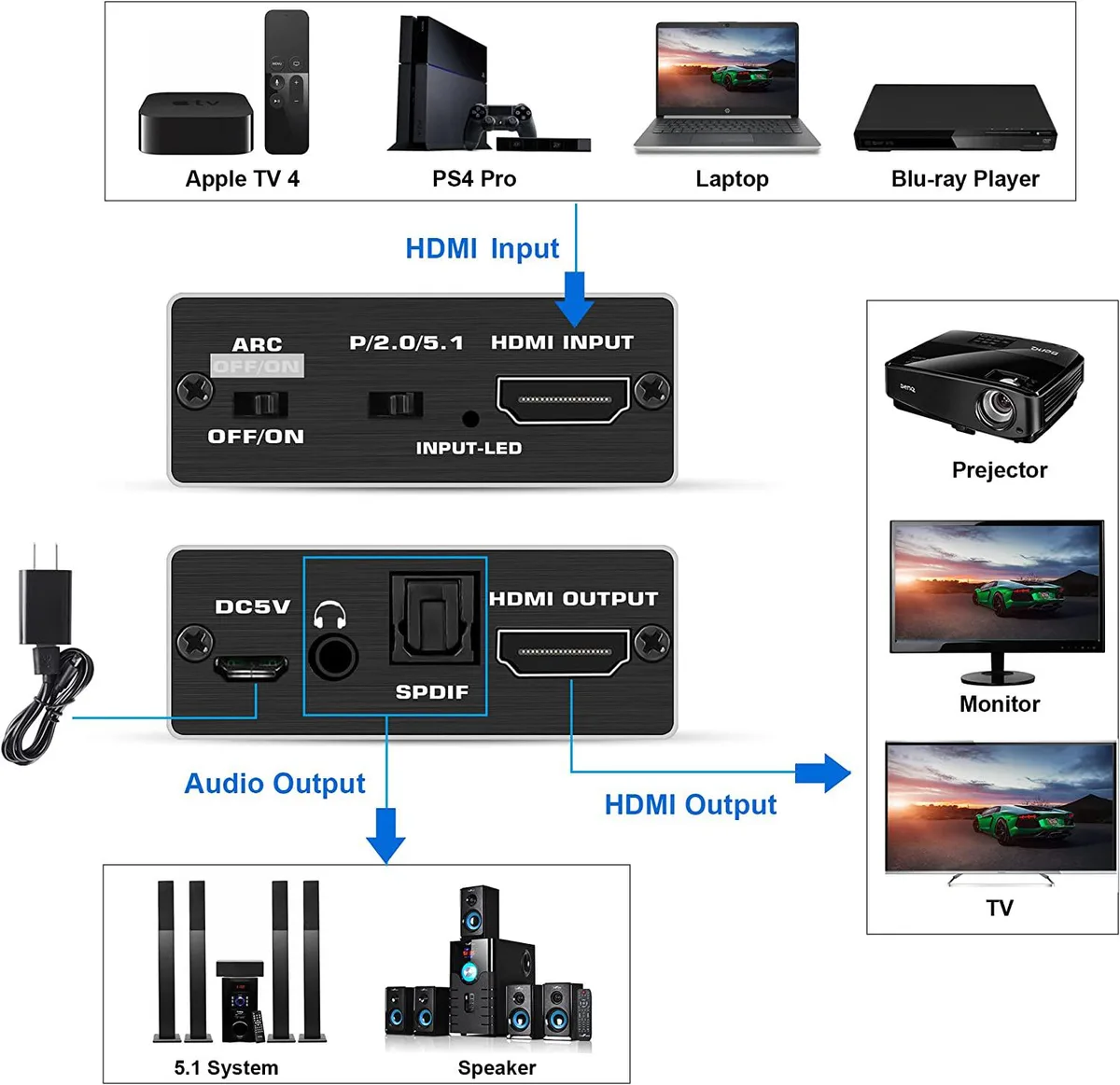

The ESTONE OZV8-1 takes a single HDMI source and splits it into a pass-through HDMI output plus separate digital optical and analog stereo audio feeds. It handles video up to 4K at 60 Hz with 18 Gbps bandwidth and supports 3D formats. The unit is powered by an included 5 V adapter and ships with a user manual.

Bandwidth and Cable Limits at 18 Gbps

The 18 Gbps ceiling means 4K 60 Hz 4:4:4 signals are supported, but higher refresh rates or deeper colour depths beyond 36-bit are not. Input and output cable runs are each rated for 10 metres using AWG 26 HDMI cable; longer or thinner cables may introduce instability. Dolby Digital Plus is explicitly not supported, so multi-channel streams using that codec will not pass through the optical port.

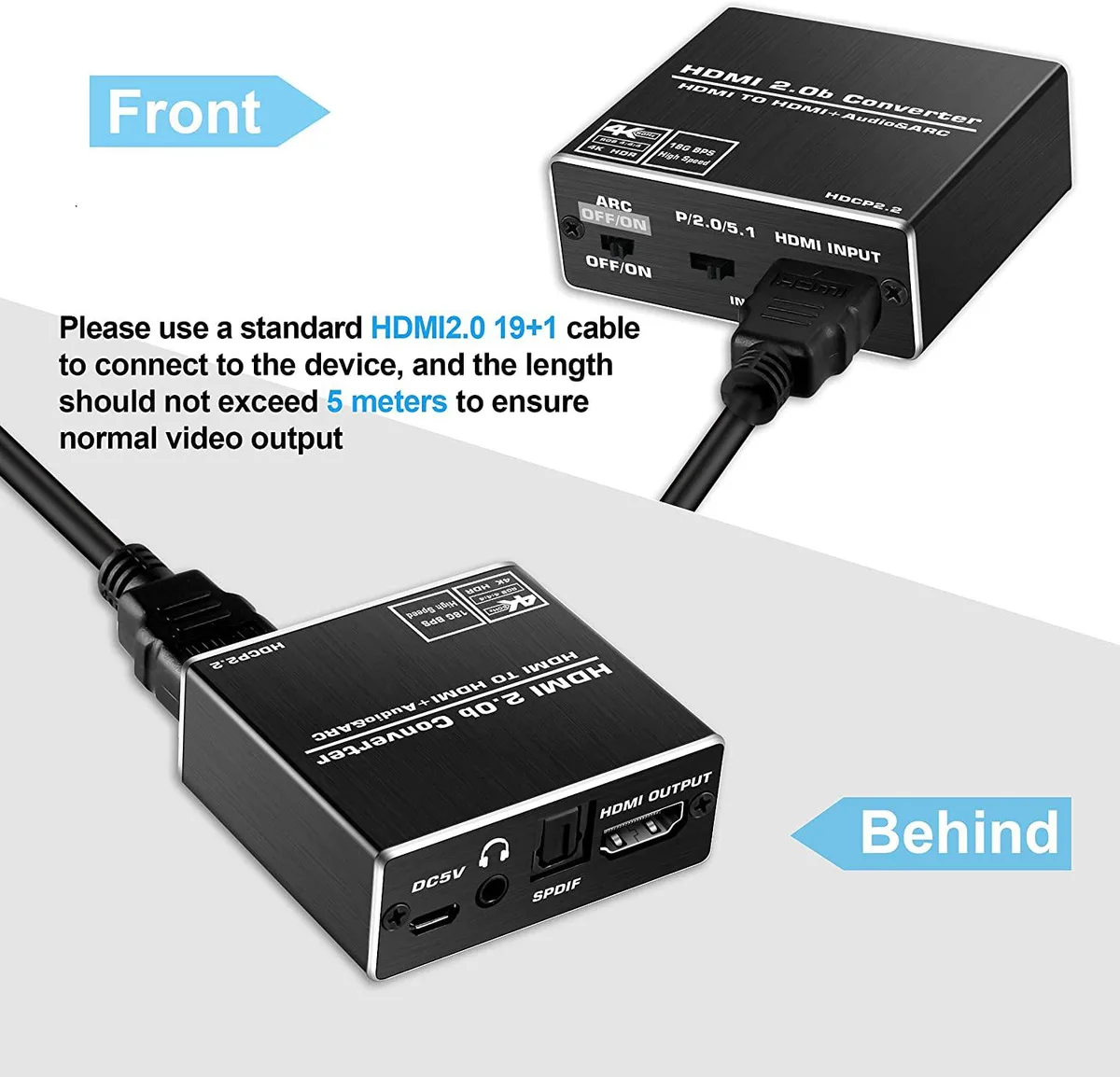

Aluminium Housing and Compact Mounting

The black aluminium shell measures 5.59 by 3.15 by 1.26 inches and weighs 3.2 ounces, allowing discreet placement behind a display or inside a cabinet. One HDMI input, one HDMI output, one TOSLINK port and one 3.5 mm jack are arranged along the edges for straight cable routing. Three EDID modes select 2.0-channel, 5.1-channel or pass-through audio behaviour without software configuration.

Highlights

  • Extracts digital audio to optical and 3.5mm while passing 4K video
  • Supports 18Gbps bandwidth for 4K at 60Hz with deep colour up to 36bit
  • Handles Dolby TrueHD DTS-HD and LPCM 7.1 over optical output
  • Offers three EDID modes for stereo or multichannel audio compatibility
  • Powers from included 5V adapter for stable operation over 10m cables

Specifications

BrandESTONE
SeriesOZV8-1
ModelOZV8-1
Part NumberOZV8-1
TypeHDMI Splitters
Ports3
AudioYes
ColorBlack
SpecificationsHDMI Resolution: 4K2K/3D/1080P/720P/576P/480P/480i
Support video color format: 24bit/deep color 30bit,36bit
Max bandwidth: 600MHZ
Max baud rate: 18Gbps
Input cable distance: 10m AWG26 HDMI standard cable
Output cable distance: 10m AWG26 HDMI standard cable
Max working current: 350mA
Input Connector1 HDMI input
Output Connectorone HDMI + Audio (SPDIF+3.5mm) Output
Maximum Resolutions3840 x 2160
Bandwidth18Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D
Support blue-ray 24/50/60fs/HD-DVD/XVYCC
Digital audio format, as dts-hd/dobly-truehd/LPCM7.1/DTS/dobly-ac-3(not support always Dobly Digital plus)
Need DC5V power supply.
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package Contents1 X HDMI Audio Extractor
1 x 5V/1A Power Adapter
1 X User Manual

Questions about this item

Which audio output should I use for my soundbar — the 3.5mm stereo jack or the optical TOSLINK port?

Use the optical TOSLINK port for 2.0CH or 5.1CH digital audio including DTS-HD, Dolby TrueHD and LPCM 7.1; the 3.5mm jack is limited to 2CH analogue stereo.

What does the 18Gbps bandwidth mean when I connect a 4K source?

It supports 4K at 60Hz with 24-bit, 30-bit or 36-bit deep colour, so HDR metadata and high frame-rate content pass through without compression.

Does the HDMI 18Gbps link cap the audio formats I can extract?

The extractor passes DTS-HD, Dolby TrueHD, LPCM 7.1 and Dolby AC-3 over SPDIF; Dolby Digital Plus is not supported regardless of the 18Gbps video bandwidth.
