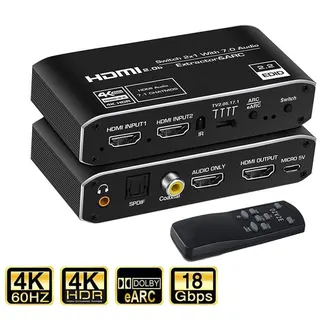

Black rectangular HDMI switch with multiple audio output ports

ESTONE

ESTONE OZV2E 2x1 HDMI Switch Audio Extractor 4K@60Hz ARC eARC

SKU CH-QDA2-D1GK9

A 2×1 HDMI switch that extracts audio to optical, coaxial, 3.5 mm jack and HDMI audio ports while passing 4K 60 Hz video with ARC and eARC support

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two sources to one display at 4K 60 Hz
  • Extract audio via optical, coaxial, 3.5 mm or HDMI audio port
  • Supports Dolby Atmos, TrueHD, DTS:X and 7.1 channel LPCM
  • ARC and eARC return TV audio to your receiver
  • Includes IR remote and 5 V power supply

What it is

The ESTONE OZV2E is a 2x1 HDMI switch with an integrated audio extractor that passes 4K video at 60Hz while splitting the soundtrack to optical, coaxial, 3.5 mm and HDMI audio outputs. It accepts two HDMI 2.0b sources and routes one to a display with ARC or eARC support.

Who it suits and who it does not

Home-theatre owners who need to connect a console and a media player to a single TV input and send multichannel sound to an older receiver will find the format toggle and wide codec list useful. Buyers who require more than two HDMI inputs or who need HDMI 2.1 bandwidth for 8K or high-refresh-rate gaming should look elsewhere.

Installation and common issues

Connect the included 5 V power adapter, link the two sources and the display, then select the desired audio mode with the four-position switch; the IR remote lets you change inputs from the sofa. The most frequent problem is forgetting to set the TV to pass-through bitstream audio so that Dolby Atmos or DTS:X reaches the extractor correctly.

Highlights

  • Switch two sources to one display at 4K 60 Hz
  • Extract audio via optical, coaxial, 3.5 mm or HDMI audio port
  • Supports Dolby Atmos, TrueHD, DTS:X and 7.1 channel LPCM
  • ARC and eARC return TV audio to your receiver
  • Includes IR remote and 5 V power supply

Specifications

BrandESTONE
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

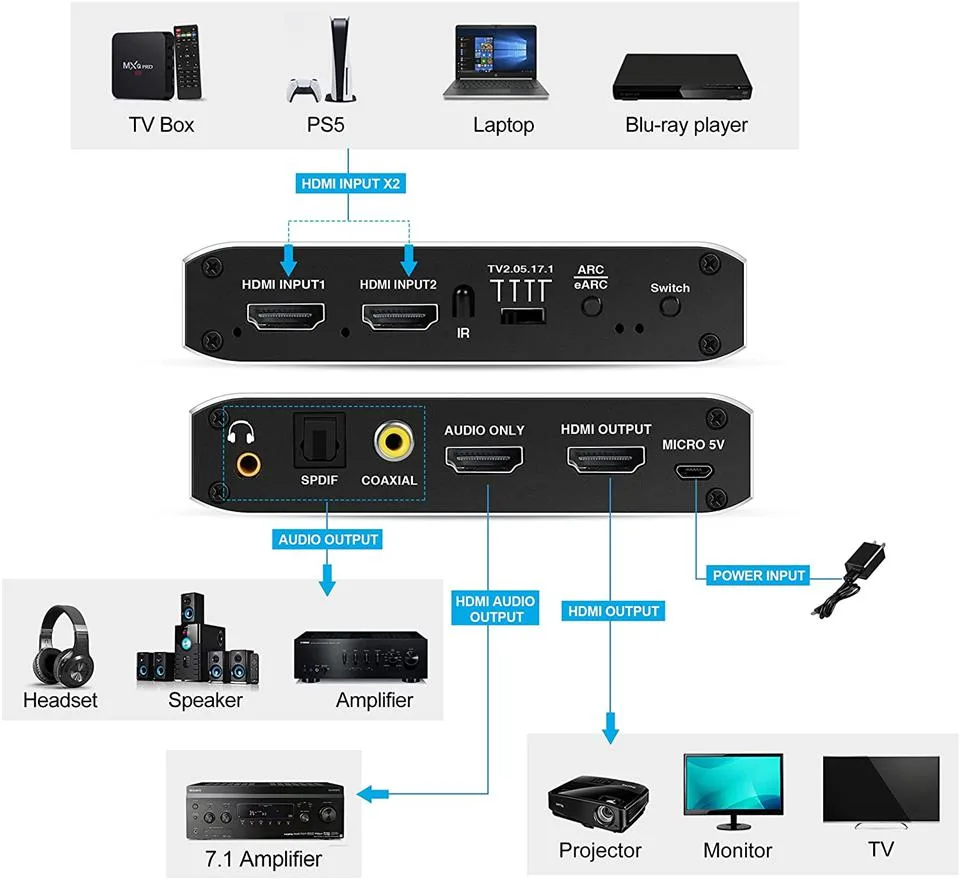

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

Do I need an HDMI 2.0b source and a display that accepts 3840 x 2160 at 60 Hz to use the 4K@60Hz capability?

Yes, both HDMI inputs are version 2.0b and the switch passes 3840 x 2160 at 60 Hz, so your source and display must support that same specification.

Will my older 1080p projector still receive video if I connect it to the HDMI output?

The HDMI 2.0b output is backward compatible, so a 1080p projector will display the down-scaled signal while the audio extractors remain active.

How can I confirm ARC audio is flowing from my TV through the extractor to my soundbar?

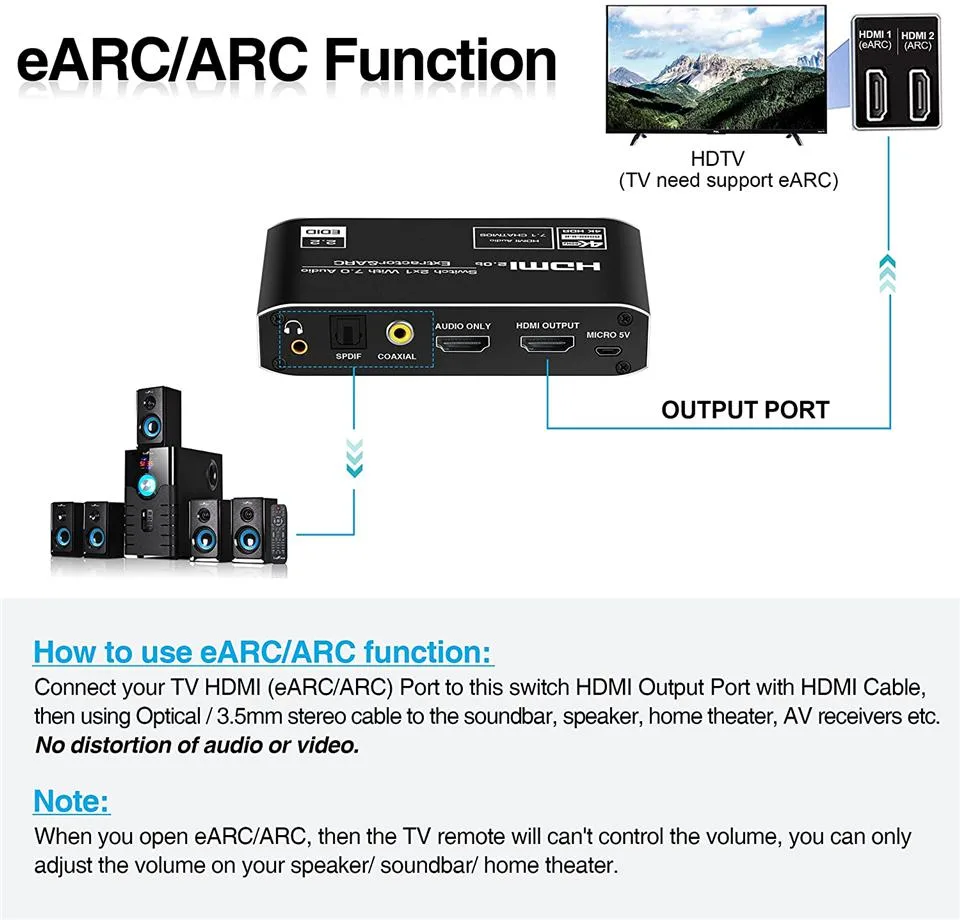

Set the 4-position toggle to the TV/ARC position, enable ARC on the TV, and you should hear TV-application audio from the soundbar connected to the HDMI audio or optical port.
