Black rectangular HDMI switch with multiple audio output ports

ESTONE

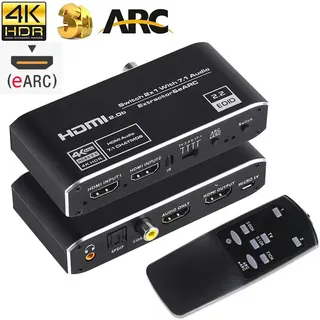

ESTONE OZV2E 2x1 HDMI Audio Switch 4K 60Hz 18.5Gbps

SKU CH-S0EW-CK9A5

Switches two HDMI sources to one display at 4K 60 Hz and extracts audio via 3.5 mm, optical, coaxial and HDMI ARC ports

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two HDMI sources to one display with 4K 60 Hz 18.5 Gbps bandwidth
  • Extract audio to optical Toslink coaxial 3.5 mm jack or HDMI audio port
  • Supports Dolby Atmos DTS:X and 7.1 channel LPCM via HDMI audio output
  • ARC and eARC pass-through for TV audio return to receiver or soundbar
  • Includes IR remote and 5 V 1 A power adapter for plug-and-play setup

2x1 HDMI Switch with Audio Extraction

The ESTONE OZV2E is a compact 2x1 HDMI switch that also extracts audio from the incoming signal. It accepts two HDMI 2.0b sources and routes one to a display while sending audio to a separate system. The unit supports 4K resolution at 60 Hz with 18.5 Gbps bandwidth. It is designed for users who need to connect multiple sources to a single display and separate the audio for external speakers or a receiver.

Build Integration and Connectivity

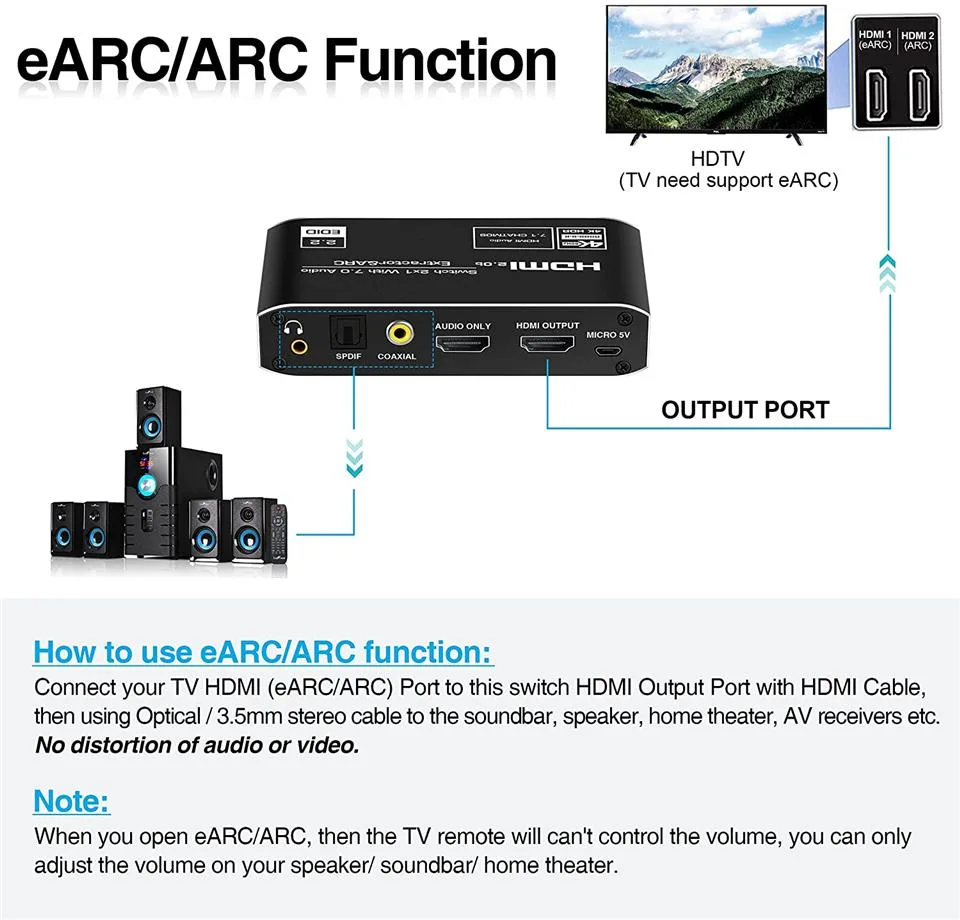

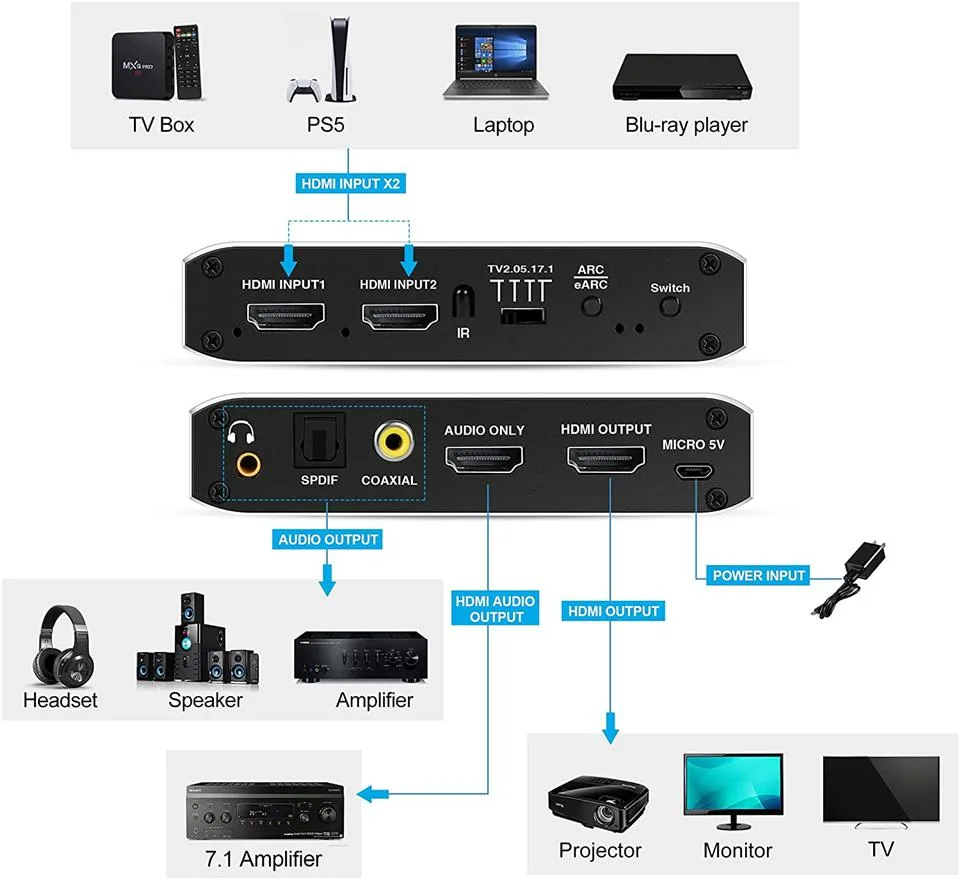

The switch requires a DC 5 V power supply, which is included, and fits into a setup with two source devices such as a console and a media player. It provides an HDMI output with ARC and eARC support for a compatible TV, plus dedicated audio outputs: optical Toslink, coaxial, 3.5 mm jack, and an HDMI audio-only port. This arrangement frees the display from handling audio decoding and lets a legacy receiver or active speakers handle multi-channel formats up to 7.1 channels.

Upgrade Path and Use Case

This device replaces a basic HDMI switch that passes audio only through the main HDMI cable, adding flexible extraction for older audio gear that lacks HDMI inputs. The jump is worthwhile when a display has a single HDMI port but the user needs both 4K 60 Hz video and multi-format audio output to separate equipment. It is not suited for installations requiring more than two source inputs or for users who need HDMI 2.1 features such as higher refresh rates or variable refresh rate.

Highlights

  • Switch two HDMI sources to one display with 4K 60 Hz 18.5 Gbps bandwidth
  • Extract audio to optical Toslink coaxial 3.5 mm jack or HDMI audio port
  • Supports Dolby Atmos DTS:X and 7.1 channel LPCM via HDMI audio output
  • ARC and eARC pass-through for TV audio return to receiver or soundbar
  • Includes IR remote and 5 V 1 A power adapter for plug-and-play setup

Specifications

BrandESTONE
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What is the maximum bandwidth before 4K 60 Hz video starts to degrade?

The switch handles up to 18.5 Gbps, which is the ceiling for 4K at 60 Hz with full chroma sampling.

Does the unit get hot or make noise when powered continuously?

It has no fan and draws only 5 V at 1 A, so it stays cool and silent during all-day operation.

Which cables and power source must I already have to connect two sources and extract audio?

You need two HDMI 2.0b cables for the inputs, one HDMI 2.0b cable for the video output, plus your choice of 3.5 mm, Toslink or coaxial cable for audio, all powered by the included 5 V 2 A adapter.
