Black rectangular HDMI switch with multiple audio output ports

ESTONE

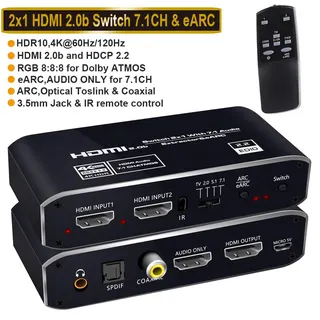

ESTONE OZV2E 2x1 HDMI 2.0b Switch Audio Extractor 4K 60Hz

SKU CH-P8FB-ZRCZT

A 2×1 HDMI 2.0b switch extracts audio to optical, coaxial, 3.5 mm and HDMI audio ports while passing 4K 60 Hz video with HDR

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two sources to one 4K 60Hz display with 18.5Gbps bandwidth
  • Extract audio to optical, coaxial, 3.5mm or HDMI audio ports
  • Decode Dolby Atmos, DTS:X and 7.1 surround via four-mode toggle
  • Pass HDR and 3D video at 3840 x 2160 resolution
  • Control switching remotely with included IR handset

What this switch does

The ESTONE OZV2E is a 2x1 HDMI 2.0b switch with an integrated audio extractor. It accepts two HDMI sources and routes one selected signal to a display while simultaneously sending the audio to a separate sound system via multiple output formats.

The specification that decides fit

The unit passes 4K resolution at 60 Hz with 18.5 Gbps bandwidth and supports HDCP 2.2 and 2.3. If your source or display requires higher bandwidth or a newer HDCP version, this switch will not pass the signal correctly.

Installation and common issues

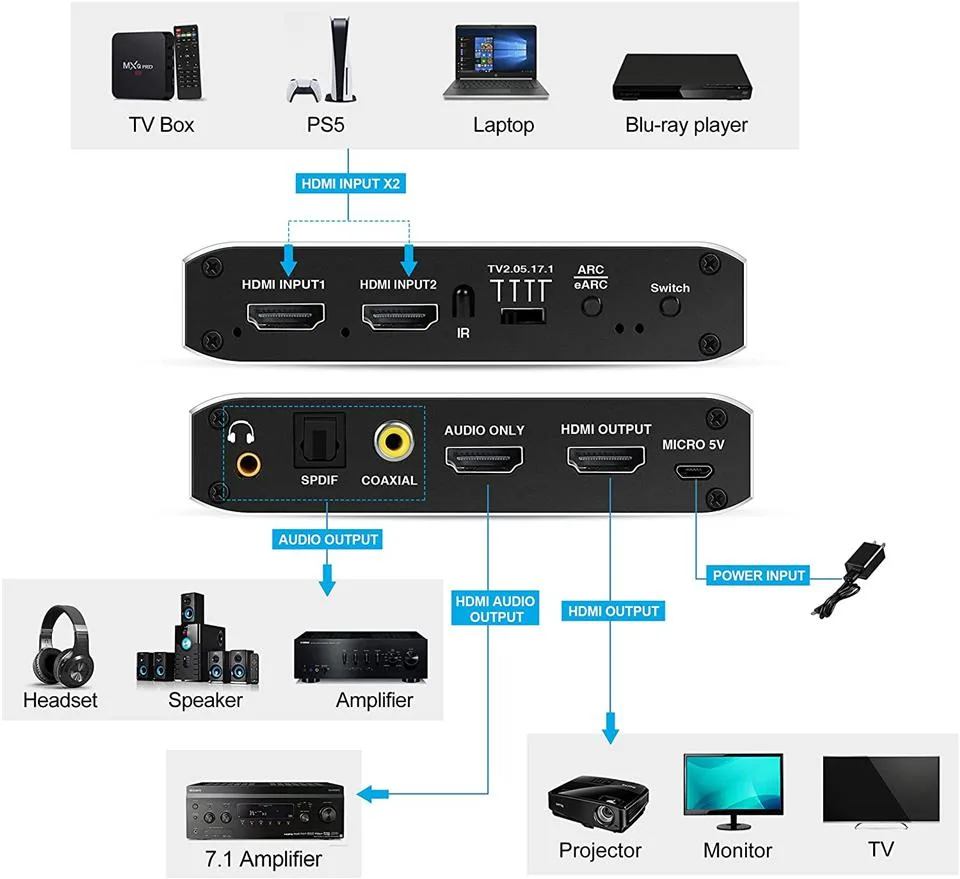

Connect the two sources, the display, and the audio device, then attach the included 5 V power adapter. Use the IR remote or the front toggle to select the input and the desired audio format. A frequent issue is forgetting to set the 4-position audio switch to match the connected receiver, which results in no sound or the wrong channel layout.

Highlights

  • Switch two sources to one 4K 60Hz display with 18.5Gbps bandwidth
  • Extract audio to optical, coaxial, 3.5mm or HDMI audio ports
  • Decode Dolby Atmos, DTS:X and 7.1 surround via four-mode toggle
  • Pass HDR and 3D video at 3840 x 2160 resolution
  • Control switching remotely with included IR handset

Specifications

BrandESTONE
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.

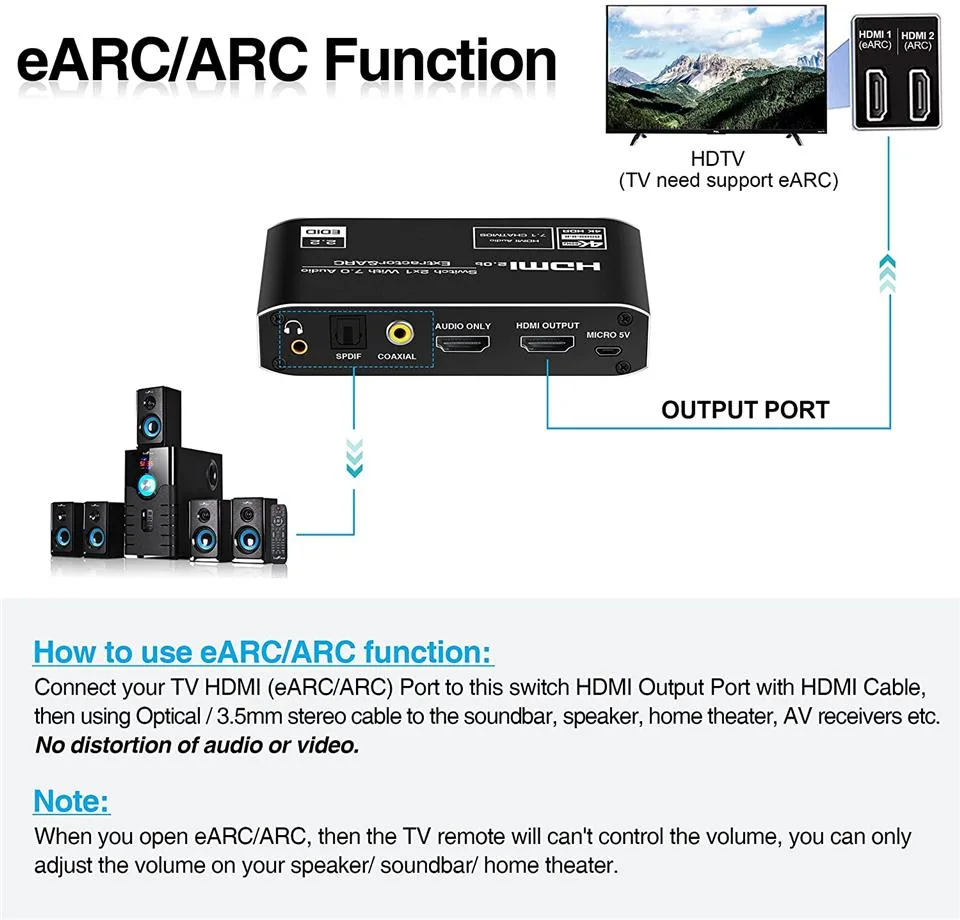

HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What does the 18.5 Gbps bandwidth mean when I connect this switch to my 4K display?

The 18.5 Gbps bandwidth supports 3840 x 2160 resolution at 60 Hz with full RGB 8:8:8 or YCbCr 4:4:4 colour, so you get uncompressed 4K video without chroma subsampling.

How does the HDMI 2.0b interface limit the audio formats I can extract?

HDMI 2.0b carries up to 7.1-channel LPCM and bitstream formats including Dolby Atmos and DTS:X; the switch extracts these to its HDMI audio-only port, while Toslink and coaxial outputs are limited to 5.1-channel LPCM, Dolby Digital and DTS.

What physical space and power do I need to install this unit?

The box measures 5.75 x 5.08 x 1.5 inches and weighs 8.8 ounces; it requires the included 5 V DC power adapter (1000 mA rated) and a free outlet near your source devices.
