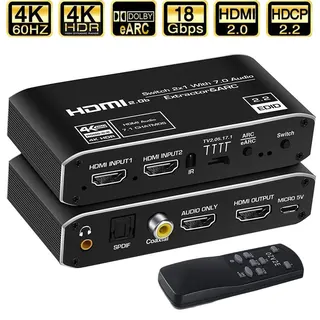

Small black rectangular box with HDMI ports and audio outputs on front and back

ESTONE

ESTONE OZV2E 2×1 HDMI Switch Audio Extractor 4K@60Hz 18.5Gbps

SKU CH-92BV-FE5NT

Two-input HDMI switch extracts audio to optical, coaxial, 3.5 mm and HDMI audio ports while passing 4K at 60 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Switch two sources to one display with 4K 60 Hz clarity
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio ports
  • Supports Dolby Atmos, DTS:X and 7.1 channel surround sound
  • Toggle between TV, stereo, 5.1 and 7.1 audio modes instantly
  • HDCP 2.3 and 18.5 Gbps bandwidth protect premium content

2-in-1 HDMI Switch with Audio Extraction

The ESTONE OZV2E switches between two HDMI 2.0b sources and sends the video to one display while extracting audio through optical, coaxial, 3.5 mm and HDMI audio-only ports. It supports 4K at 60 Hz, 18.5 Gbps bandwidth, HDR and HDCP 2.3 for modern consoles, PCs and media players.

Passive Cooling and Low Power Draw

The unit runs without fans, drawing 5 V at 1 A from the included adapter, so it adds no audible noise to a living-room or desktop setup. Its compact 5.75 by 5.08 by 1.5 inch metal enclosure dissipates heat passively during continuous 4K 60 Hz operation.

Upgrades a Single-Input Display or Legacy Audio Gear

It replaces a basic HDMI splitter when you need to keep an older AV receiver or soundbar that lacks 4K passthrough or eARC. The four-position audio-format switch lets you match PCM 2.0, 5.1, 7.1 or bitstream output to the connected equipment. Not suited for installations requiring more than two sources or automatic switching without the IR remote.

Highlights

  • Switch two sources to one display with 4K 60 Hz clarity
  • Extract audio to optical, coaxial, 3.5 mm or HDMI audio ports
  • Supports Dolby Atmos, DTS:X and 7.1 channel surround sound
  • Toggle between TV, stereo, 5.1 and 7.1 audio modes instantly
  • HDCP 2.3 and 18.5 Gbps bandwidth protect premium content

Specifications

BrandESTONE
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.

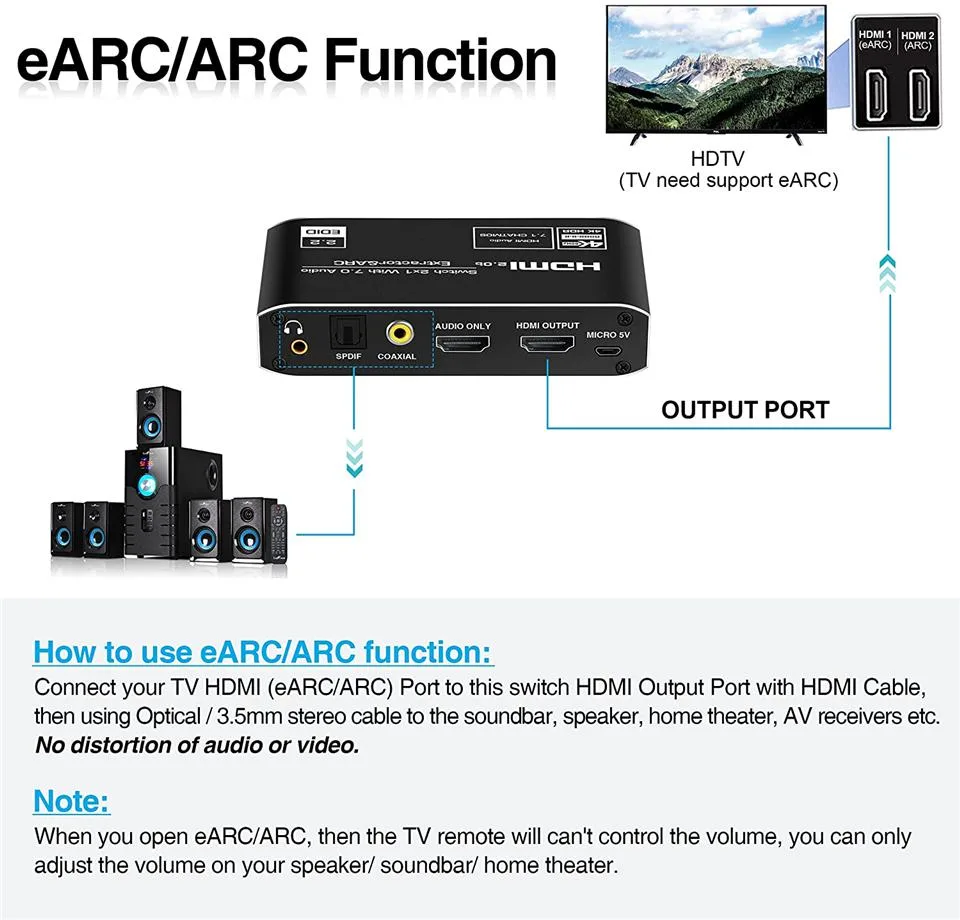

HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

How do I connect the two HDMI sources and the 5 V power supply so the 4K@60Hz signal passes through?

Plug each source into one of the two HDMI 2.0b inputs, run the HDMI output to the display, then connect the included 5 V/1 A adapter to the DC jack before turning anything on.

Which audio outputs will need a new cable if I upgrade from a stereo soundbar to a 7.1 receiver later?

The Toslink SPDIF and coaxial ports only carry up to 5.1 channels; for 7.1 you must use the HDMI audio-only port, which requires an HDMI cable instead of optical or coaxial.

At what bandwidth does the switch stop passing HDR metadata without drop-outs during a long gaming session?

The chipset is rated for 18.5 Gbps, so sustained 4K 60 Hz 10-bit HDR at the full 18.5 Gbps is the ceiling before the link can become unstable.
