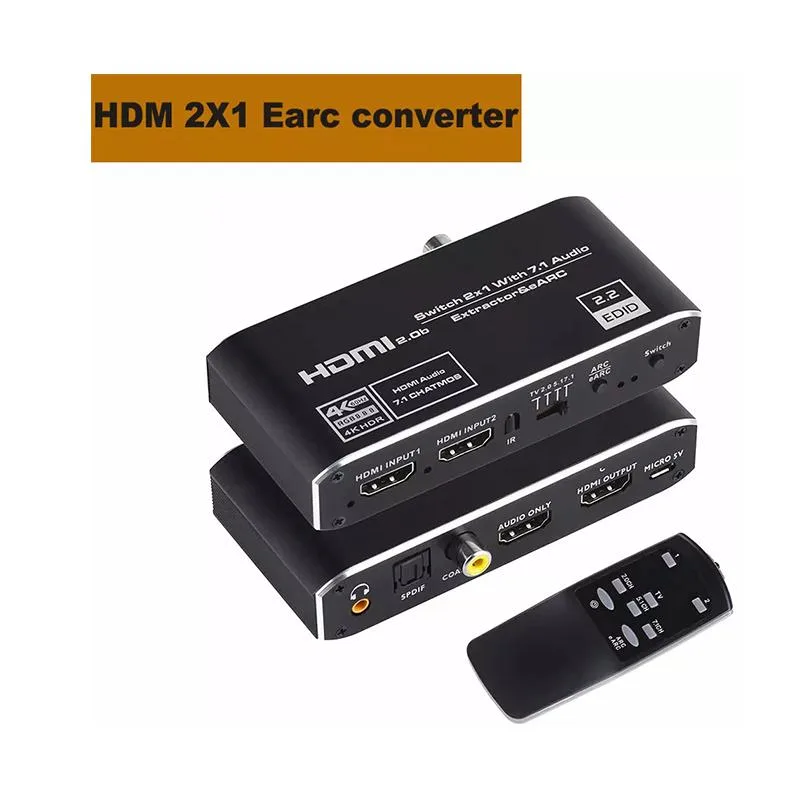

Black rectangular HDMI switch with multiple audio ports and IR remote

ESTONE

ESTONE OZV2E 2×1 HDMI 2.0b Audio Extractor Switch

SKU CH-QBBV-2Z81B

Connects two HDMI sources to one display while extracting audio via 3.5 mm, optical, coaxial or HDMI audio ports, supporting 4K at 60 Hz and multi-channel formats up to 7.1

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsPower Supply:DC 5v/1000mA. HDMI Output ARC/eARC:TV eARC/ARC
  • Extract audio to multiple outputs via SPDIF, coaxial, 3.5 mm and HDMI audio ports
  • Switch two 4K 60 Hz sources on one display with 18.5 Gbps bandwidth
  • Select TV, stereo, 5.1 or 7.1 sound using the four-position toggle
  • Pass HDR, 3D and HDCP 2.3 content without signal loss
  • Control switching from the sofa with the included IR remote

What this switch does

The ESTONE OZV2E is a two-input HDMI 2.0b switch with an integrated audio extractor. It passes 4K at 60 Hz video to a single display while simultaneously sending audio to a receiver or headphones via HDMI ARC, optical, coaxial or 3.5 mm outputs. The unit is aimed at home-theatre owners who need to connect multiple sources to one screen and separate the sound for external amplification.

Check your source and display

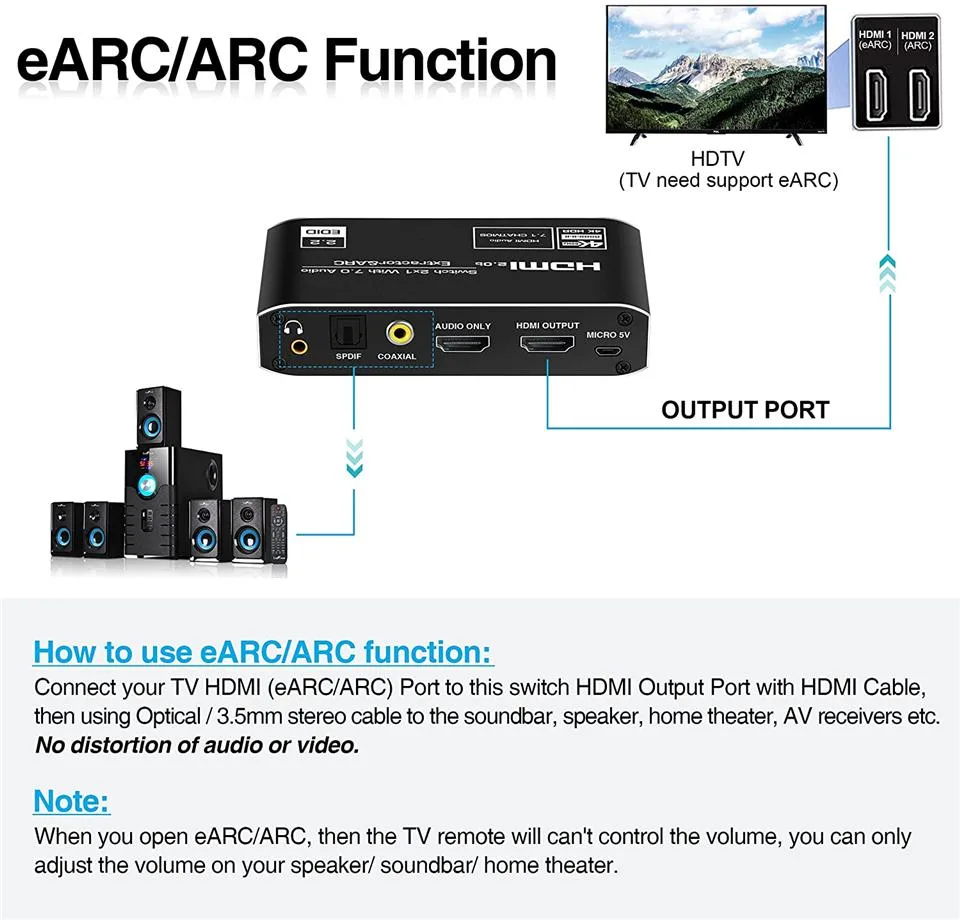

Verify that each source device can output HDMI 2.0b with HDCP 2.2 or 2.3 and that your display accepts 4K at 60 Hz over HDMI 2.0b. The extractor requires the included 5 V DC power adapter, so ensure a nearby mains socket is available. If you plan to use ARC or eARC, confirm your TV or projector has an ARC-labelled HDMI port and that the feature is enabled in its settings menu.

Replaces a basic switch or direct connection

This unit upgrades a simple HDMI switch by adding multi-format audio extraction and ARC support, letting you keep an older AV receiver that lacks 4K passthrough. The jump is worthwhile when you need to feed 4K 60 Hz video to a display while sending Dolby Atmos, DTS:X or 7.1 LPCM to a separate audio system without buying a new 4K-capable receiver.

Highlights

  • Extract audio to multiple outputs via SPDIF, coaxial, 3.5 mm and HDMI audio ports
  • Switch two 4K 60 Hz sources on one display with 18.5 Gbps bandwidth
  • Select TV, stereo, 5.1 or 7.1 sound using the four-position toggle
  • Pass HDR, 3D and HDCP 2.3 content without signal loss
  • Control switching from the sofa with the included IR remote

Specifications

BrandESTONE
SeriesOZV2E
ModelOZV2E
Part NumberOZV2E
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes
SpecificationsPower Supply:DC 5v/1000mA.
HDMI Output ARC/eARC:TV eARC/ARC audio output port(connectto TV with ARC function).
HDMI Audio Only Port:PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.
Toslink SPDIF: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
Coaxial Output: LPCM 2.0/5.1,Dolby Digital 2.0/5.1, DTS 2.0/5.1
3.5mm Audio Jack:Analog stereo 2.0ch
Color Depth:8-bit, 10 bit, 12 bit (1080p@60Hz);8-bit (4Kx2k@60Hz RGB 8:8:8/ YUV 4:4:4);8-bit, 10-bit, 12-bit (4Kx2K@60Hz YCbCr 4:2:2 /4:2:0).
Turn on/off th
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b+HDMI Audio
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
FeaturesSupport 4K x 2K@60Hz, Support 3D.
Support RGB 8:8:8,YCbCr 4:4:4/4:2:2/4:2:0.
4 speed toggle switch to switch TV/2.0/5.1/7.1 audio format.
HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

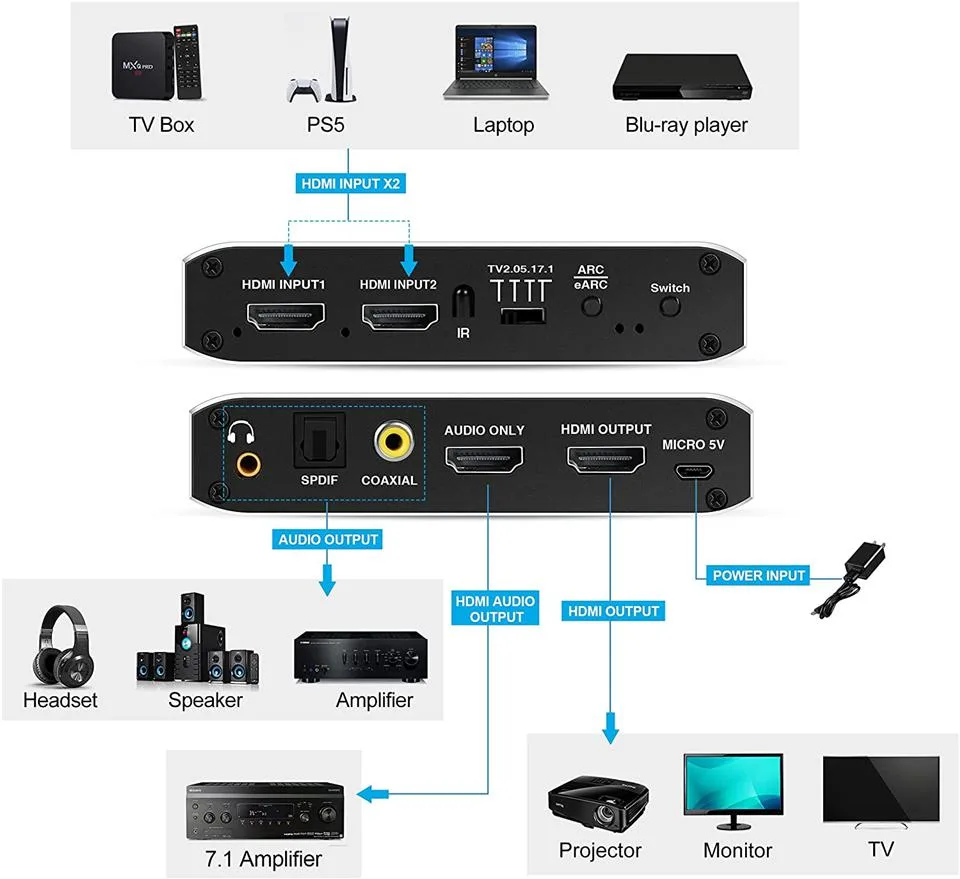

HDMI video/audio output: monitor, TV, projector. HDMI Audio/ SPDIF /3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package ContentsHDMI Switch eARC Audio Extractor x 1 pcs
IR Remote control x 1 pcs(without battery)
5V/2A DC Power Adapter x 1 pcs
User Manual x 1 pcs

Questions about this item

What comes in the box and do I need to buy HDMI cables separately?

The package includes the switch, IR remote (no battery), 5 V/2 A power adapter and manual. HDMI cables for the two inputs and single output are not supplied.

Which audio output mode should I select with the toggle switch for my soundbar?

Use the 4-position toggle to match your soundbar: TV for ARC/eARC passthrough, 2.0 for stereo PCM, 5.1 for LPCM/Dolby/DTS 5.1, or 7.1 for LPCM 7.1 and Dolby Atmos/DTS:X.

Will 4K 60 Hz HDR video pass through to my TV while audio is extracted?

Yes. The switch handles 3840 × 2160 at 60 Hz with 18.5 Gbps bandwidth, HDCP 2.3 and 10-bit HDR, so video reaches the display unchanged while audio goes to optical, coaxial, 3.5 mm or HDMI audio ports.
