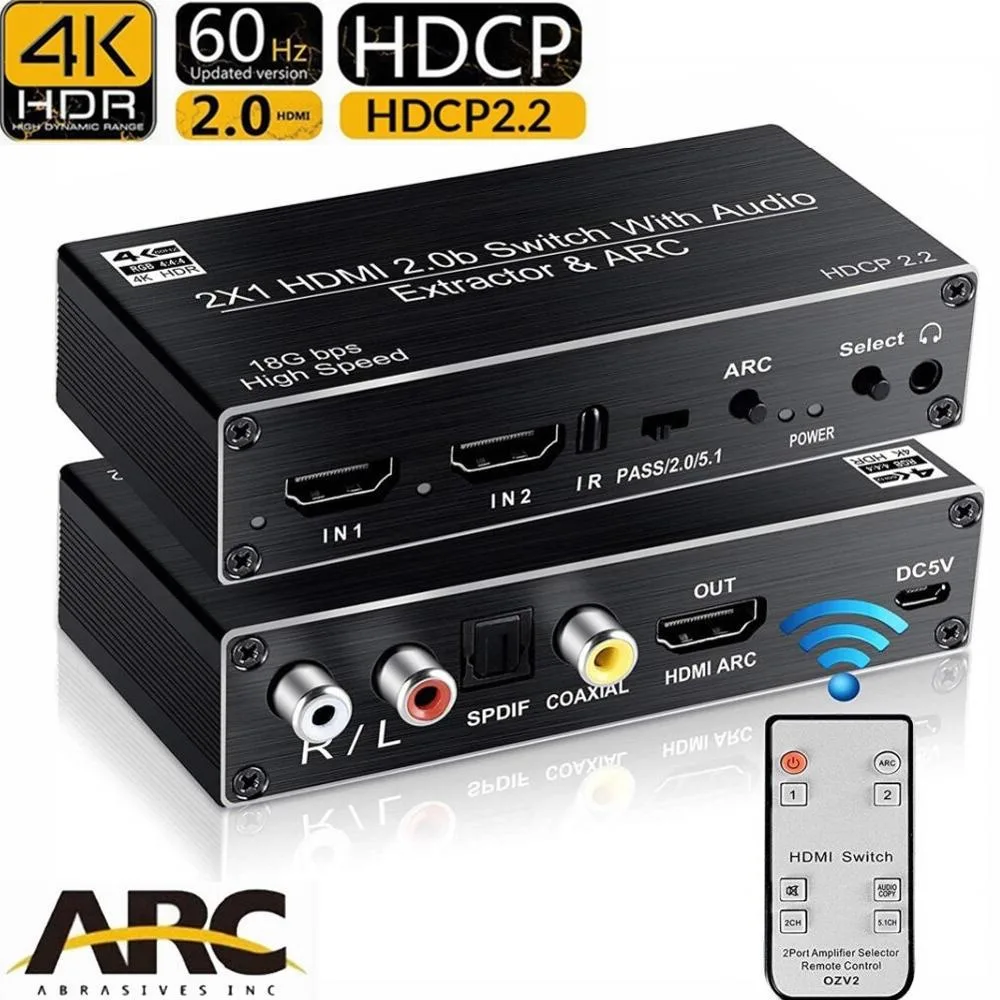

ESTONE OZV2 4K HDMI 2×1 Audio Extractor Switch
Switches two HDMI sources to one display and extracts audio via optical, coaxial, analogue stereo and 3.5 mm outputs at up to 4K 60 Hz
- TypeHDMI Switchers
- Changer TypeHDMI Switch/Extender
- ColorBlack
- Ports2
- AudioYes
- SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
- Switch two 4K sources to one display via HDMI 2.0b inputs
- Extract multi-channel audio to optical, coaxial, RCA or 3.5 mm jack
- Pass-through Dolby TrueHD and DTS-HD Master Audio formats untouched
- HDCP 2.2 and 18.5 Gbps bandwidth support 4K at 60 Hz
- Includes IR remote for convenient source selection
2×1 HDMI switch with audio extraction
The ESTONE OZV2 connects two HDMI 2.0b sources to one display and pulls embedded audio out through optical Toslink, coaxial, stereo RCA and a 3.5 mm jack. It is built for home-theatre owners who want to avoid constant cable swapping and need multichannel or stereo feeds to a sound system.
18.5 Gbps bandwidth at 4K 60 Hz
The single spec that decides fit is the 18.5 Gbps maximum throughput, which carries 3840 × 2160 at 60 Hz with 24-bit 4:4:4 colour and HDR10. If your sources or display need higher bandwidth — such as 4K 120 Hz or 8K — this unit will not pass the signal.
IR remote and external 5 V power

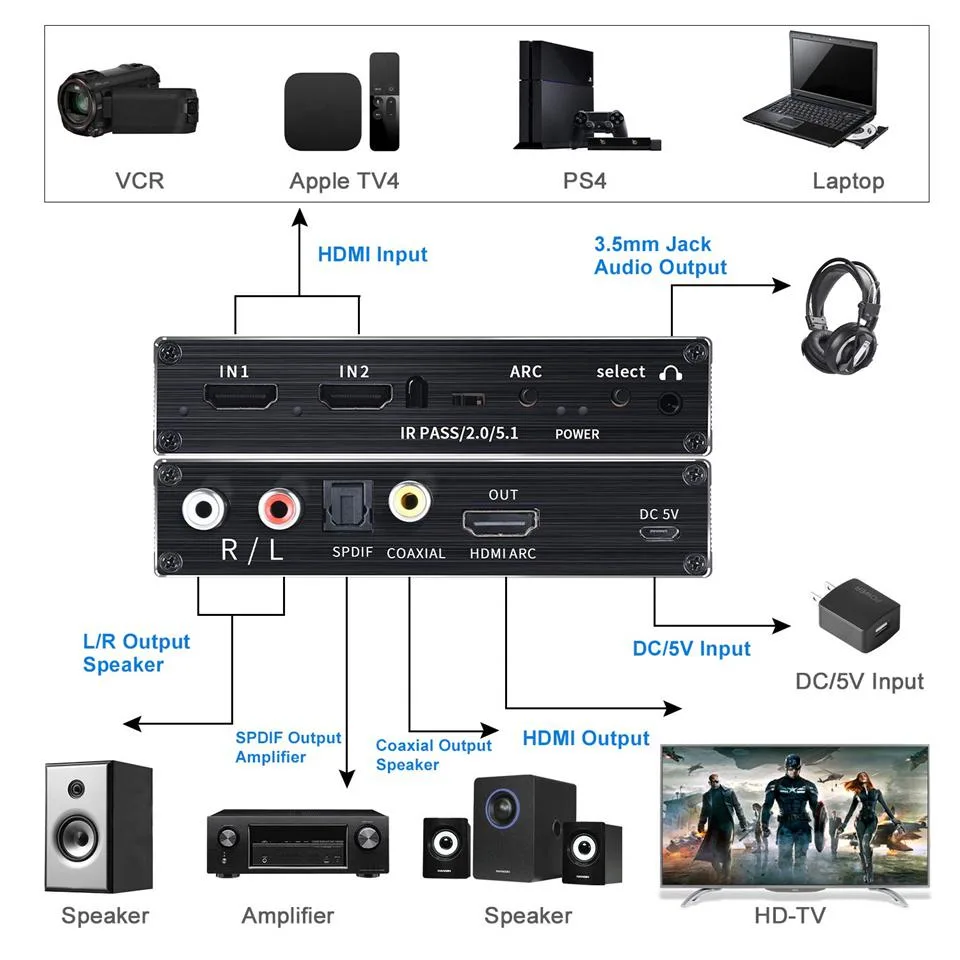

Installation is straightforward: plug both sources, the display, the power adapter and your audio gear, then use the included IR remote to switch inputs. Common issues are forgetting the DC adapter — the switch will not work without it — and expecting the 3.5 mm or RCA outputs to carry ARC; they only support stereo extraction.
Highlights
- Switch two 4K sources to one display via HDMI 2.0b inputs
- Extract multi-channel audio to optical, coaxial, RCA or 3.5 mm jack
- Pass-through Dolby TrueHD and DTS-HD Master Audio formats untouched
- HDCP 2.2 and 18.5 Gbps bandwidth support 4K at 60 Hz
- Includes IR remote for convenient source selection
Specifications
| Brand | ESTONE |
|---|---|
| Series | OZV2 |
| Model | OZV2 |
| Part Number | OZV2 |
| Type | HDMI Switchers |
| Changer Type | HDMI Switch/Extender |
| Color | Black |
| Ports | 2 |
| Audio | Yes |

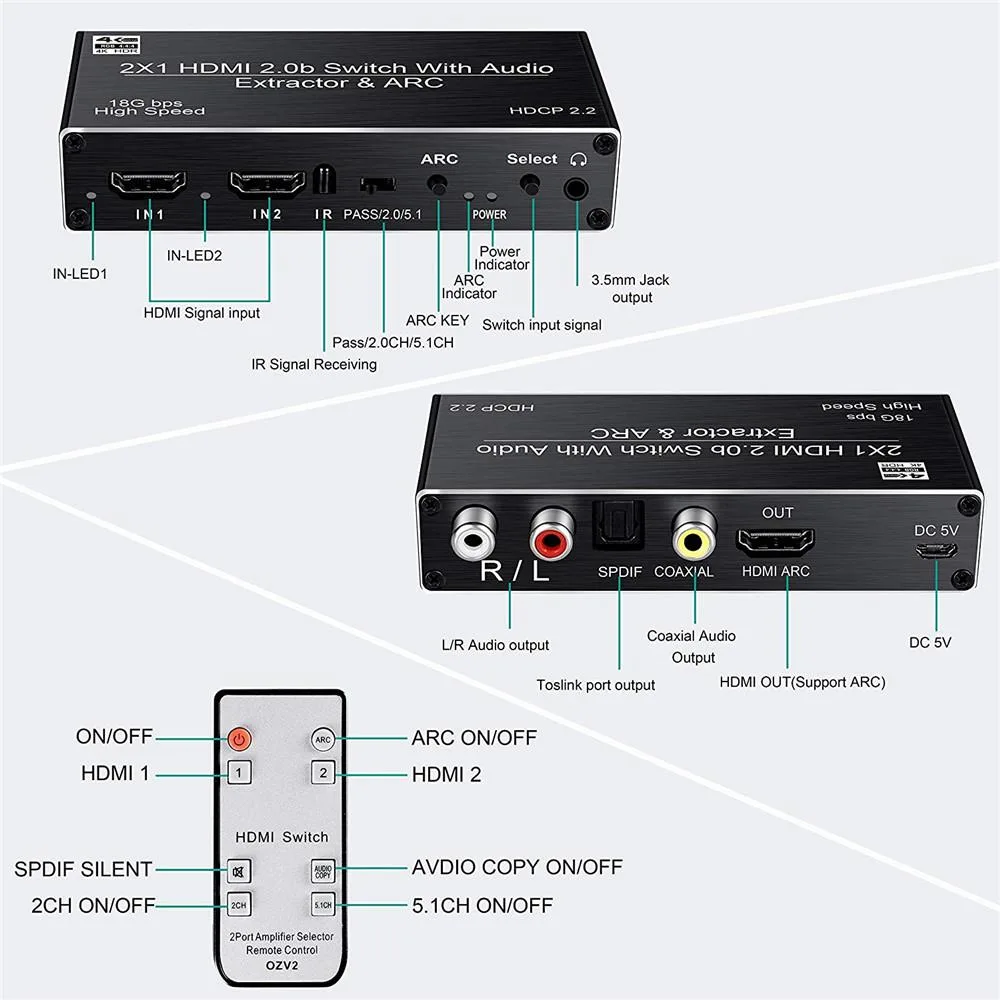

| Specifications | There are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output. Coaxial and Toslink port output support audio return function (ARC) 3.5mm Jack port output and R/L support audio extract function ,it does not support ARC support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2. Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2 Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio Support |
| Input Connector | 2 x HDMI2.0b |
| Output Connector | 1 x HDMI2.0b |
| Connector Style | with Audio |
| Maximum Resolutions | 3840 x 2160 |
| Bandwidth | 18.5Gbps |
| Features | 4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC) ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI) HDMI ADUIO EXTRACTOR: With Optical Toli |
| Dimensions | 5.75 x 5.08 x 1.5 inches |
| Weight | 8.8 ounces |
| Package Quantity | 1 |
| Package Contents | 1.HDMI Switch 2X1 with audio extractor 2.5V/1A DC Power adapter x 1 3.IR Remote x 1(Battery is not included) 4.User manualx1 |
Questions about this item
What does the 18.5 Gbps bandwidth mean for my 4K display?
It supports 4K resolution at 60 Hz with full 4:4:4 chroma sampling, so games and desktop content run at native quality without colour compression.
How does the HDMI 2.0b interface limit what I can connect?
The 2.0b ports cap video at 4K 60 Hz and 18.5 Gbps; higher refresh rates such as 4K 120 Hz or 8K signals will not pass through.
What space and power does the unit need to sit in my rack?
It measures 5.75 by 5.08 by 1.5 inches and requires the included 5 V 1 A DC adapter; the IR remote works up to 10 metres line-of-sight.
