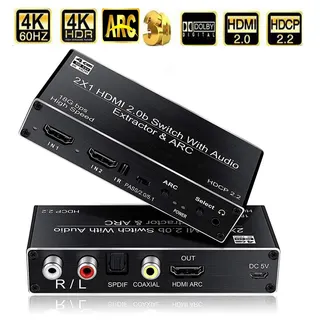

Black aluminum box with two HDMI inputs, one HDMI output and multiple audio ports

ESTONE

ESTONE OZV2 2x1 HDMI Switch Audio Extractor Aluminum 4K@60Hz 3D HDR HDCP2.2

SKU CH-YBBX-XA9HK

Connects two HDMI sources to one display at 4K 60 Hz and extracts audio through optical, coaxial, RCA and 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Switch two 4K sources to one display with 18.5Gbps bandwidth
  • Extract audio via optical, coaxial, RCA or 3.5mm jack outputs
  • ARC support on HDMI output and digital audio ports
  • Handles 4K at 60Hz, HDR and HDCP2.2 for modern consoles
  • Includes IR remote and 5V power adapter for instant setup

Two-port HDMI 2.0b switch with audio extraction

The ESTONE OZV2 routes two HDMI 2.0b sources to a single display at up to 3840 x 2160 resolution and 60 Hz refresh. It extracts embedded audio to optical Toslink, coaxial, RCA stereo and 3.5 mm analogue outputs, and passes through HDR and HDCP 2.2 signals. The aluminium enclosure measures 5.75 x 5.08 x 1.5 inches and weighs 8.8 ounces. A 5 V 1 A DC adapter and IR remote are included.

Replacing manual cable swapping or a basic splitter

This unit replaces the need to physically change HDMI cables when moving between two sources such as a game console and a media player. The jump is worth it when you want simultaneous audio extraction to a soundbar or AV receiver via Toslink or coaxial with ARC support, plus analogue stereo for headphones or powered speakers. It will not suit setups that require more than two inputs or automatic switching without the remote.

Straightforward desktop installation

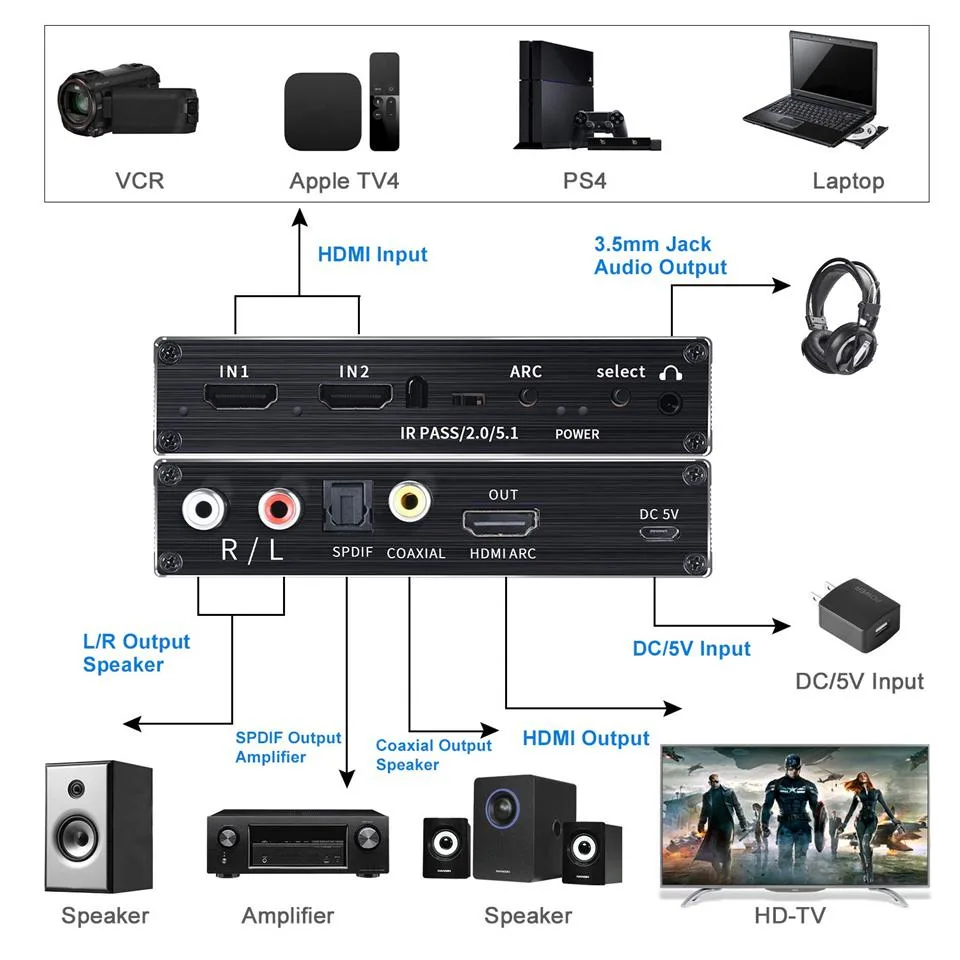

Connect the two source devices to the HDMI inputs, the display to the HDMI output, and attach audio cables to the required extractor ports. Power the unit with the supplied adapter and use the IR remote to select the active input. Common issues include forgetting to enable ARC on the display for Toslink or coaxial return audio, and expecting the 3.5 mm or RCA outputs to carry multichannel formats — they deliver two-channel stereo only.

Highlights

  • Switch two 4K sources to one display with 18.5Gbps bandwidth
  • Extract audio via optical, coaxial, RCA or 3.5mm jack outputs
  • ARC support on HDMI output and digital audio ports
  • Handles 4K at 60Hz, HDR and HDCP2.2 for modern consoles
  • Includes IR remote and 5V power adapter for instant setup

Specifications

BrandESTONE
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

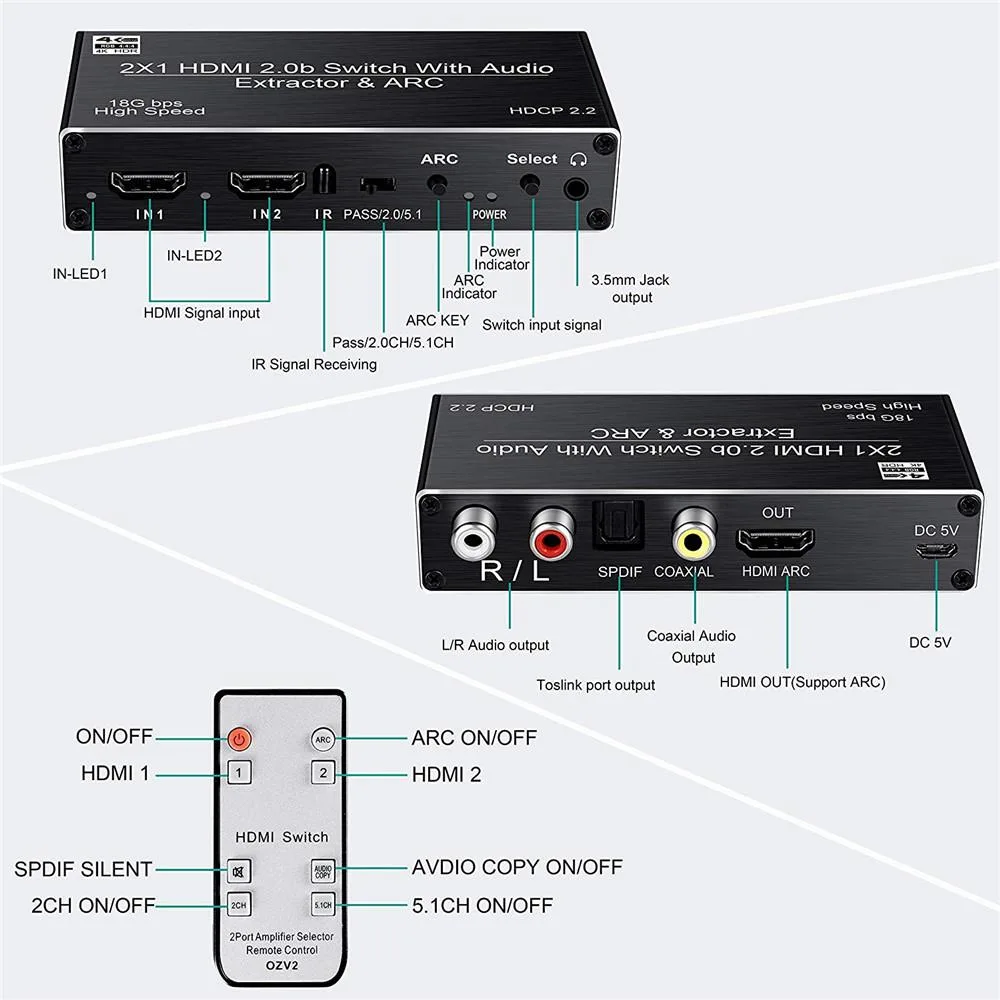

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What are the exact dimensions of the ESTONE OZV2 so I can check if it fits my AV cabinet?

The unit measures 5.75 x 5.08 x 1.5 inches and weighs 8.8 ounces, so verify your shelf depth and clearance before mounting.

Which power adapter does the OZV2 require, and what is the common setup mistake?

It ships with a 5V/1A DC adapter; the step users often miss is connecting power before the HDMI sources, otherwise the switch may not detect inputs.

The IR remote needs a battery — which size, and is it included?

The remote requires a standard button cell (not supplied), so have one ready for initial pairing and input switching.
