Black rectangular HDMI switch with multiple audio ports and remote

ESTONE

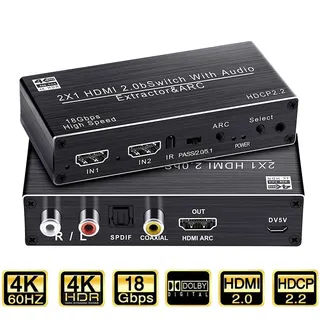

ESTONE OZV2 2×1 HDMI Switch Audio Extractor 4K@60Hz

SKU CH-087M-N4154

A 2×1 HDMI switch that routes two sources to one display while extracting audio via optical, coaxial, analogue RCA and 3.5 mm outputs, supporting 4K at 60 Hz with HDR and HDCP 2.2

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports2
  • AudioYes
  • SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC fun
  • Connect two HDMI sources to one display with 4K@60Hz support
  • Extract audio via optical, coaxial, 3.5mm or RCA outputs
  • ARC function on HDMI output and digital audio ports
  • Handles HDR, 3D and HDCP 2.2 for modern consoles
  • Includes IR remote for convenient source switching

Two-input 4K HDMI switch with audio extraction

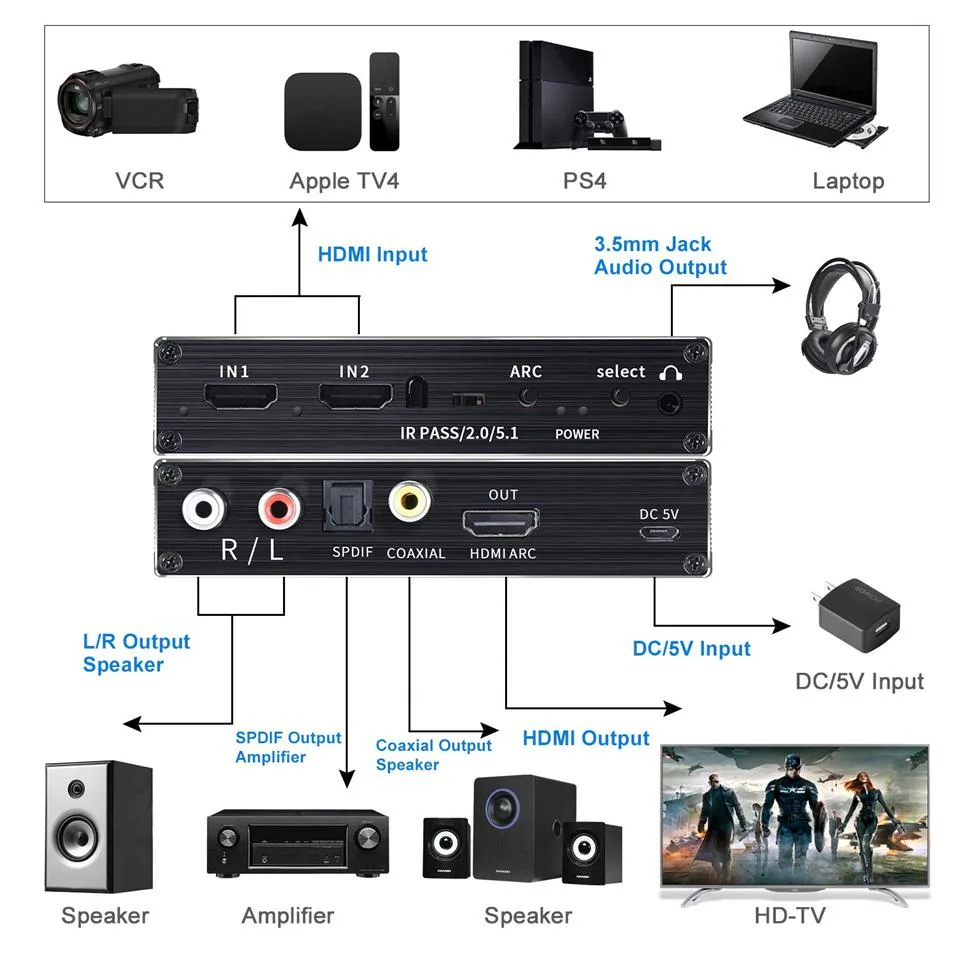

The ESTONE OZV2 routes two HDMI 2.0b sources to a single display at up to 3840 x 2160 resolution and 60 Hz refresh. It extracts embedded audio through Toslink, coaxial, stereo RCA and 3.5 mm jack outputs while passing video unchanged. The unit supports HDR, 3D and HDCP 2.2 for modern consoles and media players.

Suited for dual-source setups needing multi-format

Home-theatre owners who connect a game console and a streaming box to one TV will benefit from simultaneous digital and analogue audio feeds. The switch does not decode Dolby TrueHD, DTS-HD or DSD bitstreams, so users requiring internal decoding should look elsewhere. It also lacks support for more than two inputs or for HDMI 2.1 bandwidth features.

Simple desktop installation with IR remote

Connect the included 5 V 1 A power adapter, link sources and display with standard HDMI cables, then select inputs via the front button or the supplied infrared remote. The most common issue is forgetting to enable ARC on the television when using the optical or coaxial return path. No driver or firmware updates are required.

Highlights

  • Connect two HDMI sources to one display with 4K@60Hz support
  • Extract audio via optical, coaxial, 3.5mm or RCA outputs
  • ARC function on HDMI output and digital audio ports
  • Handles HDR, 3D and HDCP 2.2 for modern consoles
  • Includes IR remote for convenient source switching

Specifications

BrandESTONE
SeriesOZV2
ModelOZV2
Part NumberOZV2
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports2
AudioYes

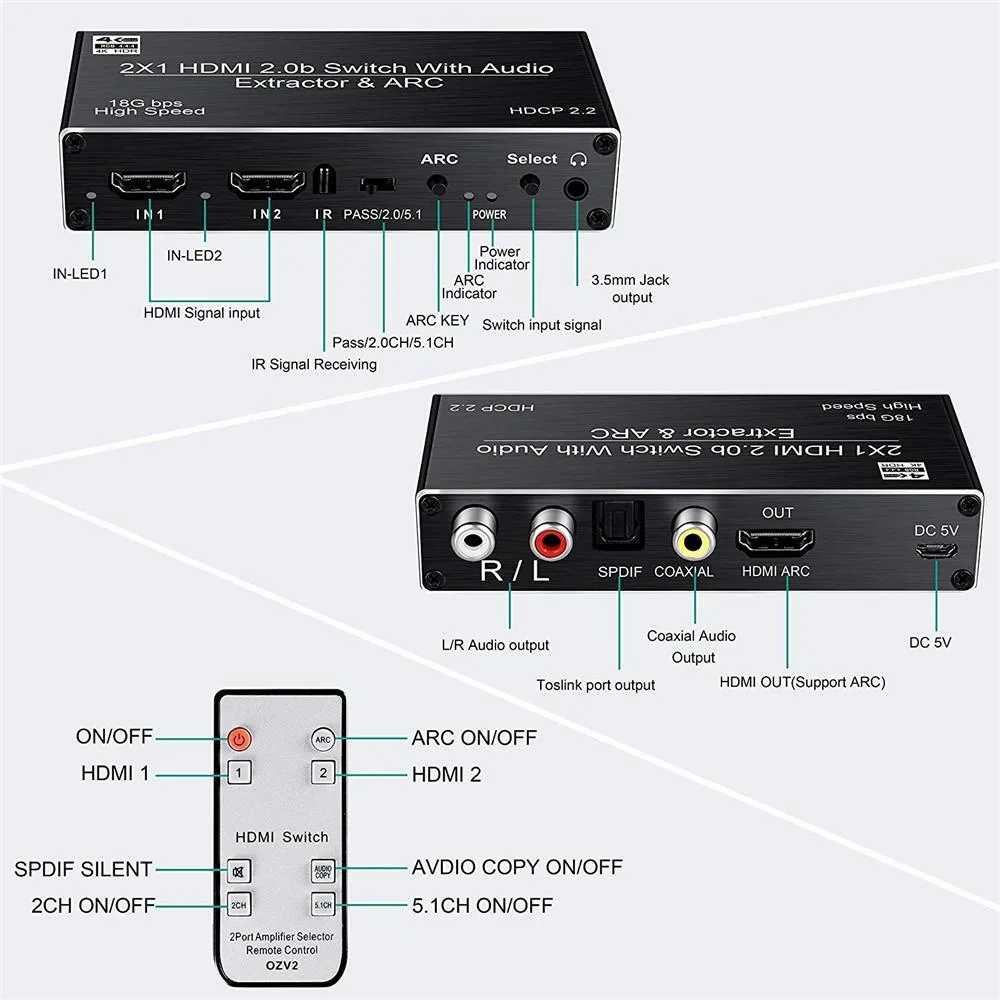

SpecificationsThere are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial Output, L/R output, 3.5mm Jack output.
Coaxial and Toslink port output support audio return function (ARC)
3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.5Gbps
Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
Support
Input Connector2 x HDMI2.0b
Output Connector1 x HDMI2.0b
Connector Stylewith Audio
Maximum Resolutions3840 x 2160
Bandwidth18.5Gbps
Features4K@60HZ 2X1 HDMI SWITCH with AUDIO EXTRACTOR: 4K HDMI Switch allows you connect Two HDMI 2.0 Sources to one display device, Each input source support audio extract by the Toslink+L/R+Coaxial audio output channel. No loss of quality after you split the signal. No degradation in audio quality. (HDMI output support CEC)
ULTRA HD 4K VISUAL ENJOYMENT: Supports HDCP 2.2, HDMI2.0b,4K@60HZ, RGB4:4:4,Full HD, UHD, HDTV, Deep Color to 36bit,also back compatible with 4K@30HZ and 1080P. Max Bandwidth of 18.2Gbps.(Kindly Note: It is not compatible with DVI)
HDMI ADUIO EXTRACTOR: With Optical Toli
Dimensions5.75 x 5.08 x 1.5 inches
Weight8.8 ounces
Package Quantity1
Package Contents1.HDMI Switch 2X1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

What HDMI cables do I need to connect two 4K@60Hz sources to this 2×1 switch?

Two HDMI 2.0b cables for the inputs and one HDMI 2.0b cable for the output, all rated for 18.5Gbps bandwidth to pass 3840×2160 at 60Hz with HDR.

Will my 1080p@60Hz console work alongside a 4K@60Hz source on the same switch?

Yes, the switch accepts 480i through 4Kx2K@30Hz on each input and downscales automatically, so a 1080p@60Hz device and a 4K@60Hz device can share the display.

How do I confirm the switch is passing 4K@60Hz HDR video and 7.1CH audio to my display and soundbar?

Check the display info menu for 3840×2160@60Hz with HDR active, and verify the AV receiver shows LPCM 7.1CH or bitstream Dolby TrueHD/DTS-HD on the Toslink or Coaxial output.
