Black metal box with colour-coded RCA ports and remote

ESTONE

ESTONE OZQV 4-in-3-out Composite AV Switcher audio

SKU CH-EYY2-7PX23

A composite AV switcher routes four video and stereo audio sources to three displays with IR remote and front-panel controls

  • AudioYes
  • ColorBlack
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.59 x 3.15 x 1.26 inches
  • Weight3.2 ounces
  • Connect four legacy sources to three displays via composite video and stereo audio
  • Switch inputs instantly with front-panel buttons or the included IR remote control
  • Driver-free hardware design works the moment you connect power and cables
  • Rugged metal chassis with colour-coded ports resists wear and simplifies setup
  • Compact 5.59 x 3.15 x 1.26-inch footprint fits tight AV racks or shelves

ESTONE OZQV 4-in-3-out AV Switcher

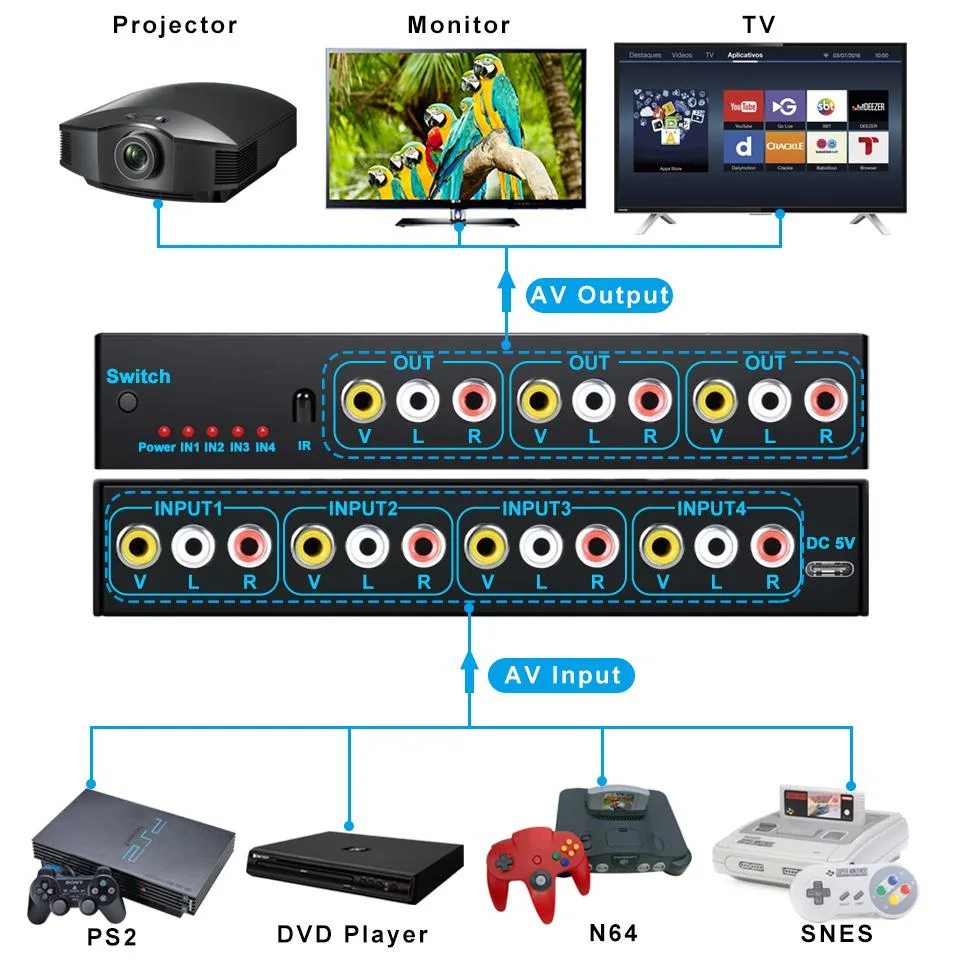

The ESTONE OZQV is a composite AV switcher that routes four RCA source devices to three RCA displays. It suits home-theatre owners who need to share consoles, DVD players or VCRs across multiple televisions without re-plugging cables.

Hardware integration and flexibility

The unit accepts four sets of composite video and stereo audio inputs and provides three mirrored output sets. A 5 V 1 A power adapter is included for active switching. No drivers or software are required; front-panel buttons or the supplied IR remote select the active source instantly.

Passive thermals and low power draw

A metal enclosure dissipates heat without fans, so operation is silent. The adapter draws minimal current at 5 V, and signal levels stay within 0.8 to 1.0 volts peak-to-peak at 75 ohm impedance, keeping power consumption negligible in normal use.

Highlights

  • Connect four legacy sources to three displays via composite video and stereo audio
  • Switch inputs instantly with front-panel buttons or the included IR remote control
  • Driver-free hardware design works the moment you connect power and cables
  • Rugged metal chassis with colour-coded ports resists wear and simplifies setup
  • Compact 5.59 x 3.15 x 1.26-inch footprint fits tight AV racks or shelves

Specifications

BrandESTONE
SeriesOZQV
ModelOZQV
Part NumberOZQV
AudioYes
ColorBlack
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

How many composite sources can I connect before I run out of input ports?

The switcher provides four RCA composite inputs, so you can connect up to four source devices simultaneously.

Does the metal housing stay cool and quiet when the unit is powered all day?

The passive hardware design has no fan and draws only 5 V 1 A, so it runs silently and generates negligible heat during continuous use.

What cables and power items must I already have to hook up my consoles and three TVs?

You need RCA composite cables for each console and each TV; the 5 V 1 A power adapter is included in the box.
