Black metal AV switcher box with RCA ports and remote control

ESTONE

ESTONE OZQV 4 in 3 Out Composite AV Switcher

SKU CH-V3JK-XVZS5

A composite AV switcher routes four RCA sources to three displays with IR remote and front-panel button control

  • AudioYes
  • ColorBlack
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.59 x 3.15 x 1.26 inches
  • Weight3.2 ounces

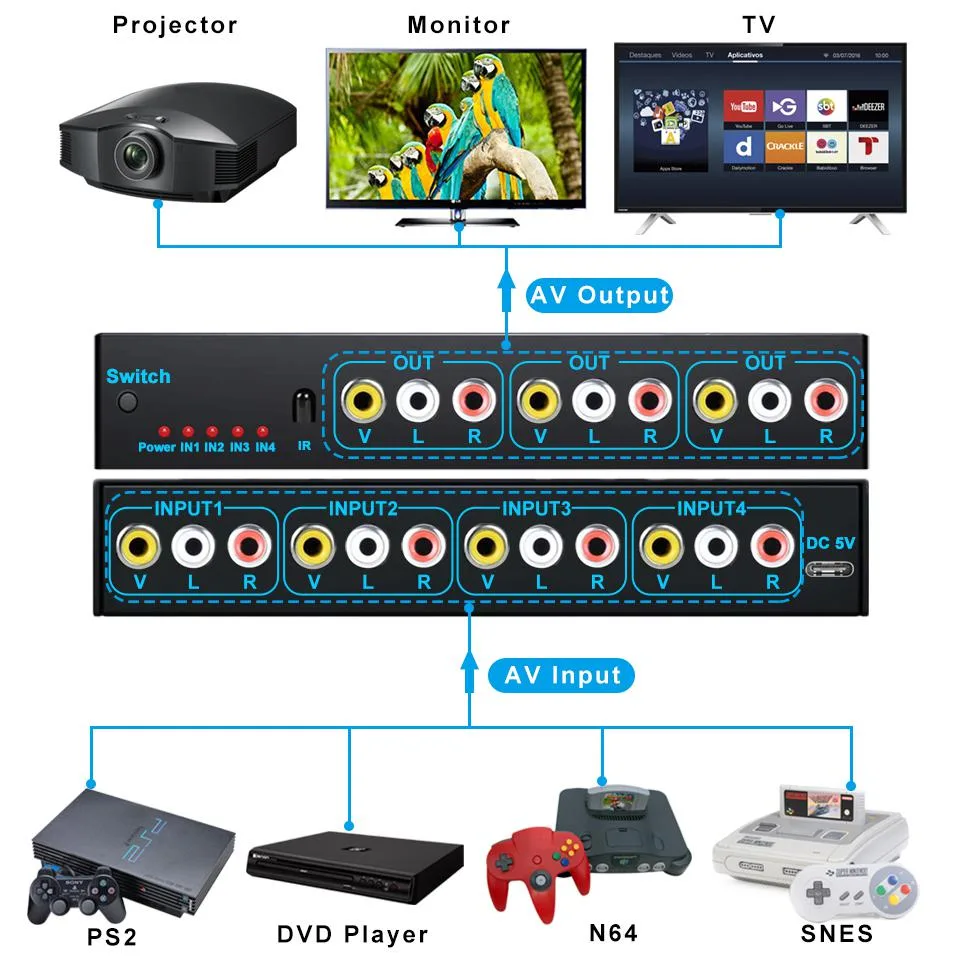

  • Connect four AV sources to three displays simultaneously
  • Driver-free hardware switching via front button or IR remote
  • Composite video with stereo L/R audio on every port
  • Metal chassis with colour-coded RCA sockets for durability
  • Includes 5 V power supply, remote and manual

ESTONE OZQV Composite AV Switcher

The ESTONE OZQV is a composite audio and video switcher designed for users who need to route multiple legacy sources to several displays. It accepts four RCA inputs and distributes the selected signal to three RCA outputs. This makes it suitable for setups with multiple game consoles, DVD players or VCRs connected to more than one television. It does not support matrix switching, so the same source is sent to all active outputs simultaneously.

4 in 3 out composite routing

The defining specification is the four-input, three-output composite architecture with stereo audio. Video signals are handled at 0.8 to 1.0 volts peak-to-peak with 75 ohm impedance. This fixed routing means every connected display receives the identical source; independent source selection per display is not possible. Buyers who need different sources on different screens at the same time cannot use this device.

Passive thermal performance

The unit has no fan and draws power from an included 5 V 1 A adapter, so it runs silently and generates minimal heat. Its metal housing provides passive dissipation during normal operation. No acoustic noise or thermal management is required in typical home-theatre or retro-gaming environments.

Highlights

  • Connect four AV sources to three displays simultaneously
  • Driver-free hardware switching via front button or IR remote
  • Composite video with stereo L/R audio on every port
  • Metal chassis with colour-coded RCA sockets for durability
  • Includes 5 V power supply, remote and manual

Specifications

BrandESTONE
SeriesOZQV
ModelOZQV
Part NumberOZQV
AudioYes
ColorBlack
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

How does the 4-in-3-out layout work when I have several consoles and three TVs?

You can connect up to four composite sources and route the selected one to all three displays simultaneously; matrix switching is not supported.

What video signal levels does the composite interface handle in practice?

The switch passes standard composite levels of 0.8–1.0 V p-p with a 75 Ohm impedance on both inputs and outputs.

What are the exact dimensions so I can check if it fits my AV rack?

The metal chassis measures 5.59 x 3.15 x 1.26 inches and weighs 3.2 ounces, making it small enough for tight shelves.
