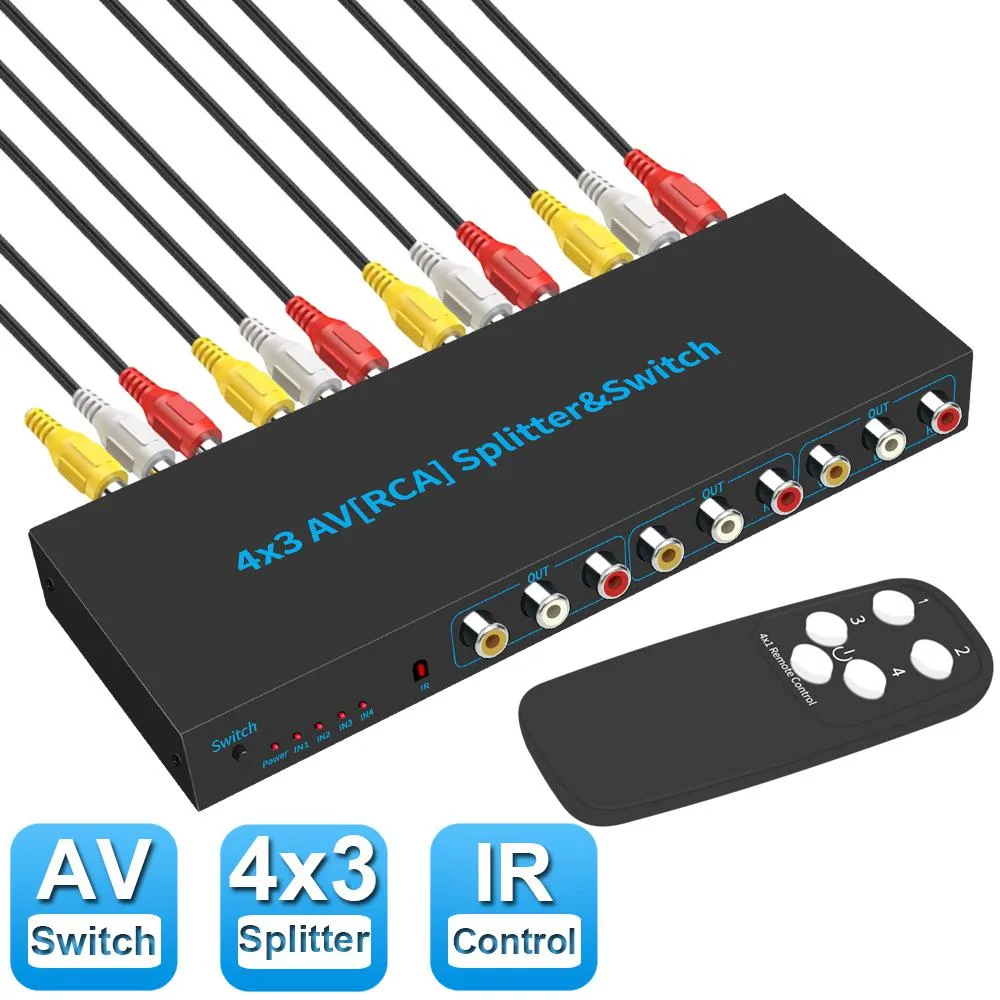

Black metal AV switch box with color-coded RCA ports and IR remote

ESTONE

ESTONE OZQV 4×3 Composite AV Switch audio

SKU CH-B4RT-NQ1JH

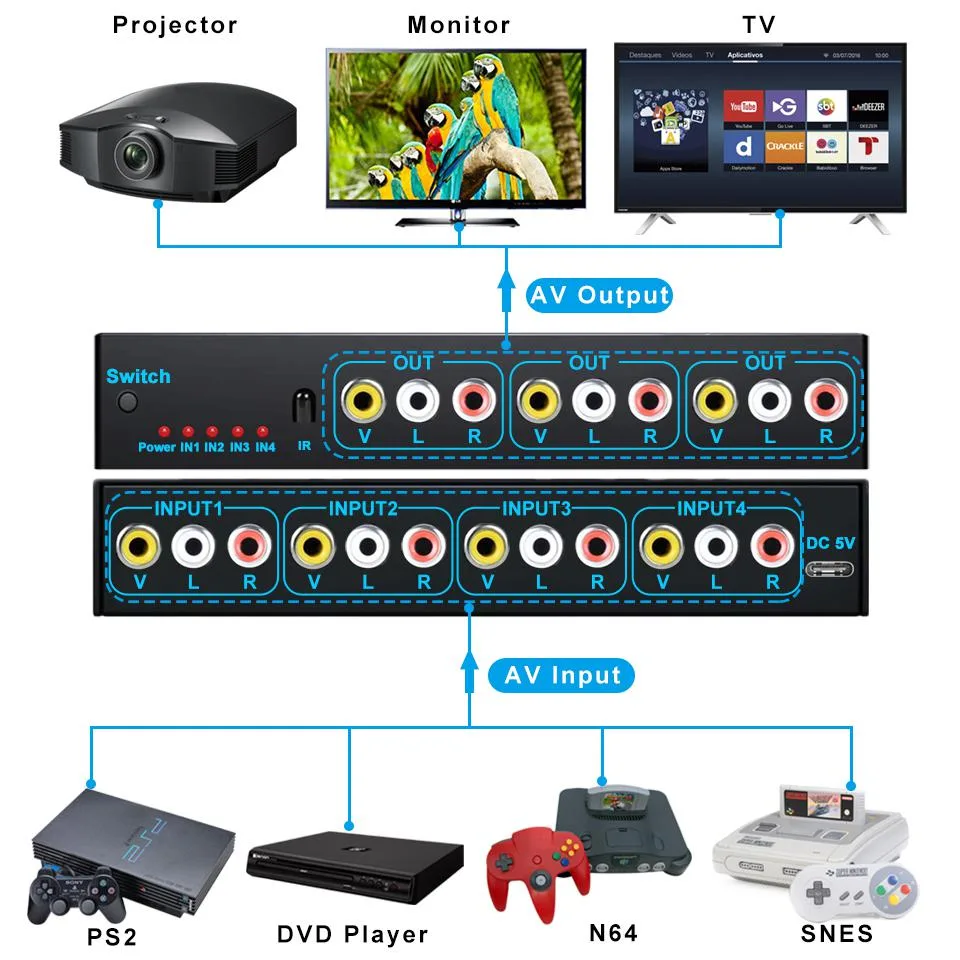

Routes composite video and stereo audio from four source devices to three displays with push-button or IR remote selection, no drivers required

  • AudioYes
  • ColorBlack
  • SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite S
  • FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal
  • Dimensions5.59 x 3.15 x 1.26 inches
  • Weight3.2 ounces
  • Switch four sources to three displays via composite AV
  • Driver-free hardware switching with front-panel buttons
  • IR remote selects inputs like N64, TV box, PS2
  • Metal housing and colour-coded ports for durability
  • Includes 5 V 1 A power adapter and remote

ESTONE OZQV 4×3 Composite AV Switch

This new ESTONE OZQV unit routes composite video and stereo audio from four source devices to three displays. A 5 V power adapter and an infrared remote are included for front-panel or handheld switching. Metal housing and colour-coded RCA sockets provide durable connections for legacy game consoles, DVD players, VCRs or cameras. No software drivers are required for operation.

Suits multi-display legacy setups.

Installers who need the same four composite sources shown simultaneously on three different televisions will find this switcher fit for purpose. The device does not support matrix mode, so each output always mirrors the single selected input. Buyers who require independent source selection per display or conversion to HDMI or S-Video should consider other equipment.

4 inputs to 3 outputs with 75 Ohm video impedance

The switcher accepts four sets of RCA composite inputs and delivers them to three RCA composite outputs while maintaining a 75 Ohm input impedance and 0.8 to 1.0 volt peak-to-peak video signal level. This fixed 4-in-3-out topology is the specification that determines whether the unit matches a given installation.

Highlights

  • Switch four sources to three displays via composite AV
  • Driver-free hardware switching with front-panel buttons
  • IR remote selects inputs like N64, TV box, PS2
  • Metal housing and colour-coded ports for durability
  • Includes 5 V 1 A power adapter and remote

Specifications

BrandESTONE
SeriesOZQV
ModelOZQV
Part NumberOZQV
AudioYes
ColorBlack
SpecificationsComposite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Video:
Input Video Signal: 0.8-1.0 volts p-p
Input Impedance: 75Ohm
Output Video Signal: 0.8-1.0 volts p-p
Output Impedance: 75Ohm
Bandwidth: 50Hz-5.5MHz
Audio:
Input Audio Signal: 2V(RMS)
Input Impedance: 47kOhm
Output Video Signal: 2V(RMS)
Output Impedance: 1KOhm
Frequency: 10Hz-20KHz, 0db
FeaturesRCA AV Switch Splitter Box 4 in 3 out AV Audio Video Signal Composite for HDTV LCD DVD 3 RCA Switcher 4 to 1 Selector
Composite AV Switch 4 in 3 out - This 4 In 3 Out Composite Selector's 3 standards "Video, L-Audio-R", 4 in 3 out, If you own 3 TV Set but more than 1 audio and video device, this 4 Way (4 In 3 Out) Composite AV Switch is suitable for you,Not support Matrix mode.
Easy to Use/True Plug&Play - Pure hardware design, be plugged and unplugged easily. No software drivers are needed, just press the selection button on the component av switcher box to choose the av sources.
IR
Dimensions5.59 x 3.15 x 1.26 inches
Weight3.2 ounces
Package Quantity1
Package ContentsAV Switcher*1
User Manual*1
5V/1A Power Adapter*1
Remote Control (without battery)*1

Questions about this item

What comes in the box and do I need to buy anything else?

The box contains the switcher, a user manual, a 5V/1A power adapter, and a remote control without a battery. You will need to supply one battery for the remote.

How do I decide between the available versions or capacities?

This model is a single 4-input, 3-output composite AV switcher with no alternative versions or capacities listed.

What does the 0.8-1.0 volt video signal range mean when I connect it?

It matches standard composite video levels, so the switcher passes the signal without amplification or attenuation for normal RCA sources.
