Black rectangular HDMI multiviewer with four input ports and one output port

ESTONE

ESTONE OZQF HDMI Multiviewer Switch 4x1 4K 5 Modes Audio

SKU CH-35ZS-DX5JY

Connects four HDMI sources to one display with five split-screen modes and seamless switching up to 4K at 30 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources at once on one screen
  • Switch instantly between inputs with no signal loss
  • Five layout modes fit any monitoring setup
  • IR remote lets you change views from a distance
  • HDMI 1.4 ports handle 4K30 and 1080p60 signals

4-Input HDMI Multiviewer for Simultaneous Display

The ESTONE OZQF connects four HDMI sources to one screen and shows all feeds at once using five layout modes. It handles 1080P at 60Hz and 4K at 30Hz, with a forced 4K60Hz YUV output option. Security installers, streamers and multi-console gamers can monitor cameras, media players and game systems on a single display without swapping cables.

Simple Desktop Setup With IR Control

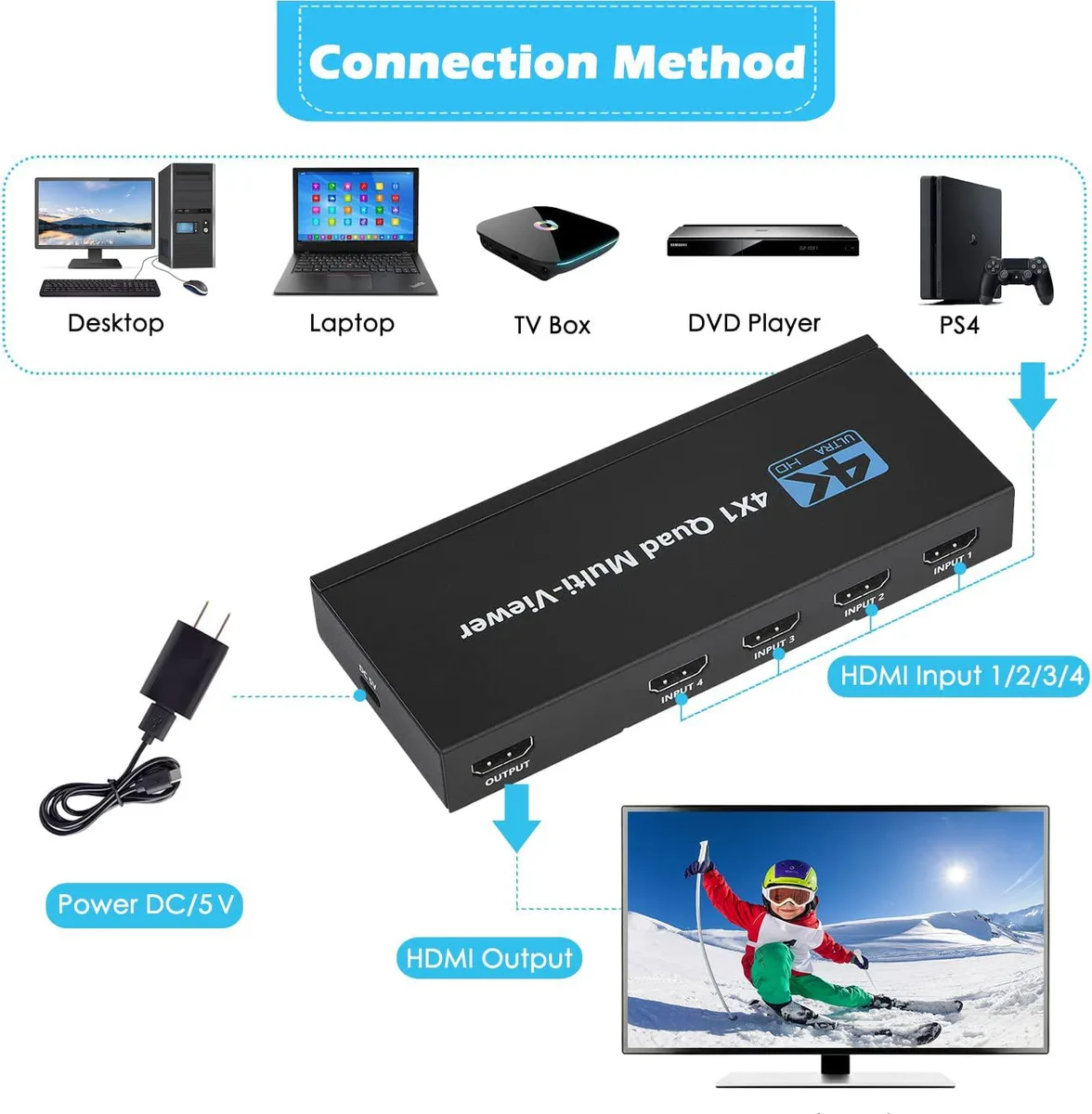

Plug each source into the four HDMI 1.4 inputs, connect the single HDMI 1.4 output to the display, and power the unit with the included DC 5V 2A adapter. The IR remote switches layouts and sources from the sofa. A common issue is forgetting that 4K60Hz output is forced YUV only, so RGB content at that rate will drop to 30Hz. Use certified high-speed cables for runs up to 15 metres.

Check Source Compatibility and Cable Lengths

Verify every source can output 1080P60 or 4K30 over HDMI 1.4 and that your display accepts those timings. The switch is HDCP 1.4 compliant, so protected streams from media players or consoles will pass through. Ensure each HDMI cable run stays within the 15-metre high-speed limit; longer or lower-grade cables may cause signal loss. The remote ships without a battery.

Highlights

  • View four sources at once on one screen
  • Switch instantly between inputs with no signal loss
  • Five layout modes fit any monitoring setup
  • IR remote lets you change views from a distance
  • HDMI 1.4 ports handle 4K30 and 1080p60 signals

Specifications

BrandESTONE
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160
Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

How do I confirm the multiviewer is passing 4K60Hz YUV to my display after setup?

Connect the output to a 4K60Hz-capable screen and check the display's on-screen information for 4096 x 2160 at 60 Hz YUV; the unit forces this mode on the output device when the source supports it.

What comes in the box and what must I purchase separately?

The package includes the multiviewer, IR remote, DC 5V2A power adapter and user guide; you must supply four HDMI source cables and one HDMI output cable, and the remote requires a battery not provided.

Which viewing mode should I choose for a security-camera layout with one main feed and three smaller feeds?

Select the "1 big 3 small" mode — one of the five built-in layouts — to show a primary camera full-width with three additional feeds scaled alongside it.
