Black rectangular HDMI multiviewer with four input ports, one output, IR remote control

ESTONE

ESTONE OZQF HDMI Multiviewer 4x1 4K30Hz 5 Modes IR Remote

SKU CH-FE5T-VDA9J

Combines four HDMI sources on one screen with five viewing modes and seamless switching up to 4K at 30 Hz

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources simultaneously on one screen with five display modes
  • Switch between 4K30Hz and 1080P60Hz with seamless transitions
  • Control all inputs from your seat using the included IR remote
  • Connect up to four HDMI 1.4 devices via four input ports
  • Compact unit measures 8.39 x 3.94 x 0.98 inches and weighs 0.85 pounds

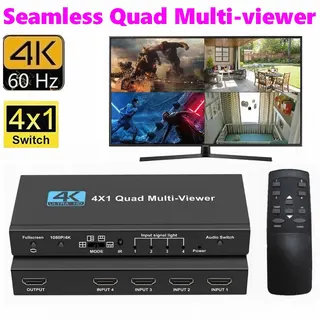

Quad 4K30Hz Multiviewer Switch

The ESTONE OZQF is a four-input HDMI 1.4 multiviewer that combines up to four sources on one 4K display. It accepts 1080p60 or 4K30 signals and outputs at 4096 x 2160 maximum resolution. Security installers, streamers and multi-console gamers can monitor cameras, media players and consoles simultaneously without changing cables.

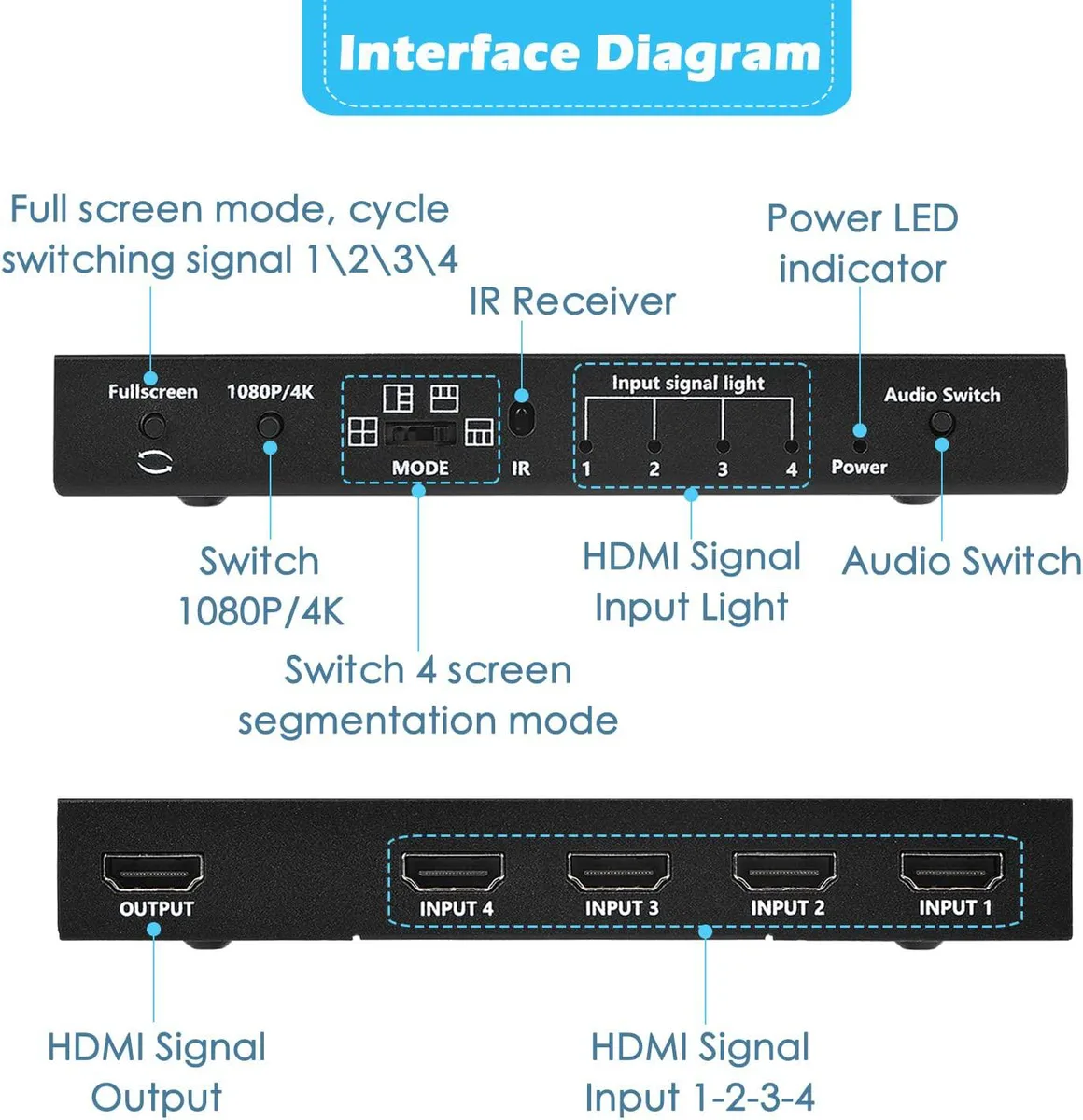

Five Layout Modes and IR Remote

Five preset viewing modes — quad "+", horizontal "H", vertical "I", full-screen and picture-in-picture — rearrange the four inputs instantly. The bundled IR remote switches modes and sources from across the room. A DC 5 V 2 A power adapter is included; the remote ships without batteries, so users must supply their own.

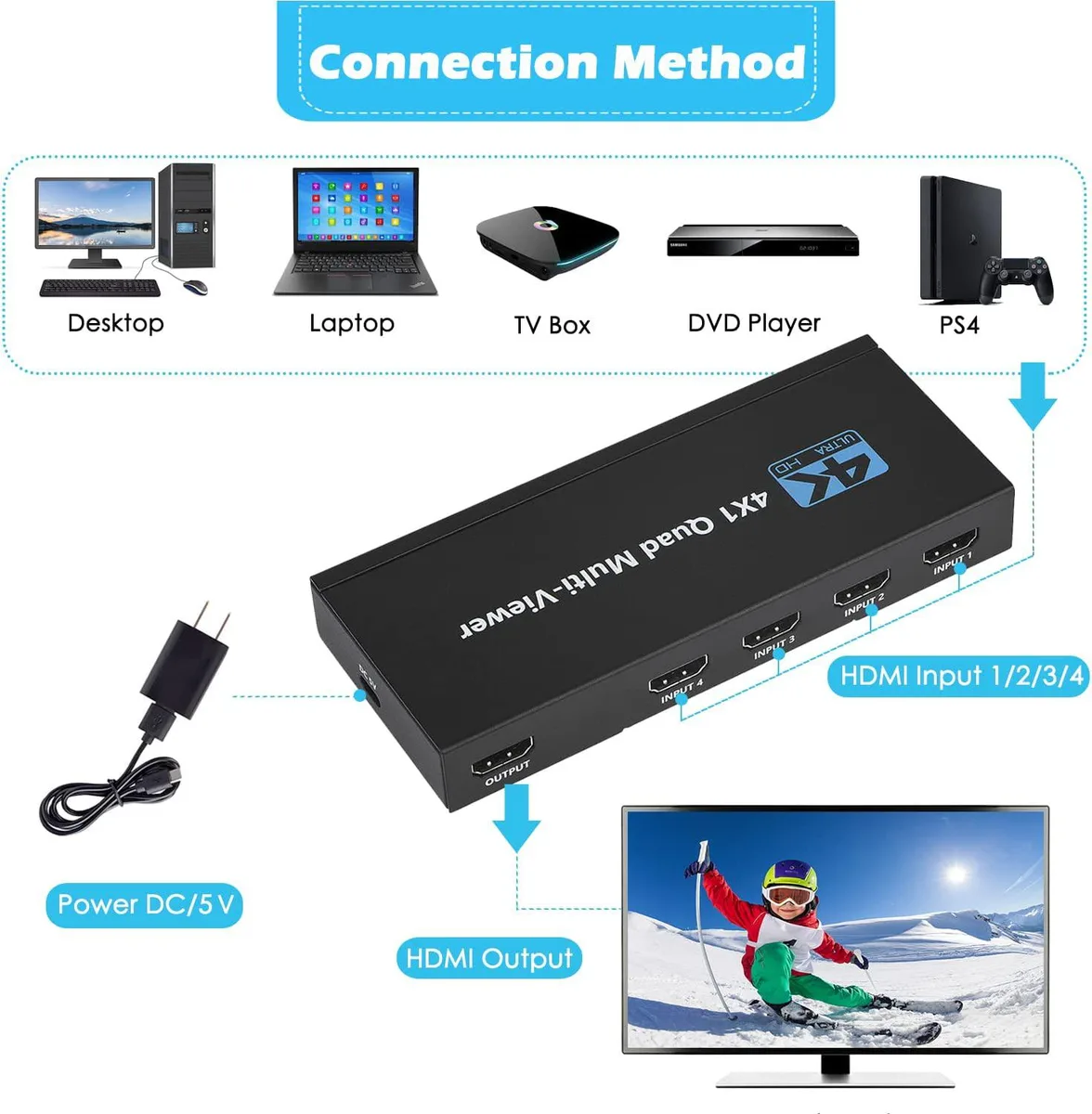

Desktop Install with 15 Metre Cable Reach

The unit measures 8.39 x 3.94 x 0.98 inches and weighs .85 pounds, fitting on a shelf or rack tray. High-speed HDMI cables up to 15 metres (19 + 1, AWG 28) are supported on both inputs and output. No drivers are required; connect sources, apply power and select a mode. Buyers needing 4K60 RGB pass-through or more than four inputs should look elsewhere.

Highlights

  • View four sources simultaneously on one screen with five display modes
  • Switch between 4K30Hz and 1080P60Hz with seamless transitions
  • Control all inputs from your seat using the included IR remote
  • Connect up to four HDMI 1.4 devices via four input ports
  • Compact unit measures 8.39 x 3.94 x 0.98 inches and weighs 0.85 pounds

Specifications

BrandESTONE
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160
Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

Will the DC 5 V 2 A power adapter need replacing after extended use?

The unit ships with a DC 5 V 2 A adapter; if it fails you can replace it with any 5 V 2 A supply that matches the barrel plug.

What resolution limit appears first when four 4 K sources run continuously?

The HDMI 1.4 ports cap each input at 4 K 30 Hz RGB or 4 K 60 Hz YUV, so 30 Hz is the practical ceiling for full-colour quad-view.

How warm does the metal chassis get and is there any fan noise during all-day operation?

The enclosure is passively cooled and silent; under continuous load it becomes warm to the touch but stays within normal operating temperature.
