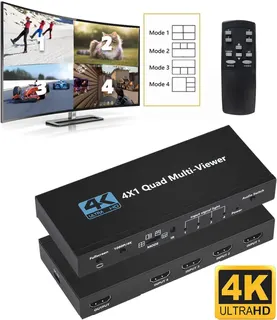

Black rectangular HDMI multiviewer with four inputs and one output, IR remote included

ESTONE

ESTONE OZQF 4x1 HDMI Multiviewer Switch 4K30Hz

SKU CH-H7B5-FBE98

Connects four HDMI sources to one display with five simultaneous viewing modes and seamless 4K30Hz switching

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • AudioYes
  • SpecificationsSupport 4 HDMI input, 1 HDMI output Support 4 HDMI signal sc
  • View four sources at once on one screen with five layout modes
  • Seamlessly switch between four HDMI inputs without signal loss
  • Output up to 4K at 30 Hz and 1080p at 60 Hz
  • Control the unit from a distance using the included IR remote
  • Connect devices via four HDMI 1.4 inputs and one HDMI 1.4 output

ESTONE OZQF 4x1 HDMI Multiviewer

The ESTONE OZQF is a new four-input HDMI 1.4 multiviewer that combines four sources onto one 4096 x 2160 display. It suits installers, security desks and multi-console gamers who need simultaneous visibility without changing cables.

Upgrading from a basic 4-to-1 switch

A simple selector shows only one source at a time; this unit adds five split-screen layouts plus seamless 1080P60 or 4K30 switching. The jump is worth it when monitoring cameras, a media player and a console together outweighs the single-source limitation.

Installation and common issues

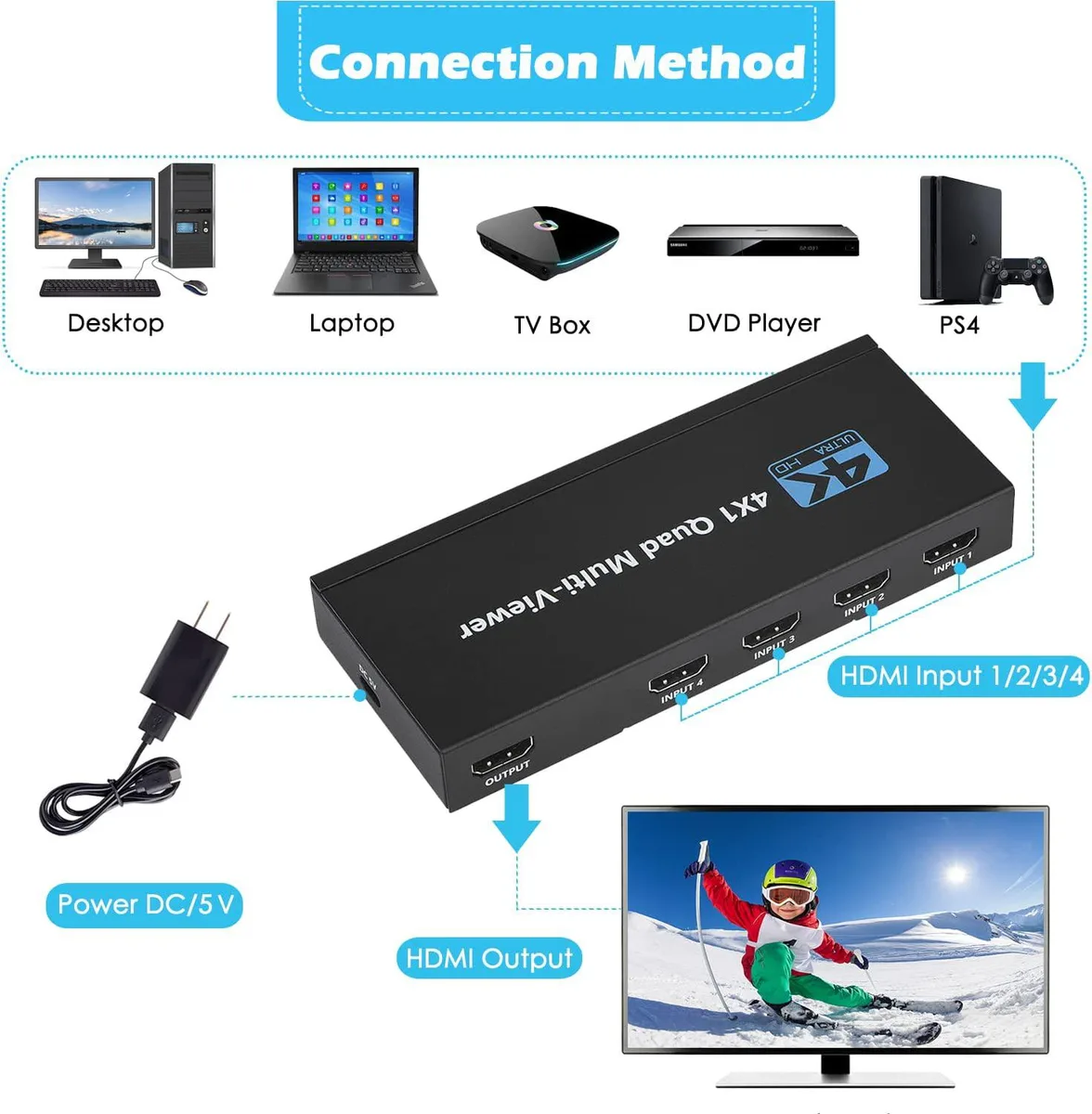

Connect up to four HDMI 1.4 sources and one display, attach the DC 5V 2A adapter, then choose layouts via the IR remote. HDMI cables up to 15 metres are supported; longer runs or missing power cause signal drop-out, and the remote ships without a battery.

Highlights

  • View four sources at once on one screen with five layout modes
  • Seamlessly switch between four HDMI inputs without signal loss
  • Output up to 4K at 30 Hz and 1080p at 60 Hz
  • Control the unit from a distance using the included IR remote
  • Connect devices via four HDMI 1.4 inputs and one HDMI 1.4 output

Specifications

BrandESTONE
SeriesOZQF
ModelOZQF
Part NumberOZQF
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4
AudioYes
SpecificationsSupport 4 HDMI input, 1 HDMI output
Support 4 HDMI signal screen split
Support seamless switching of 4 HDMI signals
Switch between 1080P/60Hz and 4K/30Hz, support the highest resolution
4K60Hz (YUV) (forced output on output device), 4K30Hz (RGB) and backward compatible.
Support HDMI1.4, HDCP1.4 and backward compatible
HDMI input and output transmission distance: high-speed HDMI cable can reach 15M. (HDMIcable 19 + 1, AW28)
Support infrared control
Power supply: DC5V2A
Input Connector4 x HDMI 1.4
Output Connector1 x HDMI 1.4
Maximum Resolutions4096 x 2160
Features5 Viewing Modes: This HDMI multiviewer is specifically designed to display multiple HDMI input sources on 1 output screen. There are five viewing modes, including “+” type, “H” type, “I” type, Full screen and 1 big 3 small mode, also support cycle interval, picture can be looped under full screen mode.
4 port Seamless Switch: Under full screen mode, This HDMI multiviewer supports seamless switching between four HDMI input sources, no point in waiting 5-8s for switching.
4K@30Hz Resolutions: Supports up to 4K@30Hz high definition resolution with 720P/1080p/4k scaler up and down functi
Dimensions8.39 x 3.94 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

Will the ESTONE OZQF fit in a rack shelf only 10 inches deep?

The unit measures 8.39 x 3.94 x 0.98 inches, so it sits comfortably on any shelf deeper than about 9 inches; no rack ears are included.

Which step do people skip when hooking up four sources to the OZQF?

Connect all four HDMI 1.4 sources and the display first, then plug in the DC 5 V 2 A adapter before selecting a viewing mode with the IR remote.

What part will need replacement first on the ESTONE OZQF multiviewer?

The IR remote ships without a battery; fit a standard button cell to restore range when the indicator dims.
