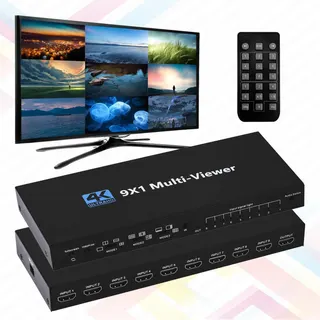

Black rectangular HDMI multiviewer with nine input ports and one output port

ESTONE

ESTONE OZQF-1 HDMI Multiviewer 9x1 4K30Hz 10 Modes

SKU CH-NCQB-99PTC

Displays nine HDMI sources on one screen with 10 viewing modes and seamless 4K30Hz switching

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports9
  • AudioYes
  • Specifications9x1 HDMI Seamless Multiviewer Support 9 HDMI input, 1 HDMI o
  • Displays nine sources simultaneously with 10 selectable viewing modes
  • Seamless switching between nine HDMI inputs without signal interruption
  • Outputs up to 4096 x 2160 at 30 Hz for 4K clarity
  • Control via front-panel buttons or included IR remote
  • Compact 8.39 x 3.99 x 0.98 inch metal enclosure

Nine-input multiviewer for multi-source monitoring

The ESTONE OZQF-1 accepts nine HDMI sources and combines them onto a single display. It suits security operators, AV installers and multi-console gamers who need simultaneous visibility. Front-panel buttons and an IR remote provide flexible control without software. The unit ships with a power adapter and manual for immediate deployment.

HDMI 1.4 and HDCP 1.4 limit output to 4K at 30 Hz

The switcher complies with HDMI 1.4 and HDCP 1.4, so protected 4K content is capped at 30 frames per second. Supported input timings include 480i, 480p, 576i, 576p, 720p, 1080i, 1080p at 24, 50 and 60 Hz, plus 4K at 30 Hz. Audio passes through as two-channel LPCM. No higher bandwidth or newer HDCP versions are supported.

Compact metal chassis with nine rear HDMI ports

The black enclosure measures 8.39 by 3.99 by 0.98 inches and weighs 0.85 pounds, fitting easily on a desk or in a shallow rack shelf. All nine inputs and the single output sit on the rear panel for clean cable routing. IR receiver and mode buttons on the front allow quick layout changes without reaching behind the unit.

Highlights

  • Displays nine sources simultaneously with 10 selectable viewing modes
  • Seamless switching between nine HDMI inputs without signal interruption
  • Outputs up to 4096 x 2160 at 30 Hz for 4K clarity
  • Control via front-panel buttons or included IR remote
  • Compact 8.39 x 3.99 x 0.98 inch metal enclosure

Specifications

BrandESTONE
SeriesOZQF-1
ModelOZQF-1
Part NumberOZQF-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports9
AudioYes
Specifications9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output;
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation;
Support 9 channels HDMI signal seamless switching;
Support resolution up to 4K@30Hz/1080@60Hz;
Support IR control and Panel control;
Input Connector9 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4096 x 2160
Features4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
?

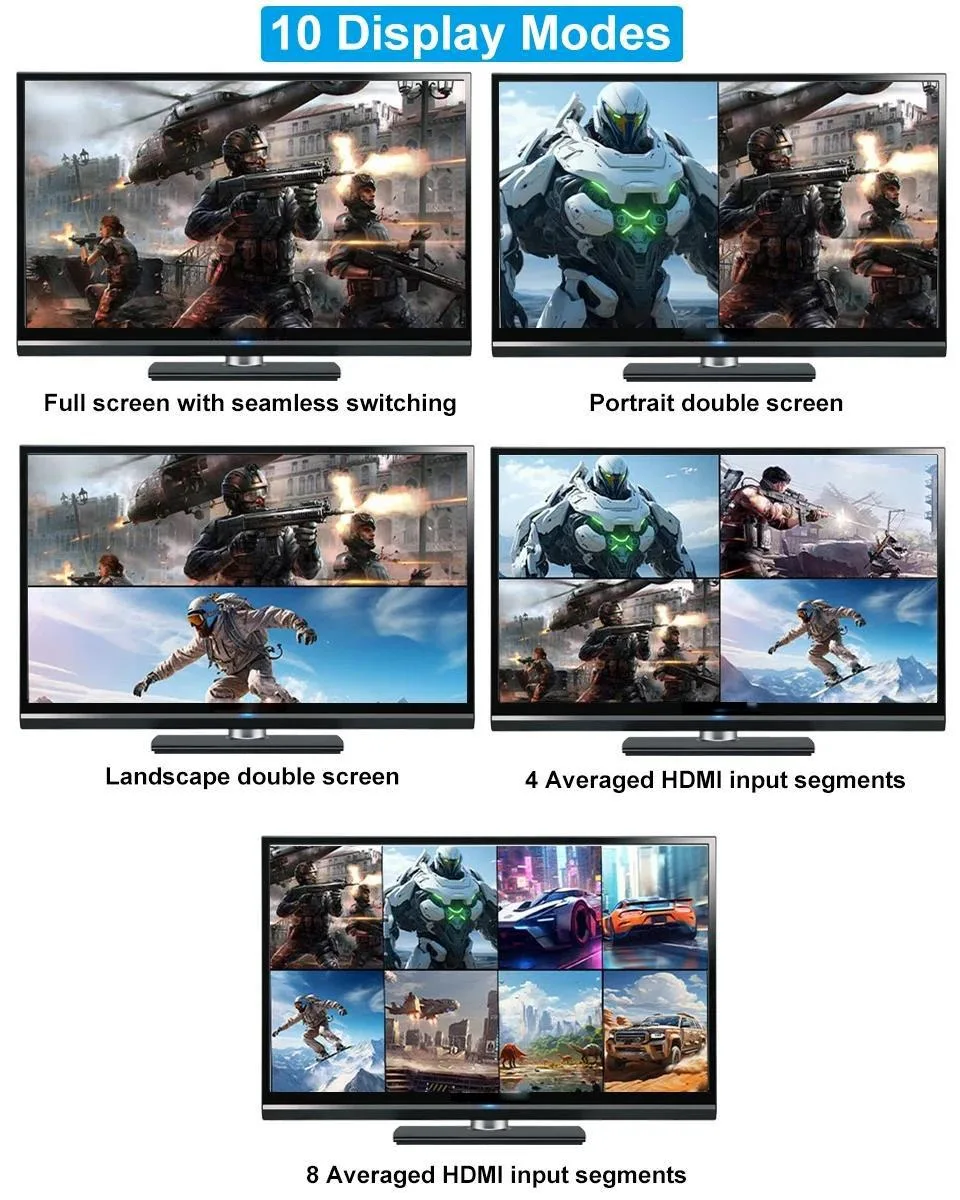

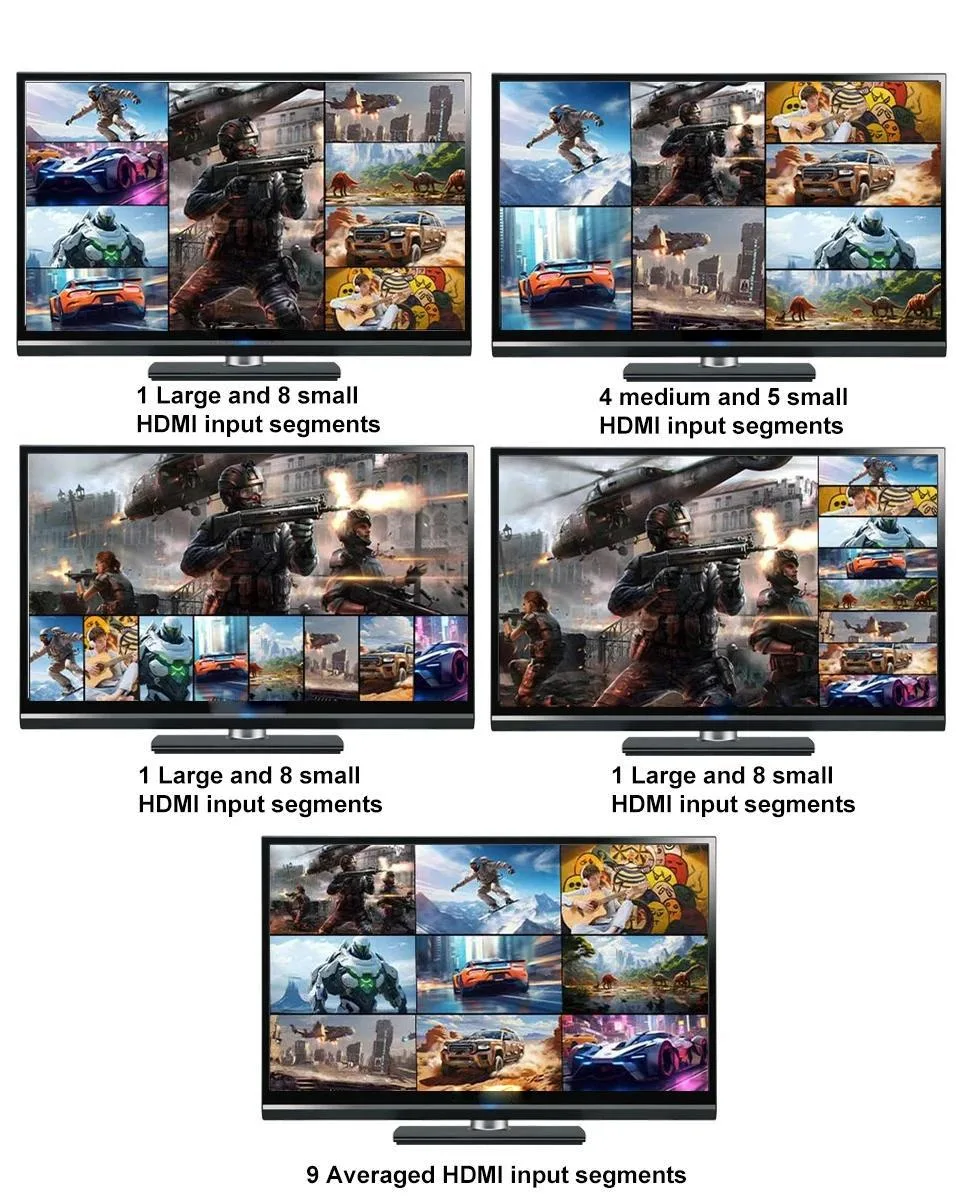

10 Ways Viewing Screen:9X1 Nine MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;
?
Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720
Dimensions8.39 x 3.99 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

How many viewing modes does the OZQF-1 offer?

The unit provides 10 selectable viewing modes, letting you arrange all nine inputs on one screen or show a single source full-screen.

What resolution does the HDMI output actually deliver at 4K?

The output reaches 4096 x 2160 at 30 Hz, while 1080p runs at up to 60 Hz for smoother motion.

Which HDMI standard limits the 4K refresh rate on this switch?

HDMI 1.4 caps 4K signals at 30 Hz, so 4K sources will display at that rate through the device.
