Black rectangular HDMI multi-viewer unit with nine input ports and one output, IR remote included

ESTONE

ESTONE OZQF-1 9x1 HDMI Multi-Viewer 10 Modes IR Remote 4K30

SKU CH-6XPA-W07RX

Combines nine HDMI sources into one 4K30 display with ten selectable viewing modes and IR remote control

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports9
  • AudioYes
  • Specifications9x1 HDMI Seamless Multiviewer Support 9 HDMI input, 1 HDMI o
  • View nine sources on one 4K display
  • Switch instantly between 10 layout modes via IR remote
  • Seamless 9-to-1 HDMI switching without signal loss
  • Supports 4096 × 2160 resolution at 30 Hz
  • Compact 8.39 × 3.99 × .98 in design weighs .85 lb

9x1 HDMI Multi-Viewer with 10 modes

The ESTONE OZQF-1 combines nine HDMI inputs into a single HDMI output, letting operators monitor up to nine cameras, players or computers on one display. Ten selectable layouts range from full-screen to quad-split arrangements. IR remote and front-panel buttons provide instant switching without leaving the seat. The unit ships with a DC power adapter and supports HDMI 1.4 and HDCP 1.4 signals.

Ideal for surveillance desks

Security teams who need simultaneous camera views, control-room operators juggling multiple recorders, and editors previewing several playout sources will benefit from the real-time segmentation. Installations that require only simple A/B switching or that must pass 4K at 60 Hz should consider a different switcher, as this model tops out at 4K30 and does not offer advanced matrix routing.

Maximum resolution 4096 x 2160 at 30 Hz

The single most decisive specification is the 4096 x 2160 ceiling at 30 Hz; any source or display demanding 4K60, HDR metadata or higher colour-depth formats will not pass through this device. If the target workflow stays within 4K30 or 1080p, the nine-input capacity and ten viewing modes become the defining value.

Highlights

  • View nine sources on one 4K display
  • Switch instantly between 10 layout modes via IR remote
  • Seamless 9-to-1 HDMI switching without signal loss
  • Supports 4096 × 2160 resolution at 30 Hz
  • Compact 8.39 × 3.99 × .98 in design weighs .85 lb

Specifications

BrandESTONE
SeriesOZQF-1
ModelOZQF-1
Part NumberOZQF-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports9
AudioYes
Specifications9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output;
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation;
Support 9 channels HDMI signal seamless switching;
Support resolution up to 4K@30Hz/1080@60Hz;
Support IR control and Panel control;
Input Connector9 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4096 x 2160
Features4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
?

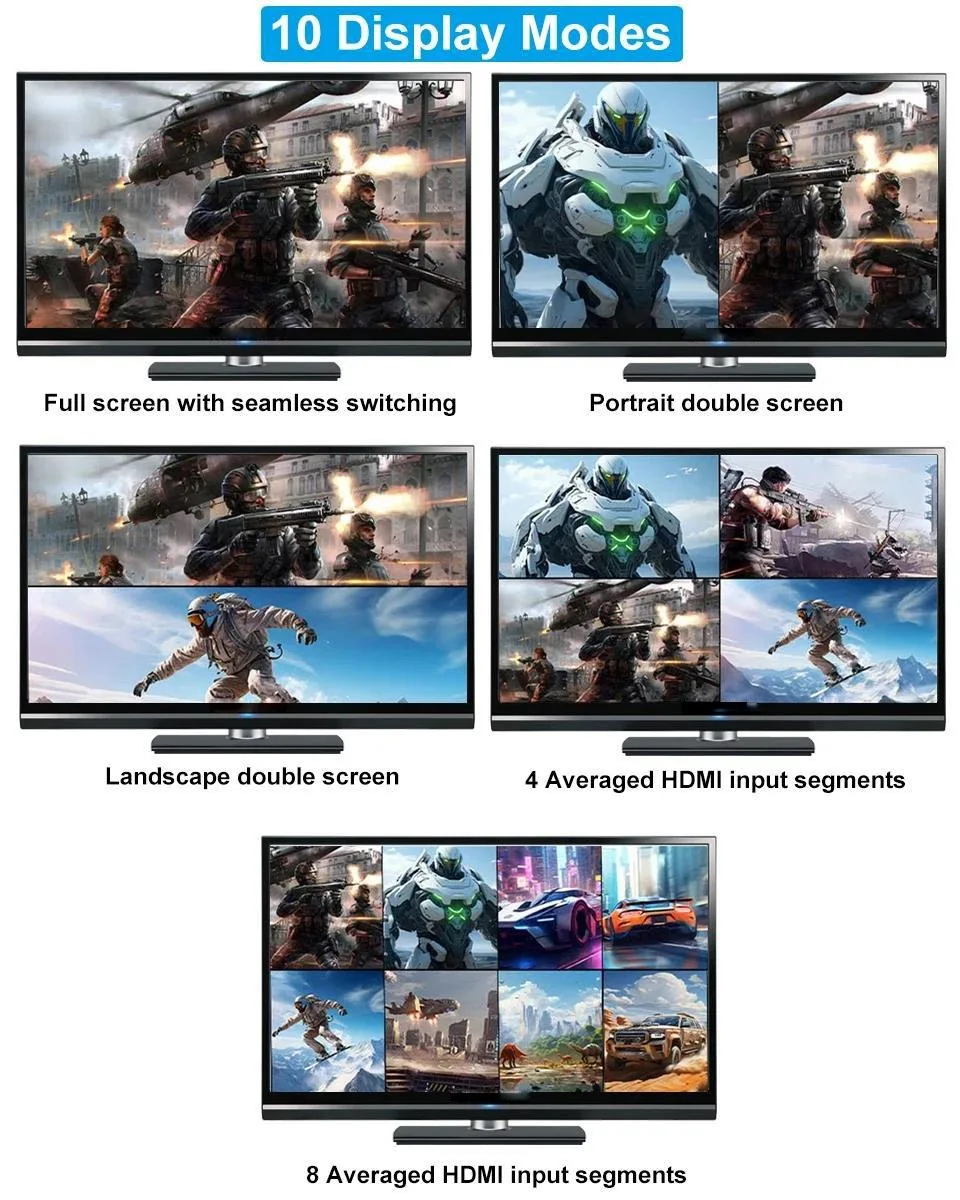

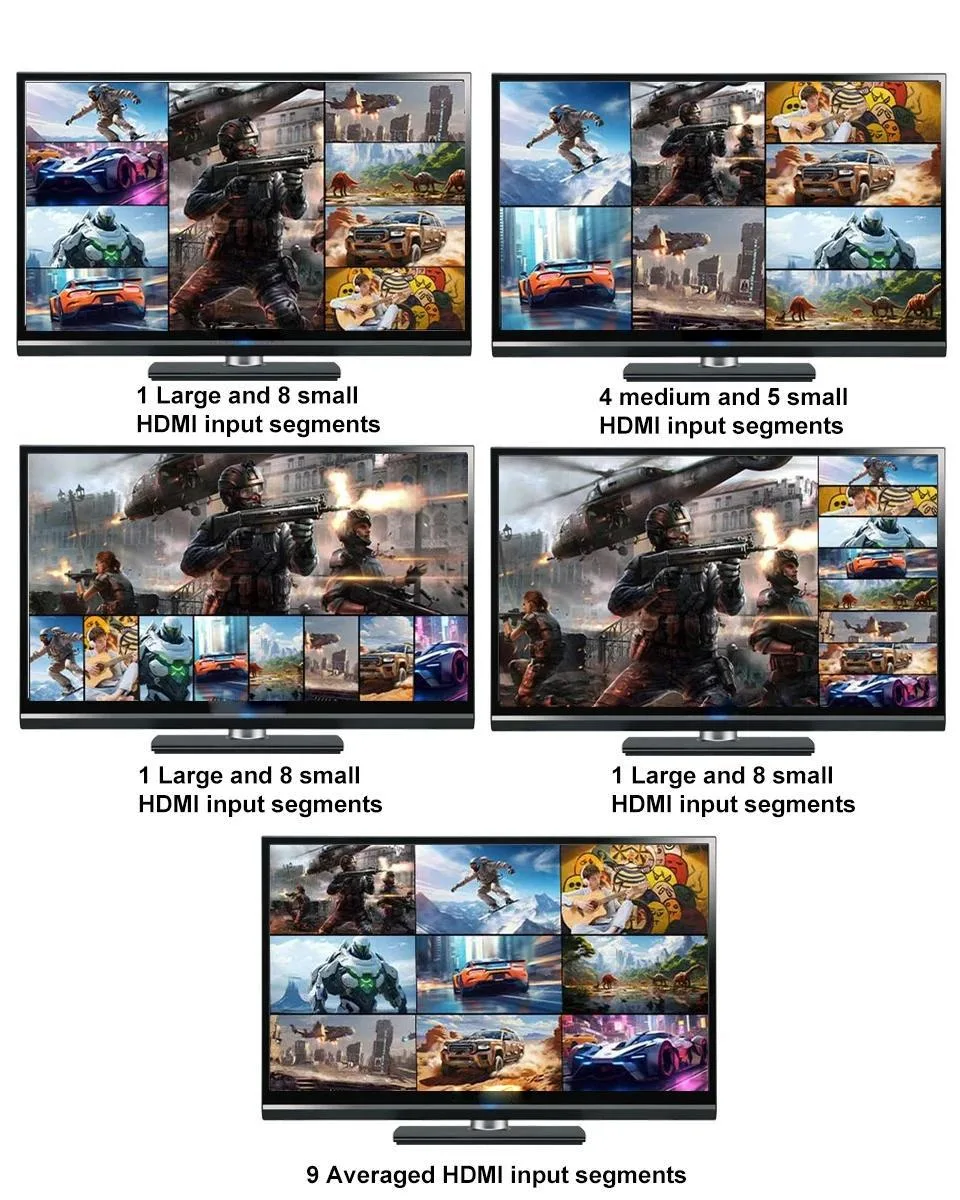

10 Ways Viewing Screen:9X1 Nine MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;
?
Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720
Dimensions8.39 x 3.99 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

Which source devices do I need to have ready to connect to the nine HDMI inputs?

Any device with an HDMI 1.4 output — security cameras, streaming boxes, game consoles, PCs or Blu-ray players — can plug directly into the nine input ports.

Will my 1080p cameras and 4K30 media players work together on the same output?

Yes. The switch accepts up to 4096 x 2160 at 30 Hz and down-scales or passes through each 1080p source so all nine appear simultaneously in any of the ten viewing modes.

How can I confirm the multi-viewer is processing all nine inputs correctly after I power it on?

Select a quad or full-screen mode with the IR remote; each active input should appear in its assigned window without flicker, and audio should follow the chosen source.
