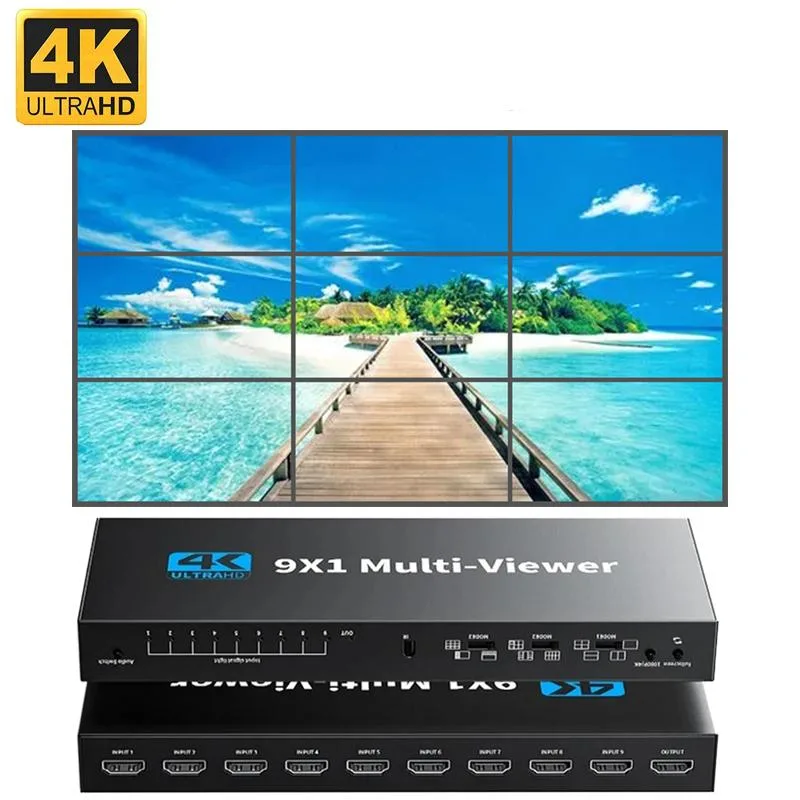

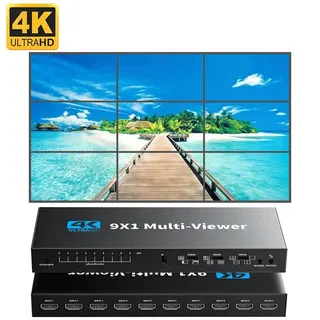

Black rectangular box with nine HDMI inputs and one output, IR remote included

ESTONE

ESTONE OZQF-1 4K HDMI 9x1 Multiviewer Switch

SKU CH-KHPH-FWK30

A 9-input HDMI multiviewer shows up to nine 4K sources on one screen with ten layout modes and seamless switching via IR remote or front buttons

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports9
  • AudioYes
  • Specifications9x1 HDMI Seamless Multiviewer Support 9 HDMI input, 1 HDMI o
  • Displays nine sources simultaneously with ten viewing modes
  • Switches nine HDMI inputs seamlessly without signal interruption
  • Supports 4K resolution up to 4096 x 2160 at 30Hz
  • Includes IR remote and front-panel buttons for flexible control
  • Compact 8.39 x 3.99 x 0.98 inch design fits any setup

Nine-Input 4K Multiviewer

The ESTONE OZQF-1 is a 9x1 HDMI multiviewer that shows up to nine sources on a single display. It suits security operators, broadcast technicians and multi-system workstations that need simultaneous monitoring. The switch handles 4K signals at 30 Hz and 1080p at 60 Hz. Ten preset layouts let users arrange every feed or pick one full-screen view.

Front-Panel And IR Control

Installation consists of connecting nine HDMI cables to the inputs, one to the output and plugging in the supplied DC adapter. Front buttons cycle layouts and sources; the IR remote duplicates those functions for desk-side operation. The unit is HDCP 1.4 compliant, so protected streams from consoles or media players pass through. A common issue is exceeding the 10.2 Gbps bandwidth limit when driving 4K at higher refresh rates.

Sustained Multi-Source Operation

During continuous use the switch maintains seamless transitions between the ten viewing modes without blanking. The aluminium enclosure dissipates heat from the scaling engine, keeping output stable over long shifts. Maximum supported resolution is 4096 x 2160 at 30 Hz with 36-bit colour depth. The device is not suited for applications that require 4K at 60 Hz or HDR metadata pass-through.

Highlights

  • Displays nine sources simultaneously with ten viewing modes
  • Switches nine HDMI inputs seamlessly without signal interruption
  • Supports 4K resolution up to 4096 x 2160 at 30Hz
  • Includes IR remote and front-panel buttons for flexible control
  • Compact 8.39 x 3.99 x 0.98 inch design fits any setup

Specifications

BrandESTONE
SeriesOZQF-1
ModelOZQF-1
Part NumberOZQF-1
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports9
AudioYes
Specifications9x1 HDMI Seamless Multiviewer
Support 9 HDMI input, 1 HDMI output;
Support HDMI 1.4 and HDCP 1.4
Support 9 channels HDMI signal screen segmentation;
Support 9 channels HDMI signal seamless switching;
Support resolution up to 4K@30Hz/1080@60Hz;
Support IR control and Panel control;
Input Connector9 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4096 x 2160
Features4K HDMI 9x1 Multi-viewer is a high performance with nine HD screen segmentation and seamless switching output switch. It can display 9 HD digital video signal on the same screen, and has a variety of video segmentation, seamless switching 9 HD input signal synchronously.
?

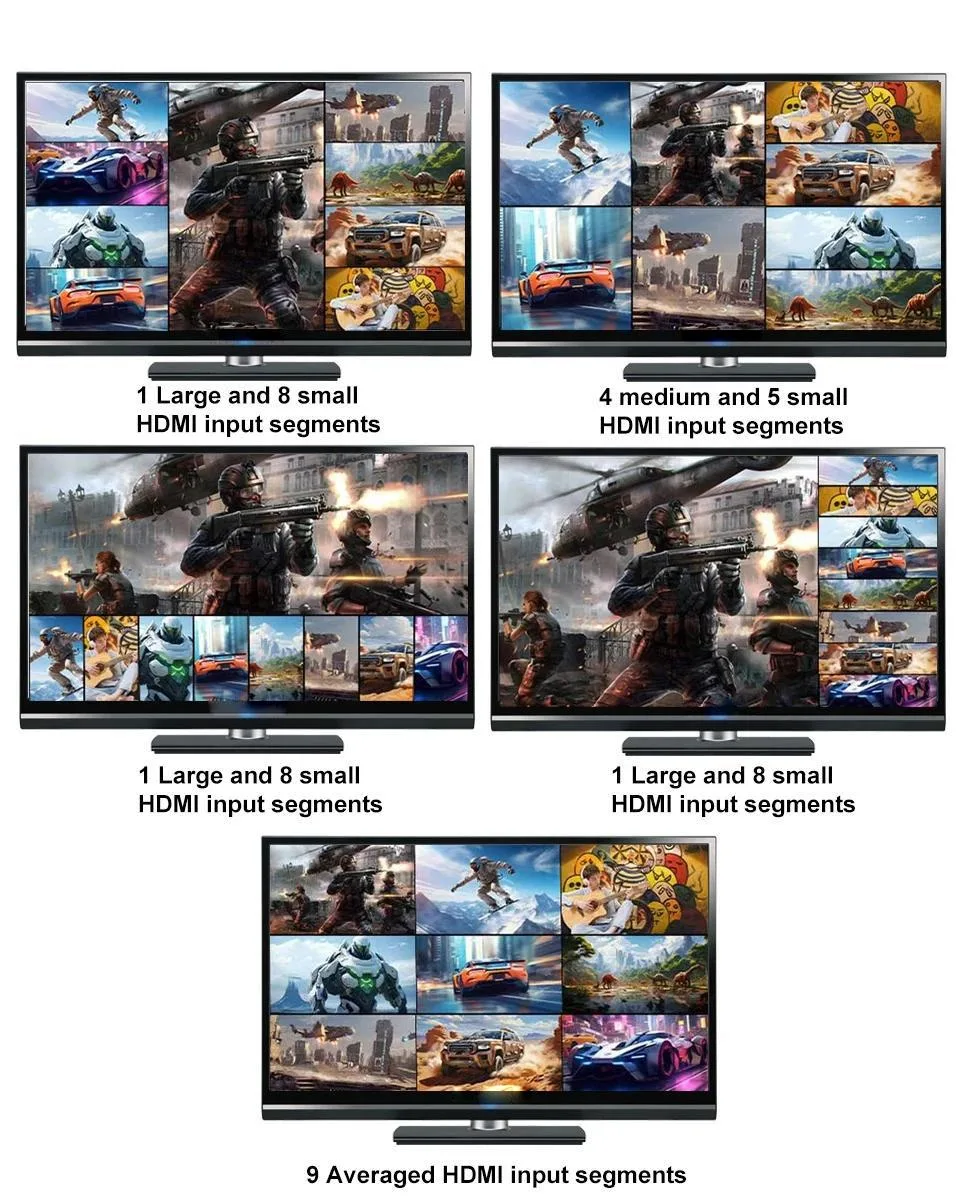

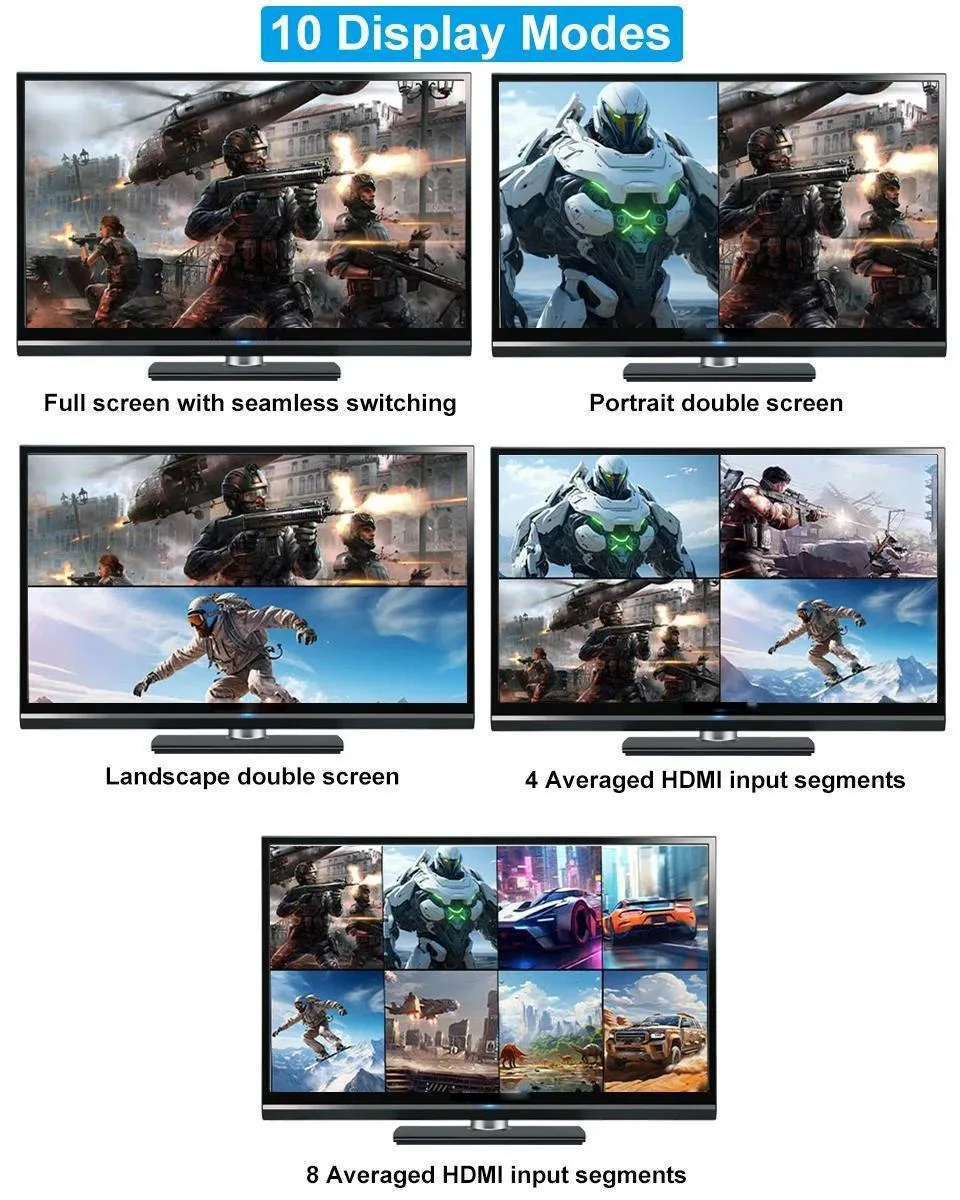

10 Ways Viewing Screen:9X1 Nine MultiView Selector support 10 viewing modes. You could see 9 HDMI input sources screen on one monitor by 10 ways, also can only see only one HDMI input source by full screen;
?
Max up to 4K 30Hz Resolution: HDMI Multiple display Switch box support 3840x2160@30Hz, 1080P@60Hz,1080i,720
Dimensions8.39 x 3.99 x 0.98 inches
Weight0.85 pounds
Package Quantity1
Package ContentsHDMI Multiviewer x1, IR Remote x1, DC Power adapter x1, User Manual x1 with hassle-free 12-months warranty and lifetime technical support.

Questions about this item

How do I confirm the ESTONE OZQF-1 is switching all nine sources seamlessly after setup?

Connect up to nine HDMI devices, power the unit, then cycle through the ten display modes using the front buttons or IR remote; each input should appear instantly without signal loss or flicker on the 4K output.

What accessories are included with the ESTONE OZQF-1 and what must I provide?

The box contains the multiviewer, IR remote, DC power adapter and user manual; you must supply nine HDMI cables for the inputs and one HDMI cable for the display.

Which resolution mode should I select for a 4K monitor running at 30 Hz?

Choose the 3840 x 2160 at 30 Hz setting; the switch supports this maximum 4K rate along with 1080p at 60 Hz and lower resolutions such as 720p or 480p.
