Black rectangular HDMI switch with four input ports and multiple audio outputs

ESTONE

ESTONE OZQ9 4x1 HDMI Switch Audio Extractor ARC 4K 60Hz

SKU CH-MY4J-MRE44

Four HDMI sources connect to one display at 4K 60 Hz with audio extracted via optical, coaxial or 3.5 mm outputs

  • TypeHDMI Switchers
  • Changer TypeHDMI Switch/Extender
  • ColorBlack
  • Ports4
  • Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC f
  • Input Connector4 x HDMI
  • Switch four sources to one display with 4K 60 Hz support
  • Extract audio via optical, coaxial or 3.5 mm jack outputs
  • HDMI 2.0b and HDCP 2.2 compliant for protected content
  • IR remote included for convenient source selection
  • Compact 5.91 x 2.36 x 0.79 inch design fits tight spaces

4K HDMI Switch with Audio Extraction

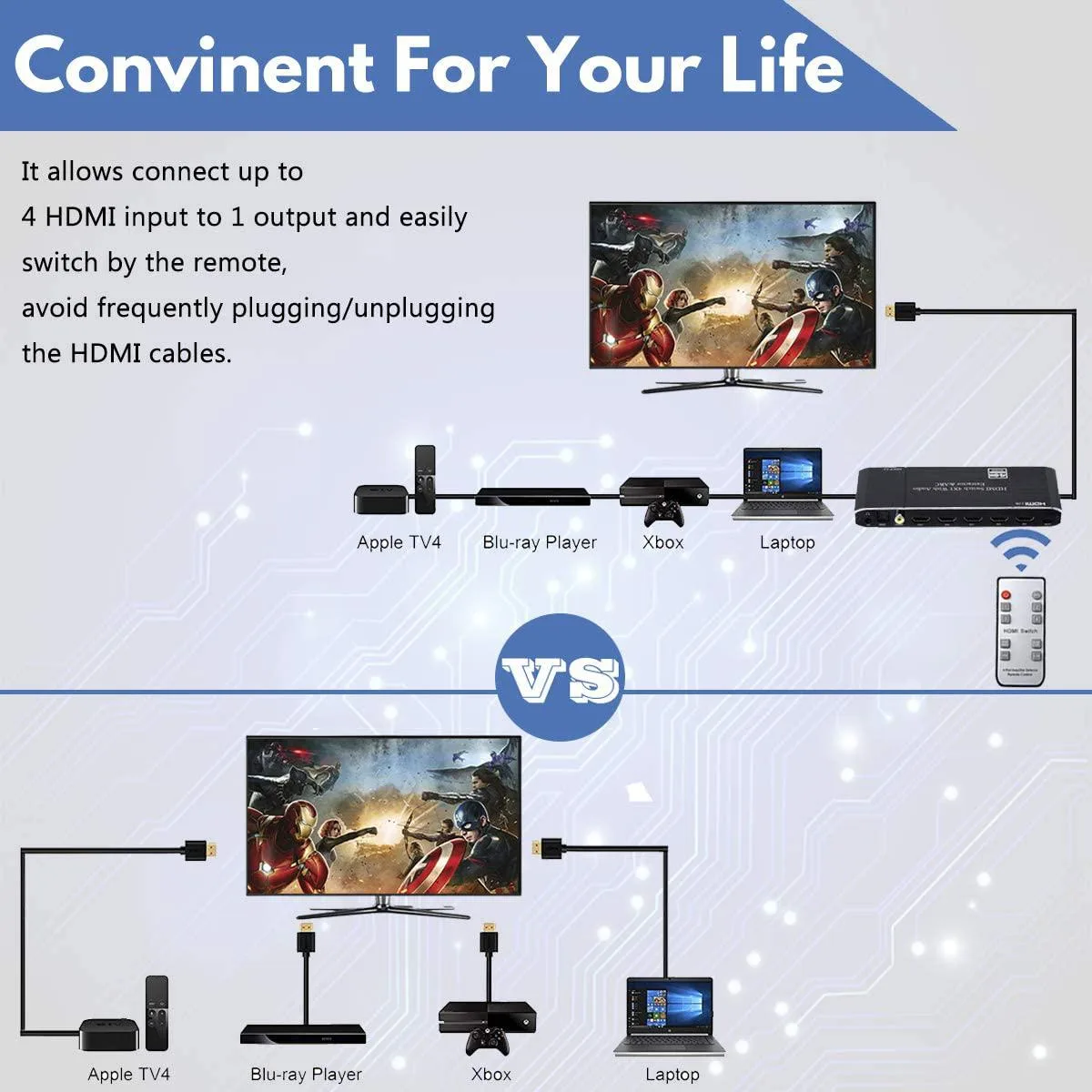

The ESTONE OZQ9 is a four-input, one-output HDMI switch that adds audio extraction through optical, coaxial and 3.5 mm analogue outputs. It suits anyone connecting several 4K sources to a single display while sending sound to a separate amplifier or soundbar. The ARC-enabled HDMI output also returns audio from a compatible TV back to the extractor ports.

Thermals and Power in Normal Use

The unit ships with a 5 V 1 A DC adapter, so power draw stays low and no active cooling is required. In typical operation the aluminium enclosure remains cool to the touch and the device runs silently. No fan noise or thermal throttling occurs during extended 4K 60 Hz sessions.

Bundled Accessories and Software Impact

A credit-card-style IR remote lets you switch inputs from the sofa without touching the box. The included 5 V power supply is mandatory for reliable 18.5 Gbps bandwidth at 4K 60 Hz; without it the switch may fall back to lower resolutions. No software or drivers are needed — the device is purely hardware-based.

Highlights

  • Switch four sources to one display with 4K 60 Hz support
  • Extract audio via optical, coaxial or 3.5 mm jack outputs
  • HDMI 2.0b and HDCP 2.2 compliant for protected content
  • IR remote included for convenient source selection
  • Compact 5.91 x 2.36 x 0.79 inch design fits tight spaces

Specifications

BrandESTONE
SeriesOZQ9
ModelOZQ9
Part NumberOZQ9
TypeHDMI Switchers
Changer TypeHDMI Switch/Extender
ColorBlack
Ports4

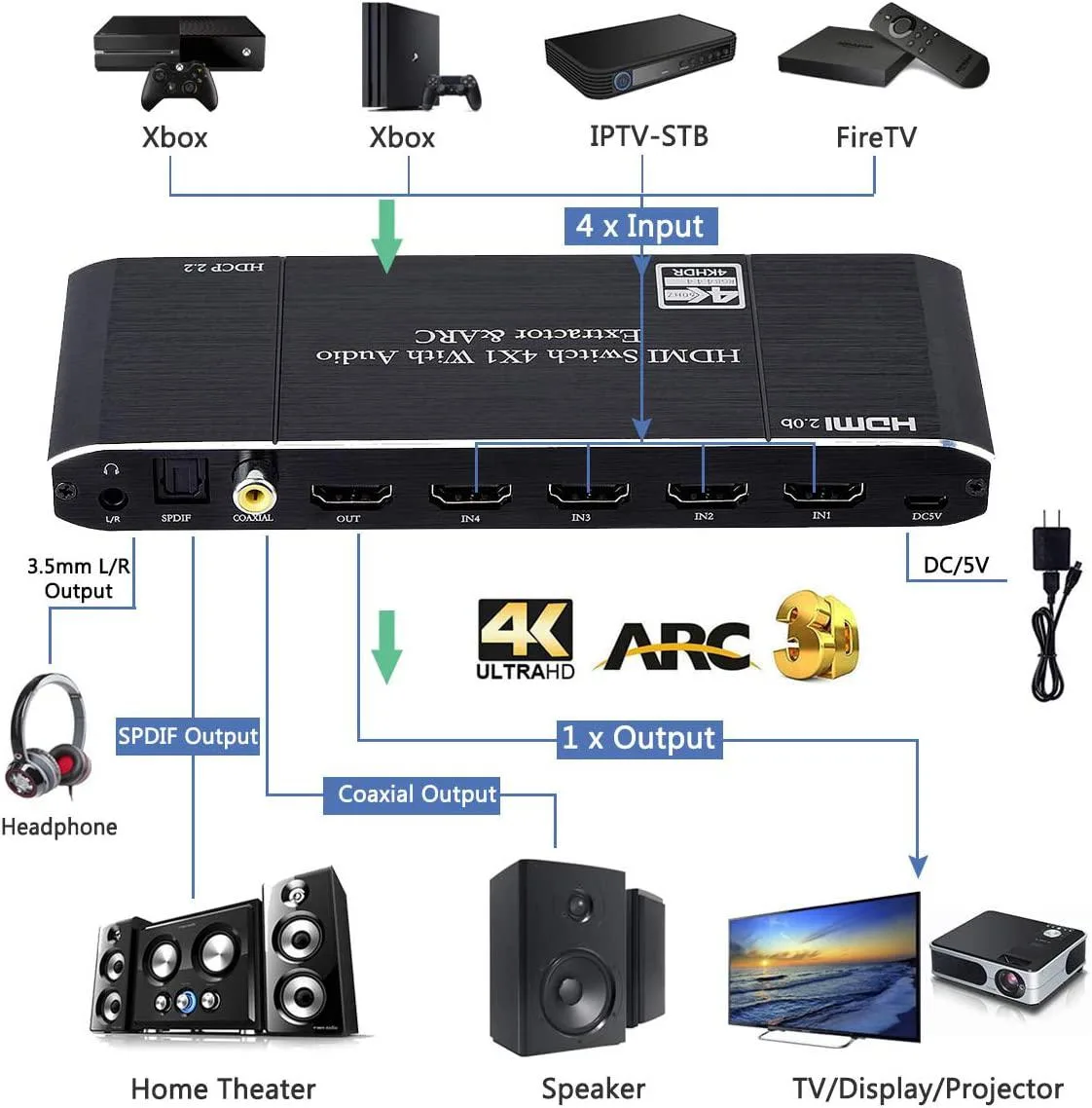

Specifications1.There are 4 ports HDMI input,1 port HDMI output with ARC function, Toslink output, Coaxial, 3.5mm Jack output.
2.Coaxial and Toslink port output support audio return function (ARC)
3.3.5mm Jack port output and R/L support audio extract function ,it does not support ARC
4.support 480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@60Hz with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports Dolb
Input Connector4 x HDMI
Output Connector1 x HDMI
Maximum Resolutions4K@60Hz
Bandwidth18.5Gbps/600MHZ
FeaturesThere are 4 ports HDMI input,1 port HDMI output, Toslink output, Coaxial Output, L/R output HDMI output port with ARC function
Support 480i / 480p / 576i / 576p / 720p@50/60Hz / 1080p@50/60Hz / 4Kx2K@20/30Hz/60Hz with 36bit RGB / YcbCR 4:4:4 / (4k@60hz RGB8:8:8)
Max bandwidth per channel: 600MHz ; Max baud rate per display: 18Gbps; Compliant with HDMI2.0b, HDCP2.2 /1 .4 /1.3 /1.2/1.1
HDMI input and output hdmi 2.0b cables can reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters if your Resolution up to 4K@30HZ
Support 24/30/36 bit deep color per channel (Kin
Dimensions5.91 x 2.36 x 0.79 inches
Weight11.9 ounces
Package Quantity1
Package Contents1.HDMI Switch 4x1 with audio extractor
2.5V/1A DC Power adapter x 1
3.IR Remote x 1(Battery is not included)
4.User manualx1

Questions about this item

How do I connect the 5 V 1 A power adapter and the four HDMI sources so the switcher passes 4K 60 Hz without signal drop?

Plug the included 5 V 1 A DC adapter into the unit first, then connect up to four HDMI 2.0b sources to the input ports and the display to the HDMI output; use certified HDMI 2.0b cables no longer than 3 metres for 4K 60 Hz or 5 metres for 4K 30 Hz to stay within the 18.5 Gbps bandwidth limit.

Which audio output will need attention first — the optical Toslink, the coaxial or the 3.5 mm jack — and what should I check?

The optical Toslink and coaxial ports handle ARC return audio while the 3.5 mm jack and L/R outputs only extract audio; inspect the Toslink cable for dust or bent tips if surround formats such as Dolby TrueHD or DTS-HD stop passing through.

At what cable length does 4K 60 Hz 36-bit colour start to fail on the HDMI output?

With HDMI 2.0b cables the 18.5 Gbps link supports 4K 60 Hz up to 3 metres; beyond that distance the 600 MHz per-channel bandwidth drops out and you must lower the resolution to 4K 30 Hz to reach 5 metres.
